RAM Mounts

RAM Marine Lowrance Electronics Base - with Rail Base - Elite / Mark-4

RAM Marine Lowrance Electronics Base - with Rail Base - Elite / Mark-4

SKU:RAM-B-149Z-LO11-NAV1-v

Regular price $105.83 NZD
Regular price Sale price $105.83 NZD
Sale Sold out
Tax included. Shipping calculated at checkout.
View full details

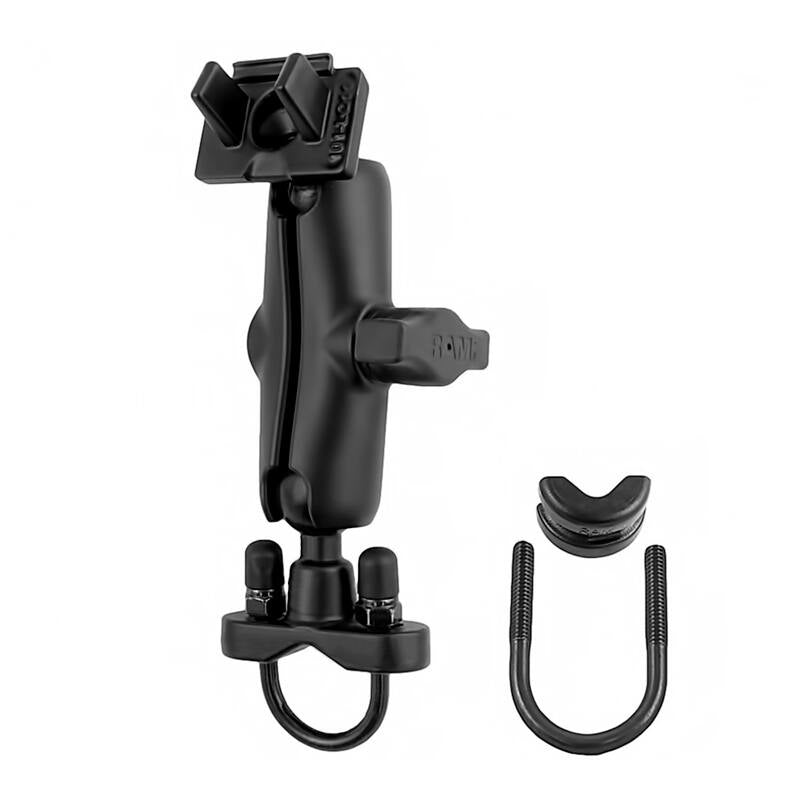

RAM-B-149Z-LO11-NAV1 RAM® Handlebar U-Bolt Double Ball Mount for Lowrance Elite-5 + More


Features


* A complete bolt-on heavy duty mount for Lowrance fishfinders
* Adaptor inserts directly to the back of Lowrance Elite-3, Elite-4 Ti and MARK-4 Fishfinders
* U-Bolt base will suit any rail or post 12.7mm to 31.83mm in diameter
* Made from Powder Coated Marine Grade Aluminium for long life in harsh environments


The RAM-B-149Z-LO11-NAV1 includes a B size 1" diameter rubber ball and adapter that inserts directly to the back of Lowrance Elite 3 / 4 and Mark-4 Fishfinders. The quick release mechanism in the Lowrance is fully functional, allowing you to remove or transfer your Fishfinder in seconds. Also included is a zinc coated metal u-bolt that accommodates rails from 12.7mm to 31.83mm (0.50" to 1.25") in diameter. Included are black cover caps to be placed over the exposed ends of the u-bolt and a composite adapter that can narrow the rail to a minimum width of 12.7mm (0.5")

Compatible Devices

Lowrance
Elite 3x
Elite 3x DSI
Elite-4
Elite-4 DSI
Elite-4 Gold
Elite-4x
Elite-4x DSI
Elite-4m
Mark-4
Additional Information: This product is not compatible with the standard Lowrance Elite-7.


Hardware Included
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer

Clamp Range:
12.7mm to 31.83mm (0.50" to 1.25")

Arm Overall Length:
94mm (3.69")

Arm Socket-to-Socket Length
76mm (3")

Ball/Socket Size
B Size (1")

Weight Capacity
Standard Use: 907 grams (2 lbs)
Heavy-Duty Use: 454 grams (1 lb)


Materials
Marine-grade aluminium

Weight
363 grams (0.8 lbs.)


Components:
RAM-B-231ZU RAIL BASE W/ U-BOLT FOR 13 - 32MM BARS

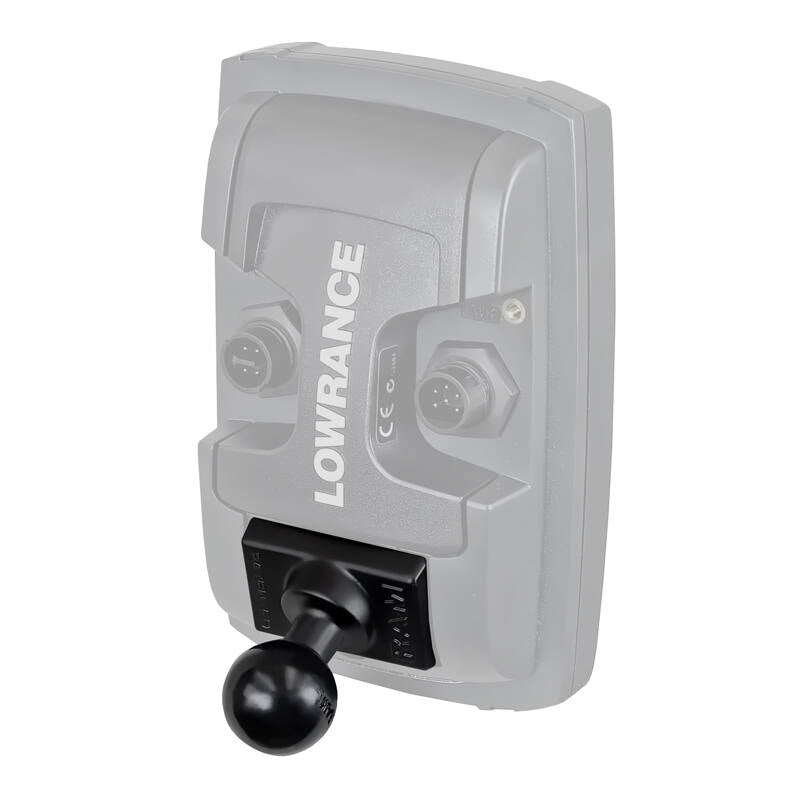

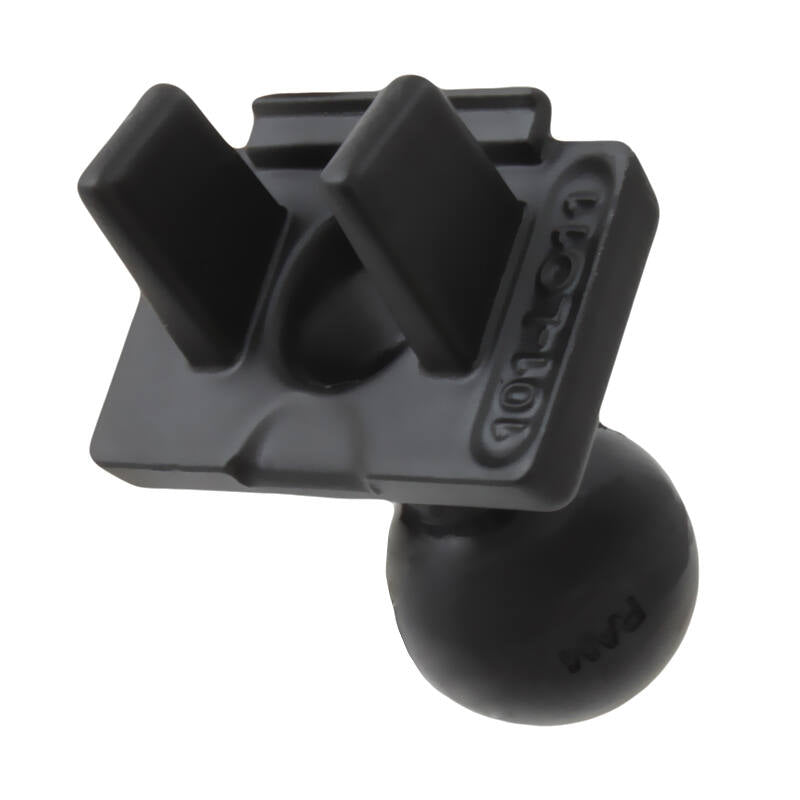

RAM-B-202U-LO11 QUICK RELEASE ELITE.3 / 4
RAM-B-201U DOUBLE SOCKET ARM FOR 1" BALL
