RAM-202U-RYM1 RAM® Ball Adapter with Hardware for Raymarine Dragonfly
Features
* 2.5" round plate connects to RAM® device holders containing the universal AMPS hole pattern

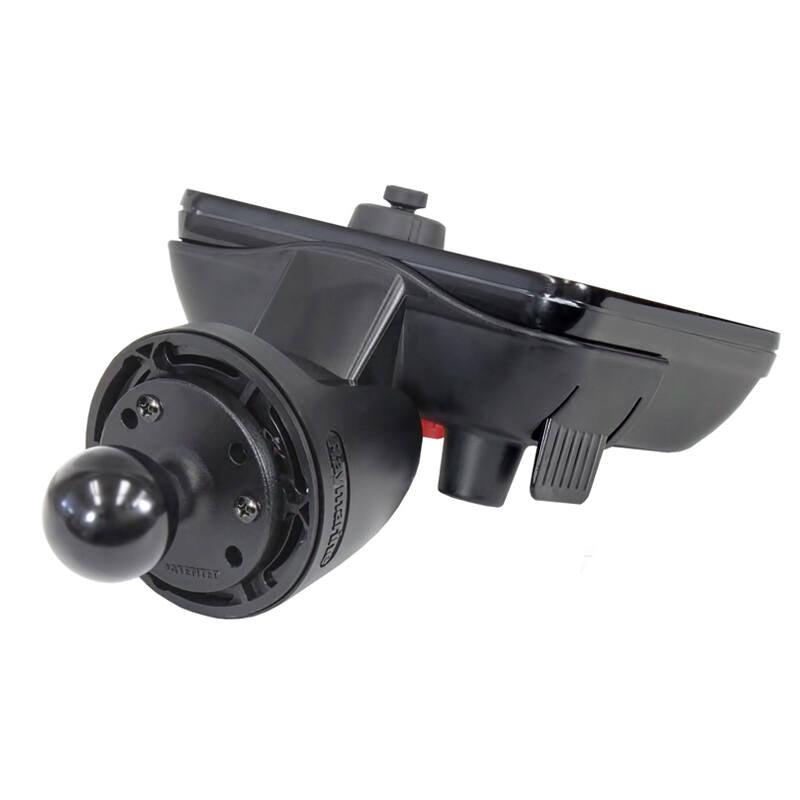

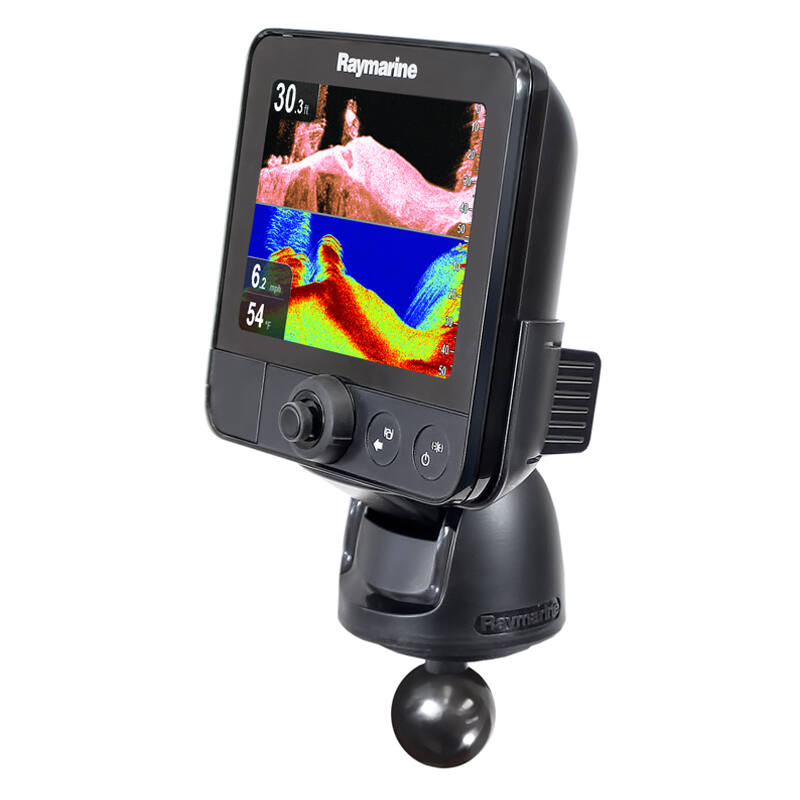

* Hardware included that will connect the RAM-202U-RYM1 to the bottom of all Raymarine® Dragonfly™ Sonar/GPS devices.
* C size 1.5" RAM® rubber ball allows for connection to any C size RAM® double socket arm
* RAM® ball and socket technology allows for near-infinite adjustability
* Made of powder-coated, marine-grade aluminium for durability and reliability in the most demanding environments
* Backed by a lifetime warranty

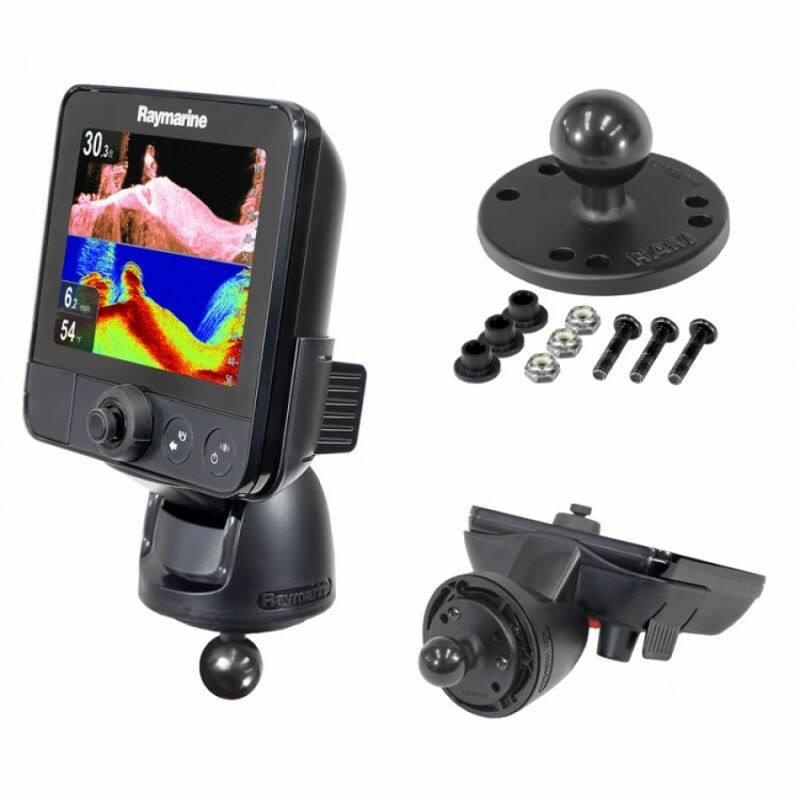

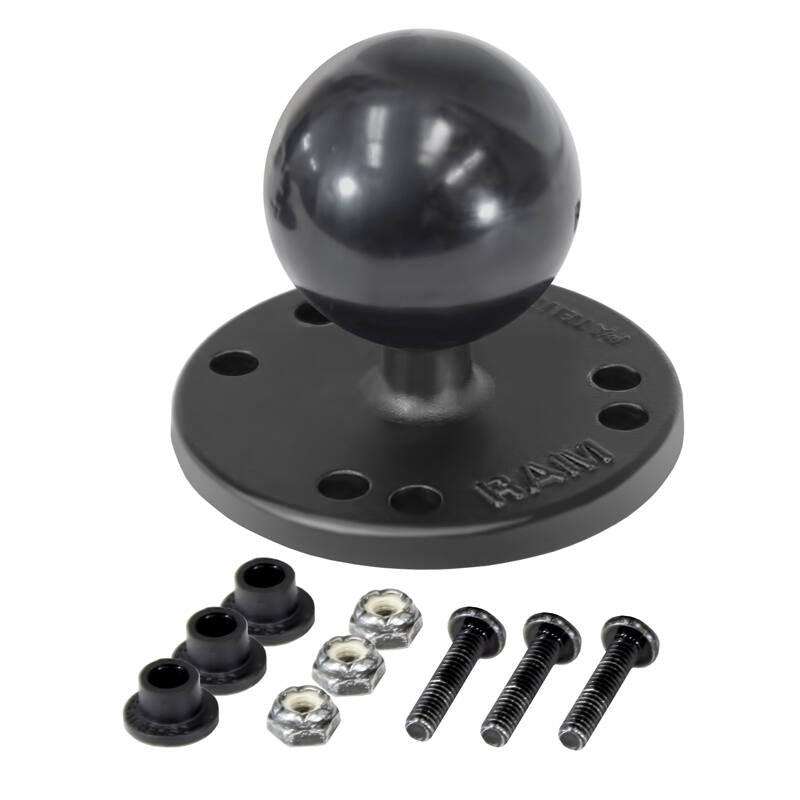

The RAM-202U-RYM1 consists of a 1.5" diameter rubber ball connected to a flat 2.5" diameter base. The base has pre-drilled holes, including the universal AMPs hole pattern. Included are (3 quantity) (#8-32 x 3/4" PH PD Mach Screws) and (3 quantity) (#8-32 SS Nylock Nuts) that will connect the RAM-202U-RYM1 to the bottom of all Raymarine® Dragonfly™ Sonar/GPS devices.
HARDWARE INCLUDED
(3) #8-32 x 3/4" Machine Screws
(3) #8-32 Nylock Nuts
(3) .312" x .187" Shoulder Washers
HOLE PATTERN
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
BALL/SOCKET SIZE
C Size (1.5")
Weight Capacity
Standard Use: 1.814kg (4 lbs)
Heavy-Duty Use: 1.36kg (3 lbs)
MATERIALS
Marine-grade aluminium
WEIGHT
113 grams / 0.251 lbs.
COMPATIBLE DEVICES
Raymarine
Dragonfly
