RAM-B-202-RYM1 RAM® Ball Adapter with Hardware for Raymarine Dragonfly - B Size
Features
* 63mm round plate with hardware to connect to the Raymarine Dragonfly
* Included B size 1" RAM® rubber ball allows for connection to any B size RAM® double socket arm
* RAM ball and socket technology allows for near-infinite adjustability
* Made of powder-coated, marine-grade aluminium for durability and reliability in the most demanding environments
* Backed by a lifetime warranty

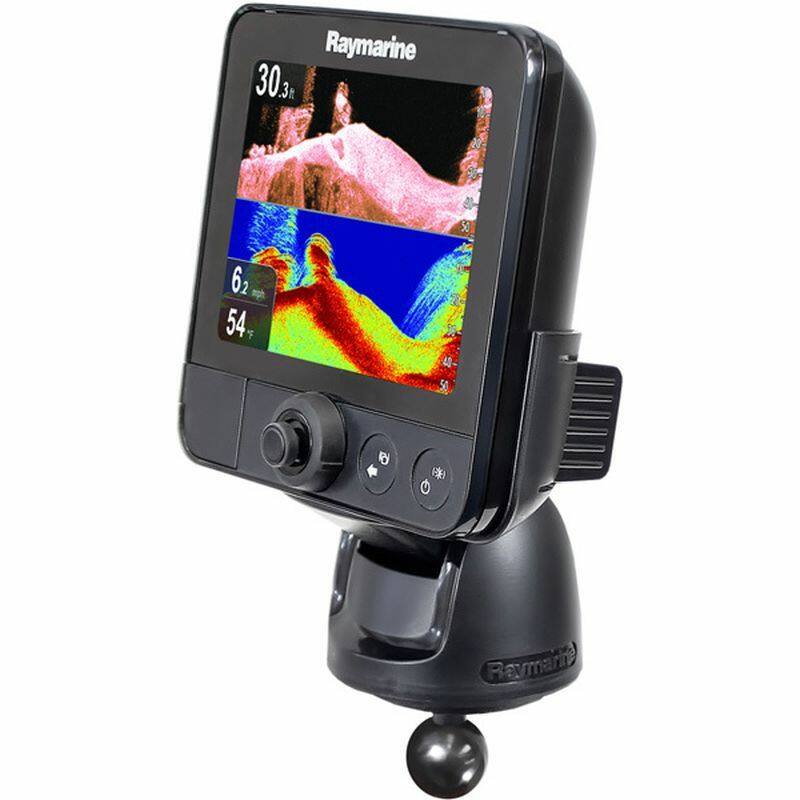

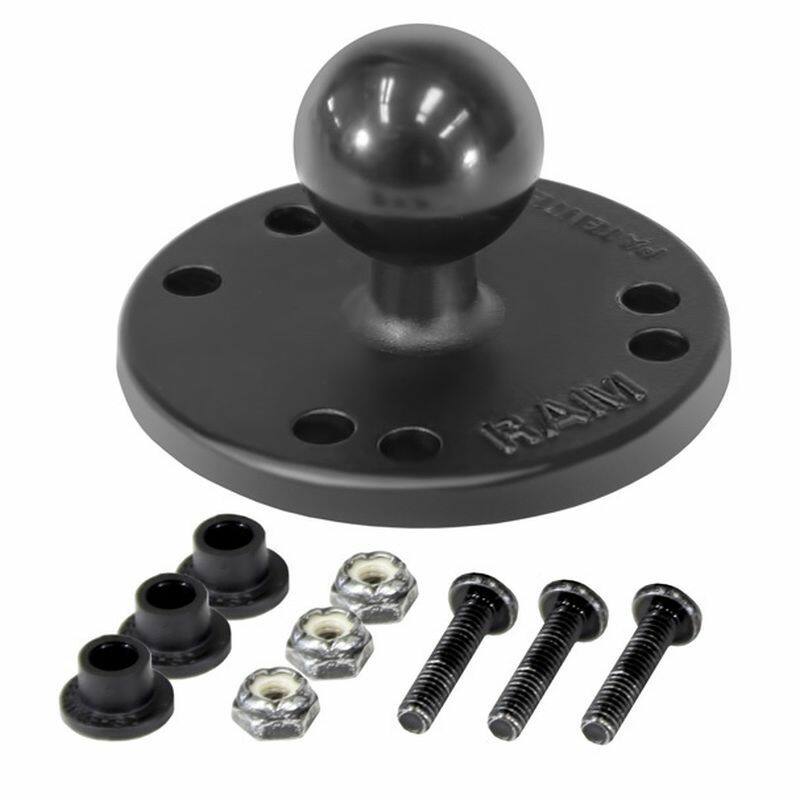

This mount for Raymarine Dragonfly sounders consists of a 1" diameter rubber ball connected to a flat 63mm diameter base. The base has pre-drilled holes, including the universal AMPs hole pattern.
Included are (3 quantity) #8-32 x 3/4" PH PD Mach Screws and (3 quantity) #8-32 SS Nylock Nuts that will connect the RAM-B-202U-RYM1 to the bottom of all Raymarine Dragonfly Sonar/GPS devices.
Compatible Devices
Raymarine
Dragonfly

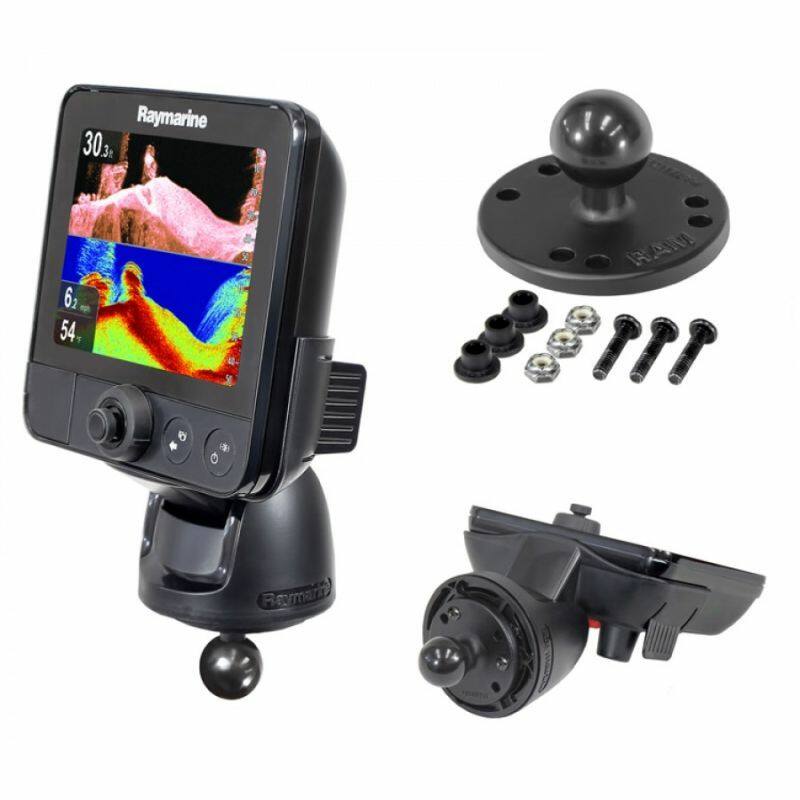

Hardware included
(3) #8-32 x 3/4" Machine Screws
(3) #8-32 Nylock Nuts
(3) .312" x .187" Shoulder Washers
Material:
Powder Coated Marine Grade Aluminium
Ball Size:
1" Rubber Ball "B" Size
Weight Capacity
Standard Use:
907 grams (2 lbs)
Heavy-Duty Use:
454 grams (1 lb)
