RAM Mounts

RAM Marine Rectangular Plate Adaptor for Swing Arm Mounts

RAM Marine Rectangular Plate Adaptor for Swing Arm Mounts

SKU:RAM-111BTU

Regular price $43.96 NZD
Regular price Sale price $43.96 NZD
Sale Sold out
Tax included. Shipping calculated at checkout.
View full details

RAM-111BTU RAM® Rectangular Plate Adapter for Swing Arm Mounts


Features

* 6.25" x 2" fishfinder and chartplotter plate adapter for RAM® marine swing arm mount
* Adaptor plate compatible with select Garmin, Lowrance, Raymarine and Humminbird Fishfinders and GPS chartplotters
* Plate adaptor works with CB radios, Ham radios and other gimbal brackets for radio mounting
* Backed by a lifetime warranty

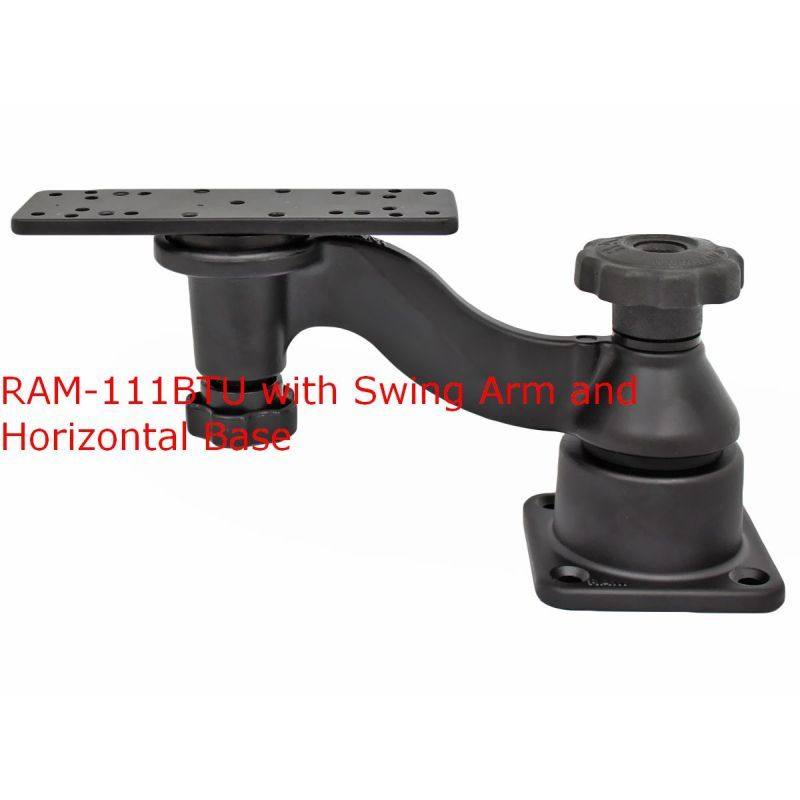

The RAM-111BTU universal base has a short post connected at right angles to a flat 158.7mm x 50.8mm (6.25 x 2 inch) rectangular base. The base has many different combinations of pre-drilled holes which will match up to many electronic devices and mounts, including Marine GPS, CB Radios, Ham Radios, Gimbal Brackets and more. The small post on the base is designed to connect to the RAM-109 series arms. Included on the end of the post is a tightening knob for use when installed on the compatible RAM-109 series arm.

The plate is a universal mounting bracket with a selection of mounting hole locations. In certain applications additional holes may need to be drilled for proper fit with your electronic device.


Compatible Devices Include:

Garmin
echoMAP Chirp 72-95 Series
ECHOMAP Plus 72-97 Series
ECHOMAP UHD 62-95 Series
ECHOMAP Ultra 102sv
ECHOMAP Ultra 106sv
GPSMAP 722
GPSMAP 722xs
GPSMAP 723
GPSMAP 723xsv
GPSMAP 742
GPSMAP 742xs
GPSMAP 743
GPSMAP 743xsv
GPSMAP 8410
GPSMAP 8410xsv
GPSMAP 8412
GPSMAP 8412xsv
GPSMAP 8416
GPSMAP 8416xsv
GPSMAP 8610
GPSMAP 8610xsv
GPSMAP 8612
GPSMAP 8612xsv
GPSMAP 8616
GPSMAP 8616xsv
GPSMAP 922
GPSMAP 922xs
GPSMAP 923
GPSMAP 923xsv
GPSMAP 942
GPSMAP 942xs
GPSMAP 943
GPSMAP 943xsv
GPSMAP 1223
GPSMAP 1223xsv
GPSMAP 1243
GPSMAP 1243xsv
Striker Plus 5cv
Striker Vivid 5cv
Striker Plus 7cv
Striker Plus 7sv
Striker Vivid 5cv
Striker Vivid 7cv
Striker Vivid 7sv
Striker Plus 9sv
Striker Vivid 9sv
Fishfinders and GPS Chartplotters

Humminbird
Apex 13
Apex 16
Helix 8
Helix 9
Helix 10
Helix 12
Helix 15
Solix 15
Fishfinders and GPS Chartplotters

Lowrance
Elite FS 7
HDS Carbon 7
HDS LIVE 7
HDS LIVE 9
HDS LIVE 12
Hook Reveal 7 Series
Hook Reveal 9 Series
HOOK-9
Fishfinders and GPS Chartplotters

Raymarine
Fishfinders and GPS Chartplotters


Material:
Powder Coated Marine Grade Aluminium

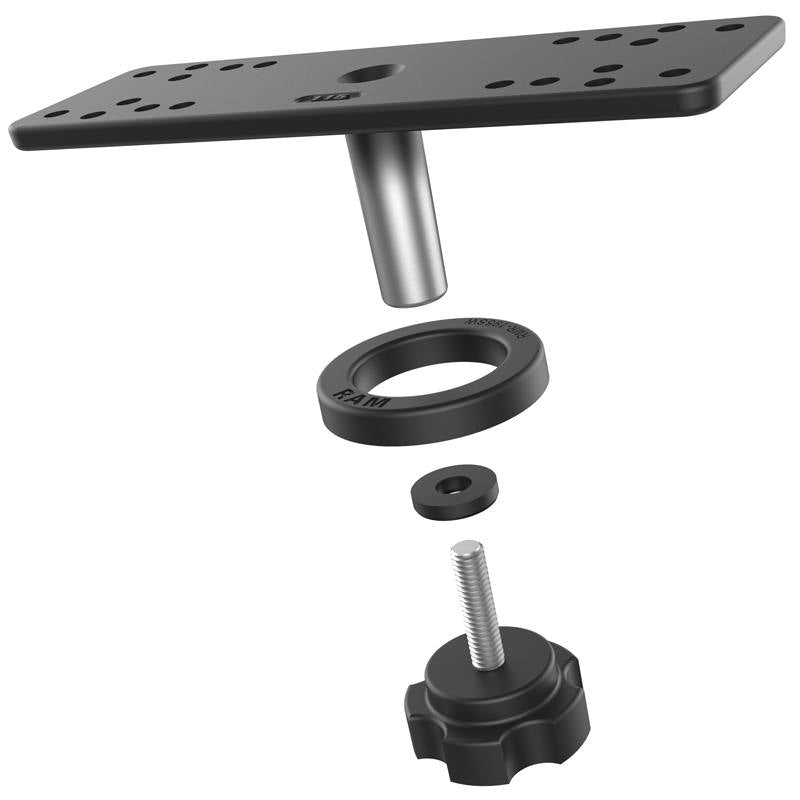

Hardware Included
(1) 2" Nylon Washer
(1) 1.7" Nylon Washer
(1) 5/16" Stainless Steel Washer
(1) .77" Nylon Washer
(1) 5/16"-18 x 1.25" Knob

Ball Size:
C Size 1.5" Rubber Ball

Weight:
195 grams / 0.43 lbs.

PLATE SIZE
158.7mm x 50.8mm (6.25" x 2")

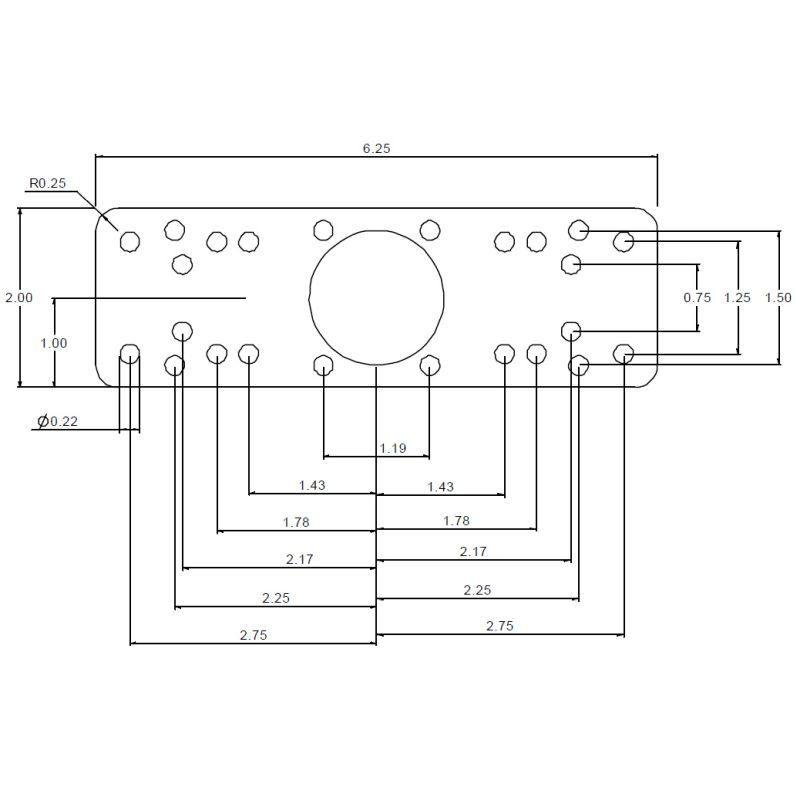

HOLE PATTERN
See Drawing - In certain applications additional holes may need to be drilled for proper fit with your electronic device.
