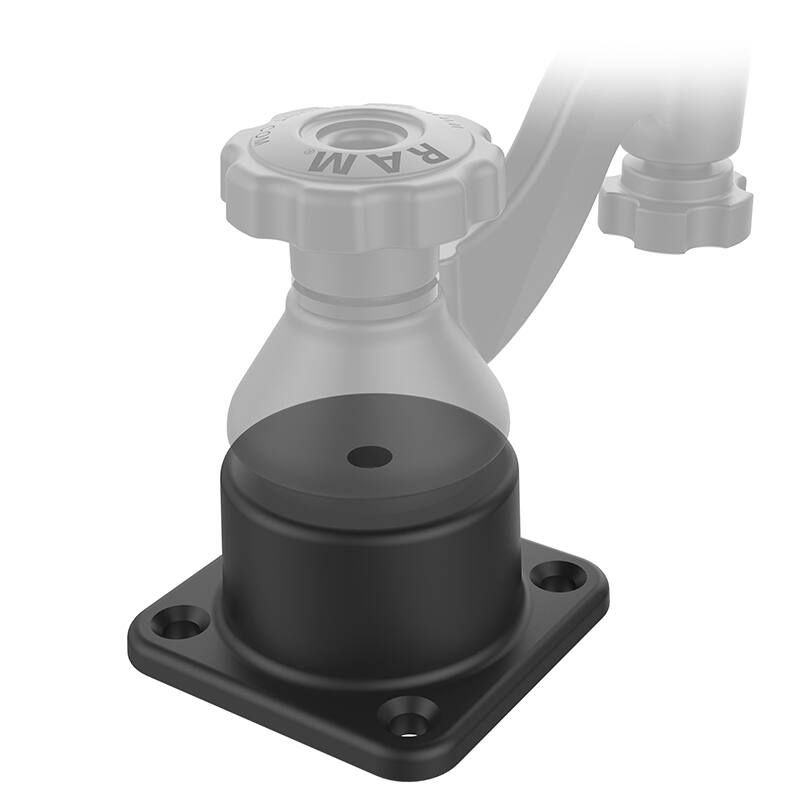

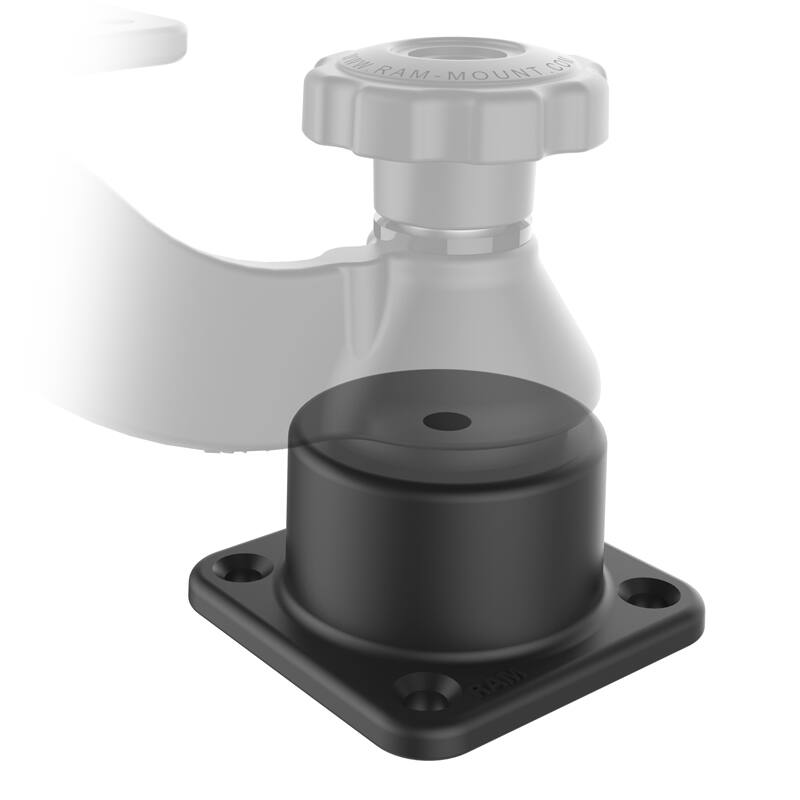

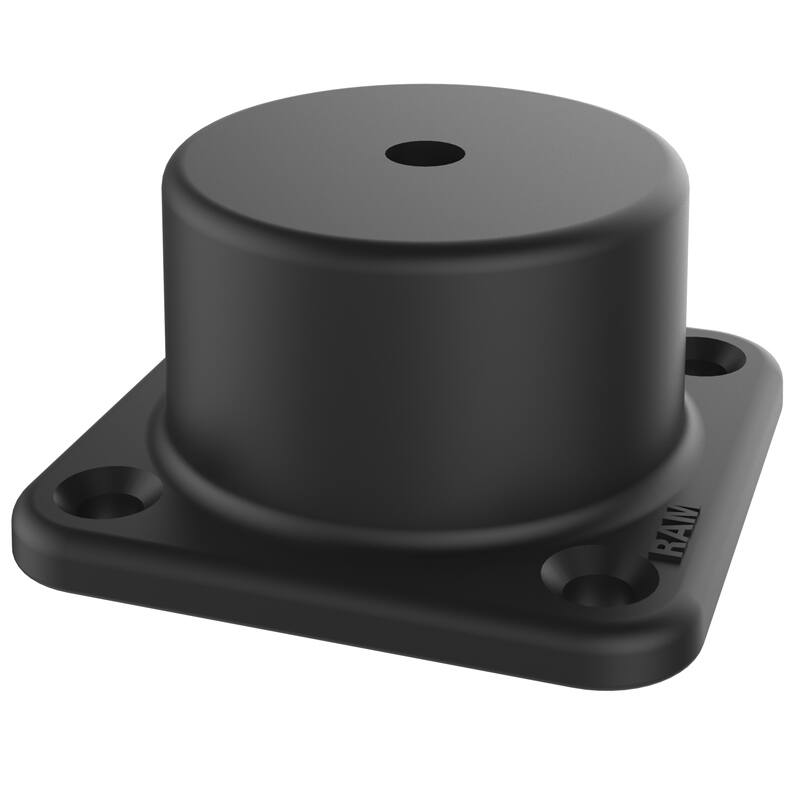

The RAM-109H-BU is a drill-down base for mounting a RAM® 109 single or double swing arm to a horizontal surface. Multiple pre-drilled holes let you bolt it down for a stable, permanent install, and it is made from marine-grade aluminium for life on the water.
Key Features
Mounts RAM® 109 single and double swing arms to a horizontal surface
Drill-down base with multiple pre-drilled holes for a stable, permanent install
Powder-coated marine-grade aluminium for corrosion resistance
Backed by the RAM® lifetime warranty
Works With
Connects to RAM® 109 swing arms such as the RAM-109-1APU.

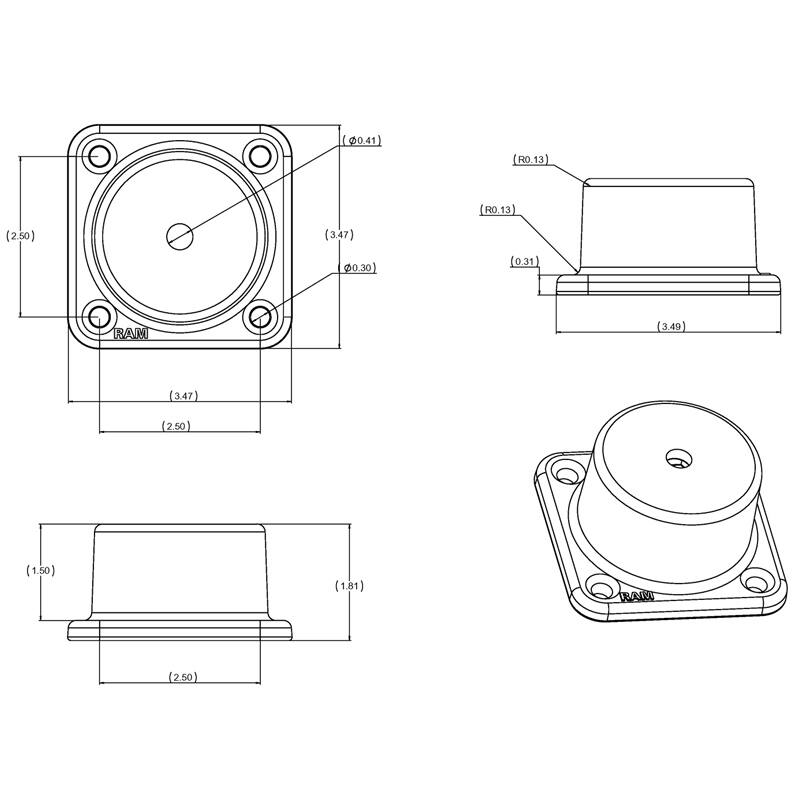

Dimensions & Specifications
Plate size: 88mm x 88mm (3.47" x 3.47")
Hole pattern: 63.5mm x 63.5mm (2.5" x 2.5")
Material: marine-grade aluminium
Weight: 272g (0.6 lbs)
FAQs
Is it in stock? Yes. This is held in our Auckland warehouse and normally dispatches within one business day of your order.
