RAM Marine Swing Arm - Double Extension with Socket - 305mm length

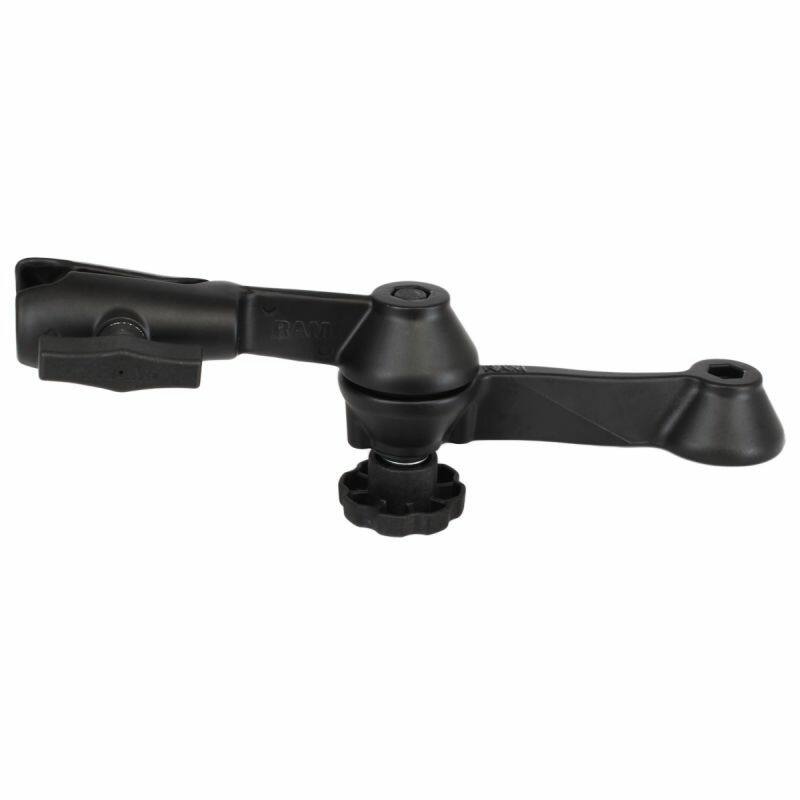

RAM-VB-109-4U RAM® 12" Double Swing Arm with Socket

The RAM-VB-109-4U is a 305mm (12") double swing arm made from two 152mm (6") arms, finished with a C-size (1.5") socket that accepts any 1.5" ball base. The two arms pivot on a bolt and knob, so you can position the screen and lock it in place. It mates directly to the RAM-109V-BU vertical base. Made from marine-grade aluminium for life on the water.

Key Features

• Two articulating 152mm (6") arms giving 305mm (12") of total reach
• C-size (1.5") socket connects to a variety of RAM® C series plates
• Bolt and knob pivot: loosen to position, tighten to lock
• Mates directly to the RAM-109V-BU vertical base
• Powder-coated marine-grade aluminium for corrosion resistance
• Backed by the RAM® lifetime warranty

Works With

Mates directly to the RAM-109V-BU vertical base. The C-size socket accepts any base or cradle with a 1.5" RAM® ball, such as the RAM-111BU universal marine plate.

Dimensions & Specifications

• Total arm reach: 305mm (12")
• Socket / ball size: C size (1.5")
• Material: marine-grade aluminium
• Weight: 848g (1.87 lbs)
• Weight capacity: 1.81kg (4 lbs) standard use, 1.36kg (3 lbs) heavy-duty use

What's in the Kit

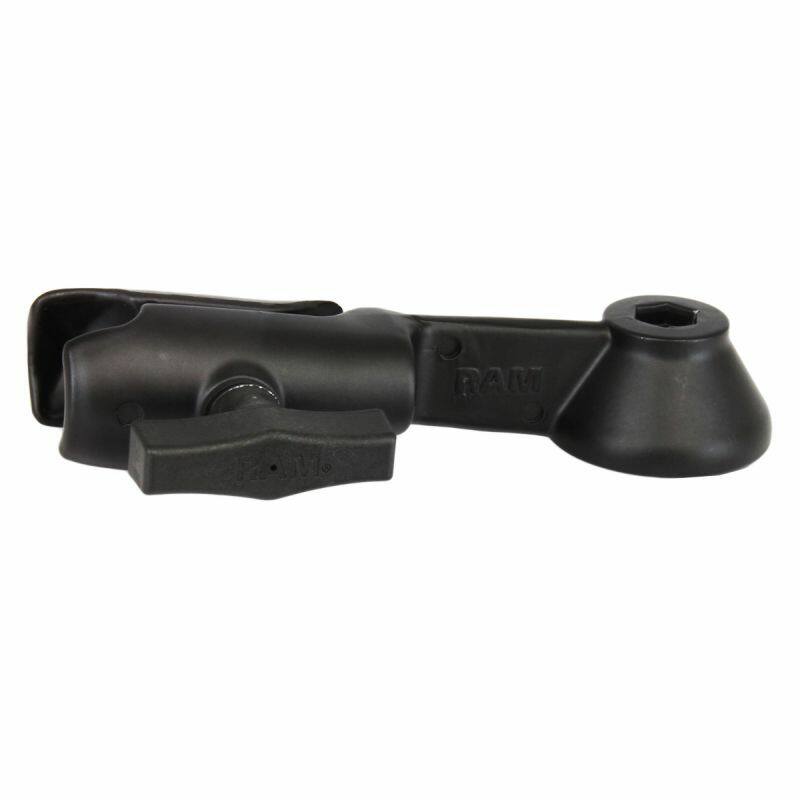

• RAM-VB-109-2U 6" swing arm extension with socket

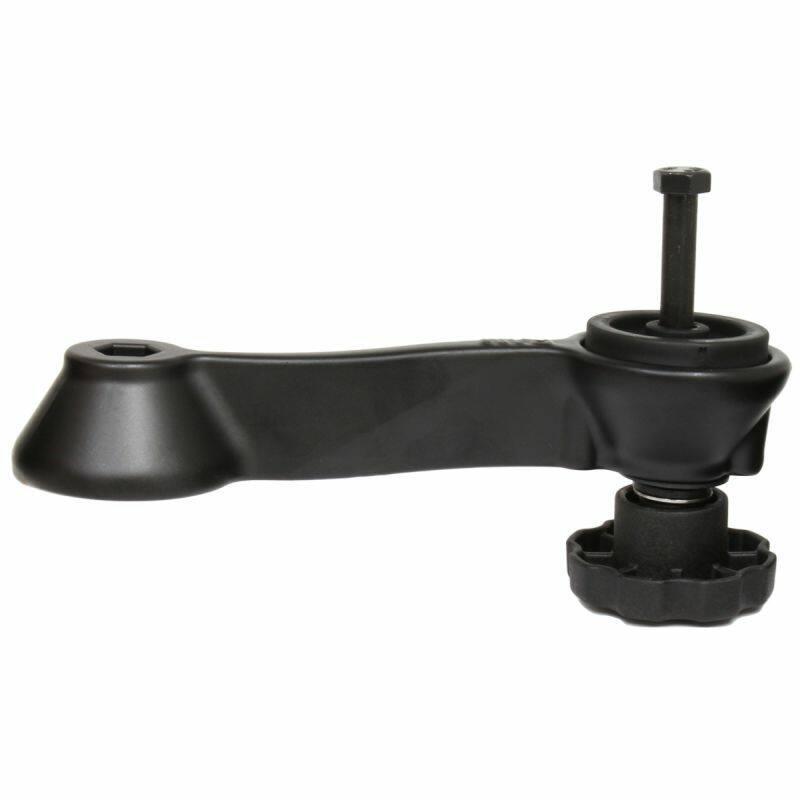

• RAM-VB-109-3U 6" swing arm extension

FAQs

Is it in stock? Yes. This is held in our Auckland warehouse and normally dispatches within one business day of your order.
