RAM-109H-1U RAM® Horizontal 12" Swing Arm Mount for Fishfinders & Plotters

Features

* Universal drill-down fishfinder mounting solution features 152mm / 6" swing arm
* Ideal for device placement on a horizontal surface
* Two pivot points allow for complete 360-degree rotation
* Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
* Backed by a lifetime warranty

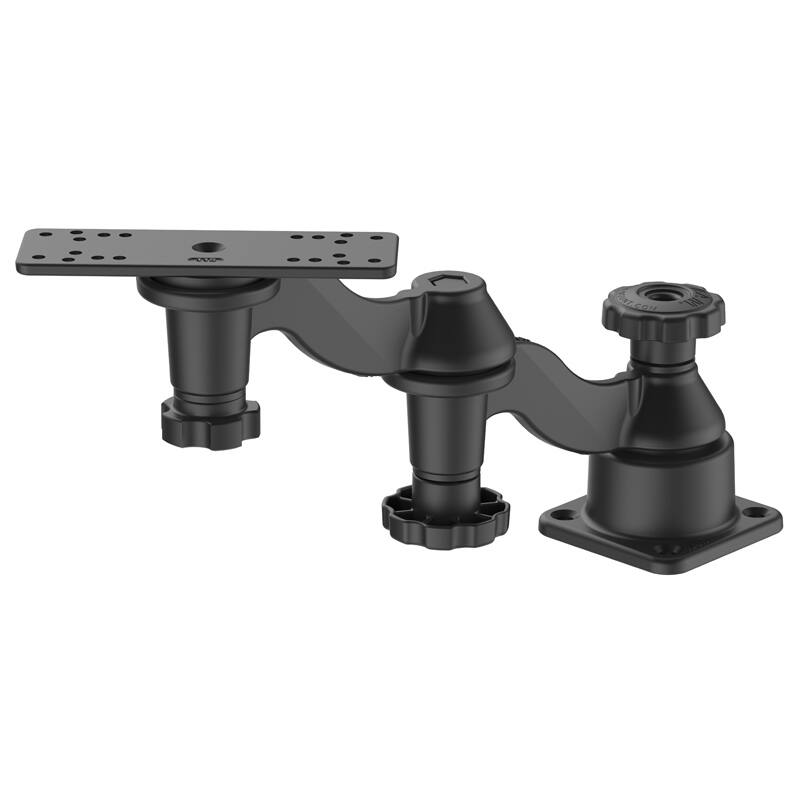

The RAM double swing arm mount includes two 152mm / 6" long BENT swing arms mounted on a horizontal surface mounting base. At the device mounting end of the mount is a rectangular 158.75mm x 50.8mm (6.25 x 2") top base. The pivoting points of the mount allow a complete 360 degree rotation.

The included plate is a universal mounting bracket with a selection of mounting hole locations. In certain applications additional holes may need to be drilled for proper fit with your electronic device.

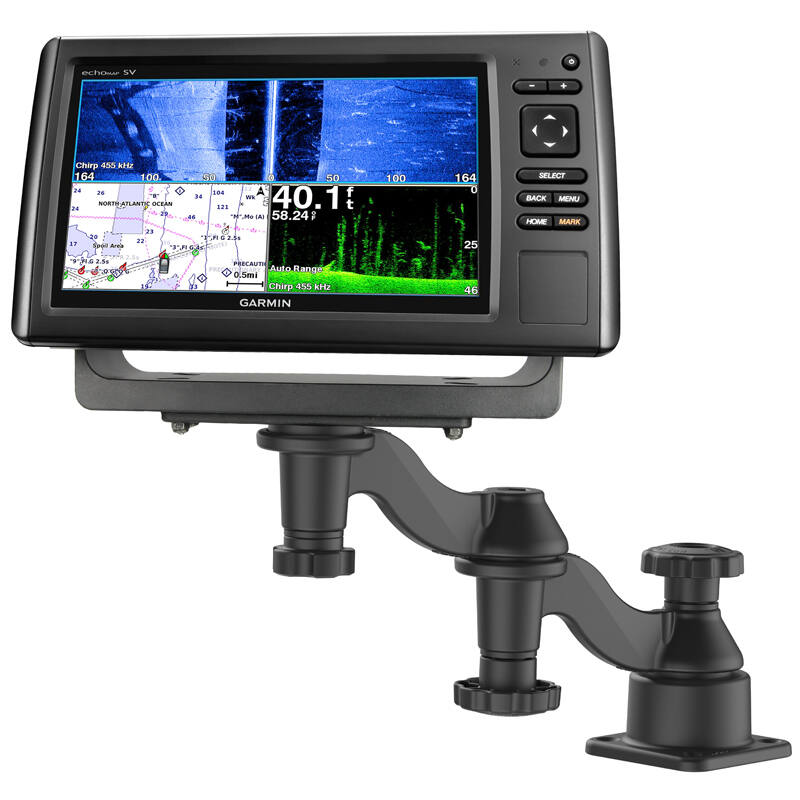

Compatible Devices Include:

Garmin
echoMAP Chirp 72-95 Series
ECHOMAP Plus 92-97 Series
GPSMAP 722, 722XS
GPSMAP 742, 742xs
GPSMAP 8410, 8410xsv
GPSMAP 8412, 8412xsv
GPSMAP 8610, 8610xsv
GPSMAP 8612, 8612xsv
GPSMAP 922, 922xs
GPSMAP 942, 942 xs
Striker Plus 5cv, 7cv, 7sv, 9sv
Fishfinders and GPS Chartplotters

Humminbird
Helix 8,9,10,12
Fishfinders and GPS Chartplotters

Lowrance
HDS Carbon 7
HDS LIVE 7, LIVE 9, LIVE 12
Hook Reveal 7 Series, Reveal 9 Series
HOOK-9
Fishfinders and GPS Chartplotters

Raymarine
Fishfinders and GPS Chartplotters


Dimensions:
Overall Length:
423.9mm (16.69")
Overall Height:
217.9mm (8.577")
Height From Bottom Of Base To Top Of Knob: 124.2mm / 4.89"


Hole Pattern

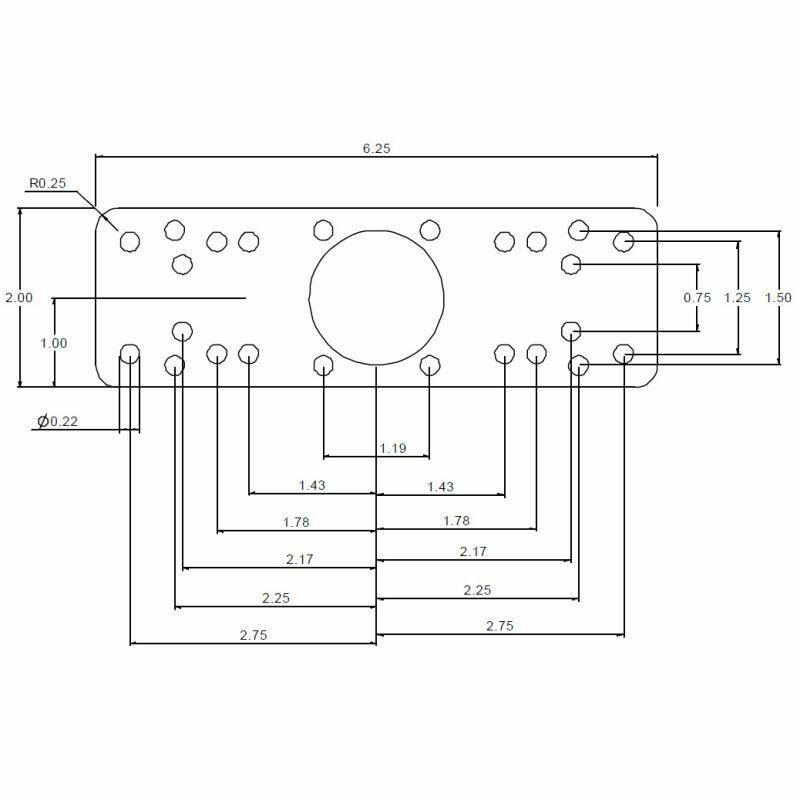

Top Plate: See Drawing
Bottom Plate: 6.35mm x 63.5mm (2.5" x 2.5")

Plate Size
Top Plate: 158.75mm x 50.8mm (6.25" x 2")
Bottom Plate: 88.1mm x 88.1mm (3.47" x 3.47")

Material:
Powder Coated Marine Grade Aluminium

Weight:
1.179 kg (2.6 lbs.)


Weight Capacity
3.62 kg (8 lbs)


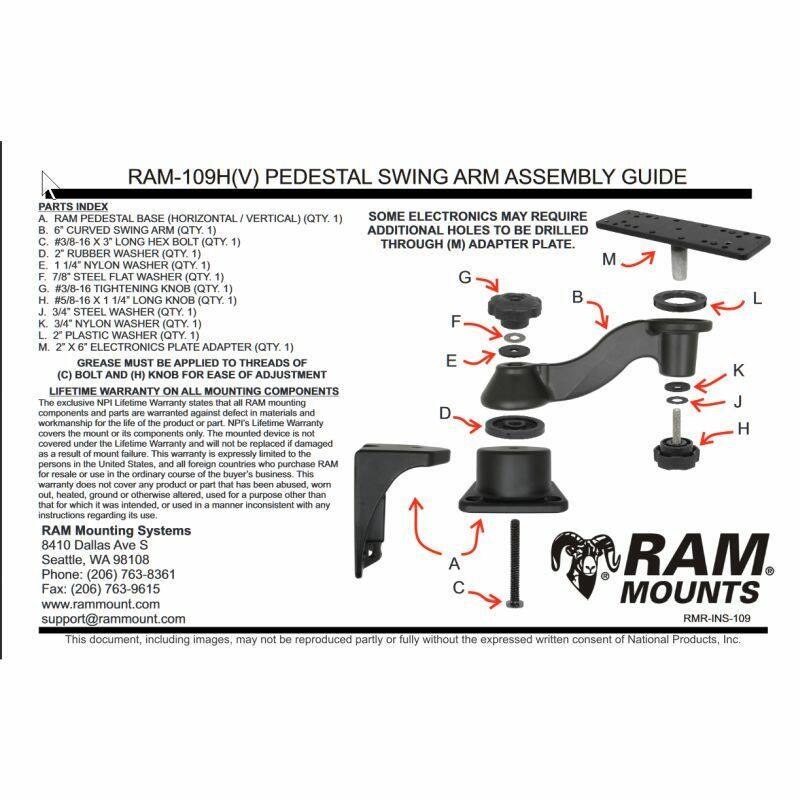

Components:
RAM-109-1AU 6" Curved Swing Arm Extension
RAM-109-1APU 6" Curved Swing Arm for Horizontal/Vertical Mounts
RAM-109H-BU Horizontal Swing Arm Base

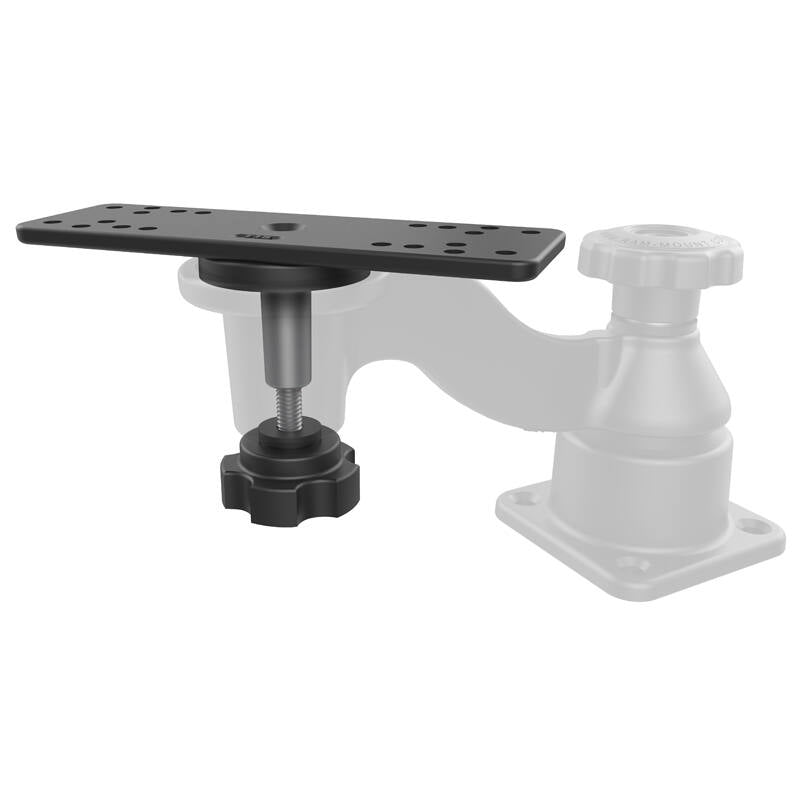

RAM-111BTU Rectangular Plate Adapter for Swing Arm Mounts
