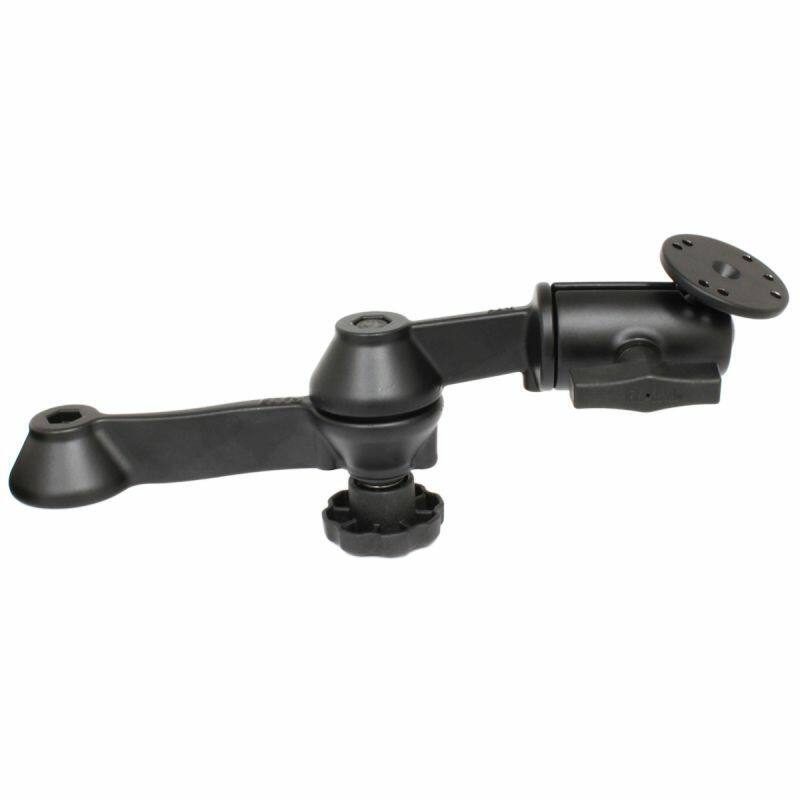

RAM-VB-110-1U RAM® 12" Double Swing Arm with Round Base
The RAM-VB-110-1U is a 305mm (12") double swing arm with a C-size (1.5") swivel socket and a 63.5mm (2.5") round AMPS base. It lets you twist and tilt the viewing angle of a laptop, tablet, monitor, chartplotter or other device, then lock it firmly in place. Made from marine-grade aluminium for life on the water.
Key Features
Dual articulating arms giving 305mm (12") of reach for ideal device placement
C-size (1.5") swivel socket connects to a variety of RAM® device holders
63.5mm (2.5") round base with 4-hole and 3-hole AMPS patterns
Powder-coated marine-grade aluminium for corrosion resistance
Backed by the RAM® lifetime warranty
Works With
The C-size socket accepts RAM® laptop, tablet and other device holders with a 1.5" ball. The round base bolts to any surface with a matching 4-hole or 3-hole AMPS pattern.
Dimensions & Specifications
Total arm reach: 305mm (12")
Plate size: 63.5mm (2.5") diameter
4-hole AMPS pattern: 30mm x 38mm (1.181" x 1.496")
3-hole AMPS 120-degree pattern: 46.0mm (1.812")
Socket / ball size: C size (1.5")
Material: powder-coated marine-grade aluminium
Weight: 1.04kg (2.3 lbs)
Weight capacity: 1.81kg (4 lbs) standard use, 1.36kg (3 lbs) heavy-duty use
What's in the Kit

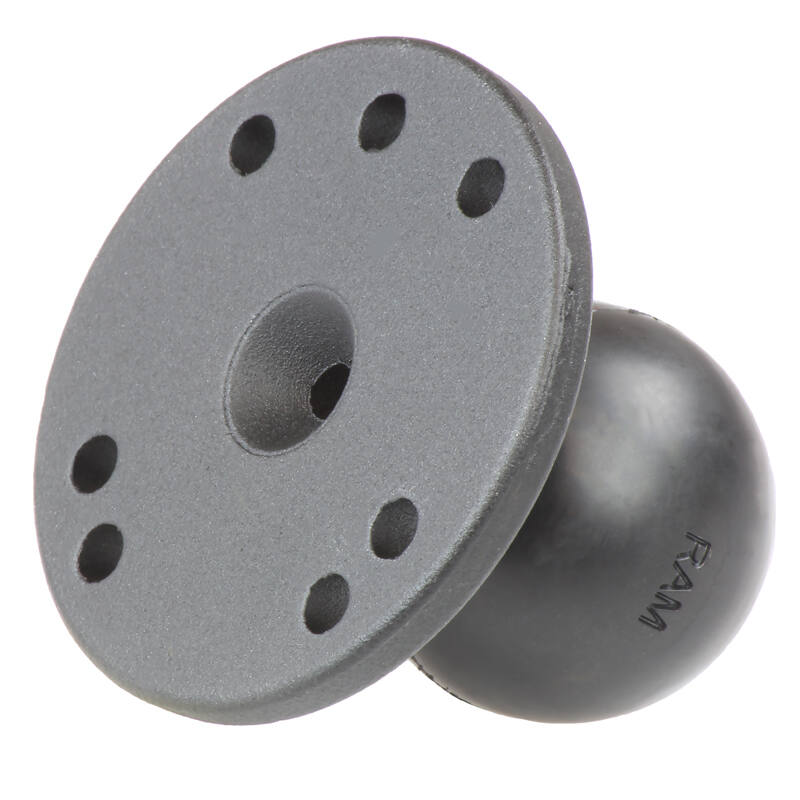

RAM-202U 63.5mm (2.5") round base with 1.5" ball

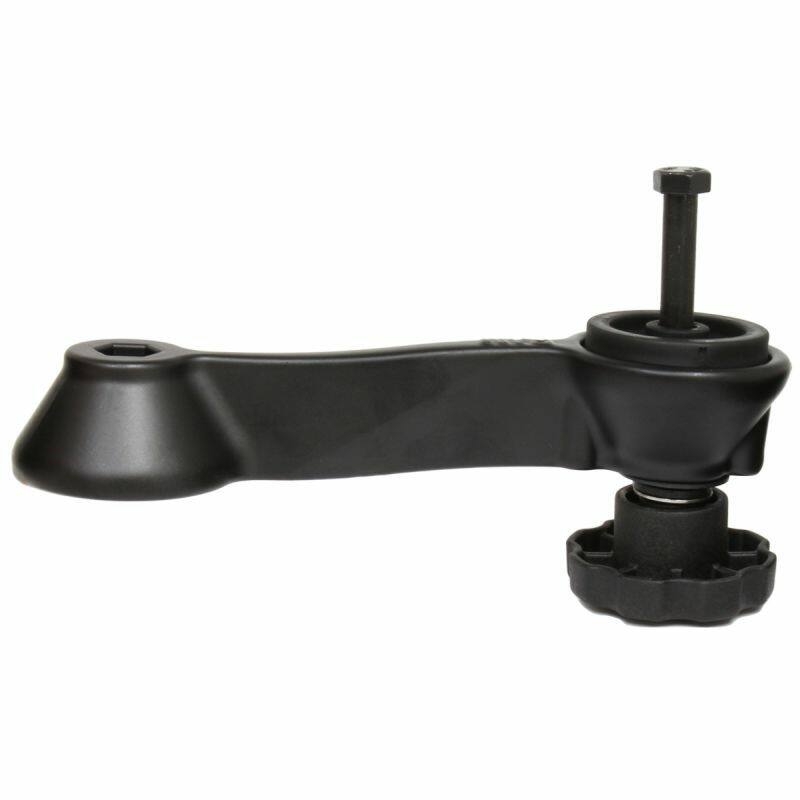

RAM-VB-109-3U 6" swing arm extension

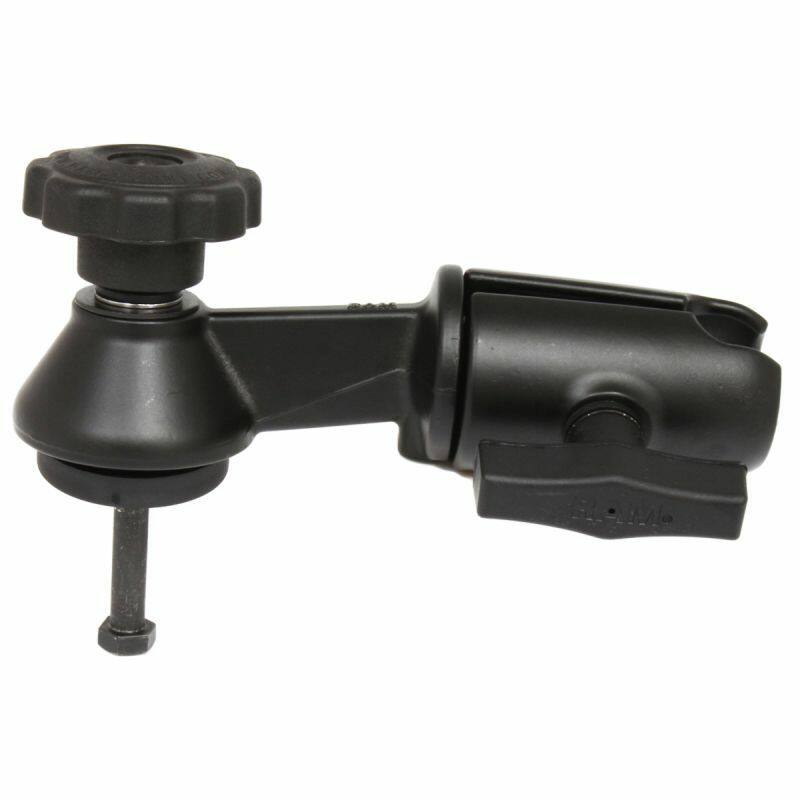

RAM-VB-110-5NBU 6" swingle swing arm with swivel socket
FAQs
Is it in stock? Yes. This is held in our Auckland warehouse and normally dispatches within one business day of your order.
