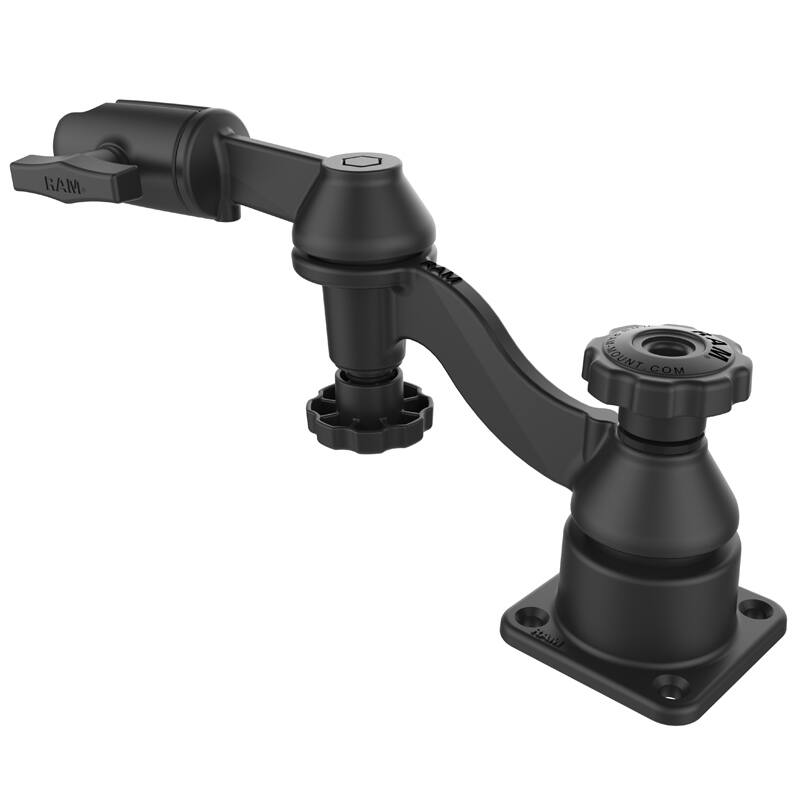

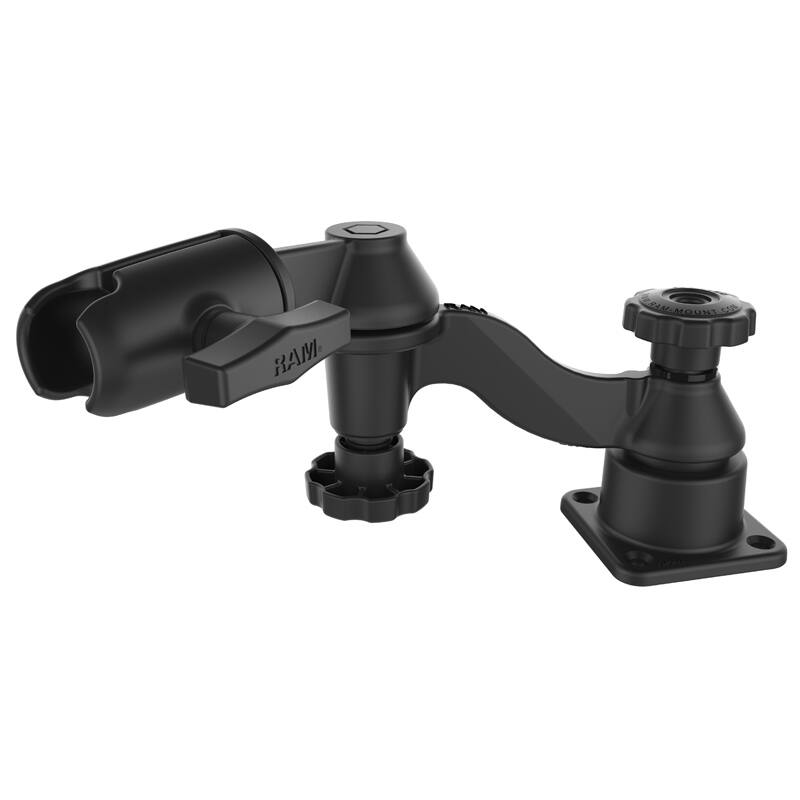

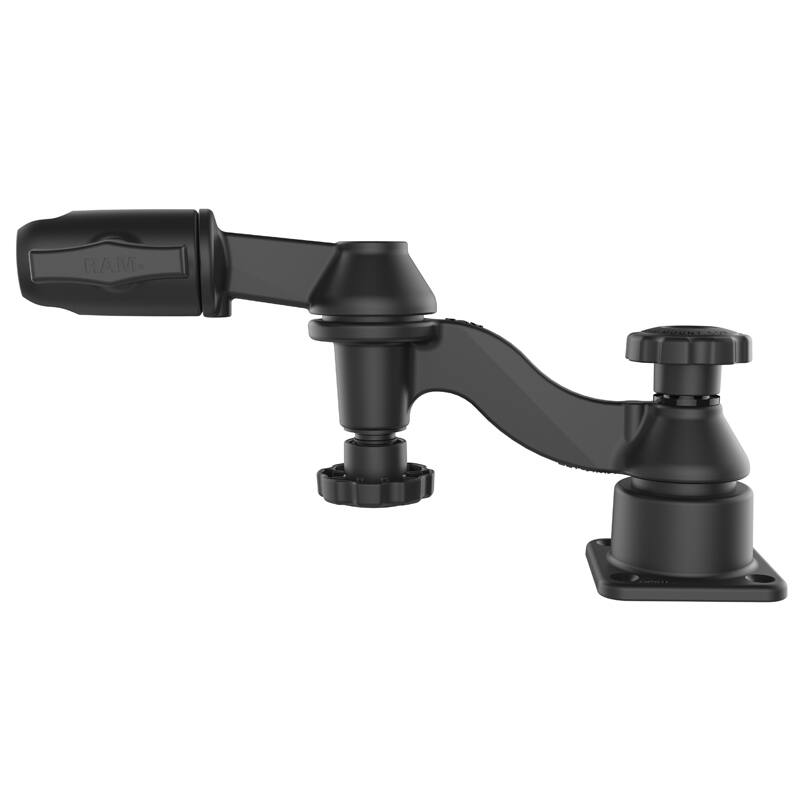

RAM-109H-G1U RAM® Horizontal 12" Swing Arm Mount with Socket Arm
Features
* Universal marine electronic plate includes a variety of pre-drilled holes that match a wide range of devices
* Dual C size 1.5" RAM® swing arms and horizontal base allow horizontal movement
* Socket suits any RAM® C series base plates
* RAM® ball and socket technology allows for adjustability of viewing angle
* Made of Powder-coated, marine-grade aluminium for durability and reliability in the most demanding marine environments
* Backed by a lifetime warranty
The two swing arms give a total of 30.5cm (12") of arm length
Connect any RAM cradle with an appropriate size ball mount (1.5") for a complete mounting solution for fishfinders, navigation devices, GPS, screens of all sorts. When not in use this set up enables you to neatly swing it out of the way for stowage!

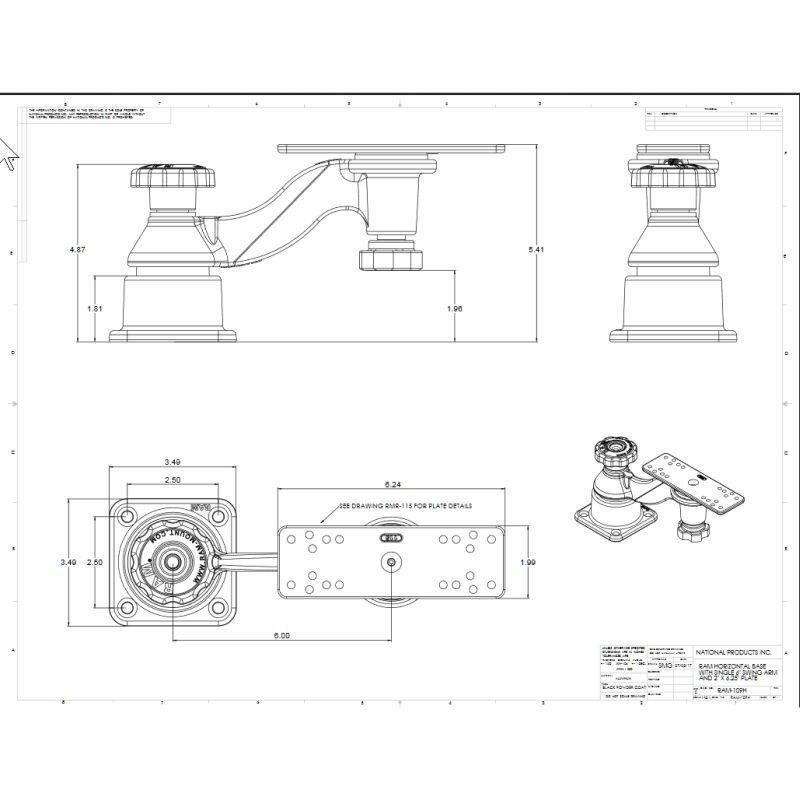

Hole Pattern
See Drawing
Specs & Features
Powder coated marine grade alloy
Weight:
708 grams (1.56 lbs.)
Ball Size
1.5" (C Series)
Weight Capacity
Standard Use:
1.814kg (4 lbs)
Heavy-Duty Use:
1.36kg (3 lbs)
To mount the device itself you will need any C series holder - typical for marine use would be the RAM-111BU
Components:
RAM-109-1AU RAM 6" Curved Swing Arm Extension
RAM-VB-110-5NBU RAM 6" Swingle Swing Arm with Swivel Socket
RAM-109H-BU RAM Horizontal Swing Arm Base
