RAM-109VS-5NBU RAM® Vertical Double Swing Arm Mount with Swivel Socket

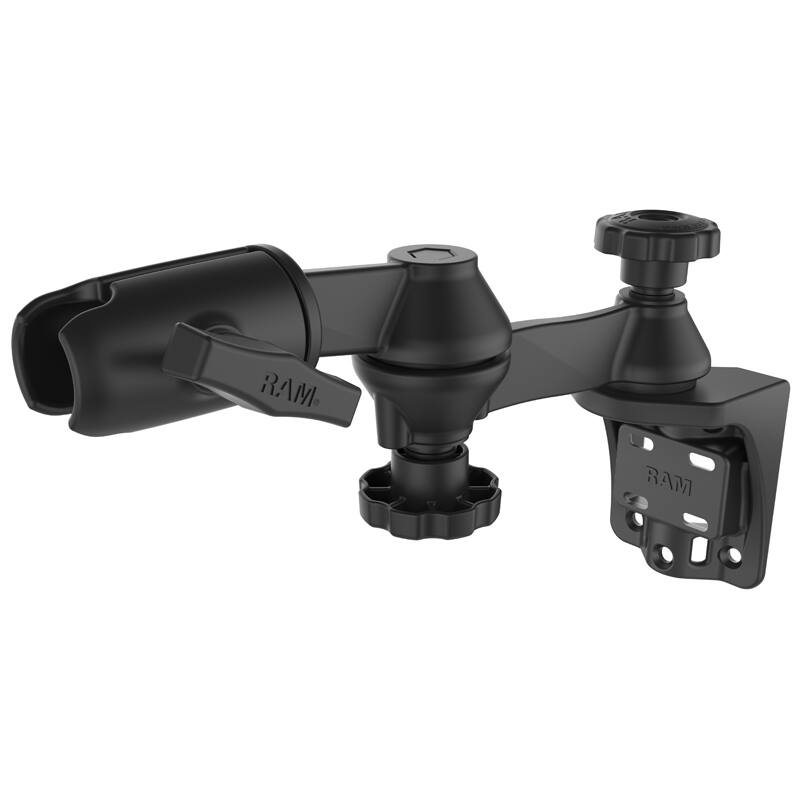

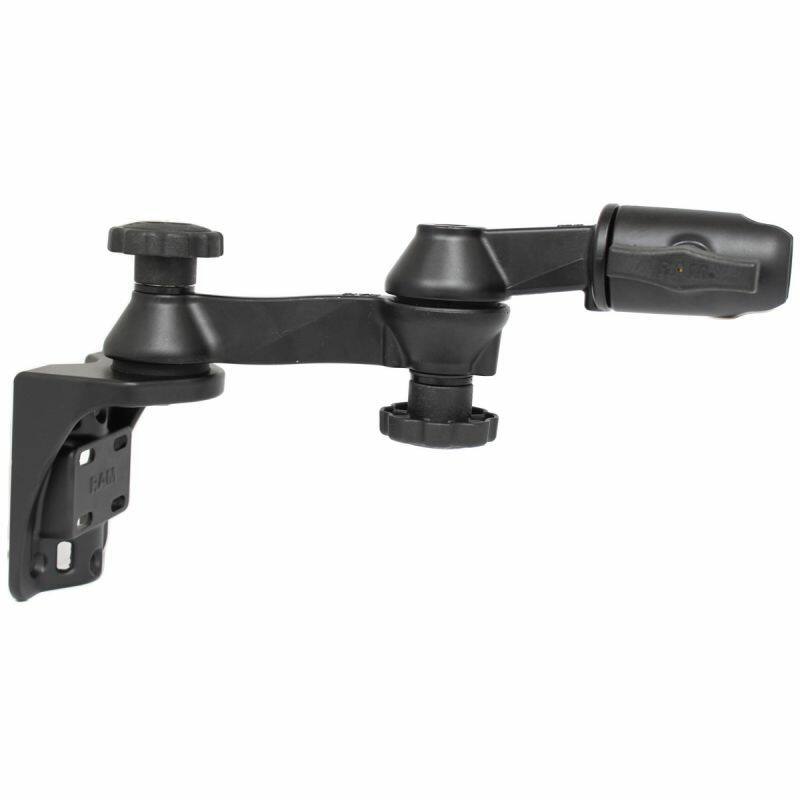

The RAM-109VS-5NBU is a 305mm (12") double swing arm on a vertical base, finished with an open C-size (1.5") swivel socket. It is the mounting backbone only: add any RAM® cradle or base with a 1.5" C-size ball to build a complete mount for a fishfinder, chartplotter, GPS, tablet or screen. The arms swing out of the way for stowage when you are done.
Key Features
Two swing arms giving 305mm (12") of total reach on a vertical base
Open C-size (1.5") swivel socket that mates with any RAM® C series ball base
Swivel socket rotates to achieve the ideal viewing angle
Drill-down vertical base with multiple pre-drilled holes for a stable, permanent install
Powder-coated marine-grade aluminium for corrosion resistance in demanding marine environments
Backed by the RAM® lifetime warranty
Works With

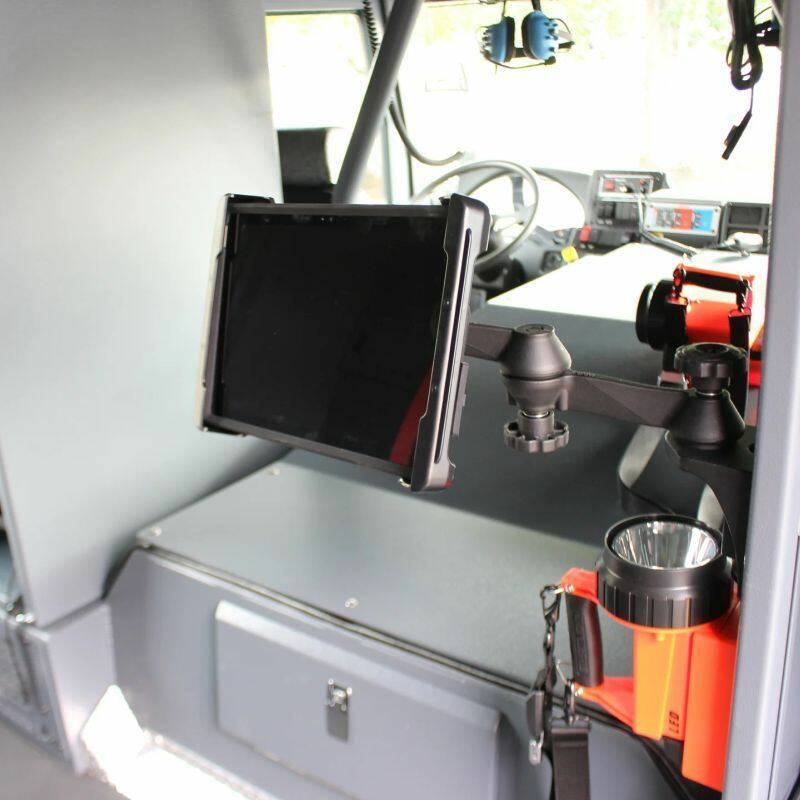

To complete the mount, add any cradle or base fitted with a C-size (1.5") RAM® ball. For marine electronics the universal RAM-111BU plate is the usual partner, and you can also use the socket to mount tablets, laptops or other C-size cradles.

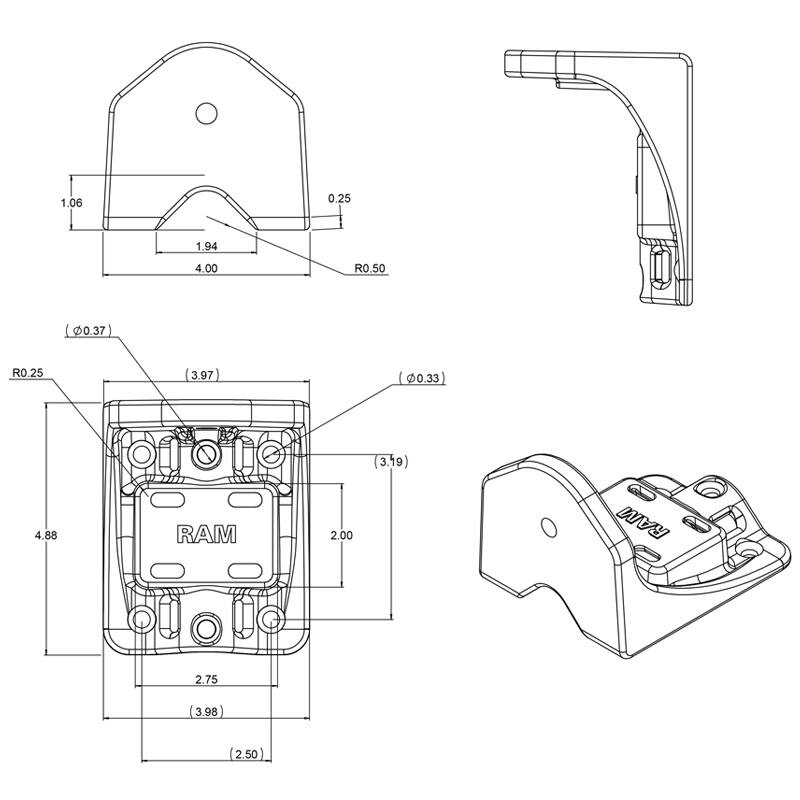

Dimensions & Specifications
Total arm reach: 305mm (12")
Socket / ball size: C size (1.5")
Material: powder-coated marine-grade aluminium
Weight: 1.64kg (3.62 lbs)
Weight capacity: 1.81kg (4 lbs) standard use, 1.36kg (3 lbs) heavy-duty use
What's in the Kit

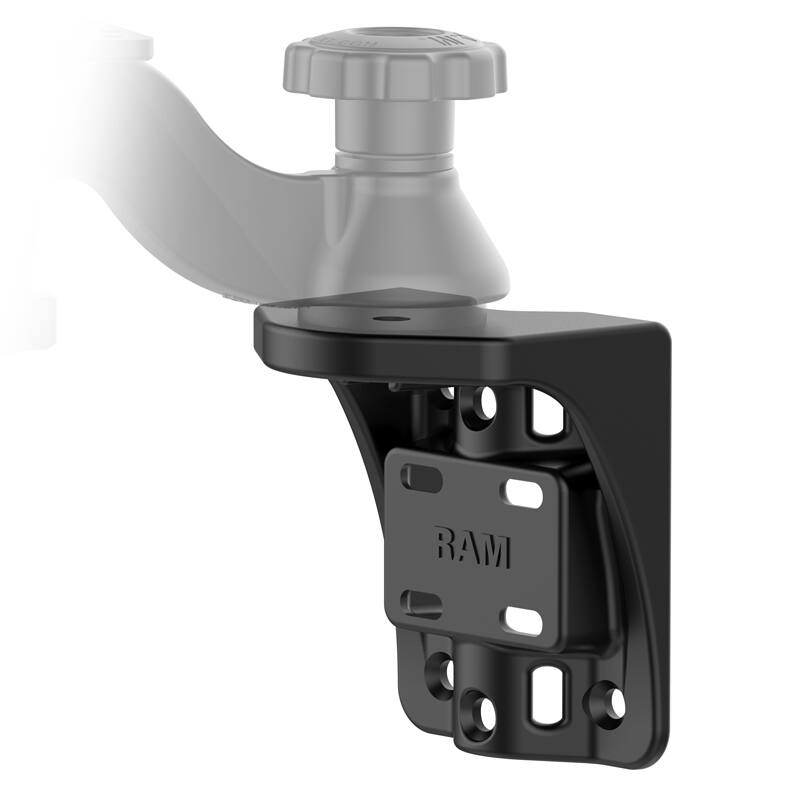

RAM-109V-BU vertical swing arm base

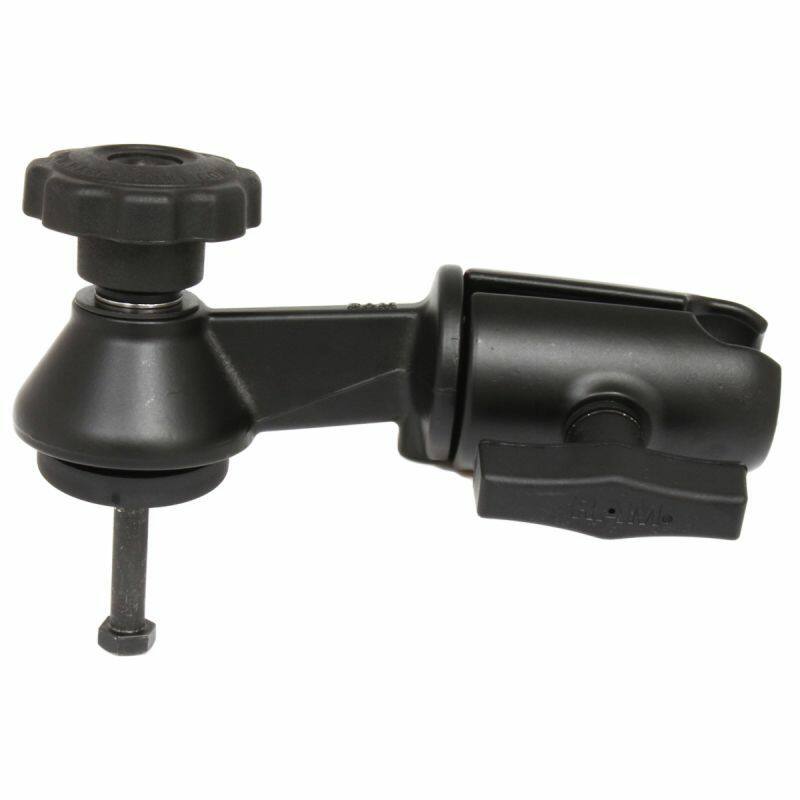

RAM-VB-110-5NBU 6" swingle swing arm with swivel socket

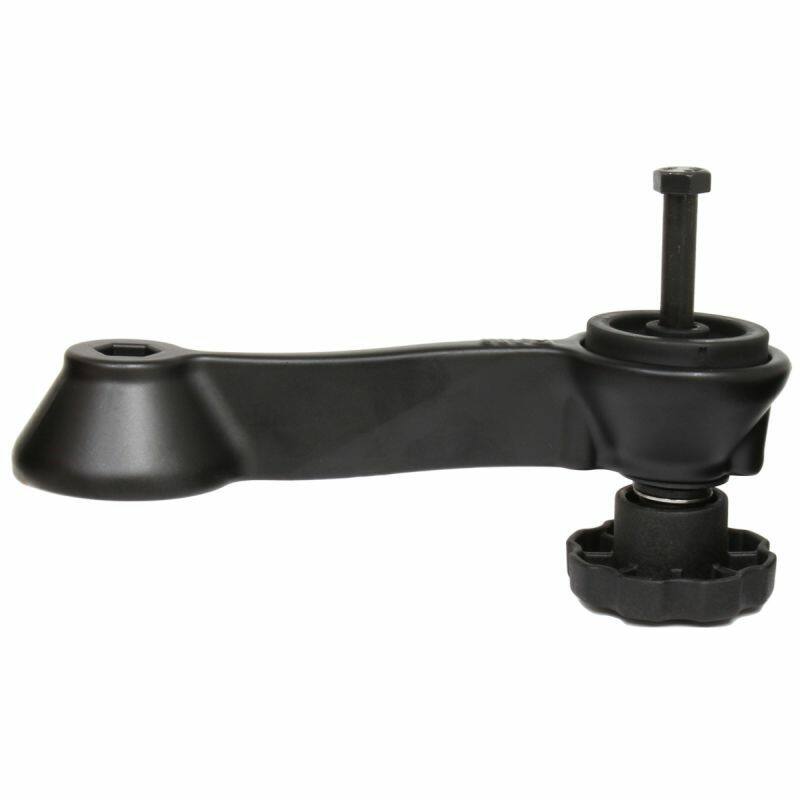

RAM-VB-109-3U 6" swing arm extension
FAQs
Does this include a plate for my fishfinder? No. This is the swing arm and base with an open C-size socket. You add a cradle or base with a 1.5" ball, such as the RAM-111BU universal marine plate, to suit your device.
Is it in stock? Yes. This is held in our Auckland warehouse and normally dispatches within one business day of your order.
