RAM Marine Swing Arm Horizontal Mount with Swivel Ball & Socket Joint

RAM-109HSB RAM® Horizontal Swing Arm Mount with Swivel Ball & Socket Joint

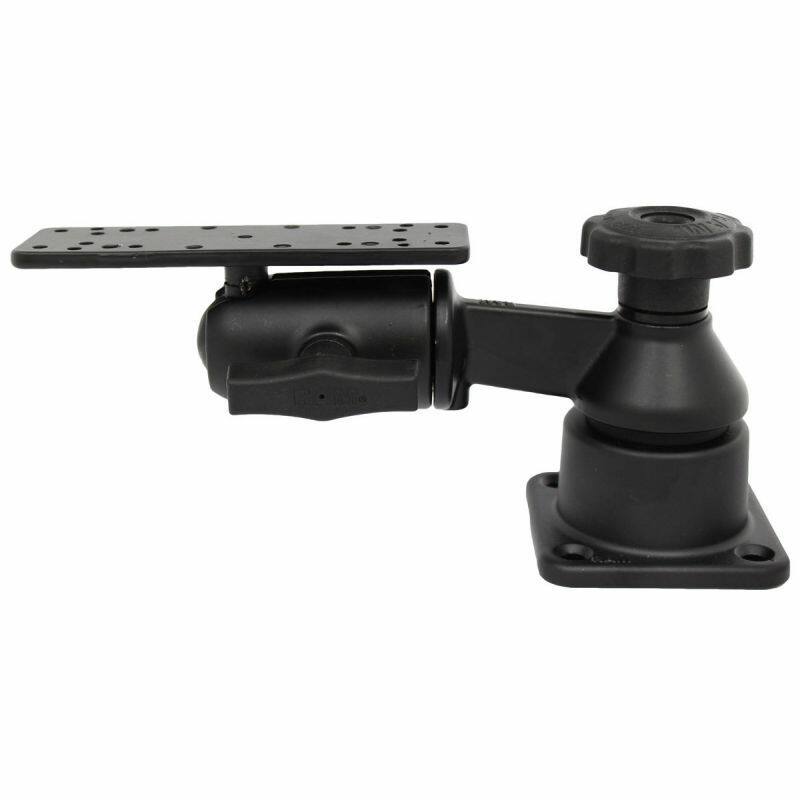

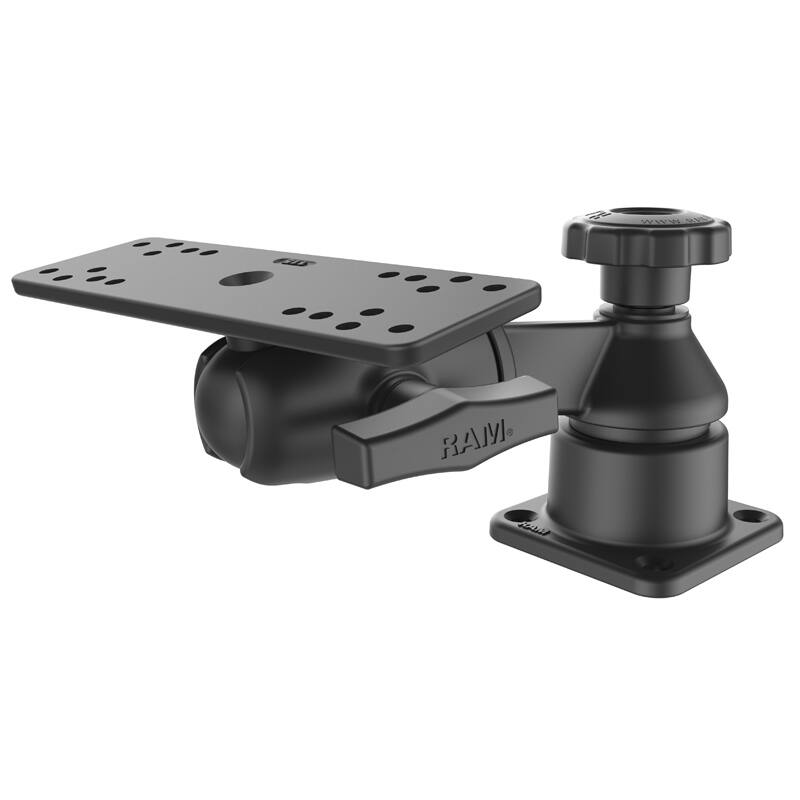

The RAM-109HSB is a complete marine electronics mount that pairs a 152mm (6") straight swing arm on a horizontal base with a C-size (1.5") RAM® ball and socket joint. The swing arm rotates a full 360 degrees while the ball and socket lets you tilt and fine-tune the viewing angle of your fishfinder or chartplotter.

Key Features

• 152mm (6") straight swing arm on a horizontal base for 360-degree rotation
• C-size (1.5") RAM® ball and socket joint for tilt and viewing-angle adjustment
• Universal electronics plate with a variety of pre-drilled holes to match a wide range of devices
• Powder-coated marine-grade aluminium for corrosion resistance in demanding marine environments
• Backed by the RAM® lifetime warranty

Dimensions & Specifications

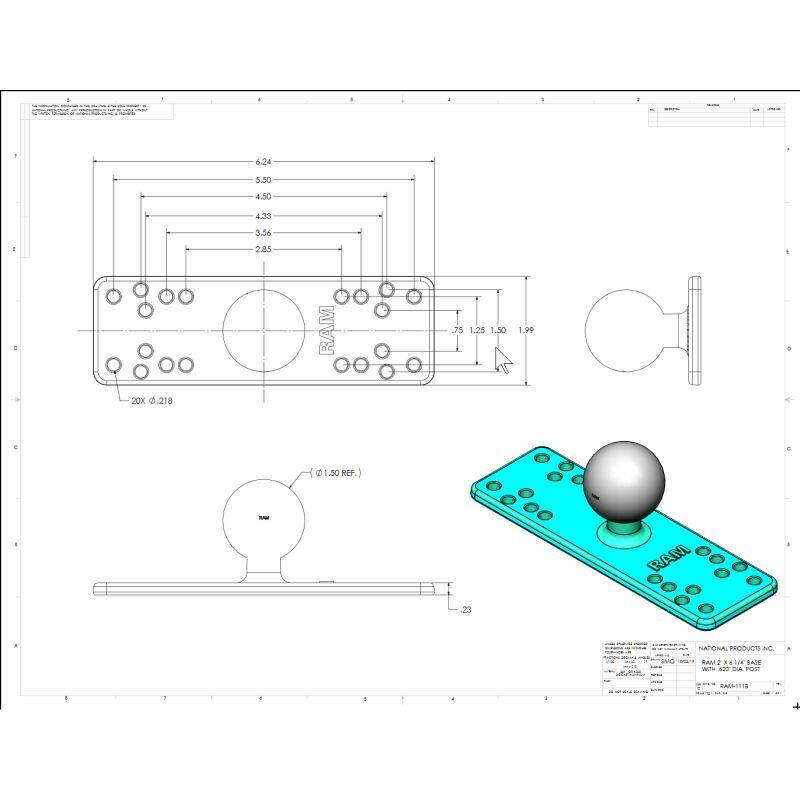

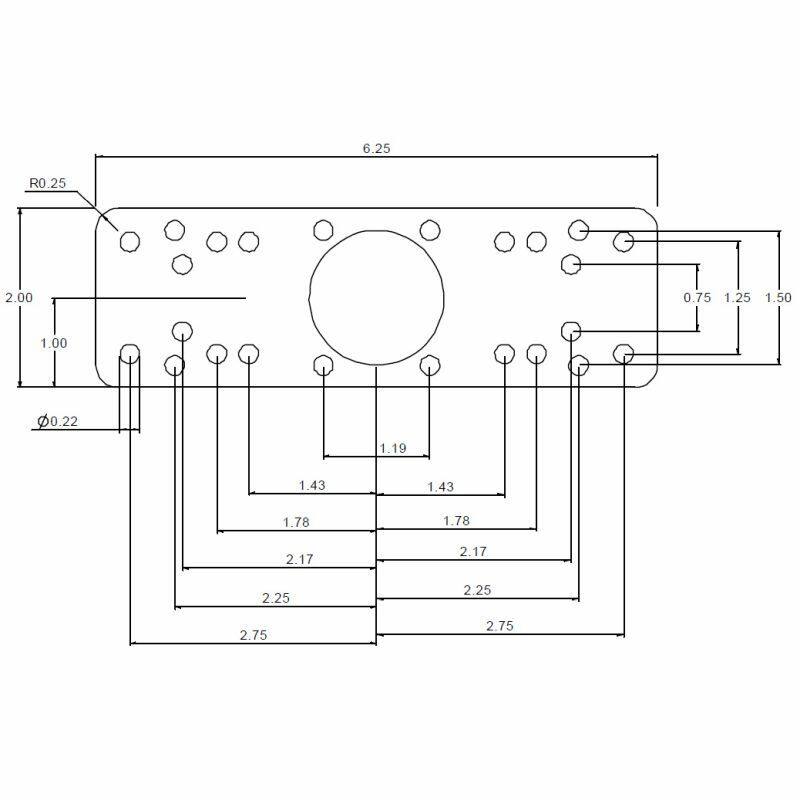

• Top plate: 159mm x 51mm (6.25" x 2")
• Ball / socket size: C size (1.5")
• Material: powder-coated marine-grade aluminium
• Weight: 898g (1.98 lbs)
• Weight capacity: 1.81kg (4 lbs) standard use, 1.36kg (3 lbs) heavy-duty use

What's in the Kit

• RAM-111BU universal electronics base with 1.5" ball
• RAM-109H-BU horizontal swing arm base
• RAM-VB-110-5NBU 6" swingle swing arm with swivel socket

Compatible Devices

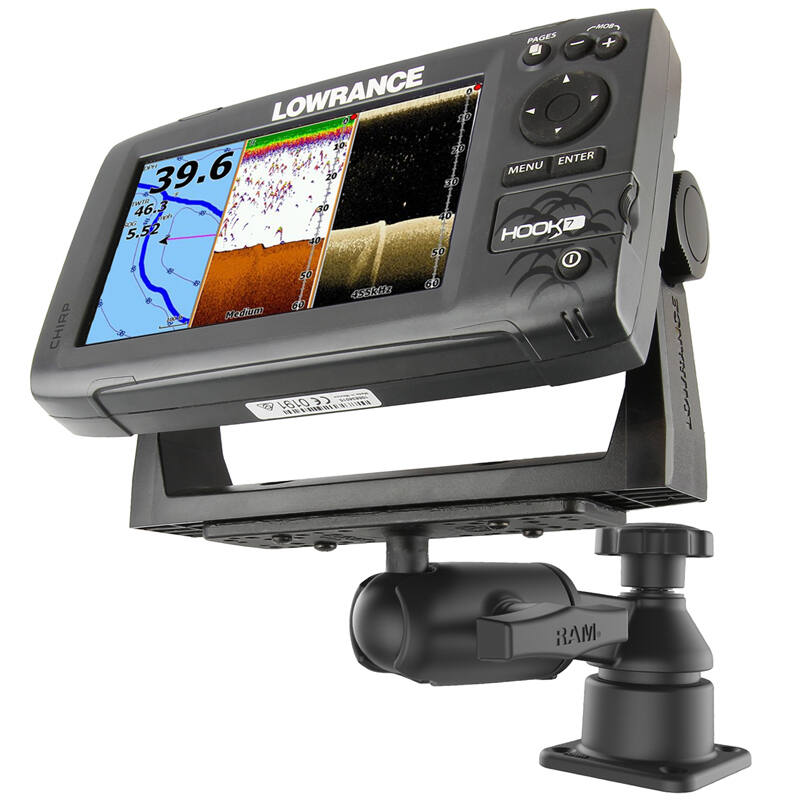

The universal plate suits a wide range of fishfinders and chartplotters. Confirmed models include:

Garmin

• ECHOMAP Plus 72cv, 73cv, 74cv, 75cv, 77cv
• ECHOMAP UHD2 5", UHD2 7"
• GPSMAP 722, 722xs, 723, 723xsv
• GPSMAP 742, 742xs, 743, 743xsv
• Striker Plus 5cv, 7cv, 7sv
• Striker Vivid 5cv, 7cv, 7sv

Lowrance

• HDS Carbon 7
• HDS LIVE 7

Humminbird

• Suits a range of Humminbird fishfinders and chartplotters via the universal plate

Raymarine

• Suits a range of Raymarine fishfinders and chartplotters via the universal plate

FAQs

How is this different from the bent swing arm mounts? This version uses a straight arm plus a C-size ball and socket joint, so as well as swinging it can tilt to dial in the viewing angle. The RAM-109HU and RAM-109H-1U use bent arms without the ball joint.

Do I need to drill the mounting plate? The plate has a selection of pre-drilled holes. Some devices line up straight away, others need an extra hole or two drilled to match the bracket. For marine use we recommend stainless steel hardware.

Is it in stock? Yes. This is held in our Auckland warehouse and normally dispatches within one business day of your order.
