RAM Marine Swing Arm Vertical Mount with Swivel Ball & Socket Joint

RAM-109VSB RAM® Vertical Swing Arm Mount with Swivel Ball & Socket Joint

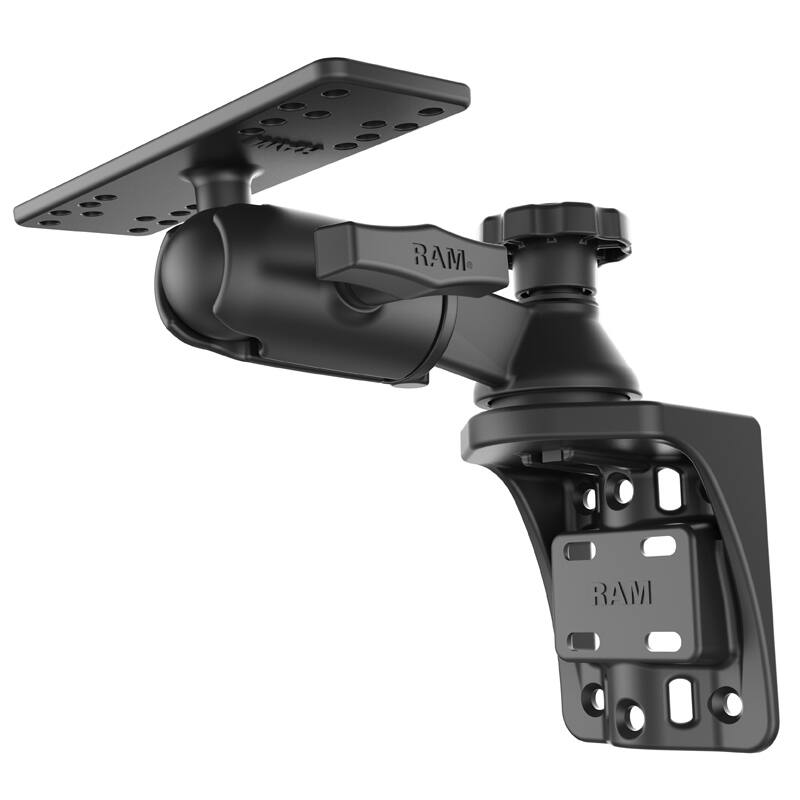

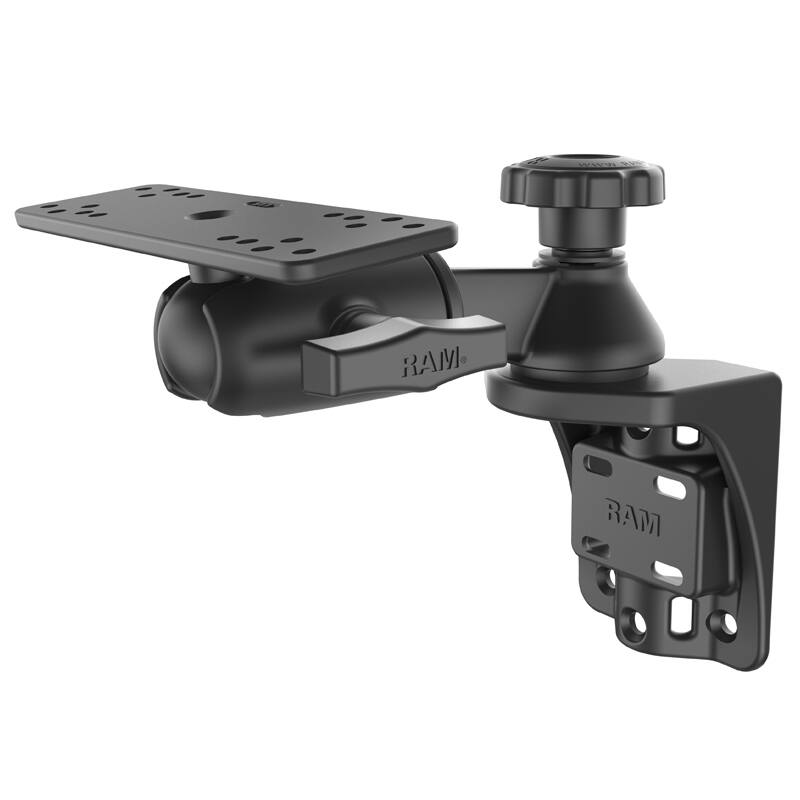

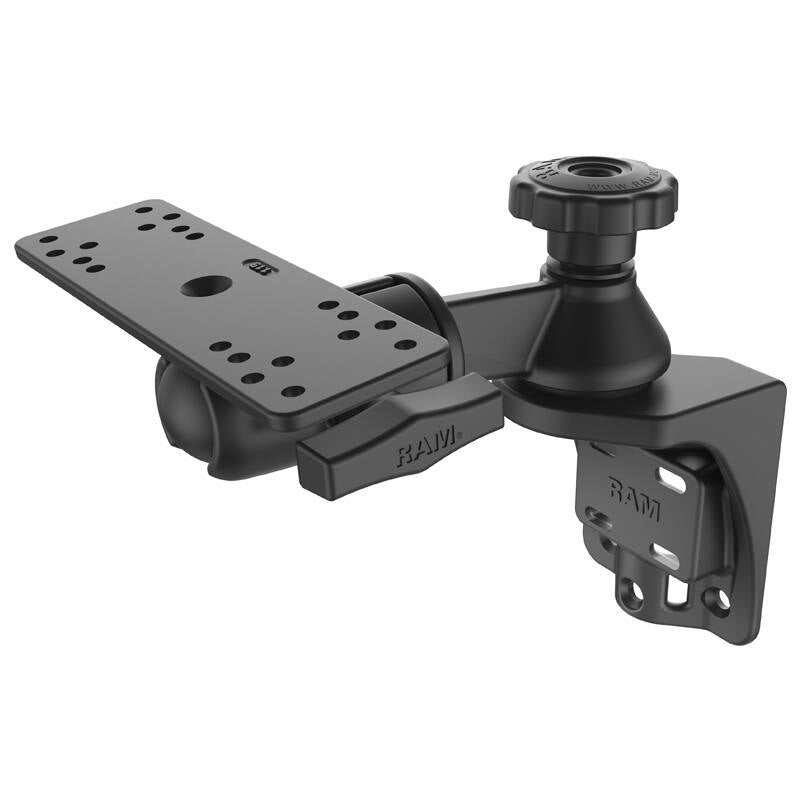

The RAM-109VSB is a complete marine electronics mount that pairs a single 152mm (6") swing arm on a vertical base with a C-size (1.5") RAM® ball and socket joint. The vertical mount lets the screen rotate horizontally while the swivel ball and socket lets it tilt, which makes it an ideal solution for positioning a fishfinder or chartplotter at the helm.

Key Features

• Single 152mm (6") swing arm on a vertical base for horizontal rotation
• C-size (1.5") RAM® ball and socket joint for tilt and viewing-angle adjustment

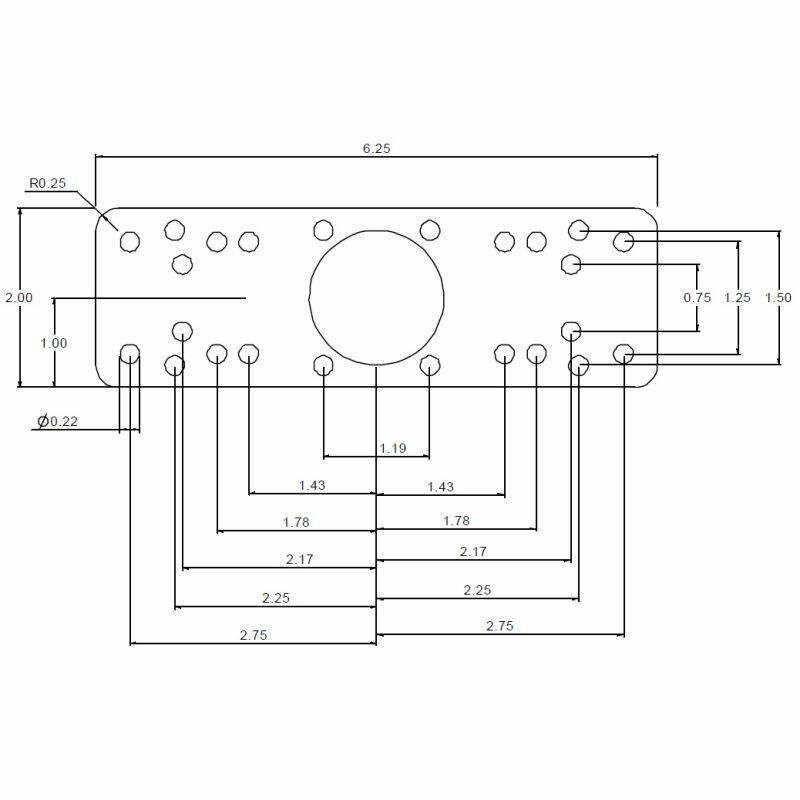

• Universal electronics plate with a variety of pre-drilled holes to match a wide range of devices
• Powder-coated marine-grade aluminium for corrosion resistance in demanding marine environments
• Backed by the RAM® lifetime warranty

Dimensions & Specifications

• Ball / socket size: C size (1.5")
• Material: powder-coated marine-grade aluminium
• Weight: 1.23kg (2.71 lbs)
• Weight capacity: 1.81kg (4 lbs) standard use, 1.36kg (3 lbs) heavy-duty use

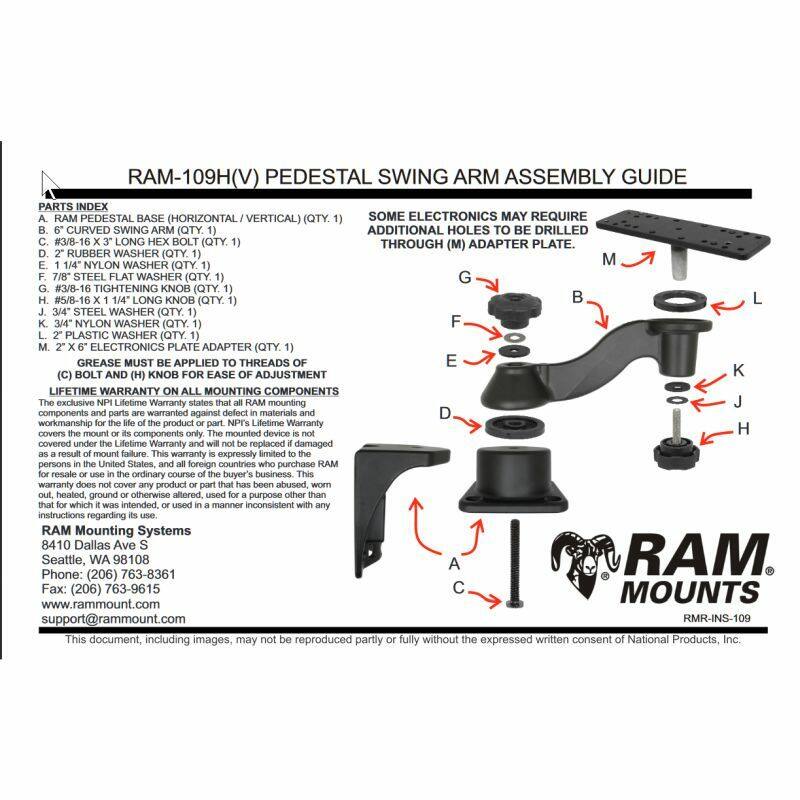

What's in the Kit

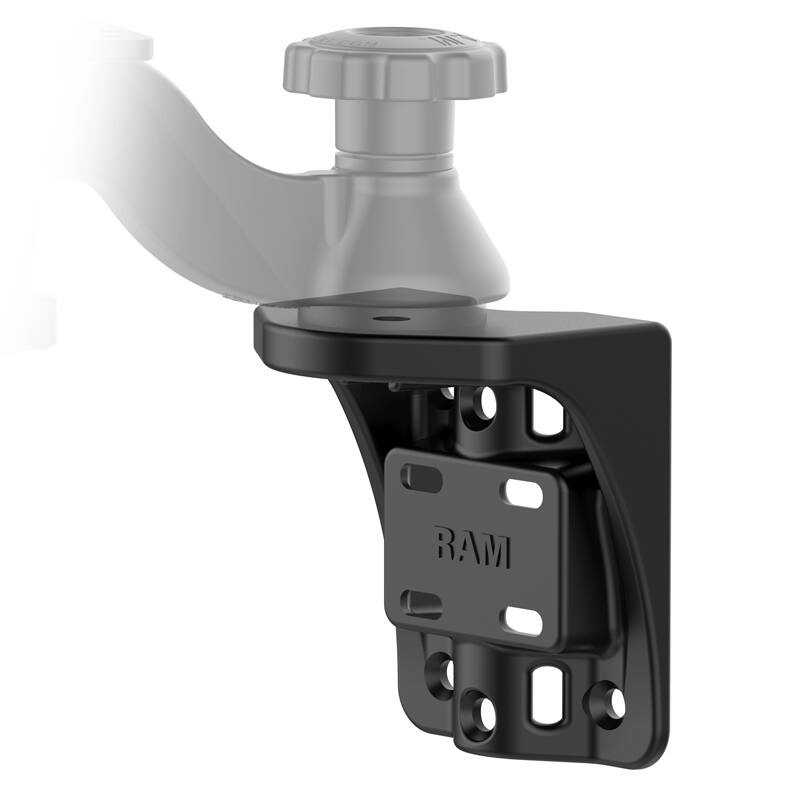

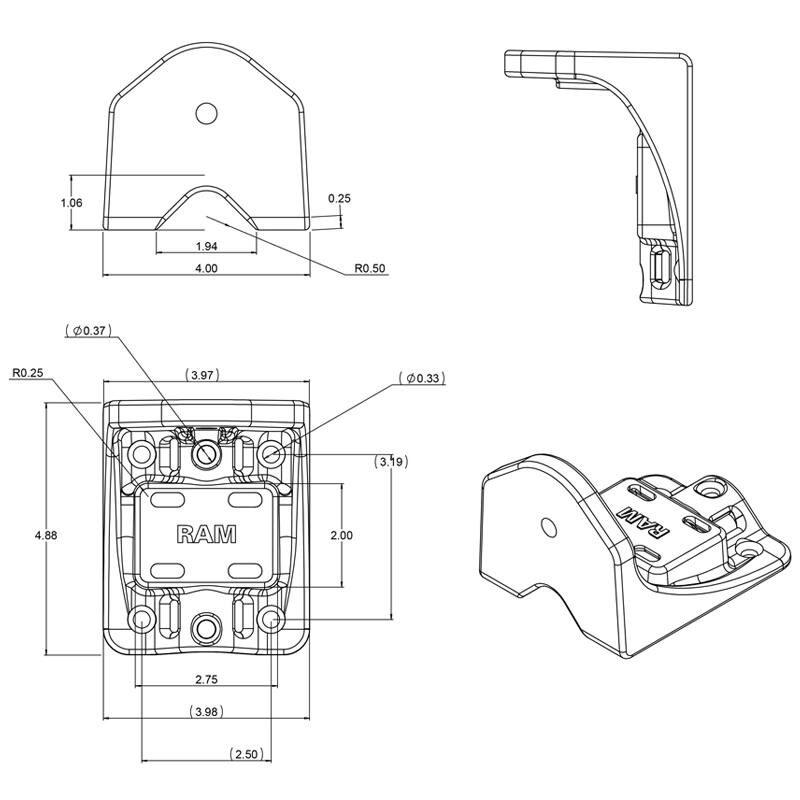

• RAM-109V-BU vertical swing arm base

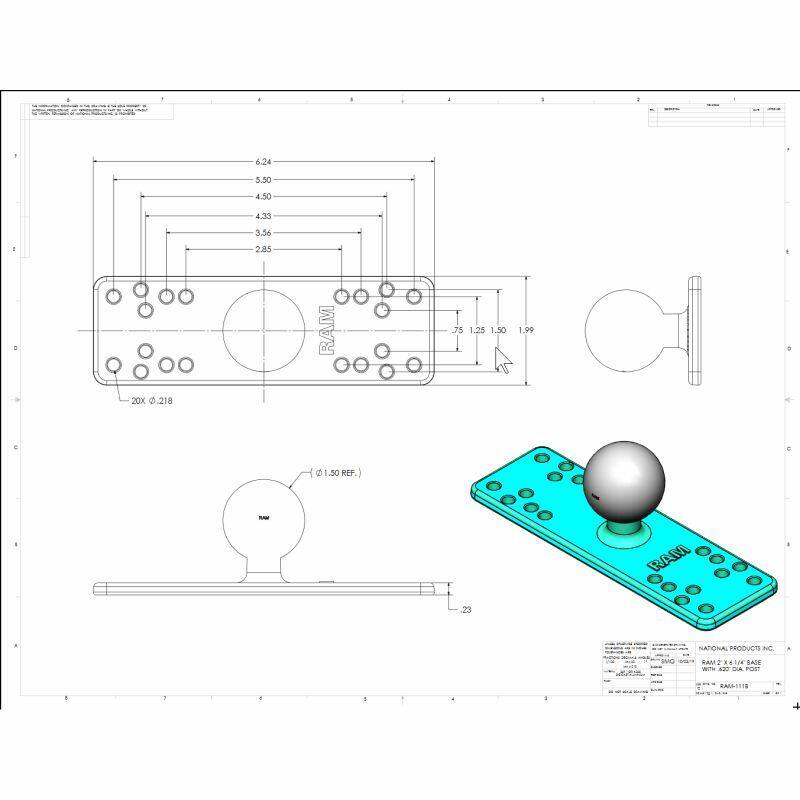

• RAM-111BU universal electronics base with 1.5" ball
• RAM-VB-110-5NBU 6" swingle swing arm with swivel socket

Compatible Devices

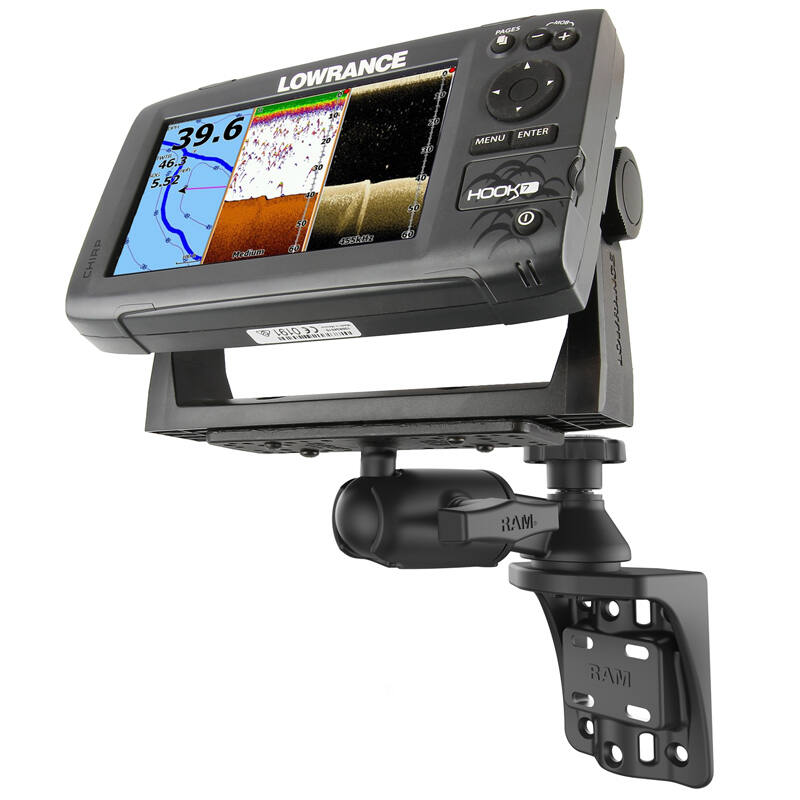

The universal plate suits a wide range of fishfinders and chartplotters. Confirmed models include:

Garmin

• ECHOMAP Plus 72cv, 73cv, 74cv, 75cv, 77cv
• ECHOMAP UHD2 5", UHD2 7"
• GPSMAP 722, 722xs, 723, 723xsv
• GPSMAP 742, 742xs, 743, 743xsv
• Striker Plus 5cv, 7cv, 7sv
• Striker Vivid 5cv, 7cv, 7sv

Lowrance

• HDS Carbon 7
• HDS LIVE 7

Humminbird

• Suits a range of Humminbird fishfinders and chartplotters via the universal plate

Raymarine

• Suits a range of Raymarine fishfinders and chartplotters via the universal plate

FAQs

What does the ball and socket joint add? On top of the vertical swing arm's horizontal rotation, the C-size ball and socket lets the screen tilt, so you can set both the swing position and the viewing angle independently.

Do I need to drill the mounting plate? The plate has a selection of pre-drilled holes. Some devices line up straight away, others need an extra hole or two drilled to match the bracket. For marine use we recommend stainless steel hardware.

Is it in stock? Yes. This is held in our Auckland warehouse and normally dispatches within one business day of your order.
