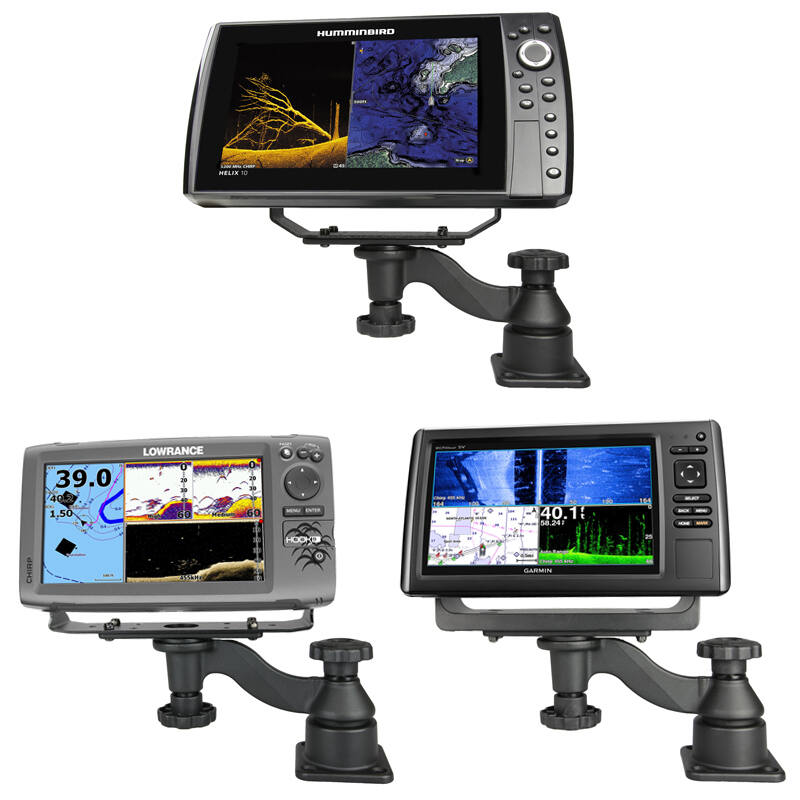

RAM-109HU RAM® Horizontal 6" Swing Arm Mount for Fishfinders & Plotters


Features

* Universal drill-down fishfinder mounting solution features 152mm swing arm for ideal device placement
* Two pivot points allow for complete 360-degree rotation
* Made of powder-coated marine grade aluminium alloy and stainless steel components
* Backed by a lifetime warranty

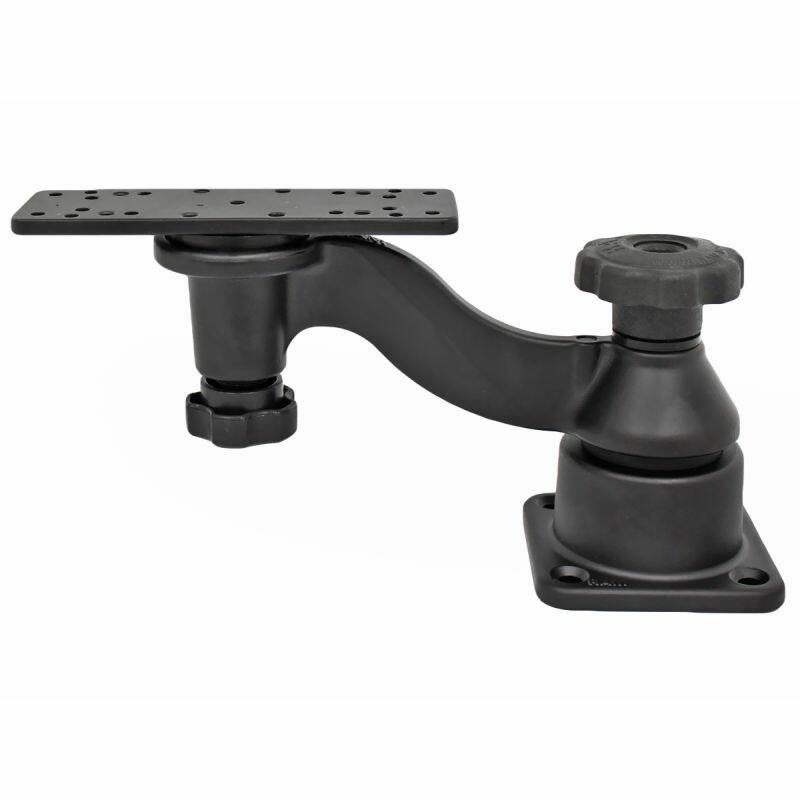

The RAM single swing arm mount consists of a 152.4mm (6") BENT swing arm mounted on a horizontal surface mounting base. At the device mounting end of the mount is a rectangular 6.25" x 2" plate. There are two pivoting points on the mount. One at the swing arm and base and one at the centre of the rectangular plate and the end of the swing arm, each allows a complete 360 degree rotation.

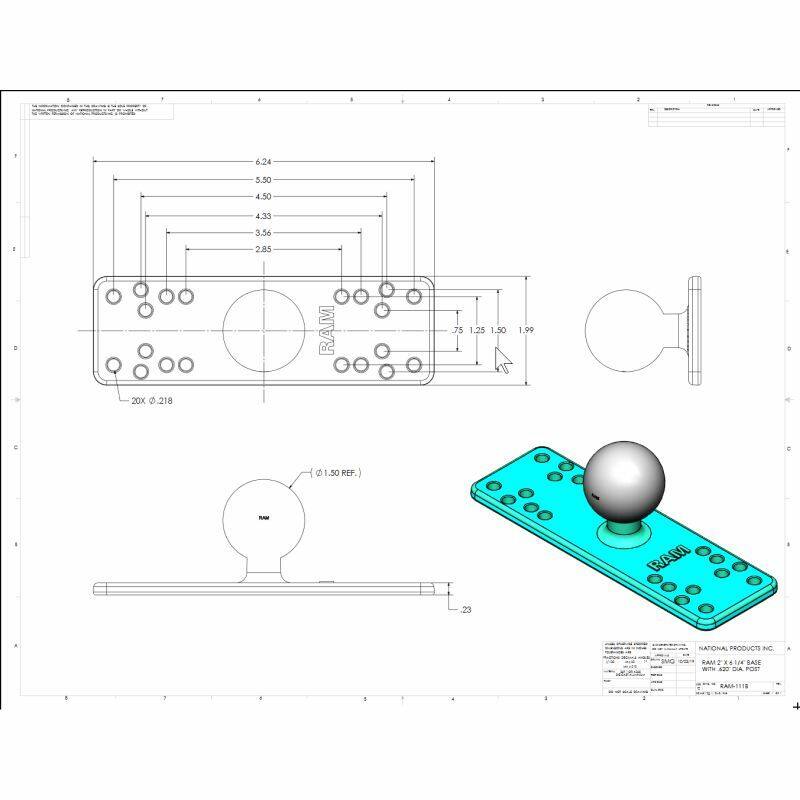

The plate is a universal mounting bracket with a selection of mounting hole locations. In certain applications additional holes may need to be drilled for proper fit with your electronic device.


Compatible Devices Include:

Garmin
echoMAP Chirp 72-95 Series
ECHOMAP Plus 92-97 Series
GPSMAP 722, 722xs
GPSMAP 742, 742xs
GPSMAP 8410, 8410xsv
GPSMAP 8412, 8412xsv
GPSMAP 8610, 8610xsv
GPSMAP 8612, 8612xsv
GPSMAP 922, 922xs
GPSMAP 942, 942xs
Striker Plus 5cv
Striker Plus 7cv
Striker Plus 7sv
Striker Plus 9sv
Fishfinders and GPS Chartplotters

Humminbird
Helix 8, 9, 10, 12
Fishfinders and GPS Chartplotters

Lowrance
HDS Carbon 7
HDS LIVE 7
HDS LIVE 9
HDS LIVE 12
Hook Reveal 7 Series
Hook Reveal 9 Series
HOOK-9
Fishfinders and GPS Chartplotters

Raymarine
Fishfinders and GPS Chartplotters

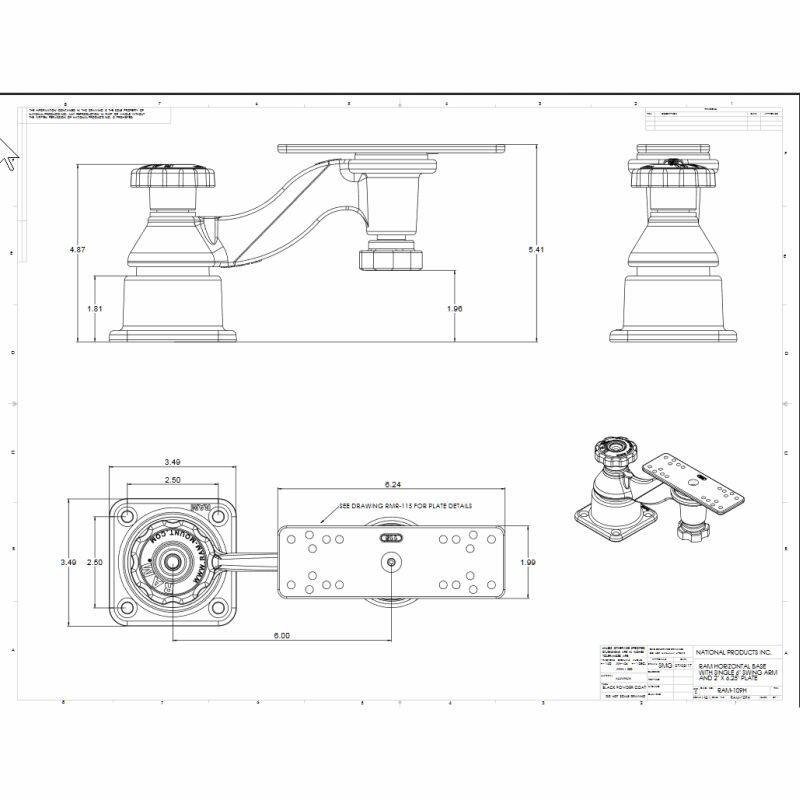

Plate Dimensions:
A. Centre of knob to centre of ball socket:
15.25cm (6")

B. Overall length of swing arm assembly:
27.3cm (10.75")

C. Overall height:
14.22cm (5.6")

D. Height from base to top of knob:
12.47cm (4.91")

Material:
Powder Coated Marine Grade Aluminium
Stainless Steel components

Weight:
948 grams (2.09 lbs.)

Weight Capacity
3.62 kg (8 lbs)


Bottom Plate hole pattern
63.5mm x 63.5mm (2.5" x 2.5")
