RAM Marine Swing Arm with Swivel Open Socket (1.5" C Series)

RAM-109U-G2 RAM® 6" Single Swing Arm with Open Socket

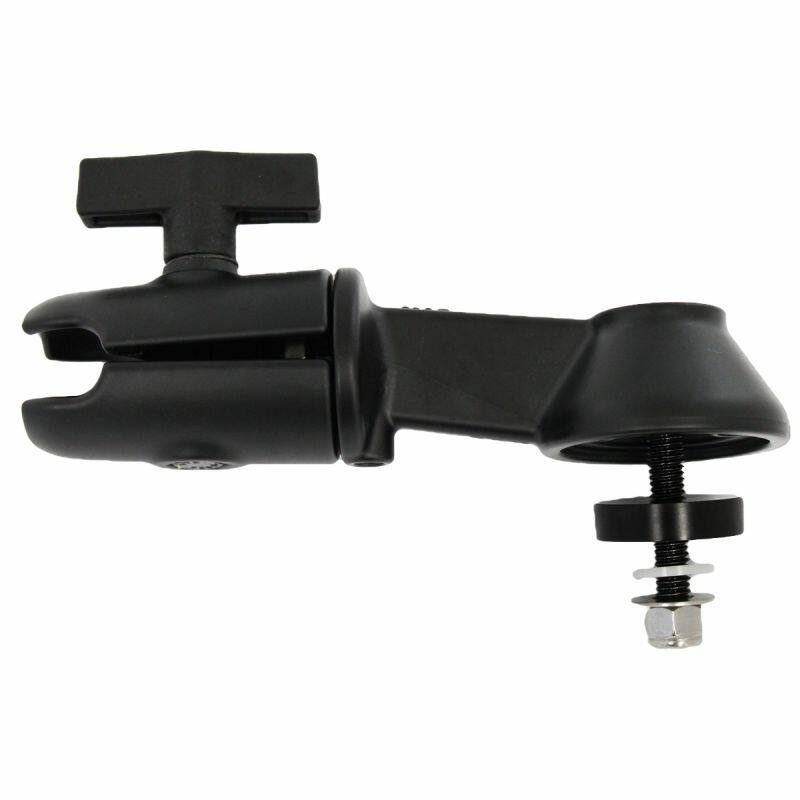

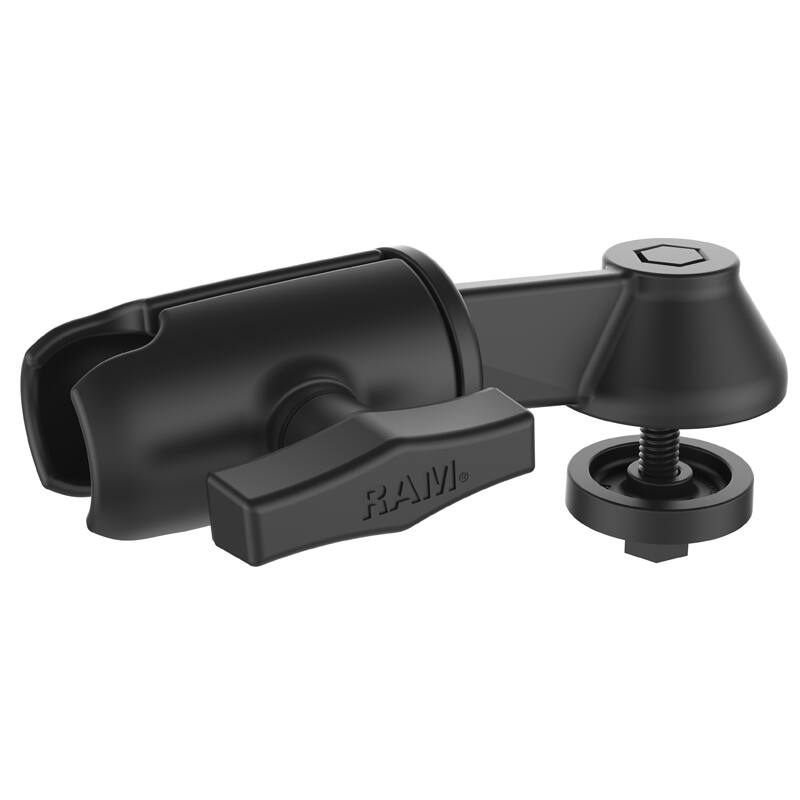

The RAM-109U-G2 is a 152mm (6") straight swing arm finished with an open C-size (1.5") swivel socket, so the screen can tilt for the right viewing angle. Connect the socket to a RAM-111BU universal marine plate to mount chartplotters, fishfinders and other marine electronics, or join it to another arm to build a double swing arm.

Key Features

• 152mm (6") straight single swing arm for the RAM® 109 system
• Open C-size (1.5") swivel socket for viewing-angle adjustment
• Connects to a second arm to build a double swing arm, or to a RAM® 109 base
• Powder-coated marine-grade aluminium for corrosion resistance
• Backed by the RAM® lifetime warranty

Works With

The open socket accepts any base or cradle with a C-size (1.5") RAM® ball, such as the RAM-111BU universal marine plate. It joins to RAM® 109 swing arms such as the RAM-109-1APU. The RAM-VB-110-5NBU is a similar arm designed to connect directly to the RAM-109V-BU vertical base.

Dimensions & Specifications

• Arm length: 152mm (6")
• Socket / ball size: C size (1.5")
• Material: marine-grade aluminium
• Weight: 526g (1.16 lbs)
• Weight capacity: 1.81kg (4 lbs) standard use, 1.36kg (3 lbs) heavy-duty use

Hardware Included

• (1) 3/8"-16 x 3" hex bolt
• (1) 2" rubber washer
• (1) 7/8" nylon washer
• (1) 3/8" stainless steel washer
• (1) 3/8"-16 nylock nut

FAQs

Is it in stock? Yes. This is held in our Auckland warehouse and normally dispatches within one business day of your order.
