RAM Marine Swing Arm with Swivel Socket Arm - Vertical Mount

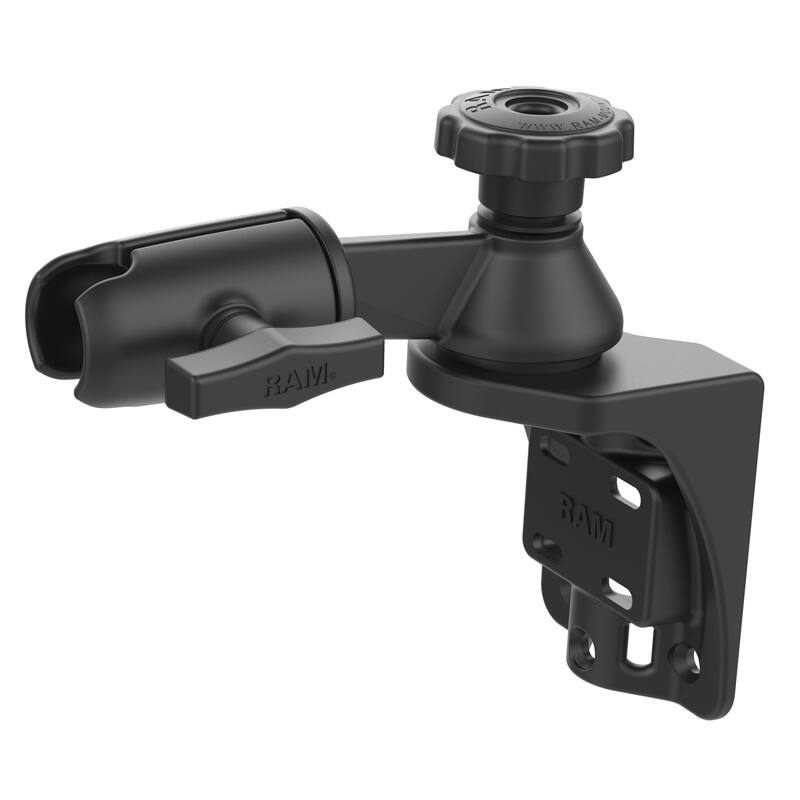

RAM-109VS-4U RAM® Vertical Single Swing Arm Mount with Swivel Socket

The RAM-109VS-4U is a 152mm (6") straight swing arm on a vertical base, finished with an open C-size (1.5") swivel socket. It is the mounting backbone only: add any RAM® cradle or base with a 1.5" C-size ball to build a complete mount for a fishfinder, chartplotter, GPS or screen. The bolt pivot gives full 360-degree rotation, and the ball and socket adds a 180-degree tilt.

Key Features

• Single 152mm (6") straight swing arm on a vertical base
• Bolt pivot point for full 360-degree rotation
• Open C-size (1.5") socket with 180-degree tilt and 360-degree rotation
• Drill-down vertical base with multiple pre-drilled holes for a stable, permanent install
• Powder-coated marine-grade aluminium for corrosion resistance in demanding marine environments
• Backed by the RAM® lifetime warranty

Works With

The open socket accepts any base or cradle fitted with a C-size (1.5") RAM® ball, such as the RAM-111BU universal marine plate or the RAM-202U base.

Dimensions & Specifications

• Arm length: 152mm (6")
• Socket / ball size: C size (1.5")
• Material: powder-coated marine-grade aluminium
• Weight: 1.08kg (2.38 lbs)
• Weight capacity: 1.81kg (4 lbs) standard use, 1.36kg (3 lbs) heavy-duty use

What's in the Kit

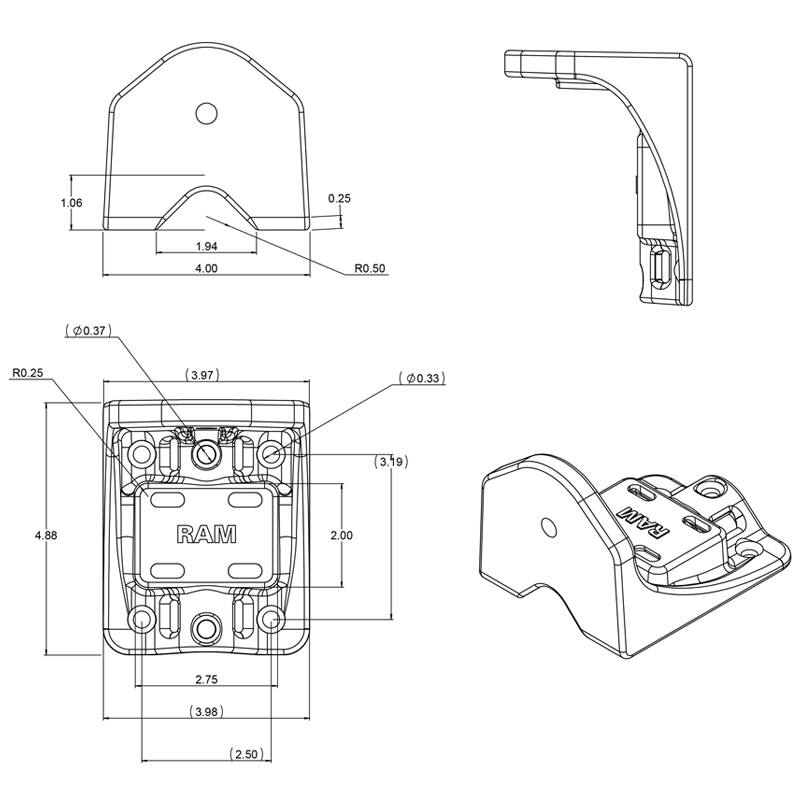

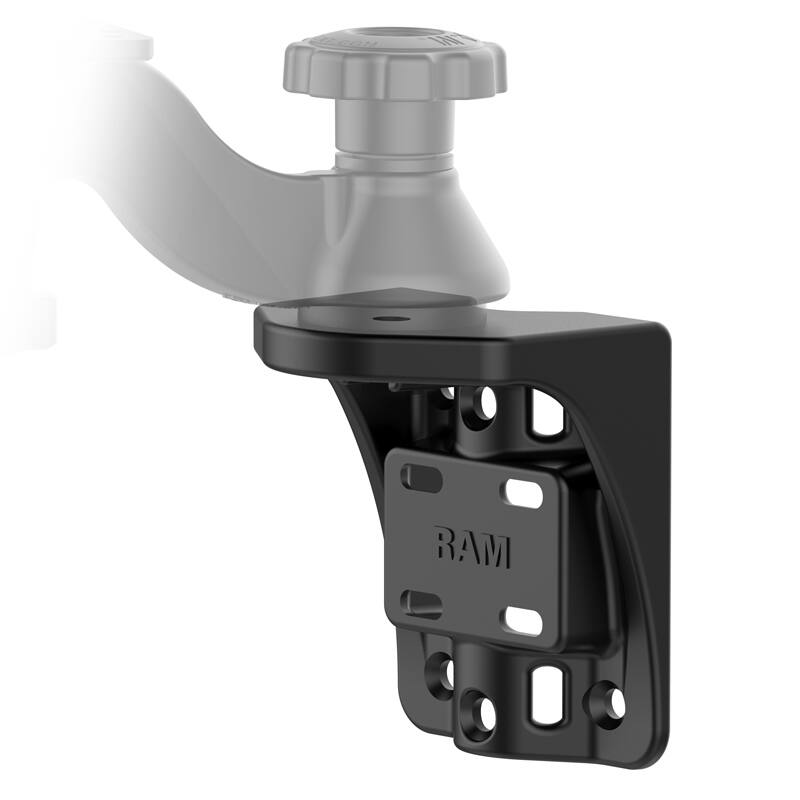

• RAM-109V-BU vertical swing arm base

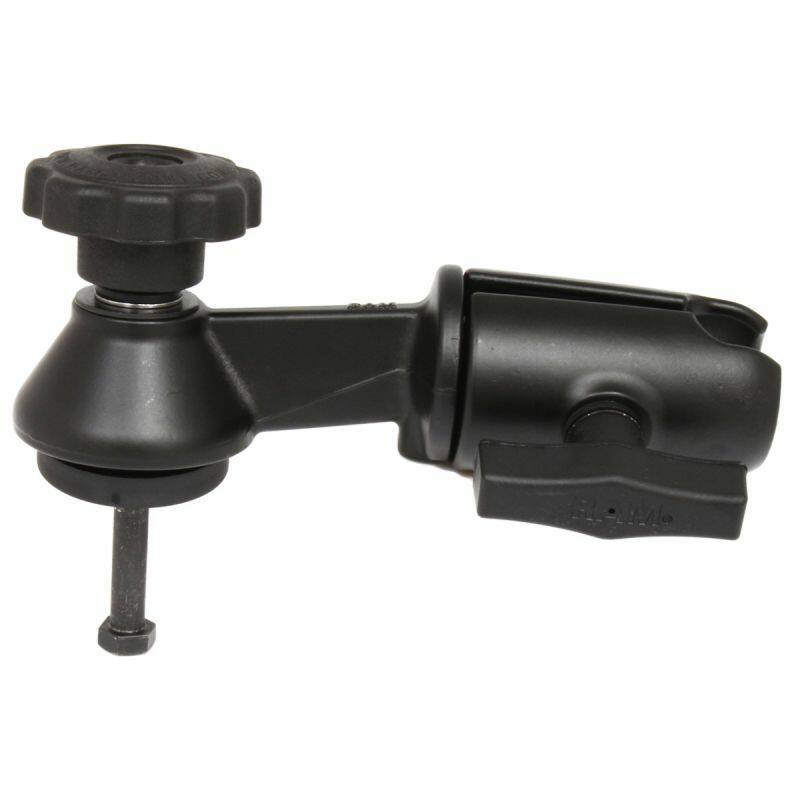

• RAM-VB-110-5NBU 6" swingle swing arm with swivel socket

FAQs

Does this include a plate for my fishfinder? No. This is the swing arm and base with an open C-size socket. You add a cradle or base with a 1.5" ball, such as the RAM-111BU universal marine plate, to suit your device.

Is it in stock? Yes. This is held in our Auckland warehouse and normally dispatches within one business day of your order.
