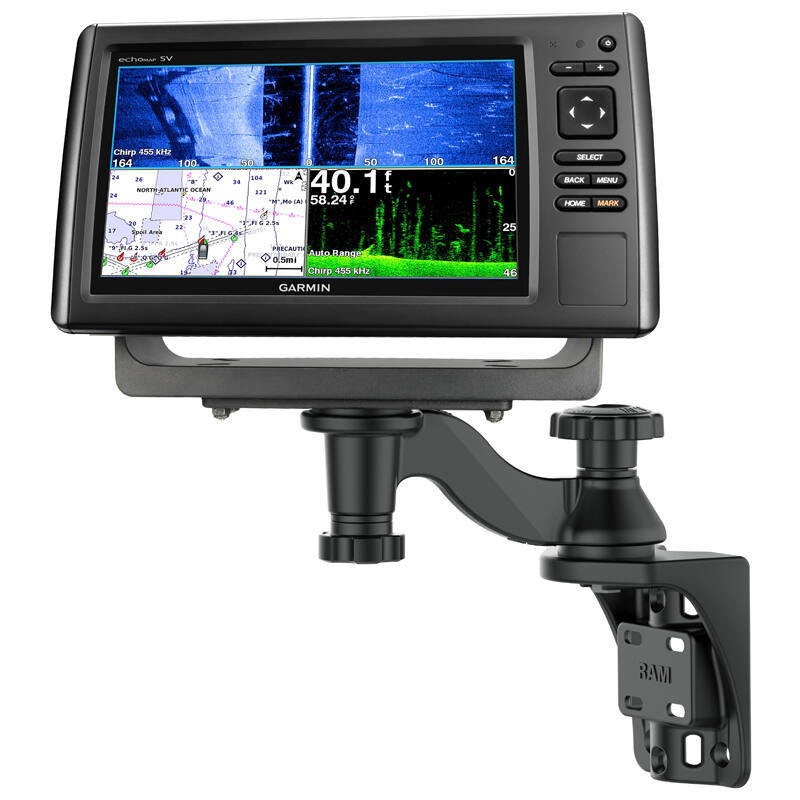

RAM-109VU RAM® Vertical 6" Swing Arm Mount for Fishfinders & Plotters

Features

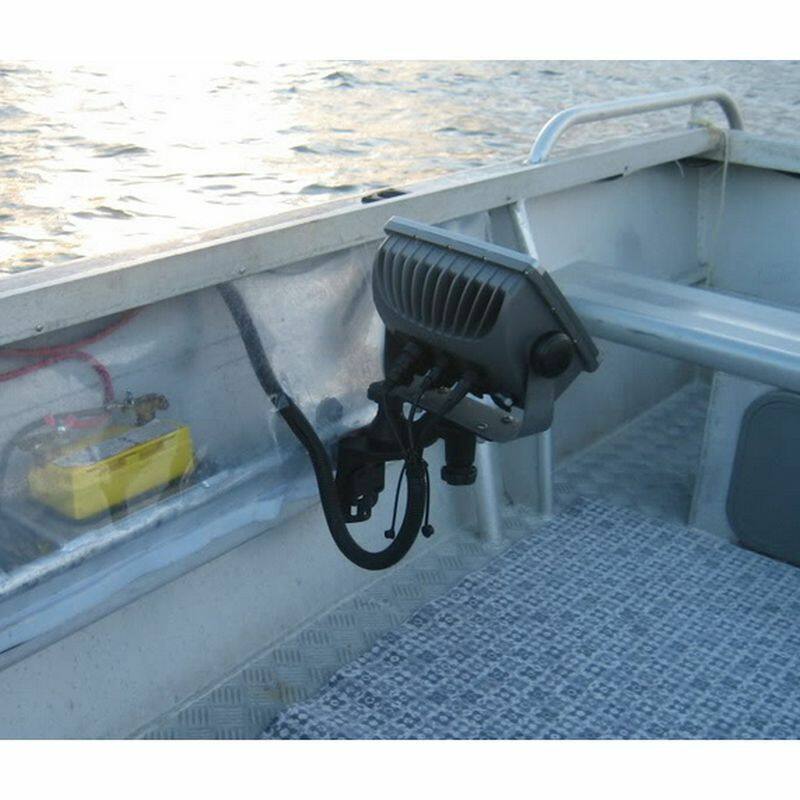

* Universal drill-down fishfinder mounting solution features 152mm swing arm for ideal device placement on a vertical surface

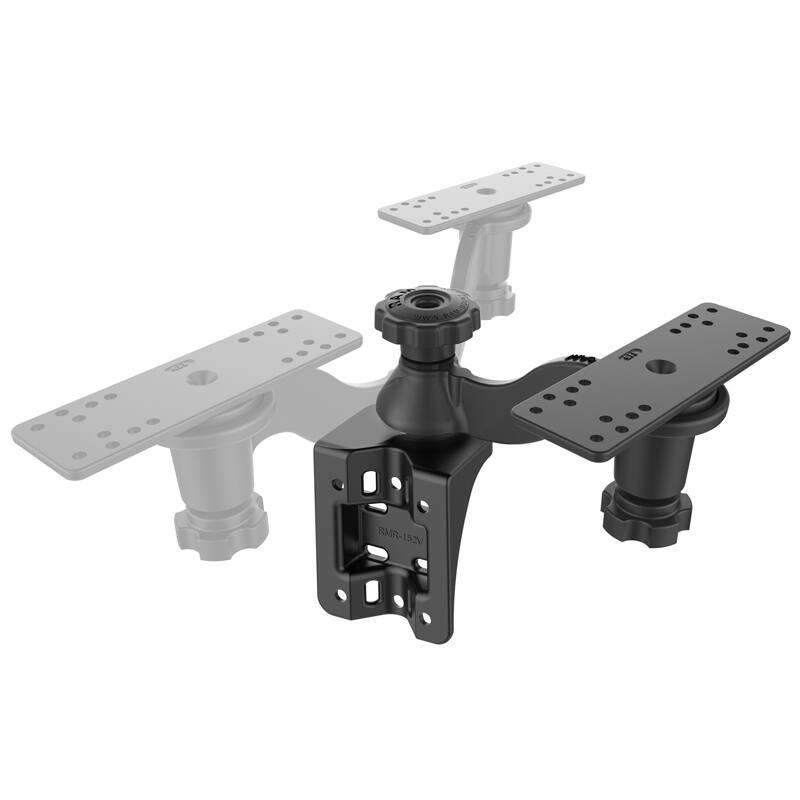

* Two pivot points allow for complete 360-degree rotation
* Made of powder-coated, marine-grade aluminium for durability and reliability in the most demanding environments
* Backed by a lifetime warranty

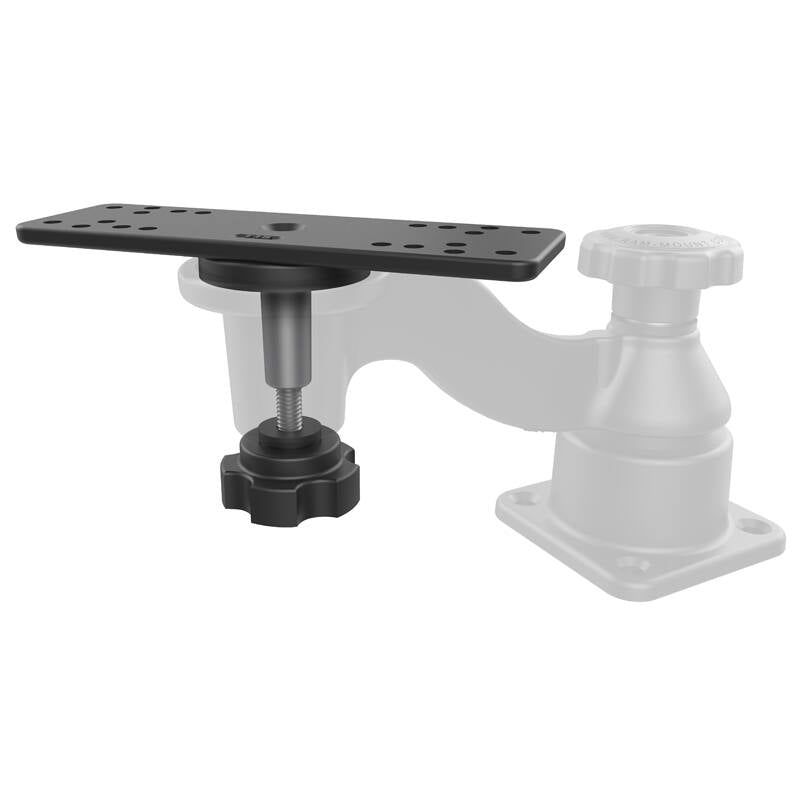

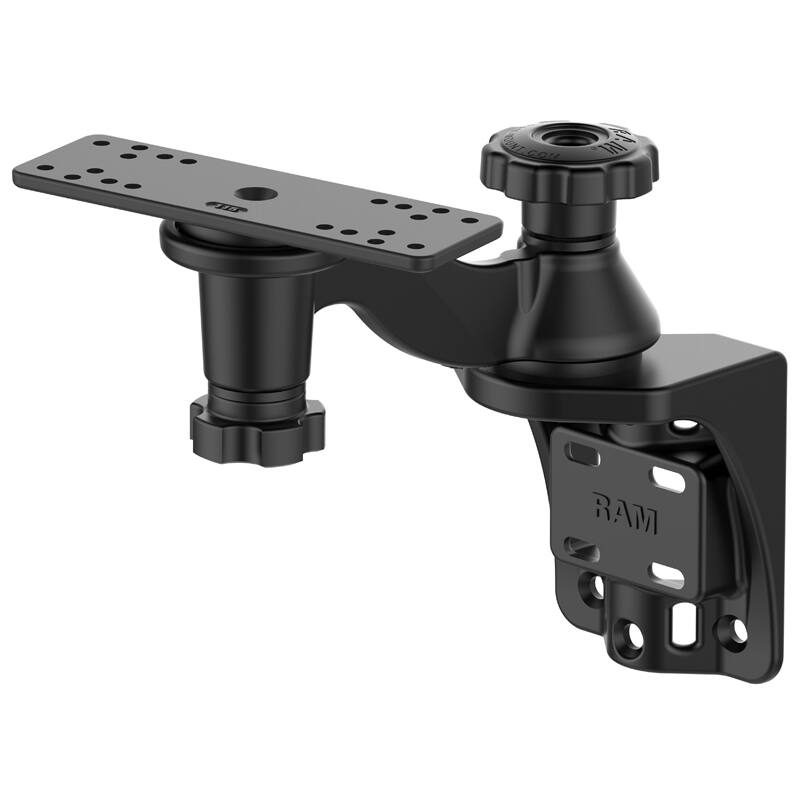

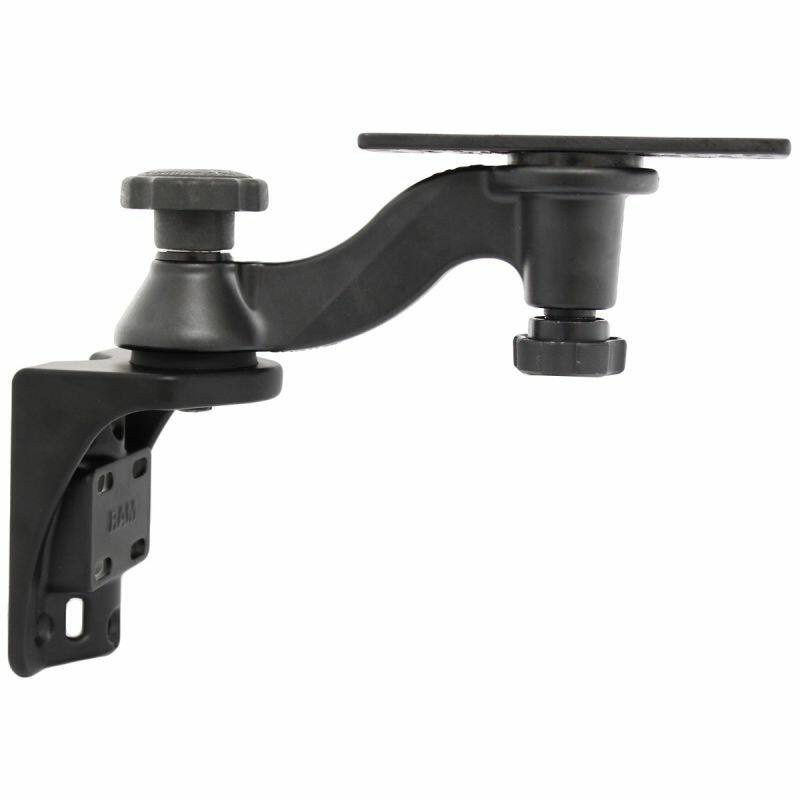

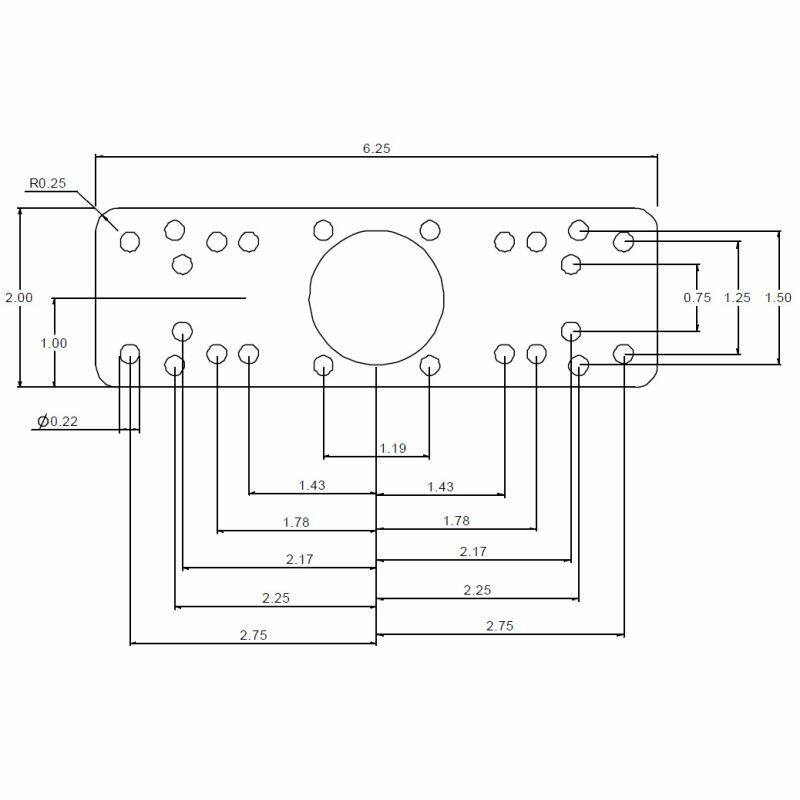

This consists of a 152mm (6") swing arm mounted on a vertical surface mounting base. At the device mounting end of the mount is a rectangular 159 x 51mm (6.25" x 2") plate. The plate is a universal mounting bracket with a selection of mounting hole locations. In certain applications additional holes may need to be drilled for proper fit with your electronic device.

Compatible Devices Include:

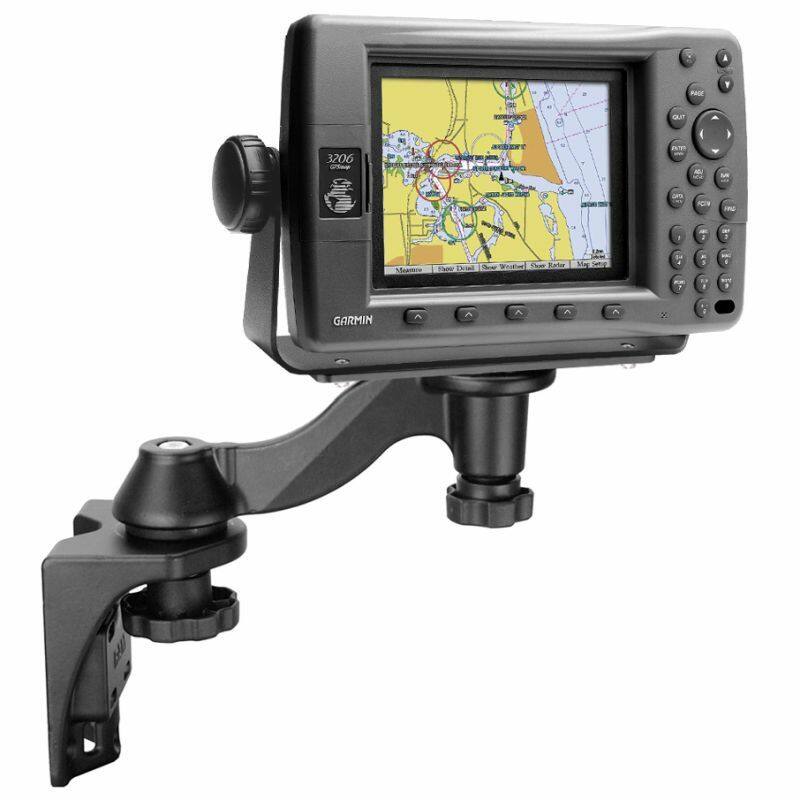

Garmin
echoMAP Chirp 72-95 Series
ECHOMAP Plus 72-97 Series
ECHOMAP UHD 62-95 Series
ECHOMAP Ultra 102sv, 106sv
GPSMAP 722, 722xs, 723, 723xsv, 742, 742xs, 743, 743xsv, 8410, 8410xsv, 8412, 8412xsv, 8416, 8416xsv, 8610, 8610xsv, 8612, 8612xsv, 8616, 8616xsv
GPSMAP 922, 922xs,923, 923xsv, 942, 942xs, 943, 943xsv, 1223, 1223xsv, 1243, 1243xsv
Striker Plus 5cv, 7cv, 7sv, 9sc
Striker Vivid 5cv, 7cv, 7sv, 9sv
Fishfinders and GPS Chartplotters

Humminbird
Apex 13, 16
Helix 8, 9, 10, 12, 15
Fishfinders and GPS Chartplotters

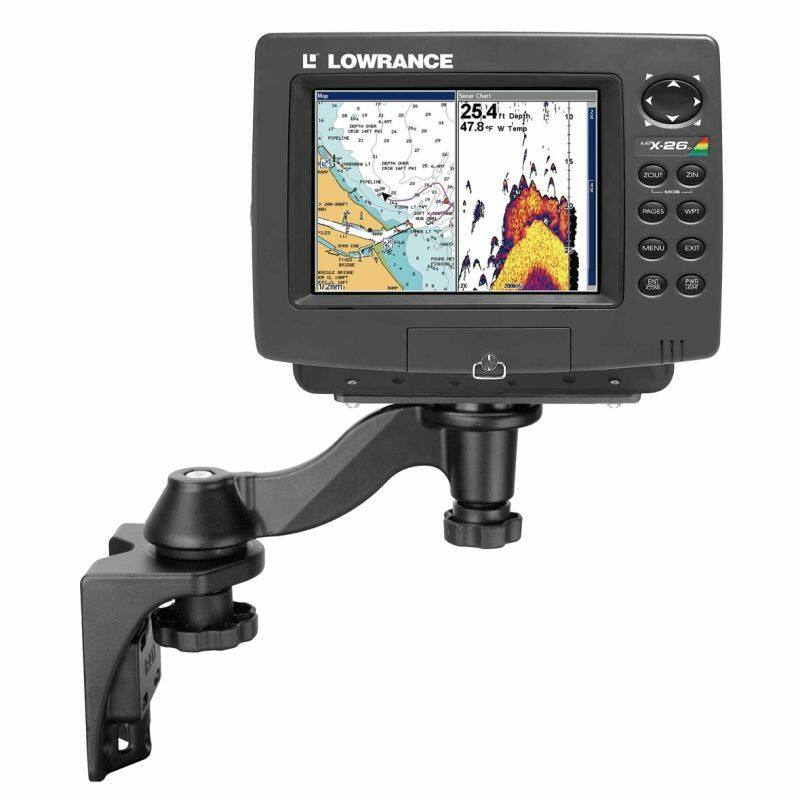

Lowrance
Elite FS 7
HDS Carbon 7
HDS LIVE 7, LIVE 9, LIVE 12
Hook Reveal 7 Series, 9 Series
HOOK-9
Fishfinders and GPS Chartplotters

Raymarine
Fishfinders and GPS Chartplotters

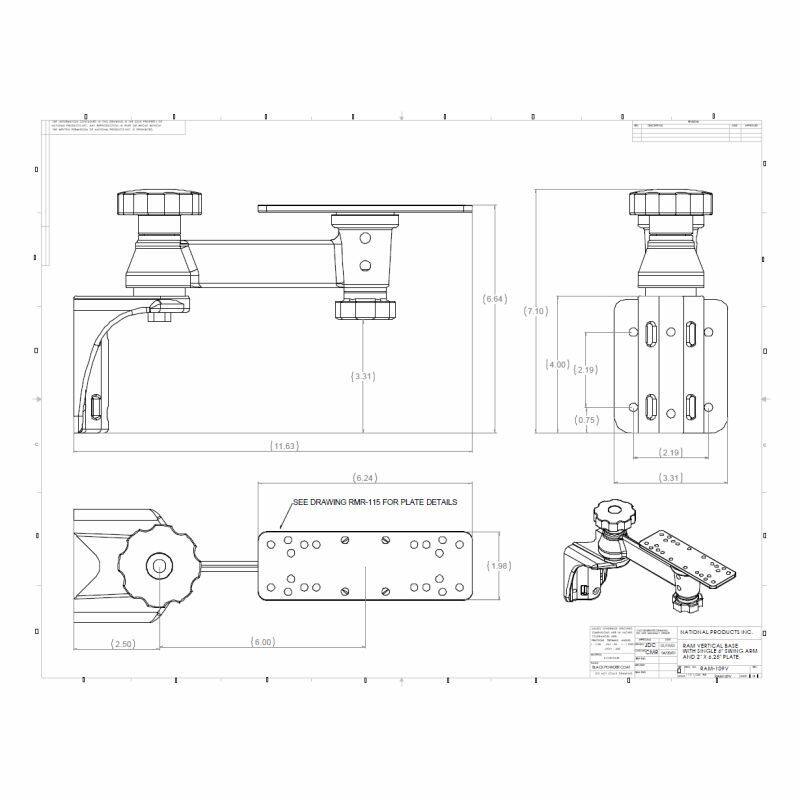

Dimensions:
Centre of knob to centre of ball socket:
152mm
Overall length of swing arm assembly:
291mm
Overall height:
214mm


Plate Size
Top Plate:
159 x 51mm (6.25" x 2")
Bottom Plate:
100 x 123mm (3.97" x 4.85")

Weight:
1.18kg (2.6 lbs.)

Weight Capacity
Standard Use:
1.814kg (4 lbs)
Heavy-Duty Use:
1.36kg (3 lbs)


Materials
Marine-grade aluminium
