RAM Marine Swingle - Swing Arm with Swivel Socket - C Series

RAM-VB-110-5NBU RAM® 6" Single Swing Arm with Swivel Socket

The RAM-VB-110-5NBU is a 152mm (6") single swing arm finished with an open C-size (1.5") swivel socket that rotates to set the viewing angle. It connects to either the RAM-109V-BU vertical base or the RAM-109H-BU horizontal base, and is one of the core building blocks of the RAM® 109 mount system. Made from marine-grade aluminium for life on the water.

Key Features

• 152mm (6") single swing arm for the RAM® 109 system
• Open C-size (1.5") swivel socket that rotates for the ideal viewing angle
• Connects to the RAM-109V-BU vertical or RAM-109H-BU horizontal base
• Powder-coated marine-grade aluminium for corrosion resistance
• Backed by the RAM® lifetime warranty

Works With

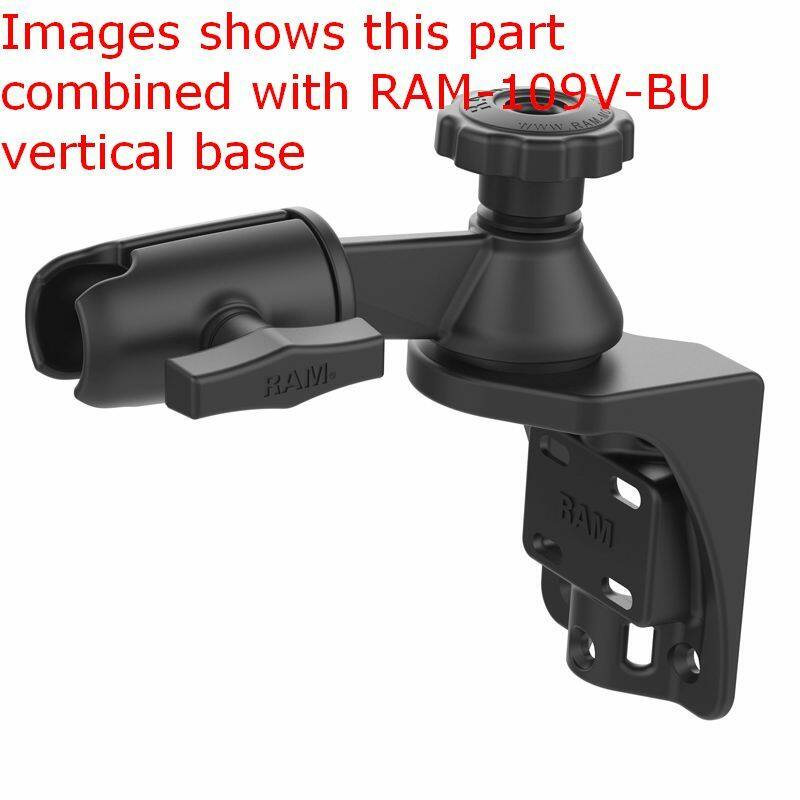

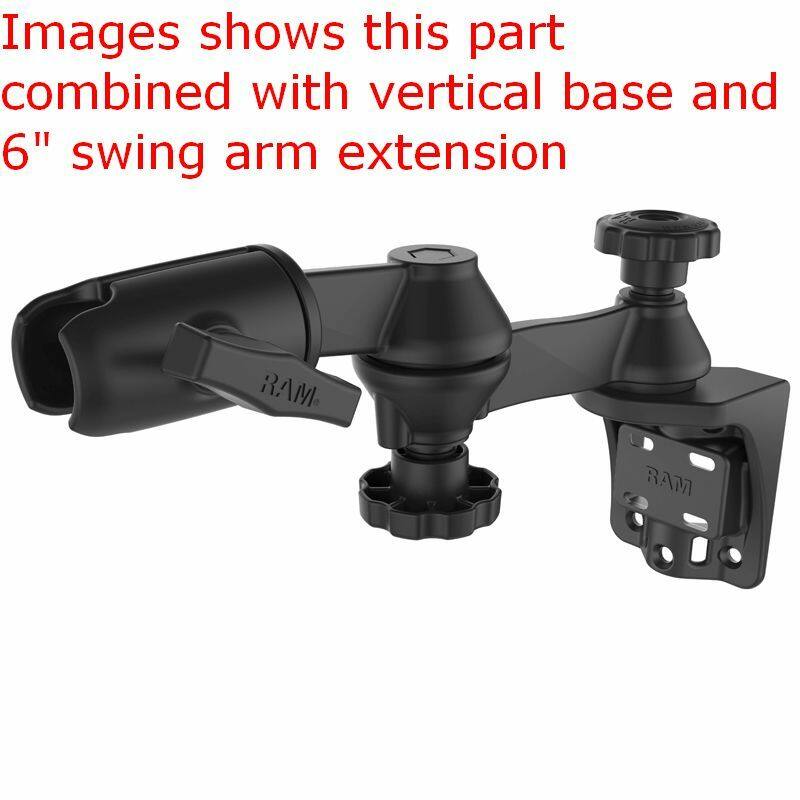

Connects to the RAM-109V-BU vertical base or RAM-109H-BU horizontal base. The socket accepts any base or cradle with a C-size (1.5") RAM® ball, such as the RAM-111BU universal marine plate.

Dimensions & Specifications

• Arm length: 152mm (6")
• Socket / ball size: C size (1.5")
• Material: powder-coated marine-grade aluminium
• Weight: 1.02kg (2.25 lbs)
• Weight capacity: 1.81kg (4 lbs) standard use, 1.36kg (3 lbs) heavy-duty use

Hardware Included

• (1) 3/8"-16 x 4" hex bolt
• (1) 2" rubber washer
• (1) 1.25" fender washer
• (2) steel washers
• (1) thrust bearing washer
• (1) 3/8"-16 knob

FAQs

How fast does it ship? If it's shown in stock here, it ships from our Auckland warehouse, normally within one business day. If it's shown as out of stock, get in touch and we may be able to get it in for you.
