RAM Mounts

RAM Marine Universal Electronic Device Base - D Series - Large

RAM Marine Universal Electronic Device Base - D Series - Large

SKU:RAM-D-111BU

Regular price $130.50 NZD
Regular price Sale price $130.50 NZD
Sale Sold out
Tax included. Shipping calculated at checkout.
View full details

RAM-D-111BU RAM® Large Marine Electronics Ball Adaptor


Features

* Universal marine electronic plate (280 x 76mm) includes a variety of pre-drilled holes that match a wide range of devices
* Included D Size 2.25" RAM® rubber ball allows for connection to any D size RAM® double socket arm
* RAM ball and socket technology allows for near-infinite adjustability
* Made of Powder-coated, marine-grade aluminum for durability and reliability in the most demanding marine environments
* Backed by a lifetime warranty

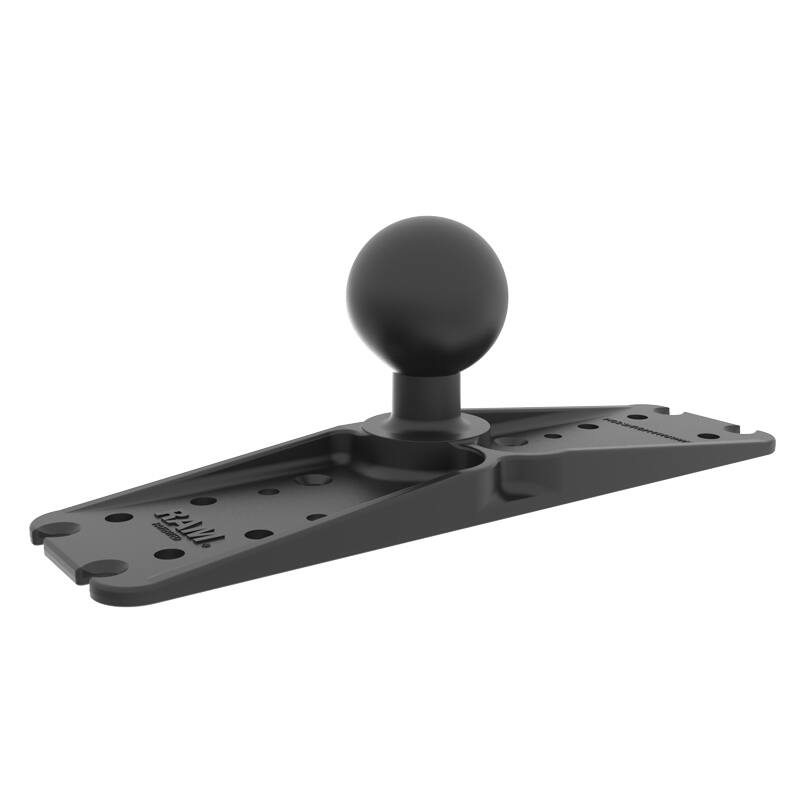

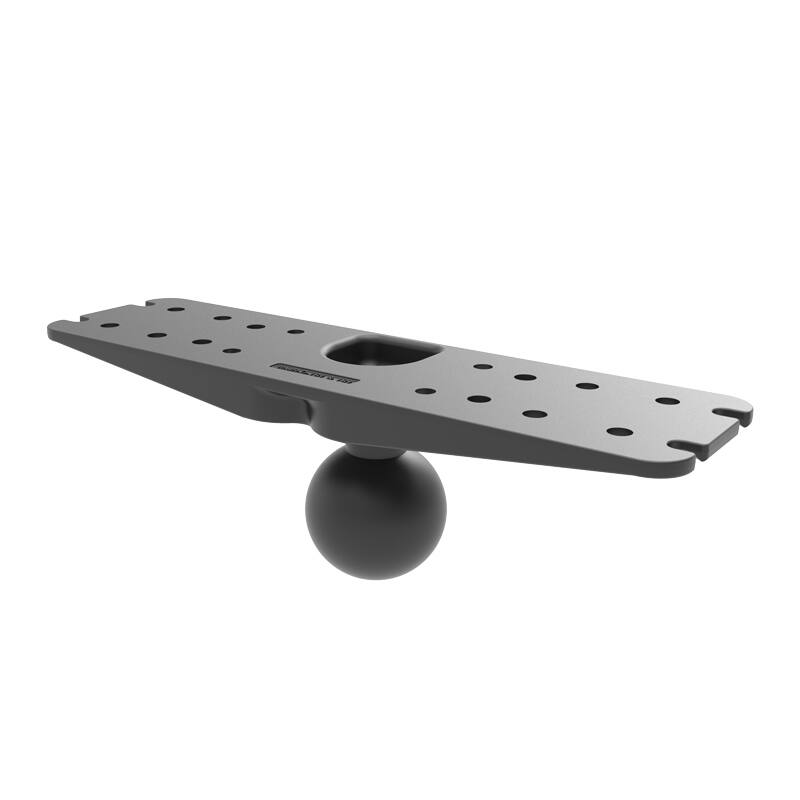

The RAM-D-111BU, universal mounting plate, consists of a 2.25" / 57mm diameter rubber ball, connected at right angles to a flat (279mm x 76.2mm) 11" x 3" rectangular plate. The plate contains different combinations of pre-drilled holes which will match up to many electronic devices.

Specs & Features

Material:
Powder Coated Marine Grade Aluminium

Ball Size:
57mm (2.25") Rubber "D" Ball Size

Compatible Devices include:

Garmin
ECHOMAP Ultra 122sv
ECHOMAP Ultra 126sv
GPSMAP 1222/xsv Touch
GPSMAP 1242xsv/Touch
Fishfinders and GPS Chartplotters

Lowrance
HDS Carbon 9
HDS Carbon 12
Elite-9 CHIRP
Elite-9 Ti
Elite-9 Ti²
Elite-12 Ti
Elite-12 Ti²
Fishfinders and GPS Chartplotters

Humminbird
800 & 900 Series
Fishfinders and GPS Chartplotters

Raymarine
Fishfinders and GPS Chartplotters

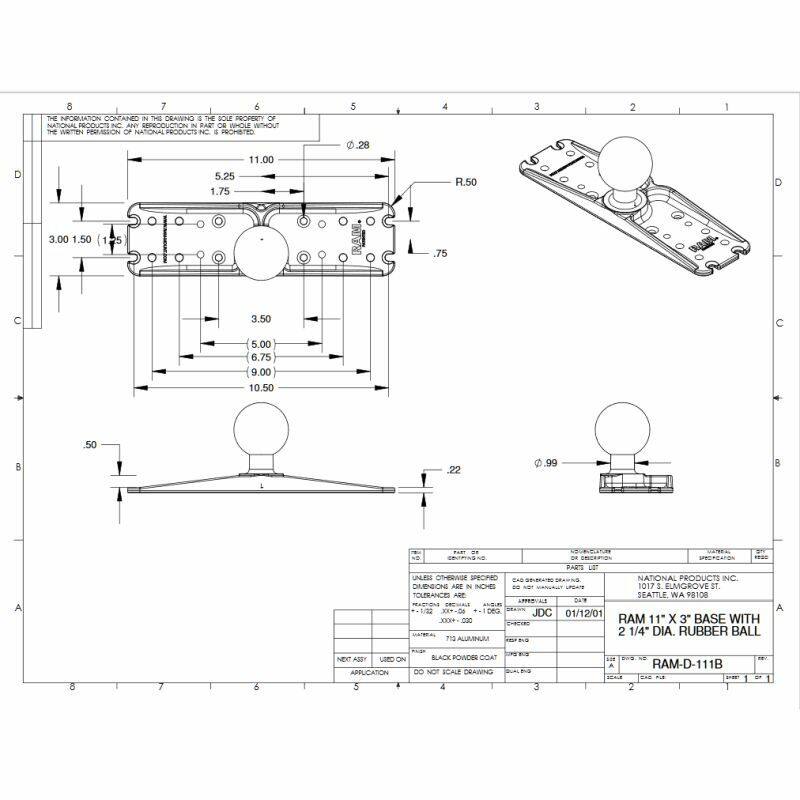

Hole Pattern
See Drawing
Note:
This plate is a universal mounting bracket with a selection of mounting hole locations. In certain applications additional holes may need to be drilled for proper fit with your electronic device.



Weight:
590 grams (1.3 lbs.)


Weight Capacity
Standard Use: 2.72kg (6 lbs)
Heavy-Duty Use: 2.26kg (5 lbs)


Hardware Included
(4) .312" x .187" Shoulder Washers




YouTube:
https://www.youtube.com/watch?v=Bq3V6EQR2Ds&t=82s


QUESTIONS & ANSWERS
Q: What are the 4 shoulder washers used for?

A: The four included shoulder washers are meant to accommodate smaller screws in case the original holes on the ball plate are too large. These washers will reduce the risk of smaller screw heads stripping through the larger holes, and can be used with any of the holes on the ball plate.
