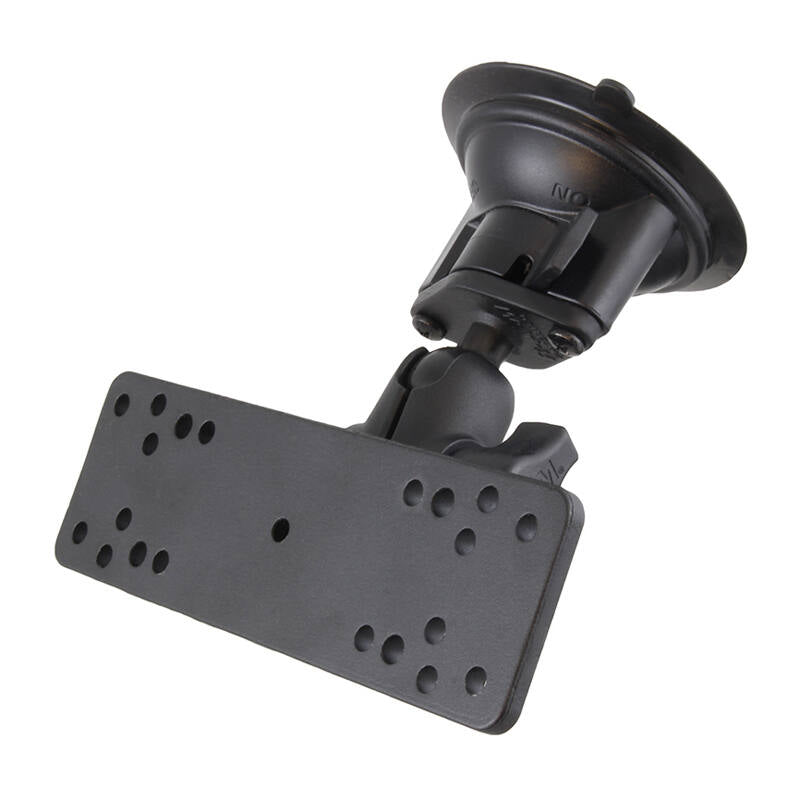

RAM-B-166-A-111U RAM® Twist-Lock™ Suction Cup Mount with Universal Electronics Plate - Short Arm
Features
* Complete mounting solution with RAM® Twist-Lock™ suction cup base which is ideal for windshields and other nonporous surfaces
* RAM® Mounts ball and socket technology allows for near-infinite adjustability
* Includes short RAM double socket arm
* Made of High Strength Composite for durability and reliability in the most demanding marine environments
* Backed by a lifetime warranty

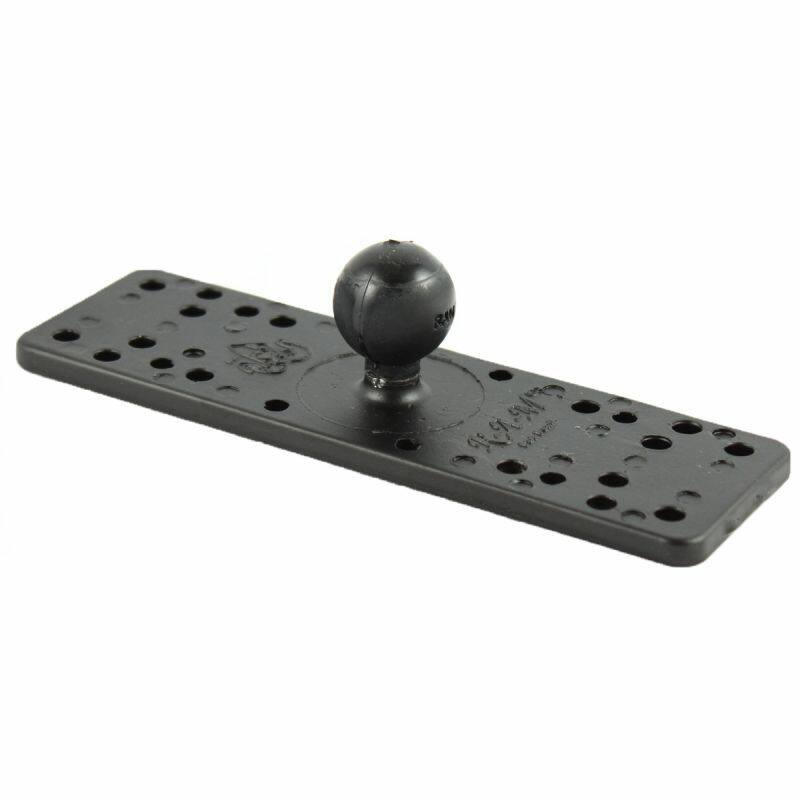

The plate is a 15.88 x 5.08cm (6.25" x 2") rectangle base connected to a 1" diameter rubber ball.
The base contains different combinations of pre-drilled holes which will match up to many electronic devices and mounts, including Garmin GPSMap, Marine GPS, CB Radios, Ham Radios, Gimbal Brackets and more

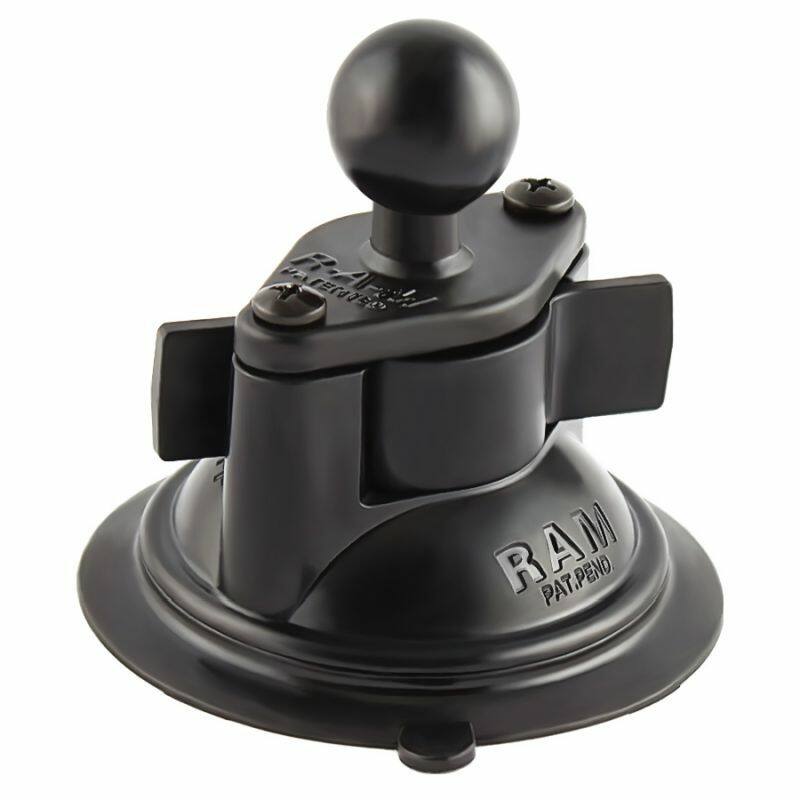

The 82mm / 3.3" Diameter Suction Cup Twist Lock Base with B-Series 1" ball is a super strong and reliable suction mount that's perfect for temporary mountings. The suction cup is designed to have an extra strong hold on any smooth, glass or non-porous plastic surface
SHORT double socket arm length 61mm
Compatible Devices include
Garmin
GPSMAP 162
GPSMAP 168
GPSMAP 175
GPSMAP 180
GPSMAP 180C
GPSMAP 182
GPSMAP 185
GPSMAP 188
GPSMAP 232
GPSMAP 238
Striker 5 Series
Striker Plus 5cv

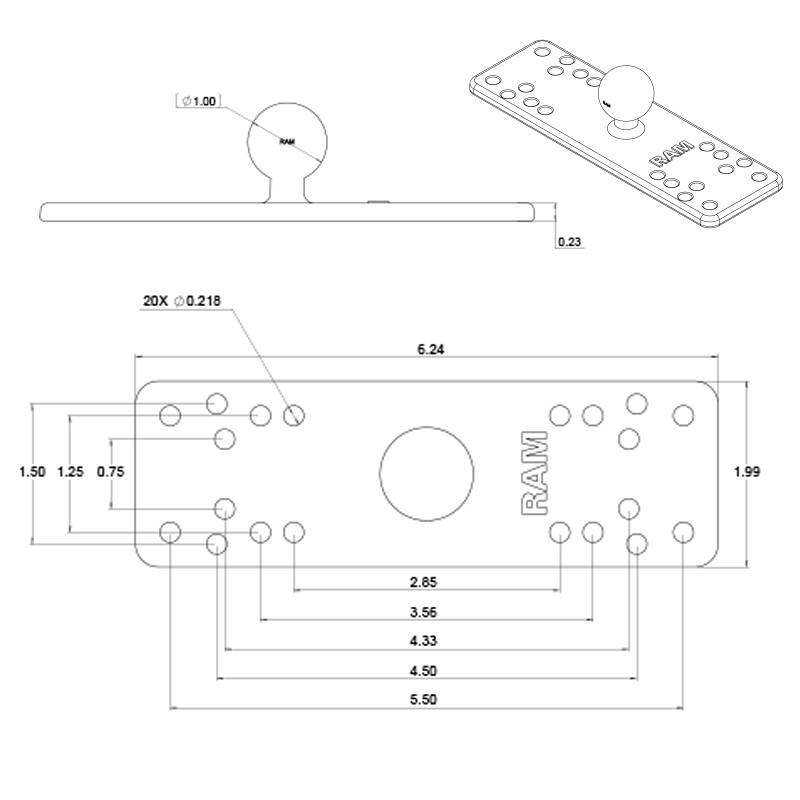

Hole Pattern:
See drawing
Arm DIMENSIONS
Overall Length:
61.4mm (2.42")
SOCKET-TO-SOCKET LENGTH
44mm (1.75")
Material:
Marine-grade aluminium
High strength composite
Weight:
376 grams (0.83 lbs.)
Components:

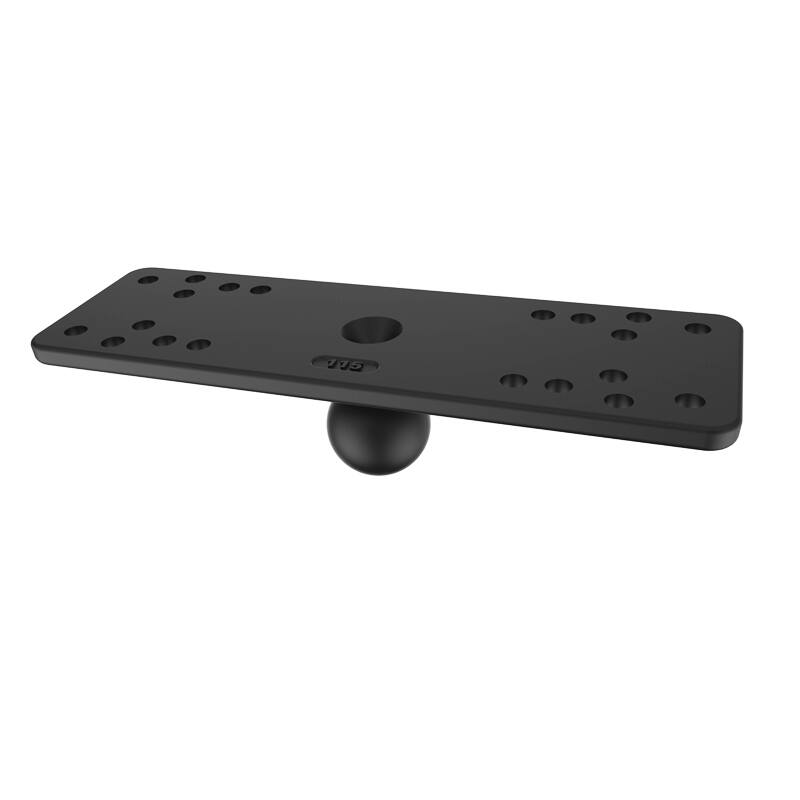

RAM-B-111BU RECTANGULAR PLATE B SERIES
RAM-B-201U-A SHORT DOUBLE SOCKET ARM FOR 1" BALL
RAM-B-224-1U - 3.3" Diameter Suction Cup Base with B Size 1" Ball
