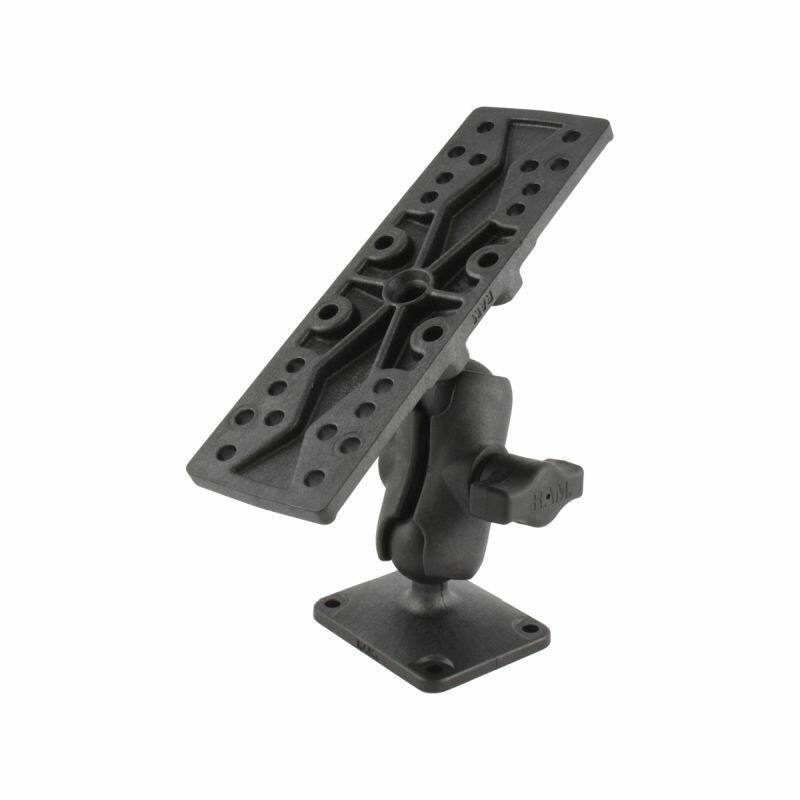

RAP-B-111U-A RAM® Composite Universal Marine Electronic Mount with SHORT ARM
Features
* Complete flat surface, drill-down mounting solution with an overall height of 3.69"
* RAM® Mounts ball and socket technology allows for near-infinite adjustability
* Made of High Strength Composite for durability and reliability in the most demanding marine environments
* Backed by a lifetime warranty
The RAP-B-111U-A consists of a 50.8mm x 63.5mm (2" x 2.5") rectangle base, SHORT length double socket arm and 158.75mm x 50.8mm (6.25" x 2") rectangle plate. The rectangle base contains pre-drilled holes, including the universal AMPS hole pattern.

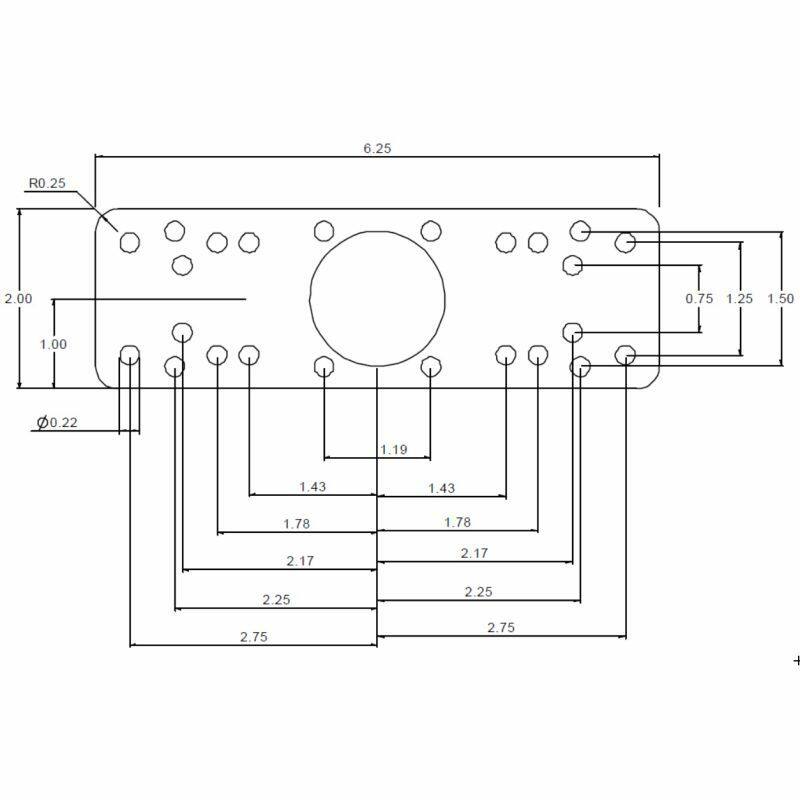

The 158.75mm x 50.8mm (6.25" x 2") rectangle plate contains different combinations of pre-drilled holes which will match up to many electronic devices and mounts, including Marine GPS, CB Radios, Ham Radios, Gimbal Brackets and more.
Compatible Devices (include)
Garmin
GPSMAP 162
GPSMAP 168
GPSMAP 175
GPSMAP 180
GPSMAP 180C
GPSMAP 182
GPSMAP 185
GPSMAP 188
GPSMAP 232
GPSMAP 238
Striker 5 Series
Striker Plus 5cv
Product Dimensions
Overall Height:
93.7mm (3.69")
Arm Dimensions:
Overall Length:
60.5mm (2.38")
Socket-To-Socket Length:
51mm (2")
Hole Pattern
4-Hole AMPS: 1.181" x 1.496"
Ball Size:
1" Rubber "B" Ball Size
Weight Capacity
Standard Use:
907 grams (2 lbs)
Heavy-Duty Use:
454 grams (1 lb)
Weight
381 grams (0.84 lbs)
Material:
High Strength Composite
Components:

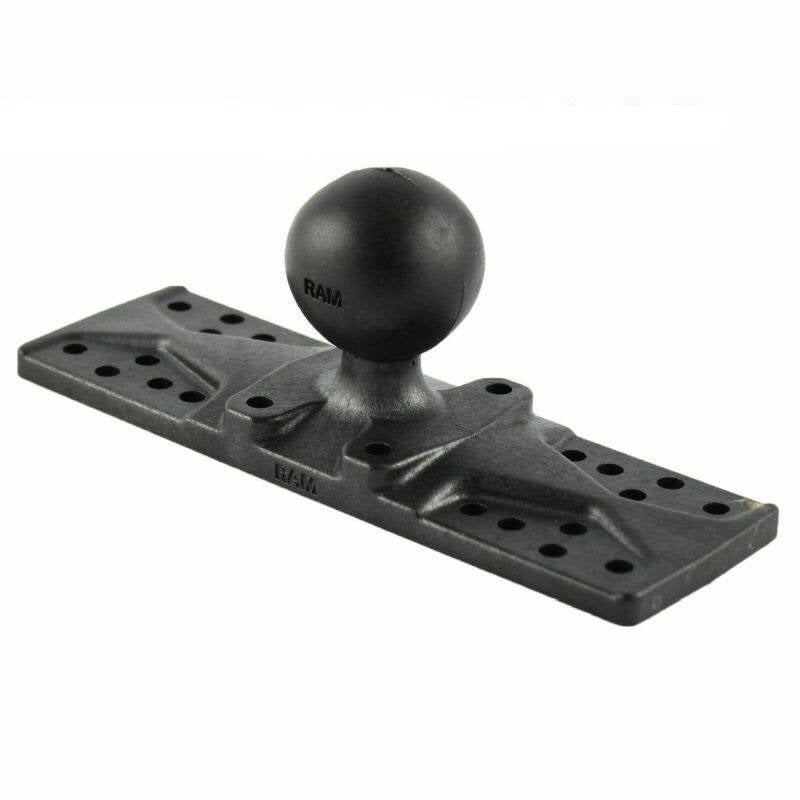

RAP-B-111BU RAM RECTANGULAR PLATE B SERIES - COMPOSITE

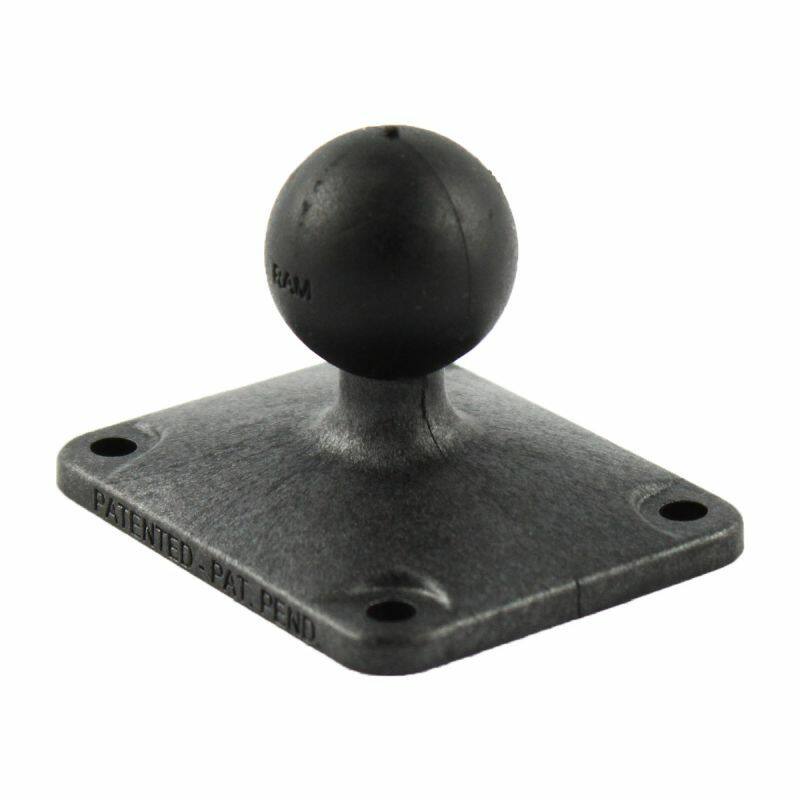

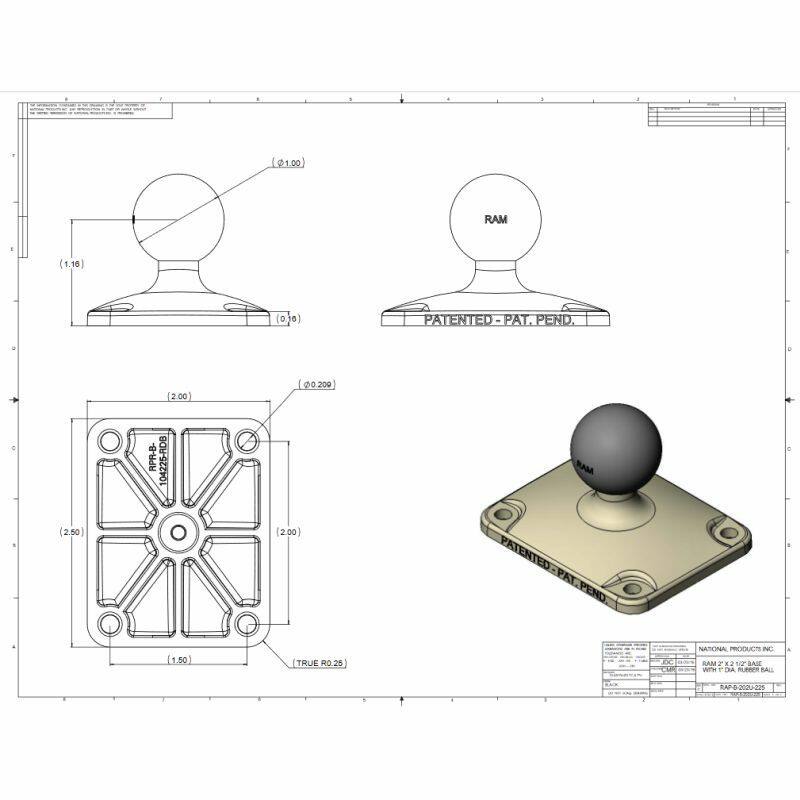

RAP-B-202U-225 RAM Composite Ball Base with 1.5" x 2" 4-Hole Pattern

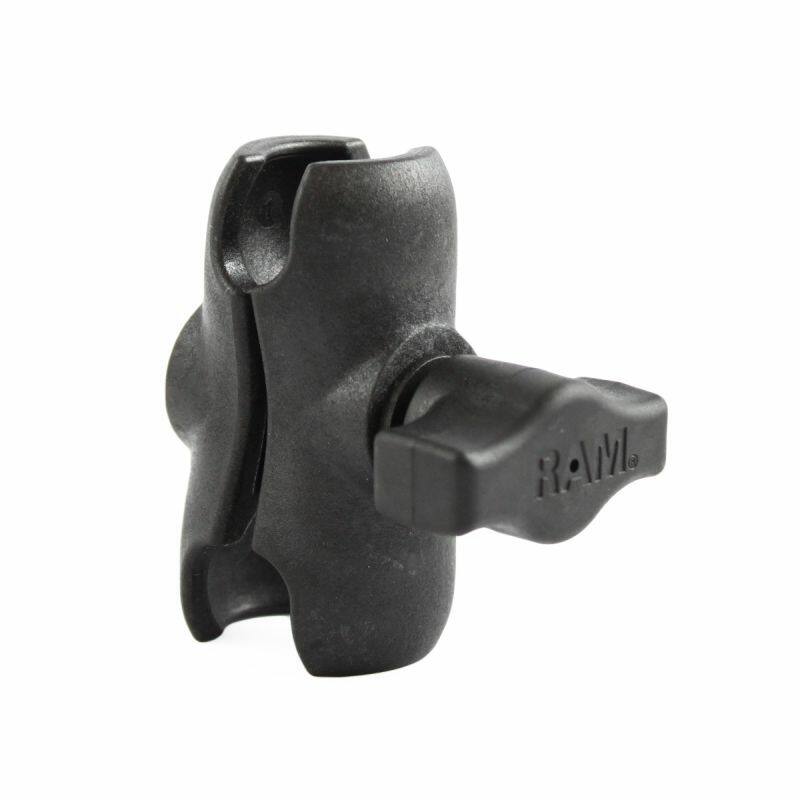

RAP-B-201U-A RAM PLASTIC DBL SOCKET ARM B BALL A LNG
