RAM Marine Universal Electronic Device Mounting System - C Series - Short Arm

RAM Marine Universal Electronic Device Mounting System - C Series - Short Arm

SKU:RAM-111U-B-v

Regular price $133.71 NZD
Regular price Sale price $133.71 NZD
Sale Sold out
Tax included. Shipping calculated at checkout.
View full details

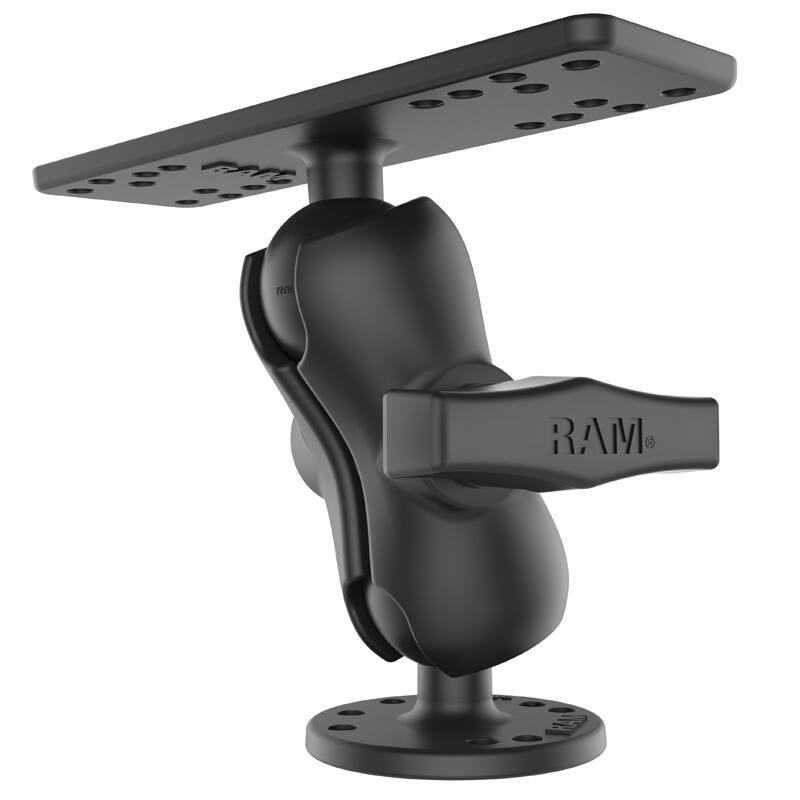

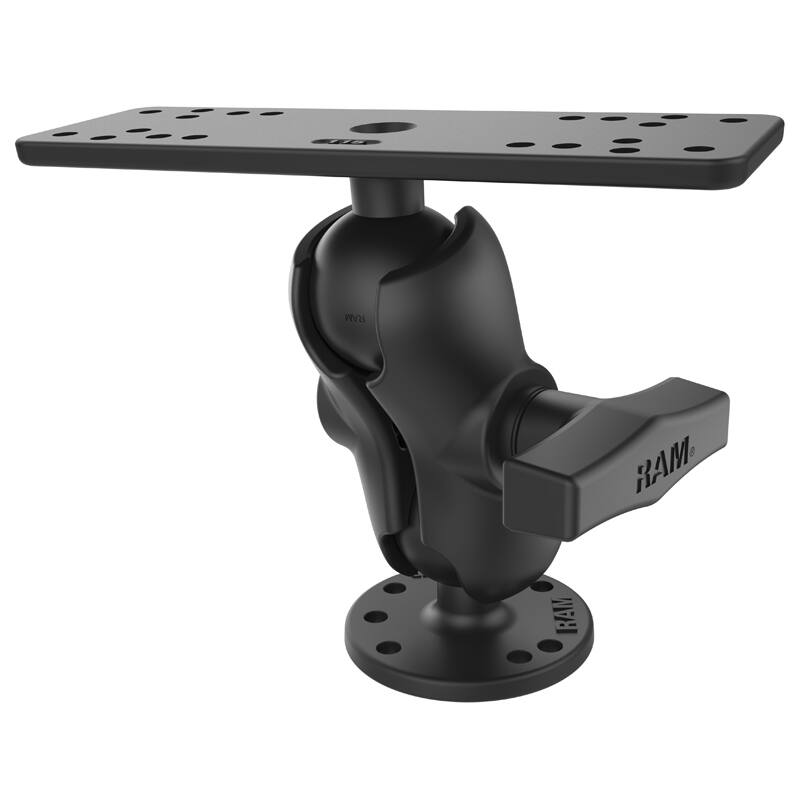

RAM-111U-B RAM® Universal Marine Electronic Mount - C Size Short


Features

* Complete flat surface, drill-down mounting solution with an overall height of 133mm
* RAM® Mounts ball and socket technology allows for near-infinite adjustability
* Made of Powder-coated, marine-grade aluminum for durability and reliability in the most demanding marine environments
* Backed by a lifetime warranty

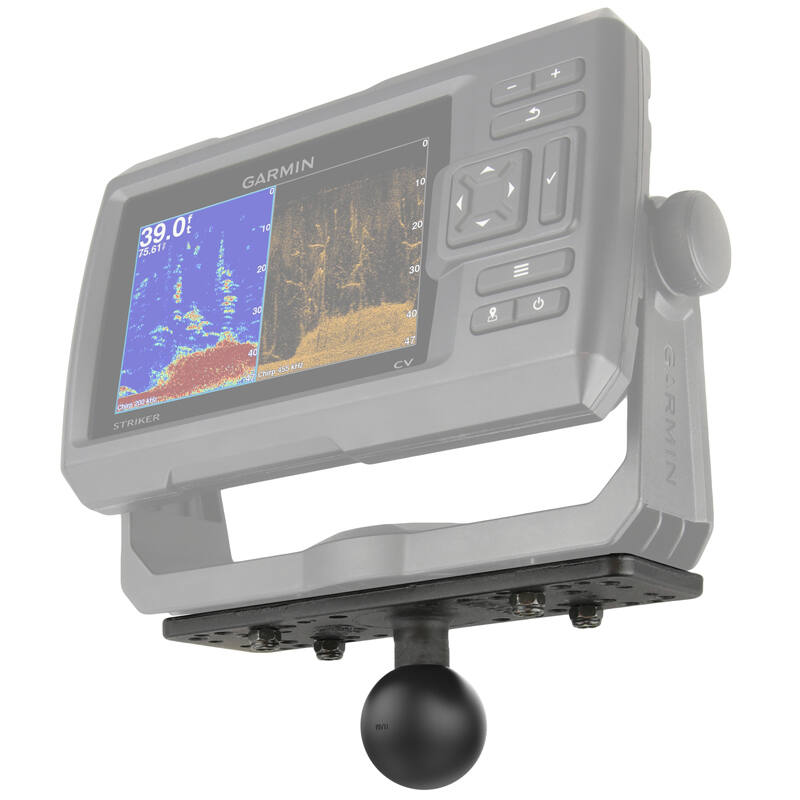

This consists of a 63.5mm / 2.5" diameter round base that contains the universal AMPs hole pattern, SHORT double socket arm and 158.75 x 50.8mm (6.25" x 2") rectangle base. The rectangle base contains different combinations of pre-drilled holes which will match up to many electronic devices and mounts, including Marine GPS, CB Radios, Ham Radios, Gimbal Brackets etc.


Compatible Devices Include:

Garmin
ECHOMAP Plus 72cv
ECHOMAP Plus 73cv
ECHOMAP Plus 74cv
ECHOMAP Plus 75cv
ECHOMAP Plus 77cv
GPSMAP 722
GPSMAP 722xs
GPSMAP 742
GPSMAP 742xs
Striker Plus 5cv
Striker Plus 7cv
Striker Plus 7sv


Lowrance
HDS Carbon 7
HDS LIVE 7
Hook Reveal 7 Series
Hook Reveal 9 Series


Humminbird
Fishfinders and GPS Chartplotters

Raymarine
Fishfinders and GPS Chartplotters

Note: The rectangle base is a universal mounting bracket with a selection of mounting hole locations. In certain applications additional holes may need to be drilled for proper fit with your electronic device.

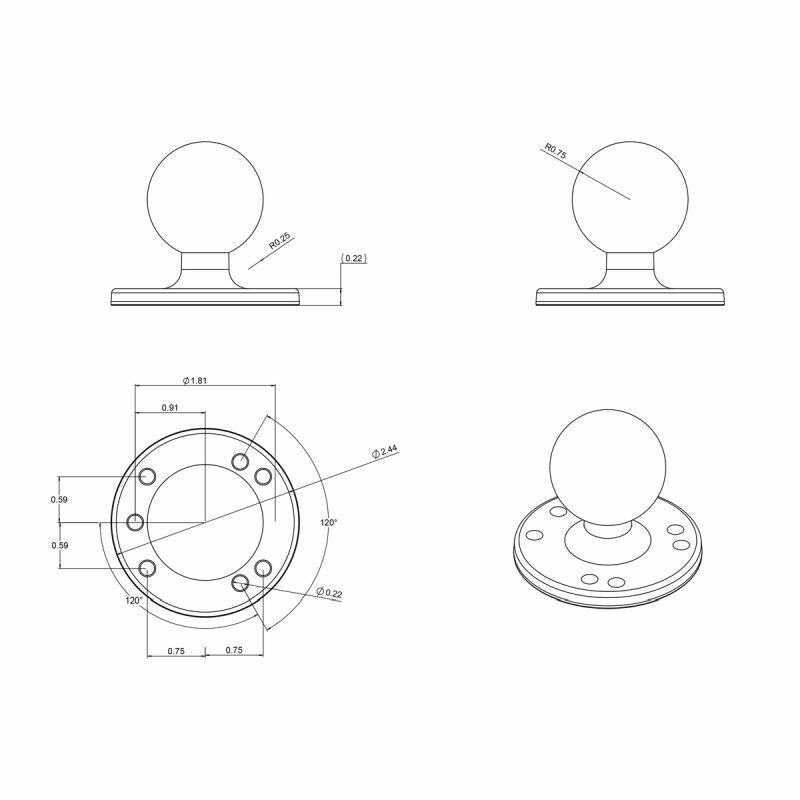

Round Plate Hole Pattern
4-Hole AMPS:
1.181" x 1.496" (30mm x 38mm)
3-Hole AMPS 120- Degree
1.812” (46.0mm)

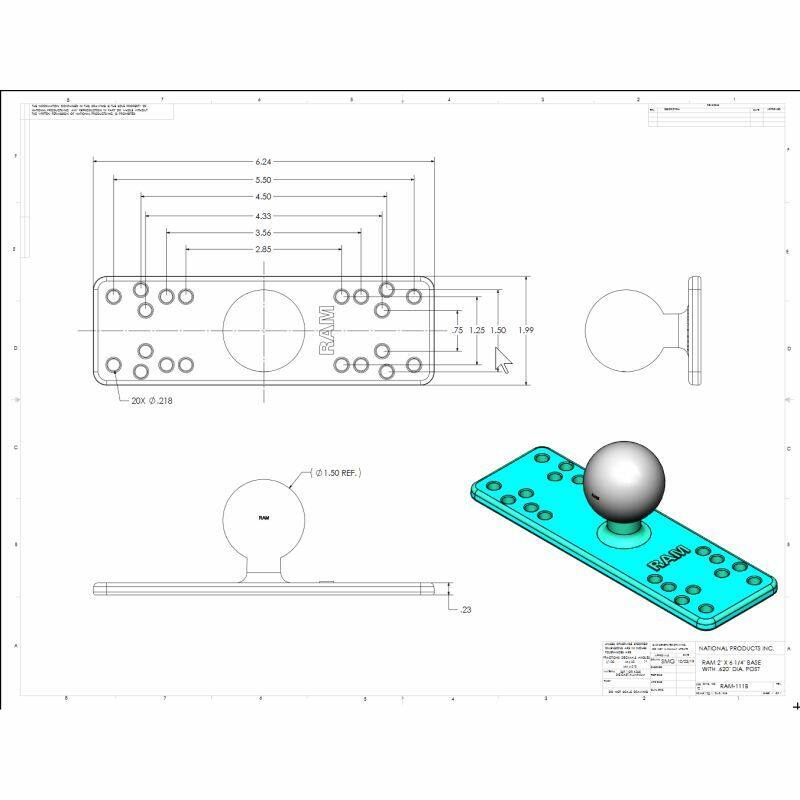

See Drawing


Plate Sizes
Rectangular:
158.75mm x 50.8mm (6.25" x 2")
Round:
63.5mm (2.5") Diameter


Overall Length:
132.7mm (5.225")

Material:
Powder Coated Marine Grade Aluminium

Ball Size:
C Size 1.5"

Weight Capacity
Standard Use:
1.814kg (4 lbs)
Heavy-Duty Use:
1.36kg (3 lbs)


Weight:
490 grams (1.08 lbs.)


Note: This product is available with longer or medium length arms and is also available in 1" B series and 2.25" D series

Components:

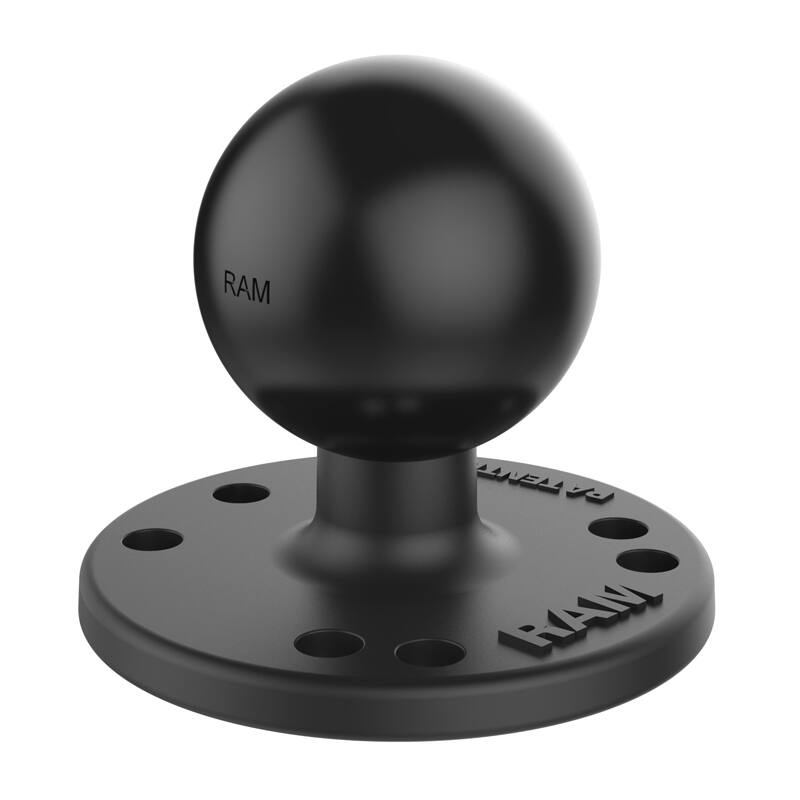

RAM-202U 2.5" / 63mm DIA. BASE

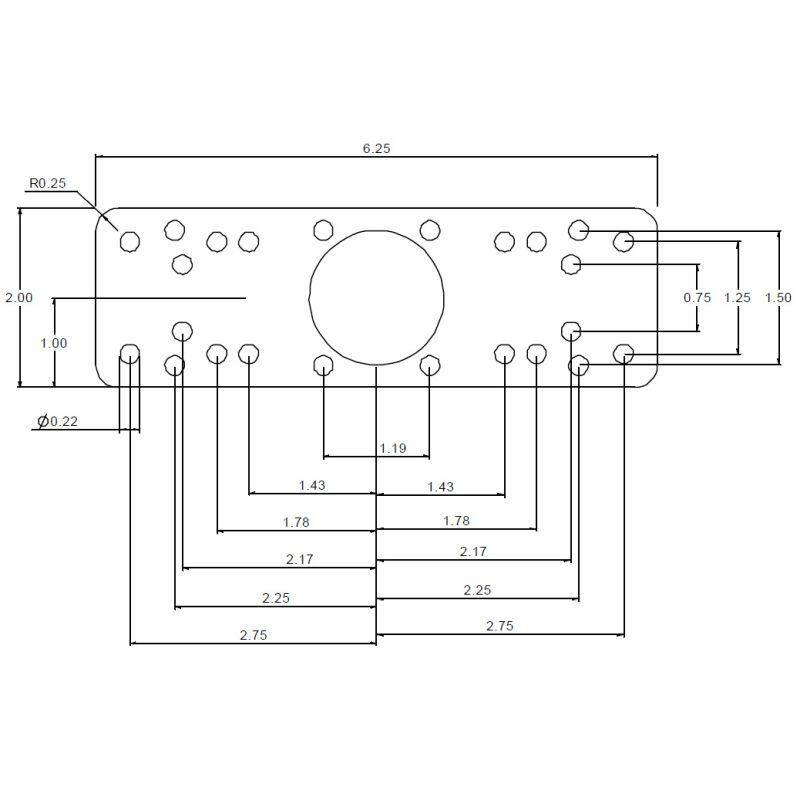

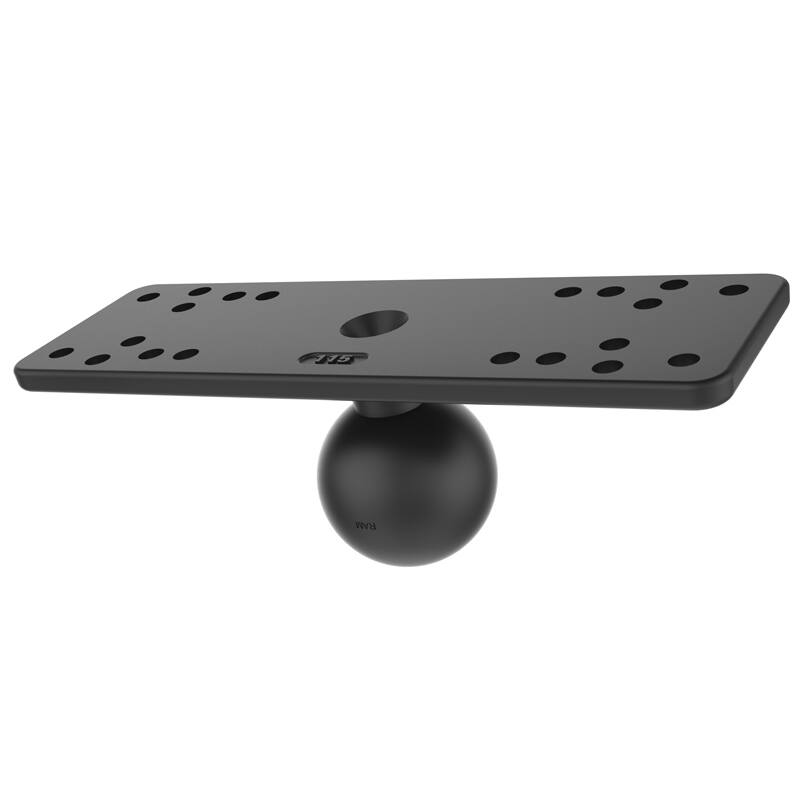

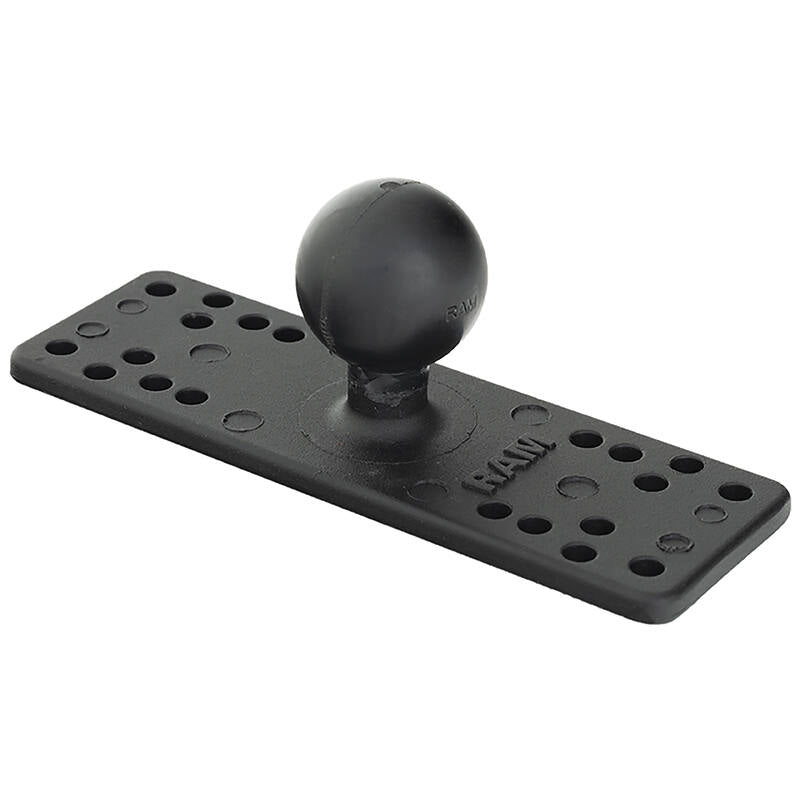

RAM-111BU 158 x 50mm Universal Electronics Base

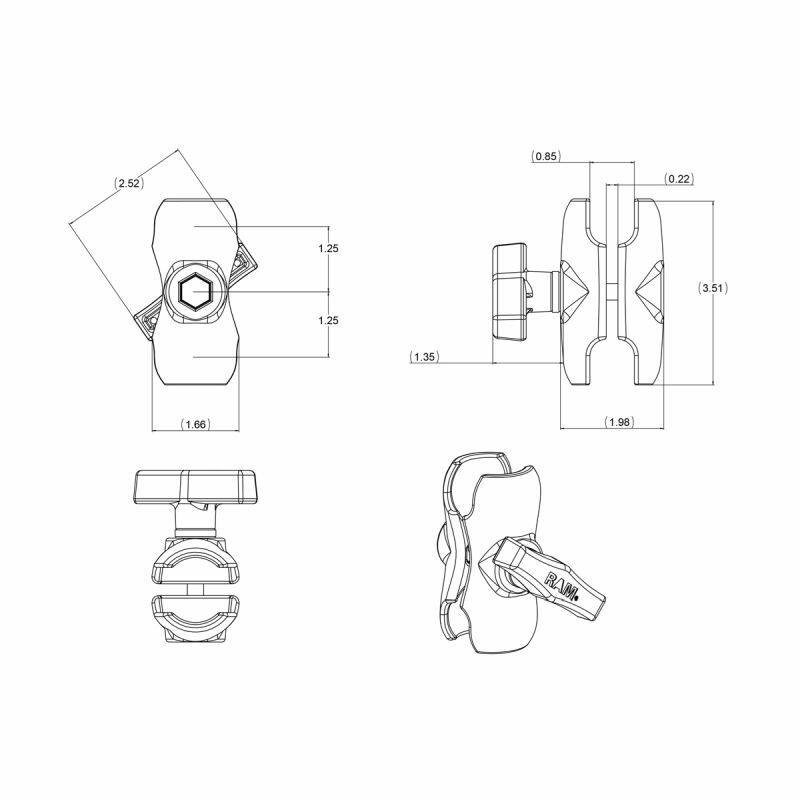

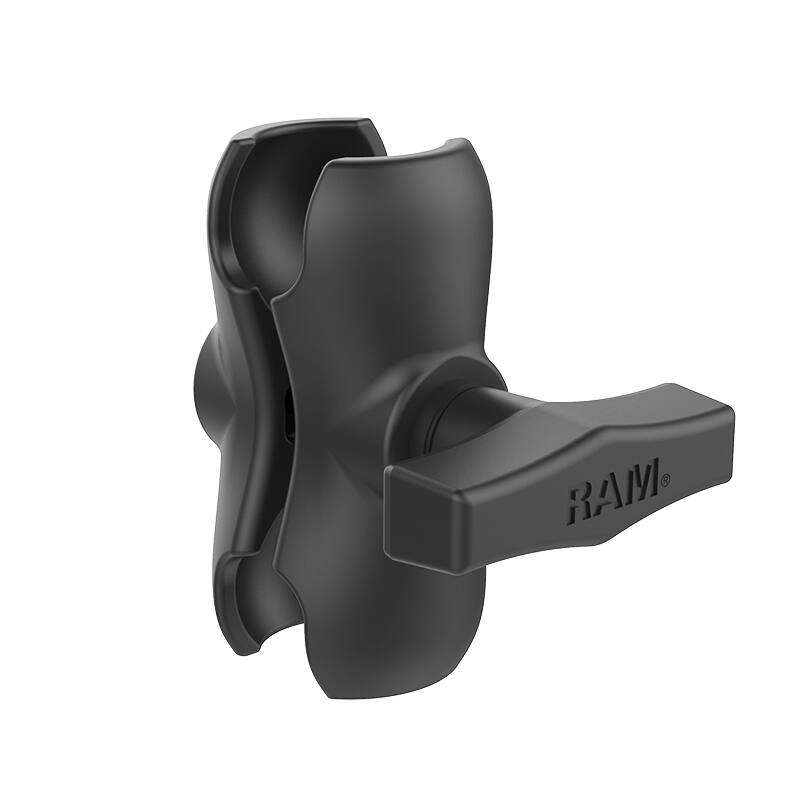

RAM-201U-B Short Double Socket Arm

YouTube
https://www.youtube.com/watch?v=Bq3V6EQR2Ds&t=82s
Review:
https://www.youtube.com/watch?v=BIsbkRtZfkk


QUESTIONS & ANSWERS


Q: Does this SKU include the hardware needed to bolt it to a flat surface?

A: No, the hardware required to install this mount is not included. Because these are mounted to such a wide variety of materials and applications we do not know what hardware to provide. The best resource for that type of information is usually a local hardware store or the manufacturer of the vehicle you are mounting to.

Q: What screws are used to attach the RAM Mount to the gimbal bracket?

A: Typically the gimbal bracket included with your fishfinder will also come with mounting screws that should connect to the RAM® mounting plate. As these mounts are universal and are for many different applications, the necessary hardware needed for each application will vary. For marine applications, RAM® recommends stainless steel hardware to prevent corrosion.

Q: What size screws are needed for the holes on this ball plate?

A: The most common screw sizes are #8, #10, M4 and M5 screws. However, if you are pairing this with any RAM® Holder, the holder will come with the necessary hardware to connect to your mount.
