RAM Marine Universal Electronic Device Mounting System - D Series "HEAVY USE"

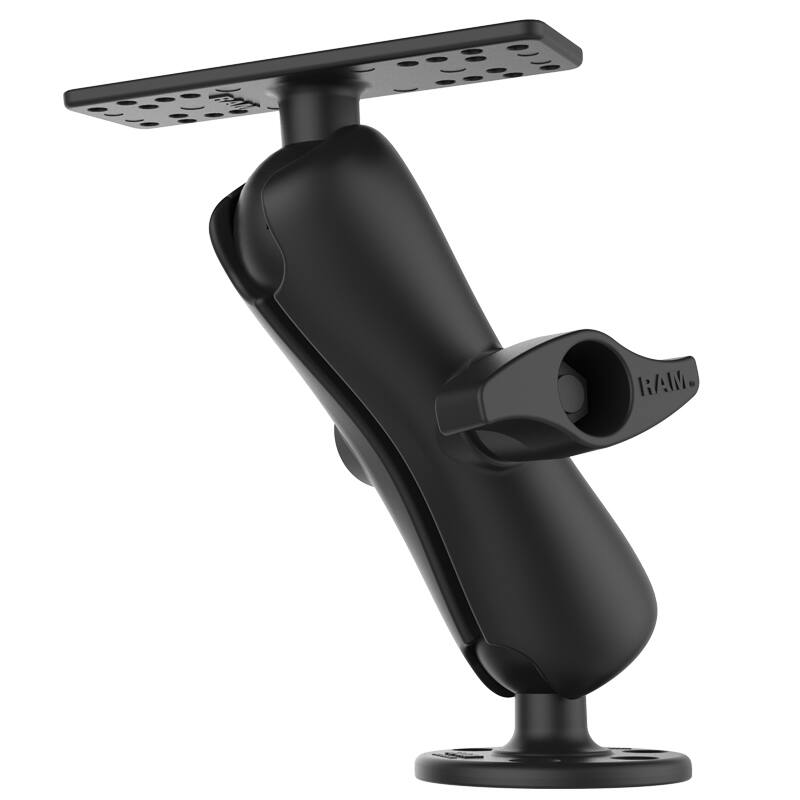

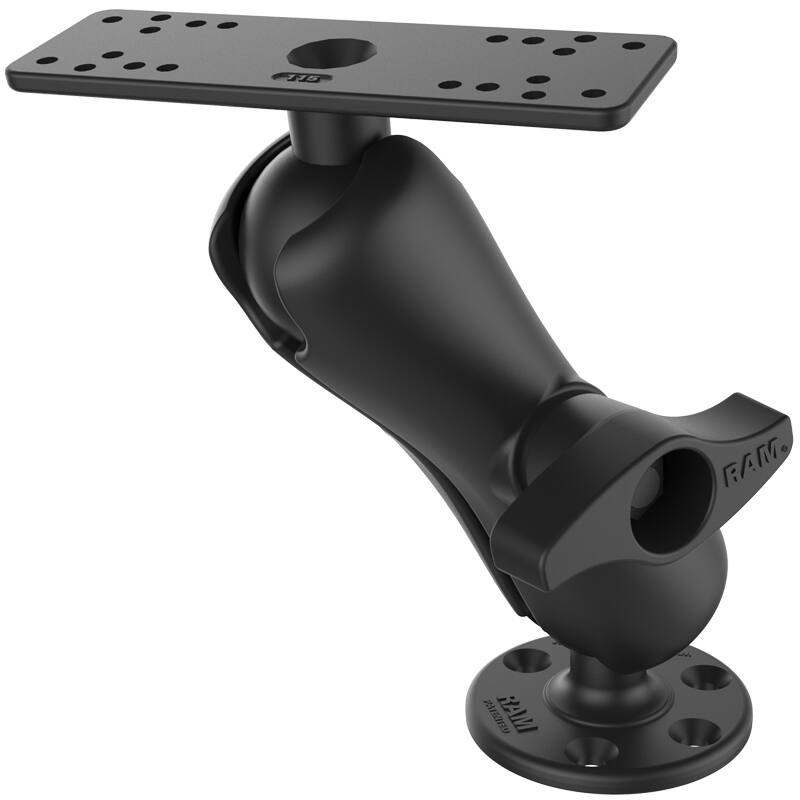

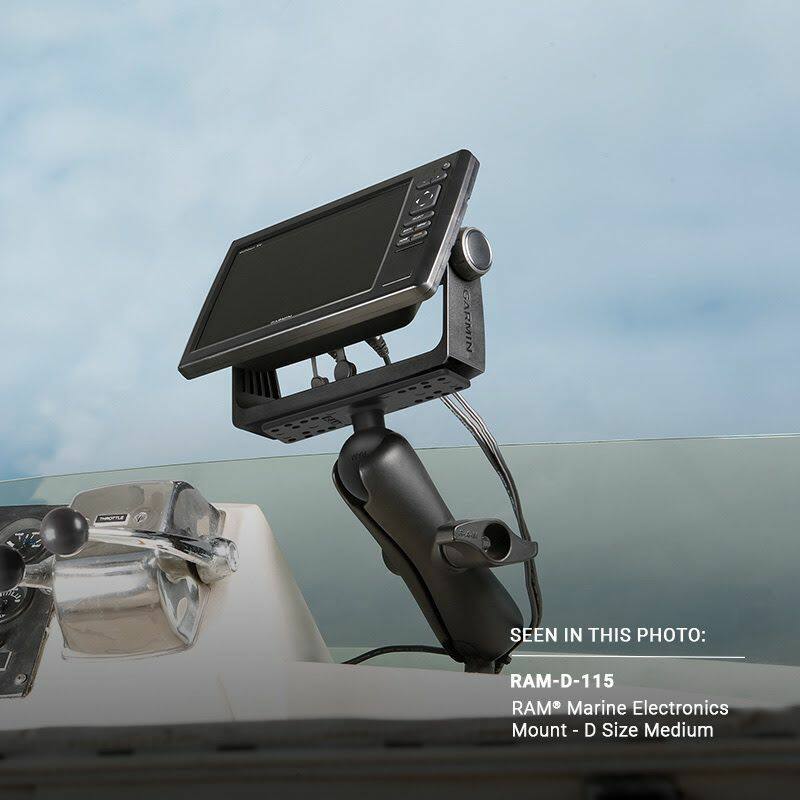

RAM-D-115 RAM® Marine Electronics Mount (D Size, Medium Arm)

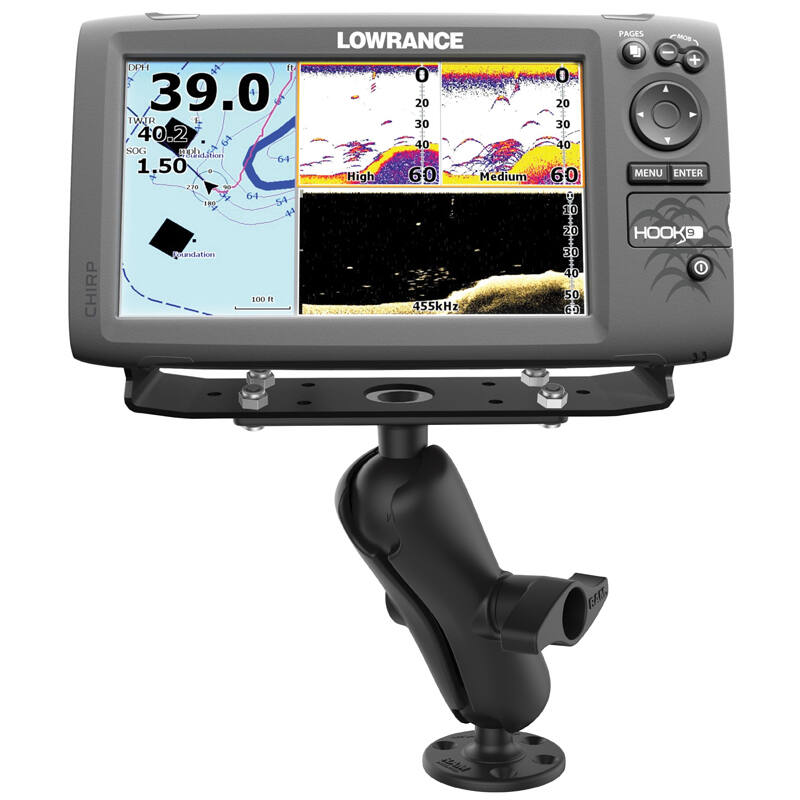

The RAM-D-115 is a complete drill-down mount for large fishfinders and chartplotters with 9"-12" gimbal brackets, built on the heavy-duty 2.25" D-size ball with a medium double socket arm. The 158.8 x 50.8mm plate is a direct fit for 9"-12" fishfinder gimbal brackets on Garmin, Lowrance, Humminbird and Raymarine devices.

Key Features

• Complete flat-surface, drill-down mounting solution with an overall length of 271.7mm (10.7")
• Medium-length double socket arm, a direct fit for 9"-12" fishfinder gimbal brackets
• Heavy-duty 2.25" D-size ball for large displays
• RAM® ball-and-socket technology for near-infinite adjustability
• Powder-coated marine-grade aluminium; lifetime warranty

Works With

The 158.8 x 50.8mm plate carries different combinations of pre-drilled holes and directly fits 9"-12" fishfinder gimbal brackets on Garmin, Lowrance, Humminbird and Raymarine devices. As a universal bracket, some applications may require additional holes to be drilled for an exact fit.

Dimensions & Specifications

• Plate size: 158.8mm x 50.8mm (6.25" x 2")
• Overall length: 271.7mm (10.7")
• Ball size: 2.25" rubber ball (D size)
• Material: powder-coated marine-grade aluminium
• Weight capacity: 2.72kg (6 lbs) standard use; 2.26kg (5 lbs) heavy-duty use

Compatible Devices

Garmin

• GPSMAP 8410, 8410xsv, 8412, 8412xsv, 8610, 8610xsv, 8612, 8612xsv
• GPSMAP 922, 922xs, 942, 942xs, 1223, 1223xsv, 1243, 1243xsv
• echoMAP Chirp 72-95 Series
• ECHOMAP Plus 72-97 Series
• ECHOMAP UHD 62-95 Series
• ECHOMAP Ultra 102sv, 106sv
• Striker Plus 9sv, Striker Vivid 9sv

Lowrance

• Elite FS 7, Elite FS 9
• HDS Carbon 7, HDS LIVE 9, HDS LIVE 12
• Hook Reveal 7 Series, Hook Reveal 9 Series
• HOOK-9

Humminbird

• 800 & 900 Series

Raymarine

• Fishfinders and GPS chartplotters

Also Available

Also available with a short arm (RAM-D-115-C) or a long arm (RAM-D-115-E).

Components

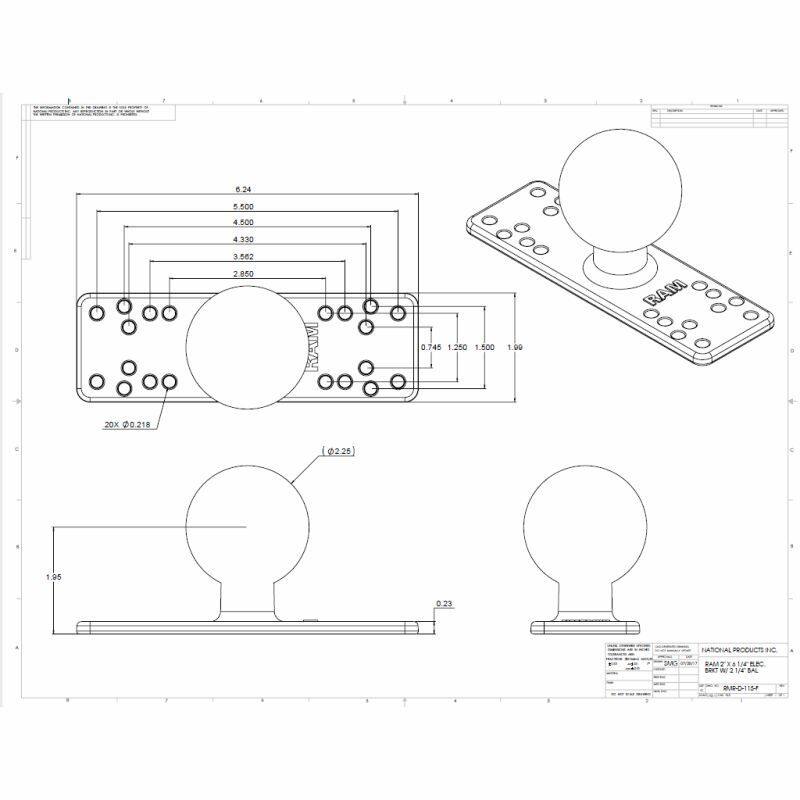

• RAM-D-115BU rectangular plate

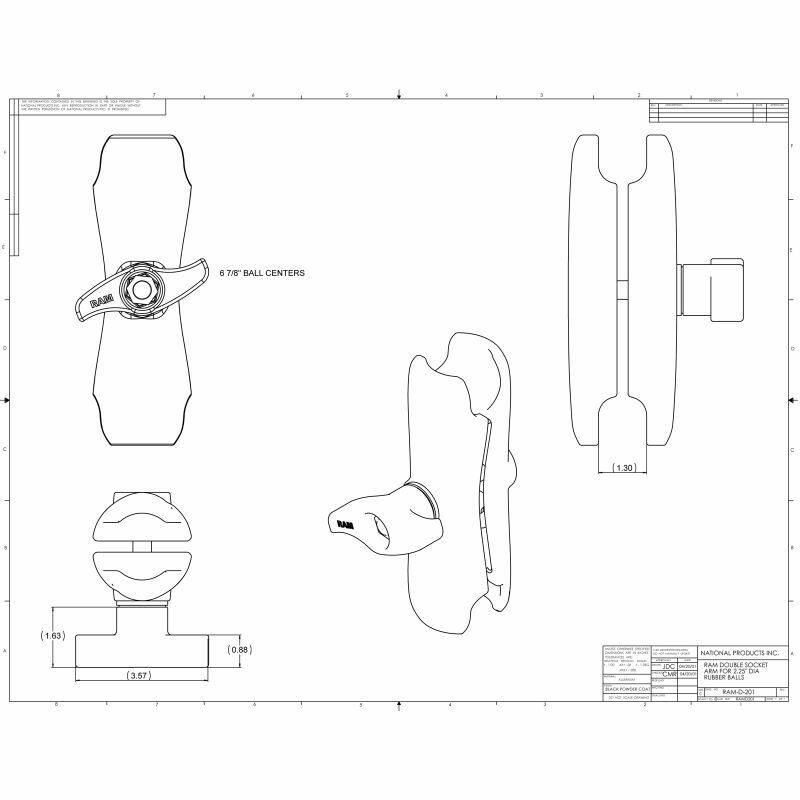

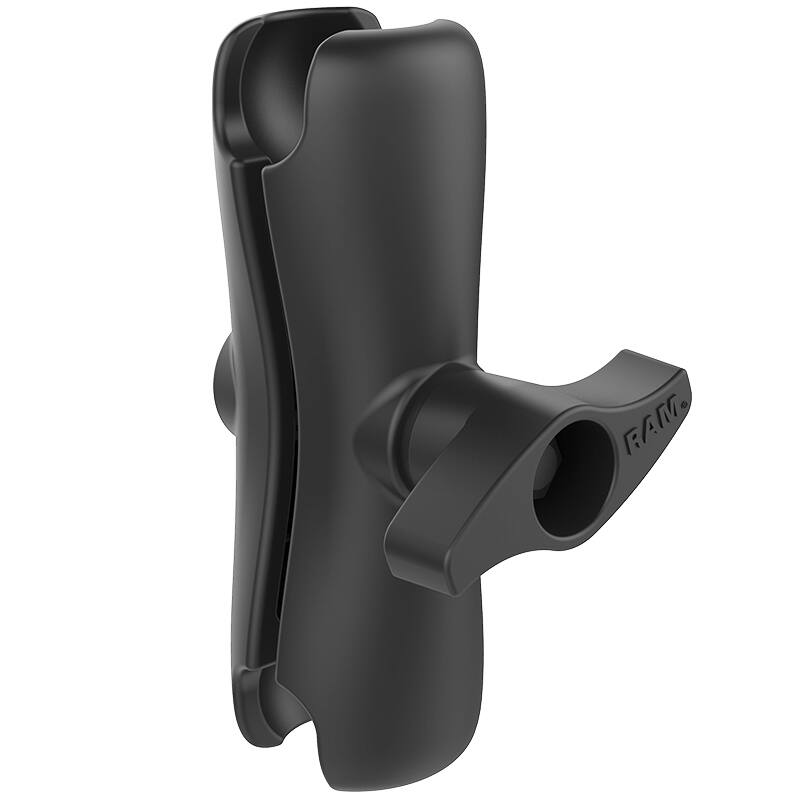

• RAM-D-201U medium length double socket arm

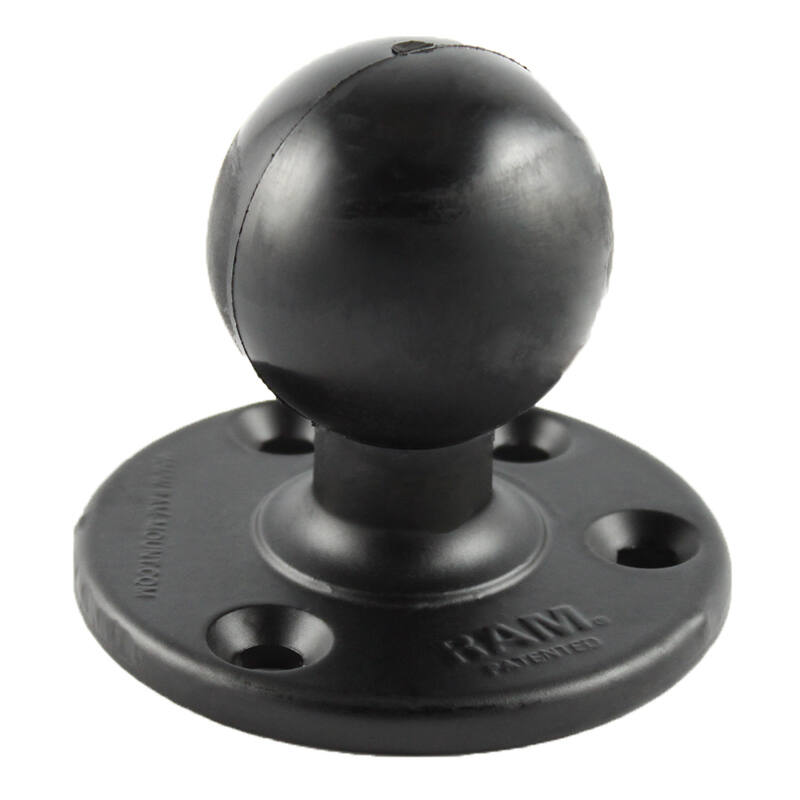

• RAM-D-202U round plate

FAQs

How fast does it ship? If it's shown in stock here, it ships from our Auckland warehouse, normally within one business day. If it's shown as out of stock, get in touch and we may be able to get it in for you.

Will this fit my fishfinder's gimbal bracket? The plate is a direct fit for most 9"-12" fishfinder gimbal brackets, including the Garmin, Lowrance, Humminbird and Raymarine models listed above. Some applications may need extra holes drilled for an exact fit.
