RAM Marine Universal Electronic Device Mounting System - Locking Arm (B Series)

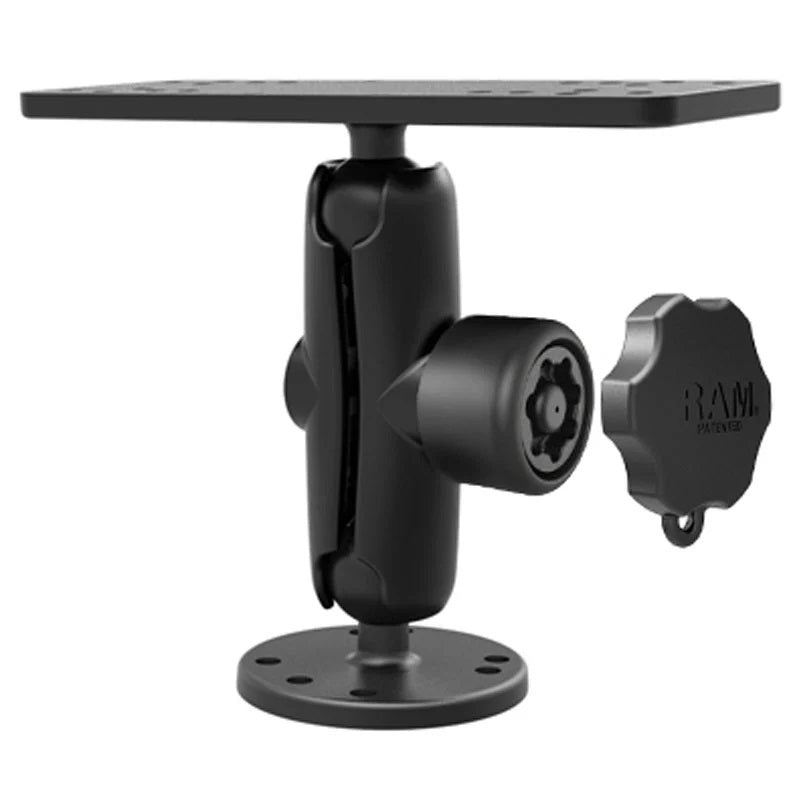

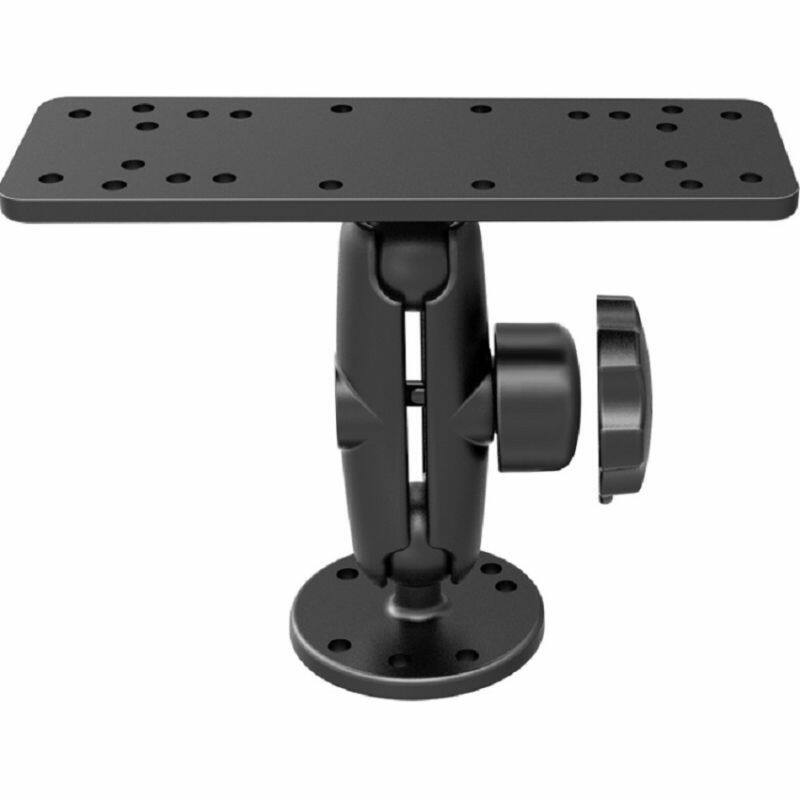

RAM-S-B-111U RAM® Pin-Lock™ Marine Electronic Mount (B Size, Medium)

The RAM-S-B-111U is a complete drill-down marine mount with the added security of a RAM® Pin-Lock™ nut and key knob. It pairs a round AMPS base with a universal rectangle plate and a medium 1" double socket arm, so your chartplotter or fishfinder stays both adjustable and tamper-resistant.

Key Features

• Complete flat-surface, drill-down mounting solution with an overall height of 127mm (5")
• Includes RAM® Pin-Lock™ security nut and key knob for added theft resistance
• Low-profile locking knob adds minimal bulk versus the standard knob
• Round base with the universal AMPS hole pattern, plus a universal rectangle plate
• RAM® ball-and-socket technology for near-infinite adjustability
• Powder-coated marine-grade aluminium; lifetime warranty

Works With

The rectangle base suits marine GPS, CB radios, ham radios, gimbal brackets and similar equipment. As a universal bracket, some applications may require additional holes to be drilled for an exact fit.

Dimensions & Specifications

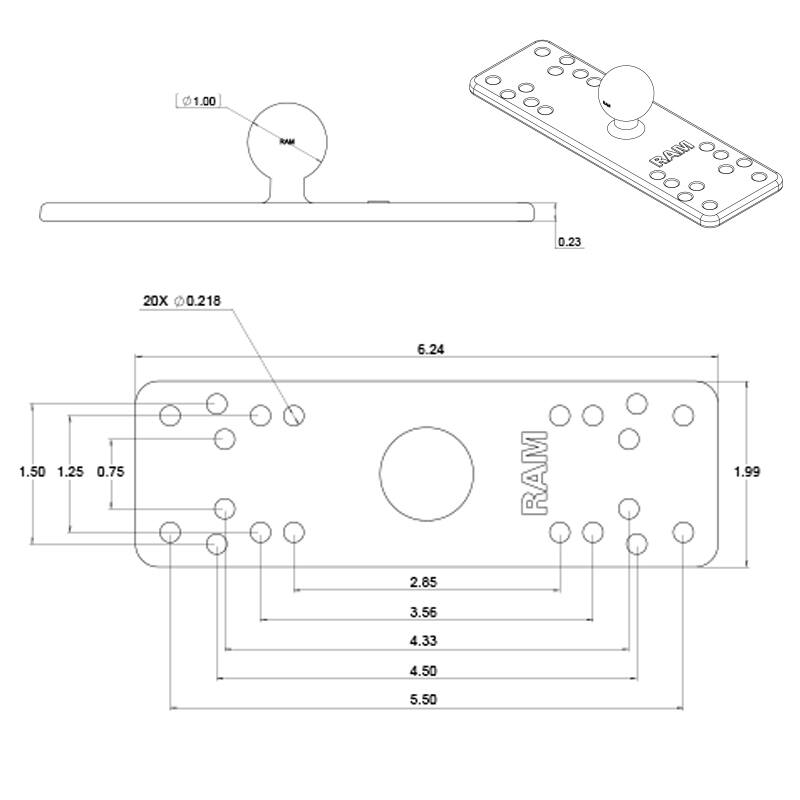

• Rectangle base: 158.7 x 50.8mm (6.25" x 2")
• Round base: 63.5mm (2.5") diameter
• Hole pattern (round base): 4-Hole AMPS 1.181" x 1.496" (30mm x 38mm); 3-Hole 120-degree 1.812" (46.0mm)
• Overall height: 127mm (5")
• Ball size: 1" rubber ball (B size)
• Material: powder-coated marine-grade aluminium
• Weight capacity: 907g (2 lb) standard use; 454g (1 lb) heavy-duty use
• Weight: 327g (0.72 lb)

Compatible Devices

Garmin

• GPSMAP 162, 168, 175, 180, 180C, 182, 185, 188, 232, 238

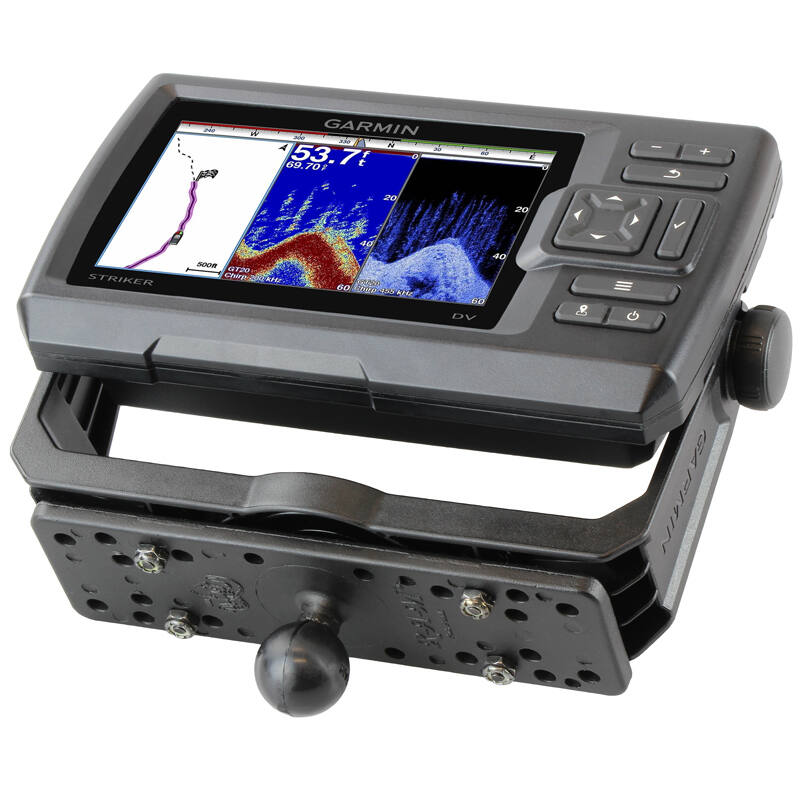

• Striker 5 Series
• Striker Plus 5cv
• Striker Vivid 5cv

Components

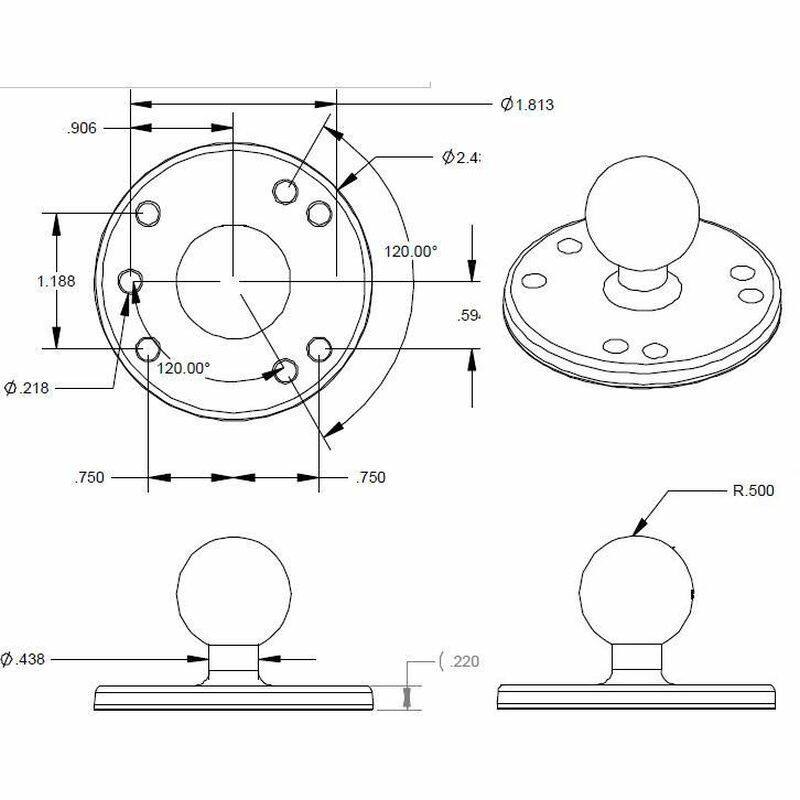

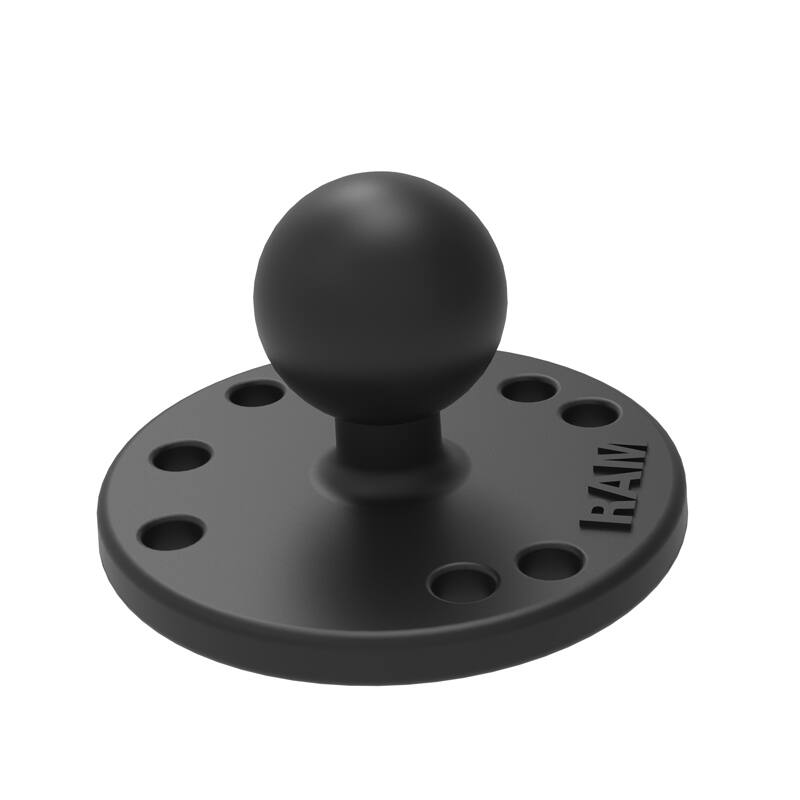

• RAM-B-202U round base

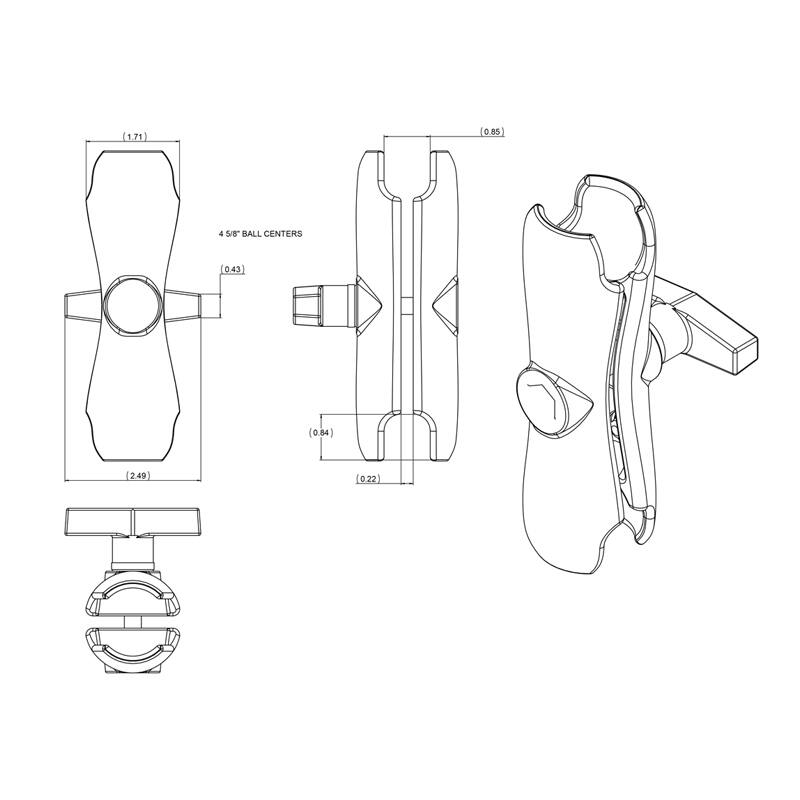

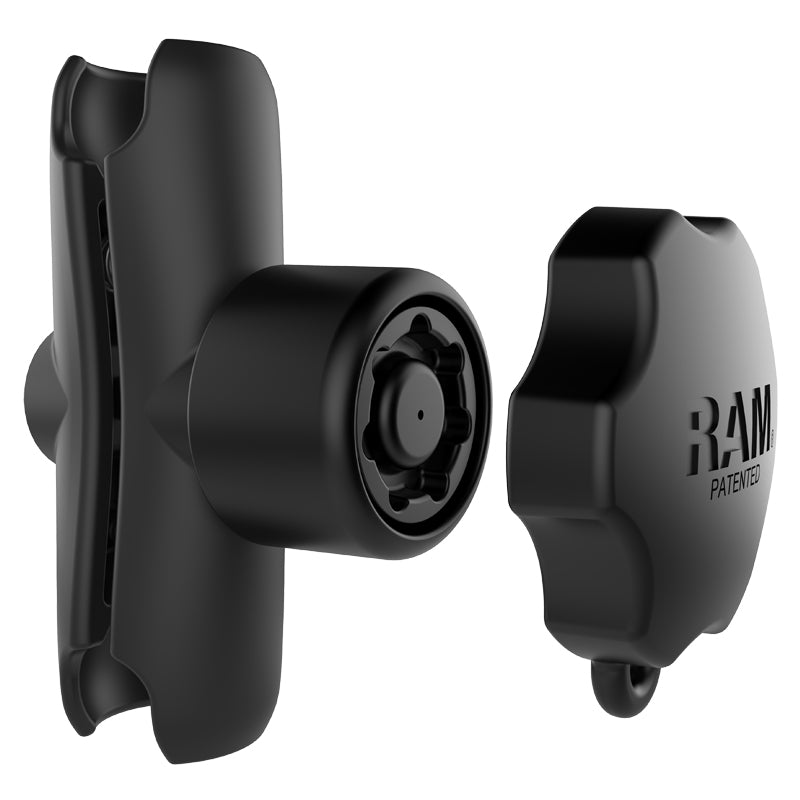

• RAM-B-201-SU double socket arm with RAM® Pin-Lock™ security knob and key knob (B size 1" balls)

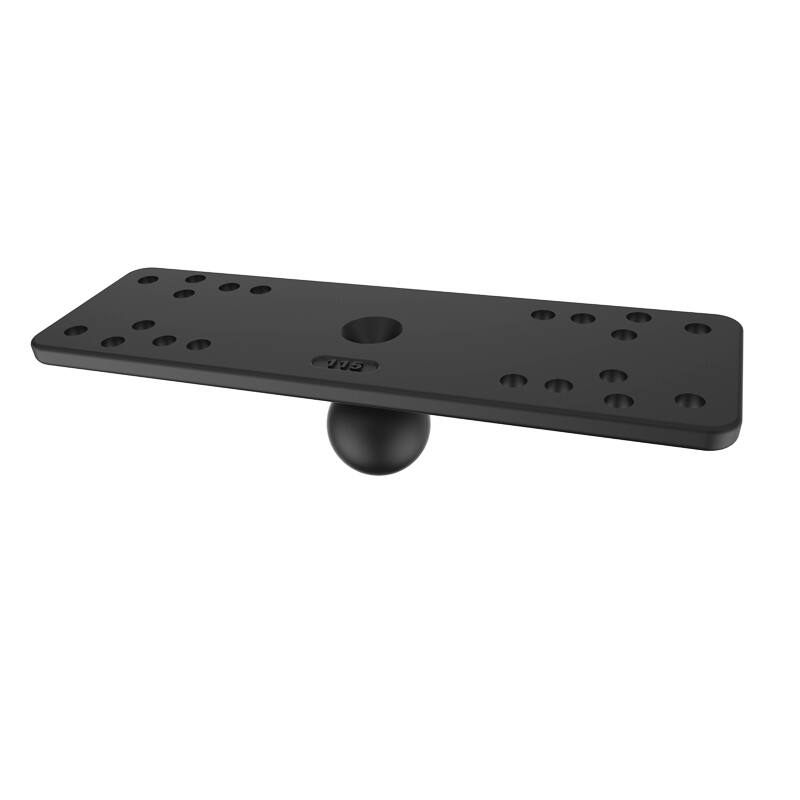

• RAM-B-111BU 158 x 51mm (6.25" x 2") rectangle base with 1" ball
