RAM Marine Universal Electronic Device Mounting System - Med Arm Diamond Base

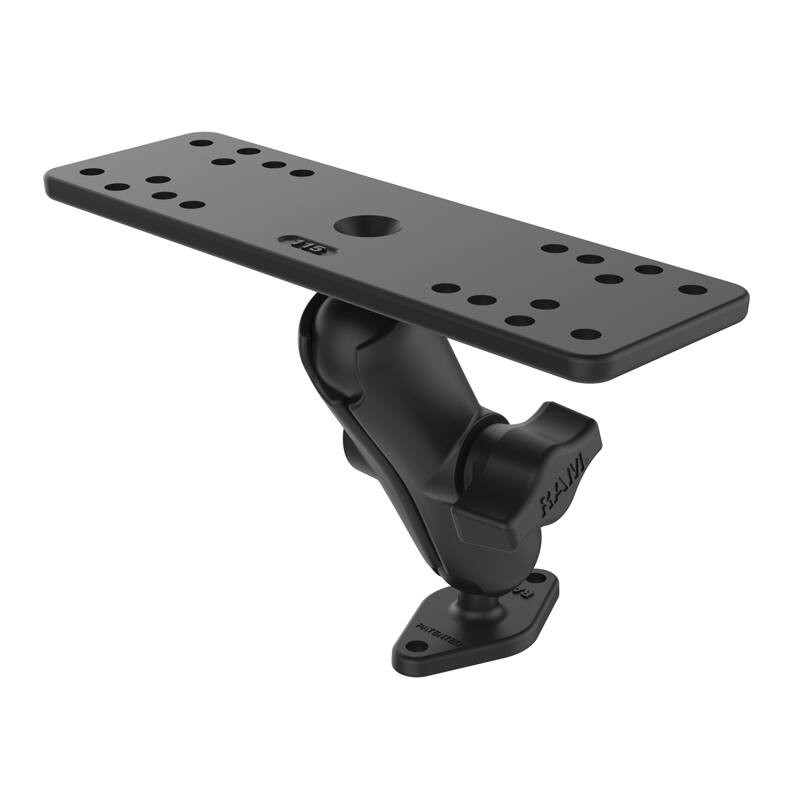

RAM-B-111-238U RAM® Universal Marine Electronic Mount with Diamond Base

The RAM-B-111-238U is a complete drill-down marine mount for chartplotters, fishfinders, radios and other electronics. It pairs a two-hole diamond base with a universal rectangle plate and a 1" double socket arm, giving a permanent, fully adjustable mount on boats, vehicles and more.

Key Features

• Complete flat-surface, drill-down mounting solution with an overall height of 127mm (5")
• Two-hole diamond base ideal for permanent mounting on boats, cars, trucks and aircraft
• Universal rectangle plate with multiple pre-drilled hole combinations to match many devices and mounts
• RAM® ball-and-socket technology for near-infinite adjustability
• Powder-coated marine-grade aluminium; lifetime warranty

Works With

The rectangle base suits marine GPS, CB radios, ham radios, gimbal brackets and similar equipment. As a universal bracket, some applications may require additional holes to be drilled for an exact fit.

Dimensions & Specifications

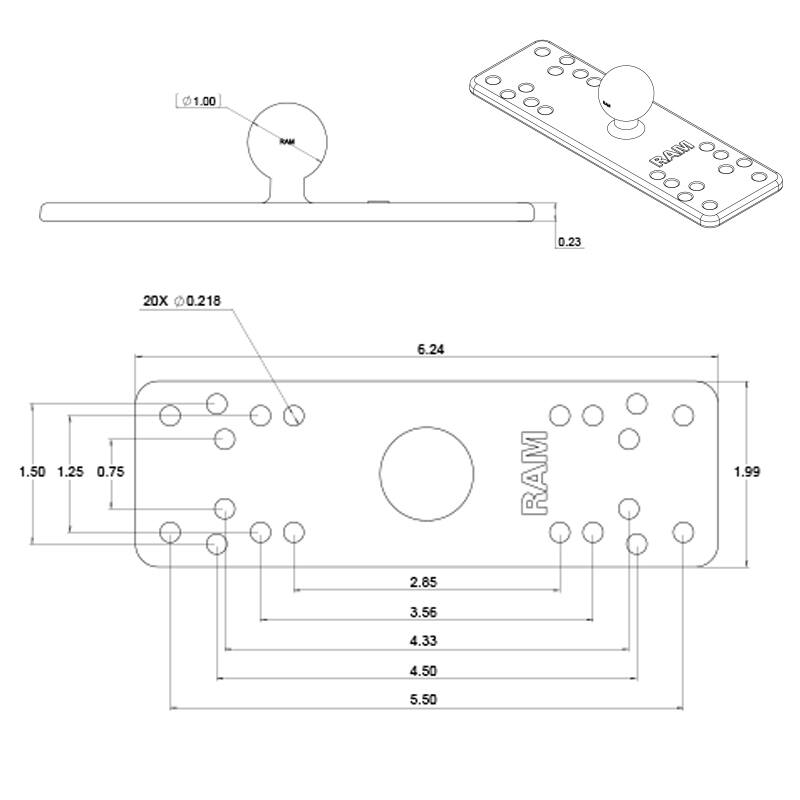

• Top plate: 158 x 51mm (6.25" x 2")
• Bottom (diamond) base: 61.7 x 33.3mm (2.43" x 1.31")
• Round base reference: 63.5mm (2.5") diameter
• Overall height: 127mm (5")
• Ball size: 1" rubber ball (B size)
• Material: powder-coated marine-grade aluminium
• Weight capacity: 907g (2 lb) standard use; 454g (1 lb) heavy-duty use
• Weight: 300g (0.66 lb)

Compatible Devices

Garmin

• GPSMAP 162, 168, 175, 180, 180C, 182, 185, 188, 232, 238
• Striker 5 Series

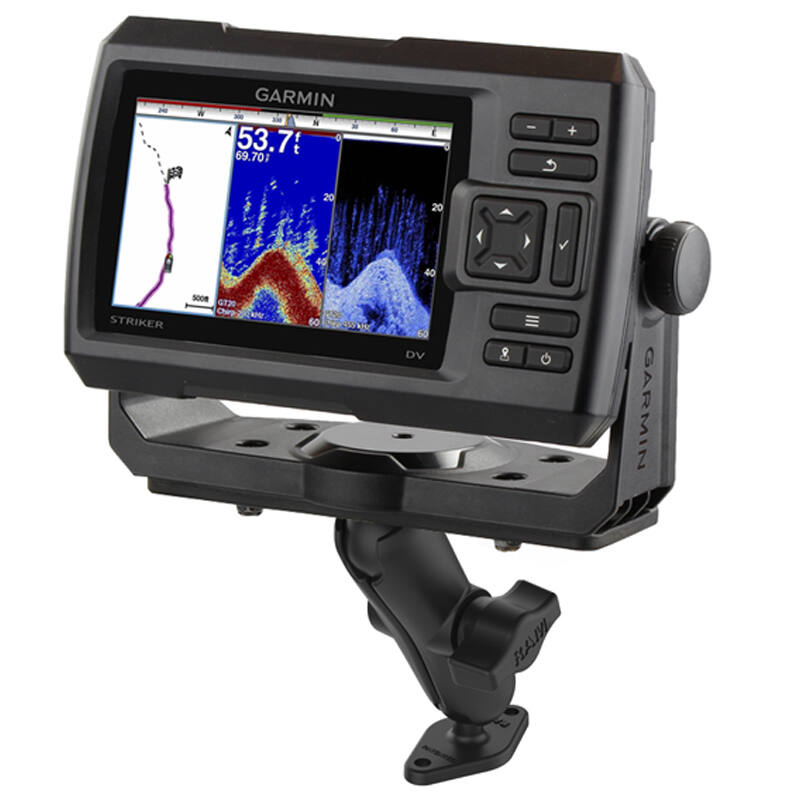

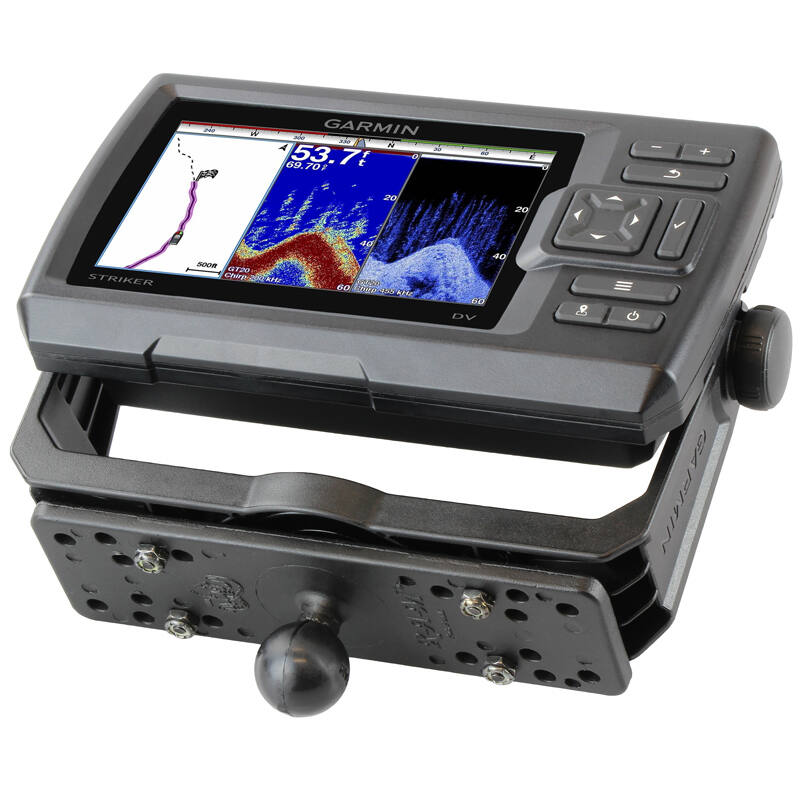

• Striker Plus 5cv

Components

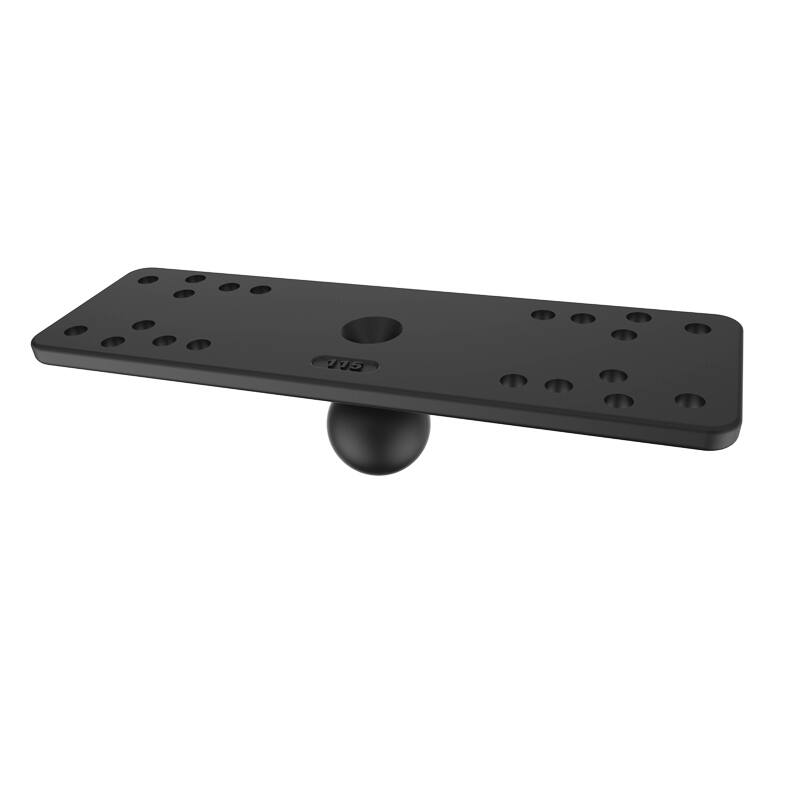

• RAM-B-111BU rectangular plate (B series)

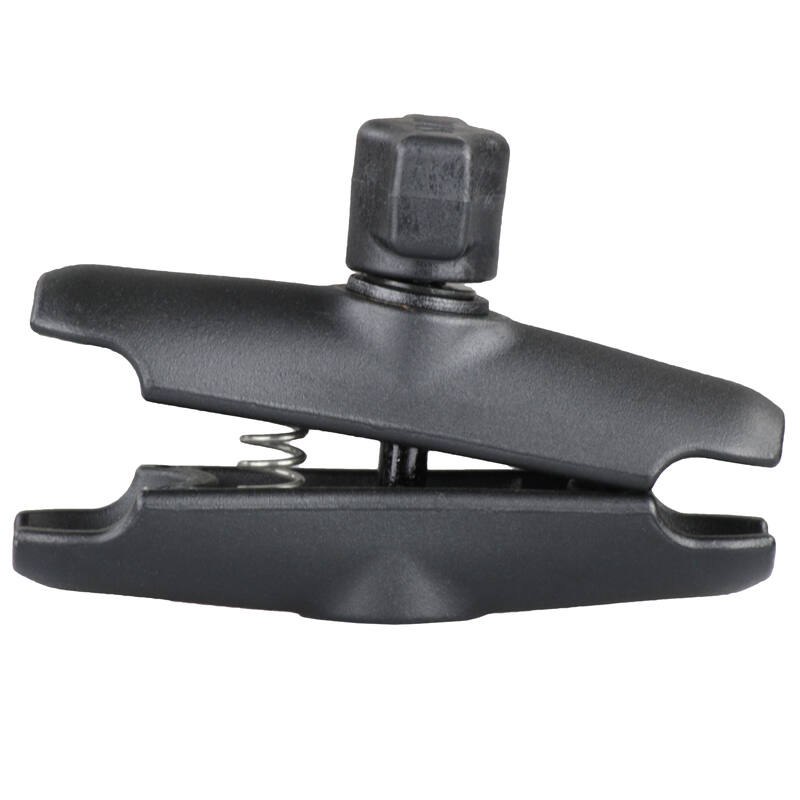

• RAM-B-201U double socket arm for 1" ball
• RAM-B-238U 62 x 33mm diamond base with 1" ball
