RAP-B-111B-354-TRA1U RAM® Track Ball™ Composite Universal Marine Electronic Mount
Features
* Complete solution with an overall height of 5" and a Track Ball™ base to connect to virtually any track system
* RAM® Mounts ball and socket technology allows for near-infinite adjustability
* Made of High Strength Composite for durability and reliability in the most demanding marine environments
* Backed by a lifetime warranty

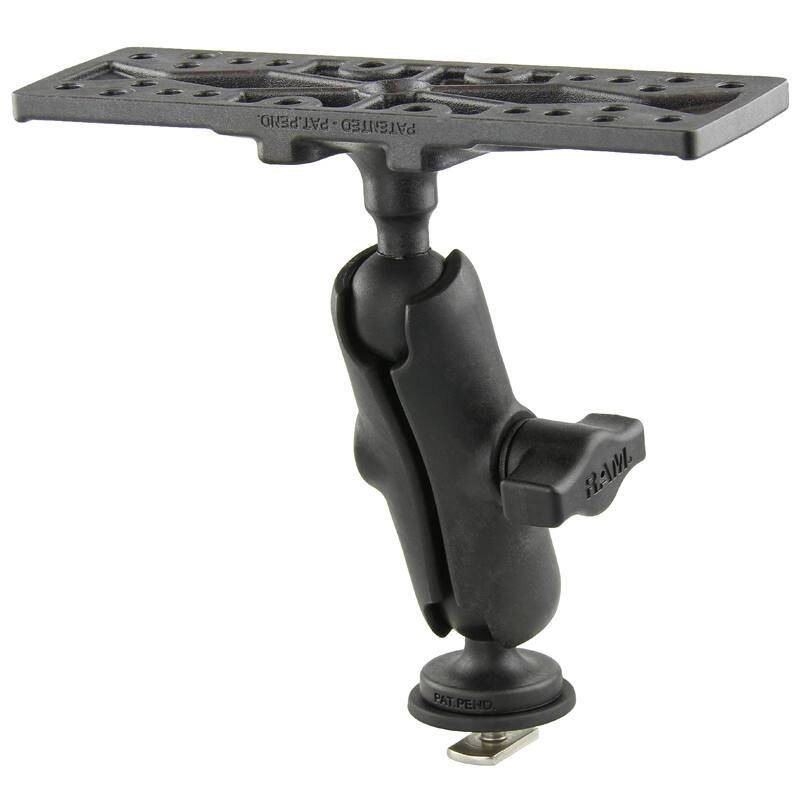

The RAP-B-111B-354-TRA1U consists of a Track Ball™ base, composite double socket arm and 6.25" x 2" rectangle plate. The Track Ball™ base can connect to virtually any track system including the RAM Tough-Track™.
The 158.75mm x 50.8mm (6.25" x 2") rectangle plate contains different combinations of pre-drilled holes which will match up to many electronic devices and mounts, including Marine GPS, CB Radios, Ham Radios, Gimbal Brackets and more.
Hole Pattern
4-Hole AMPS: 1.181" x 1.496"
Ball Size:
1" Rubber "B" Ball Size
Hardware Included
(1) Friction Washer
(1) 1/4"-20 x 7/8" T-Bolt
Material:
High Strength Composite
Weight Capacity
Standard Use:
907 grams (2 lbs)
Heavy-Duty Use:
454 grams (1 lb)
Weight
249 grams (0.55 lbs)
Length overall
127 mm (5")
Socket to Socket Length
76.2mm (3")
Components:

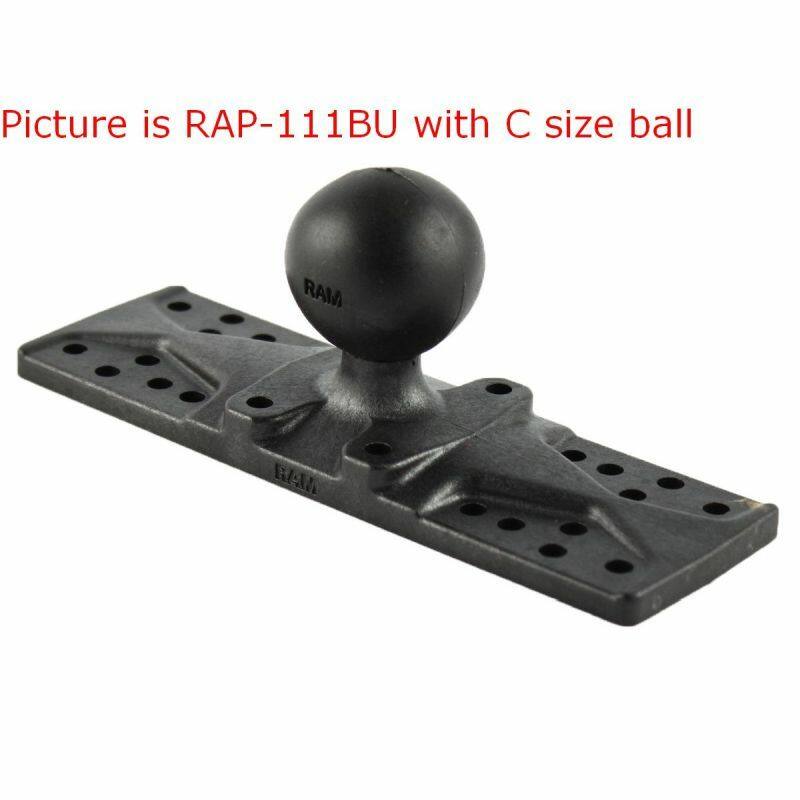

RAP-B-111BU RECTANGULAR PLATE B SERIES - COMPOSITE
RAP-B-201U RAM DOUBLE SOCKET ARM FOR 1" BALL

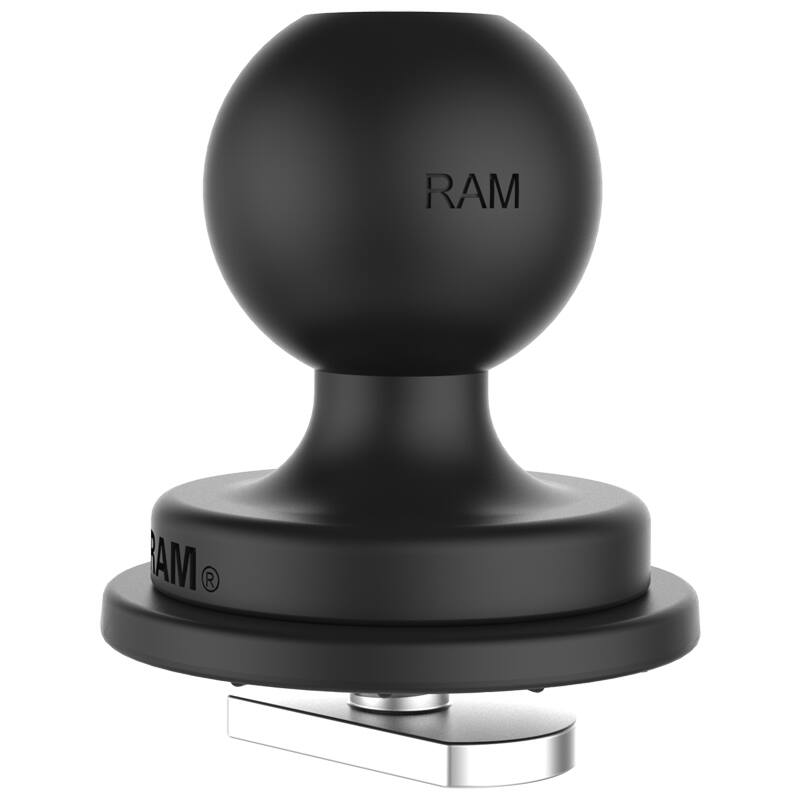

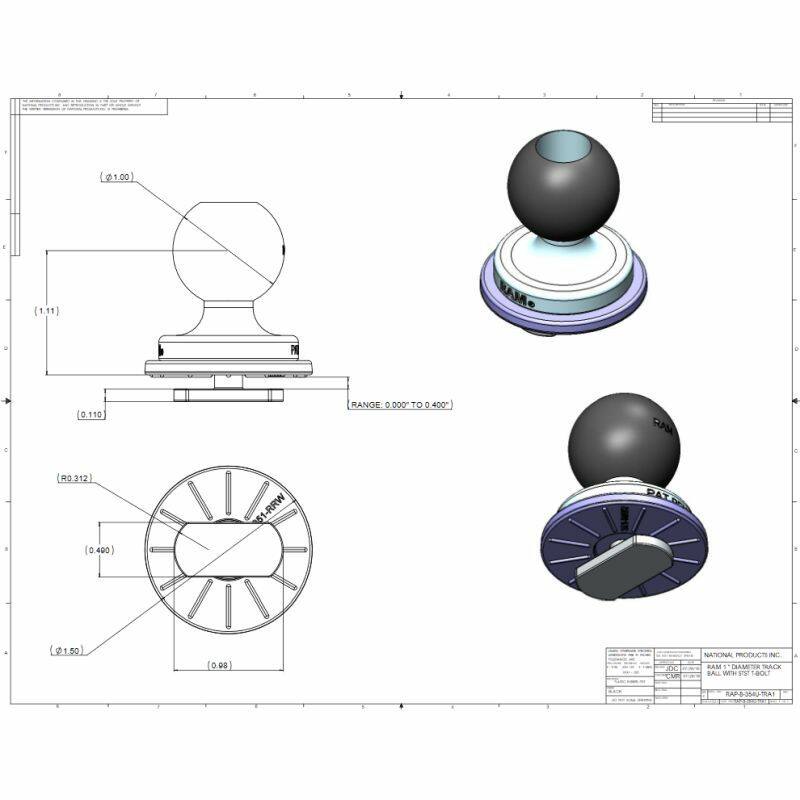

RAP-B-354U-TRA1 RAM 1" Track Ball with T-Bolt Attachment
