RAM Marine Wedge Base Mount with 1" Ball - 38 - 47mm ports

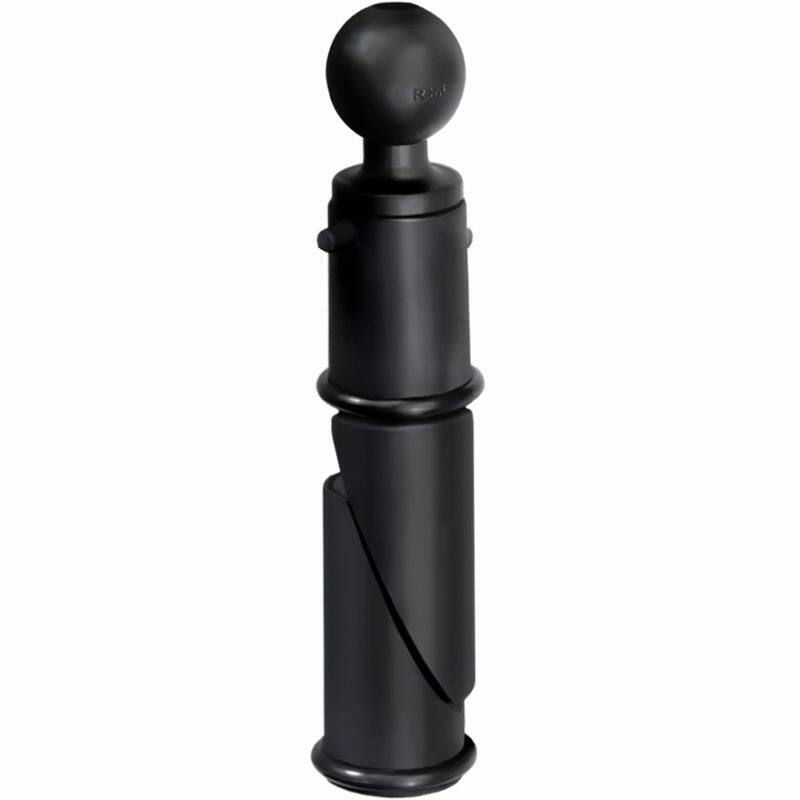

RAP-B-354-162U RAM® Ball Base with Flush Tube Wedge Adapter – B Size

The RAP-B-354-162U is a wedge adapter that adds a B-Size 1" RAM® ball to any flush-mount rod holder with a 38.1-47.6mm (1.5"-1.875") inner diameter, with no drilling required.

Key Features

• Adds a B Series 1" RAM ball to a flush-mount rod holder

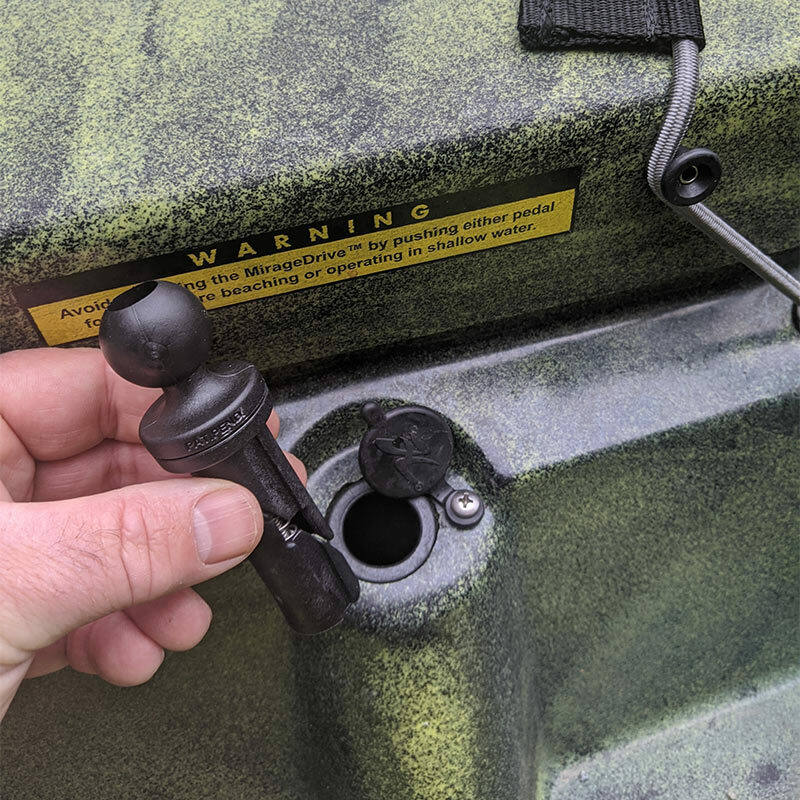

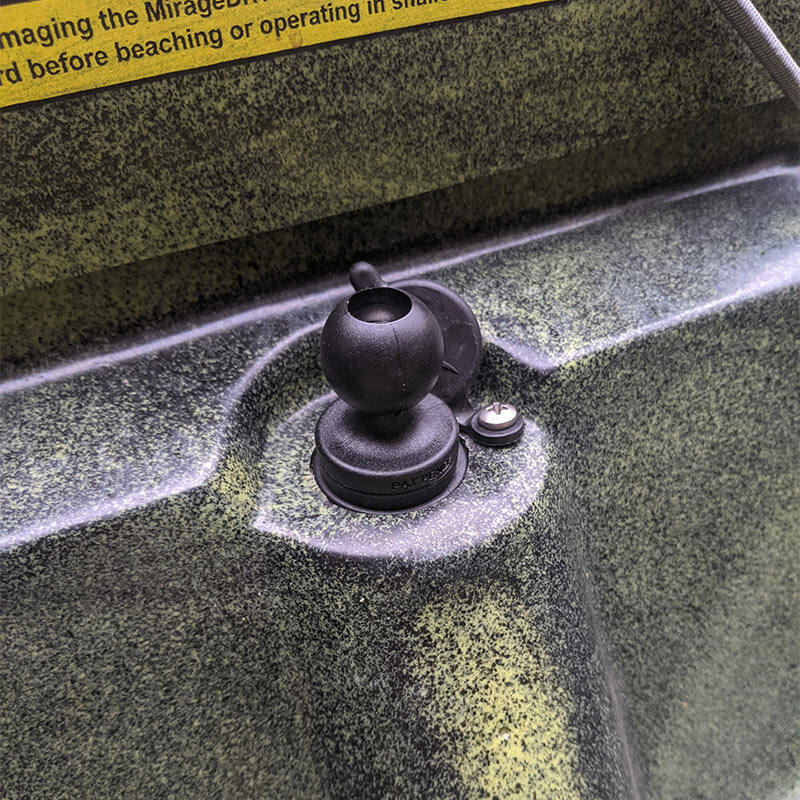

• Slides into the rod holder and tightens via a screw — no drilling necessary
• Moulded stoppers prevent the wedge from sliding to the bottom of the rod holder
• Patented rubber ball-and-socket dampens shock and vibration with multi-angle articulation
• High-strength composite construction resists corrosion
• Backed by a lifetime warranty

Works With

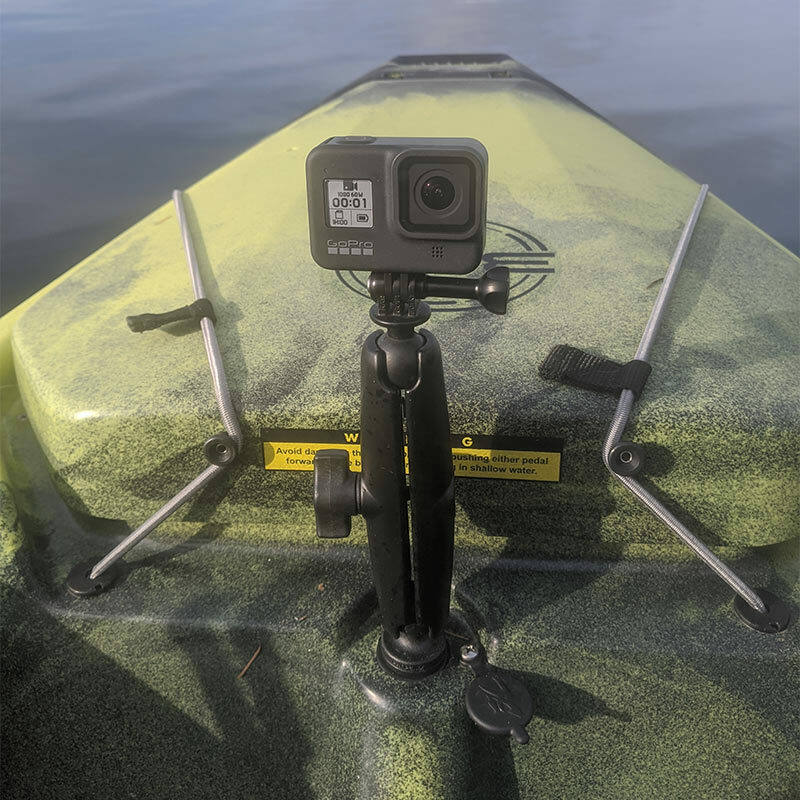

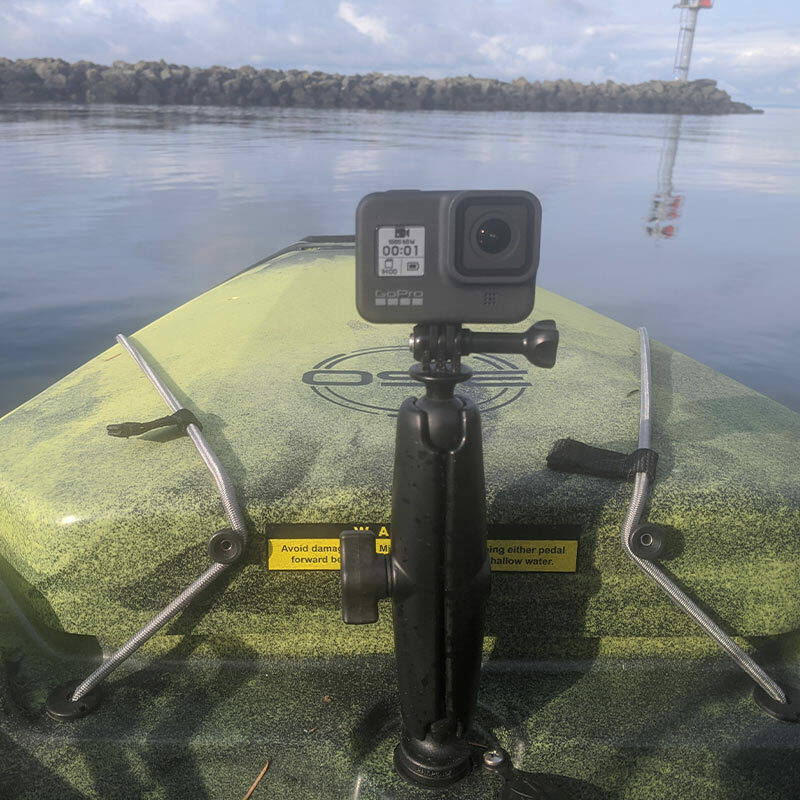

Compatible with any RAM component using a B-size (1") ball, including RAM rod holders, cup holders, camera mounts and fishfinder mounts. Ideal for mounting gear off the deck of a boat or kayak without drilling.

Dimensions & Specifications

• Compatible flush-mount inner tube diameter: 38.1mm-47.6mm (1.5"-1.875")
• Ball size: 1" rubber ball, B Size
• Material: high-strength composite
• Weight: 137g (0.301 lbs)
• Weight capacity: standard use 907g (2 lbs); heavy-duty use 454g (1 lb)

FAQs

Do I need to drill any holes?
No — the wedge slides into the existing flush-mount rod holder opening and is secured with a screw.
