RAM-B-309-1U RAM® Motorcycle Brake/Clutch Reservoir Ball Base
Features
* Connects to your handlebar clutch/brake clamp with provided 40mm x 6mm stainless steel hardware
* Compatible with any B size RAM® Mounts double socket arm; ball and socket technology allows for near-infinite adjustability
* Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
* Backed by a lifetime warranty

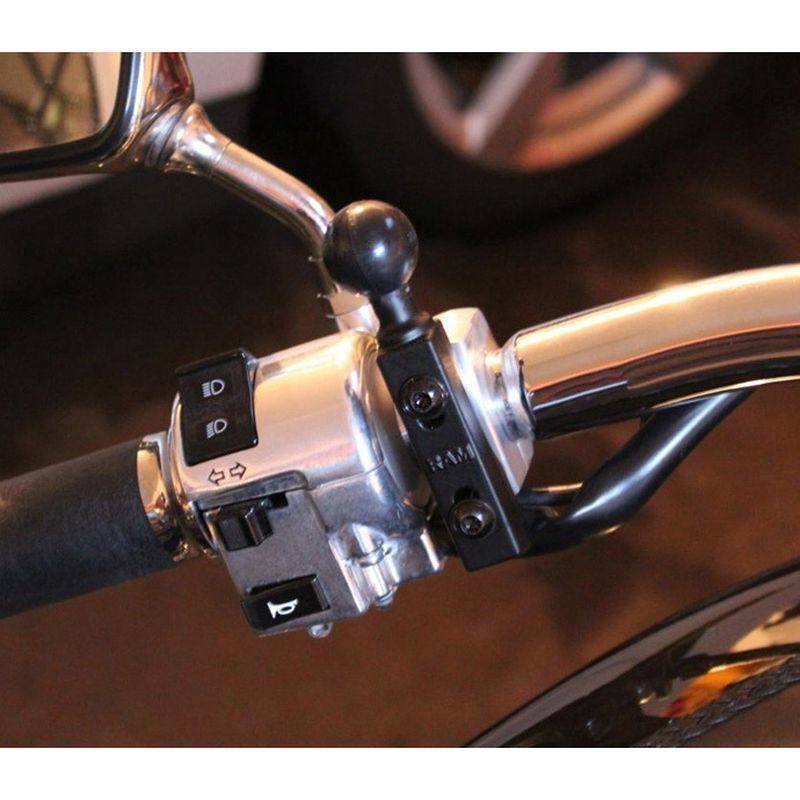

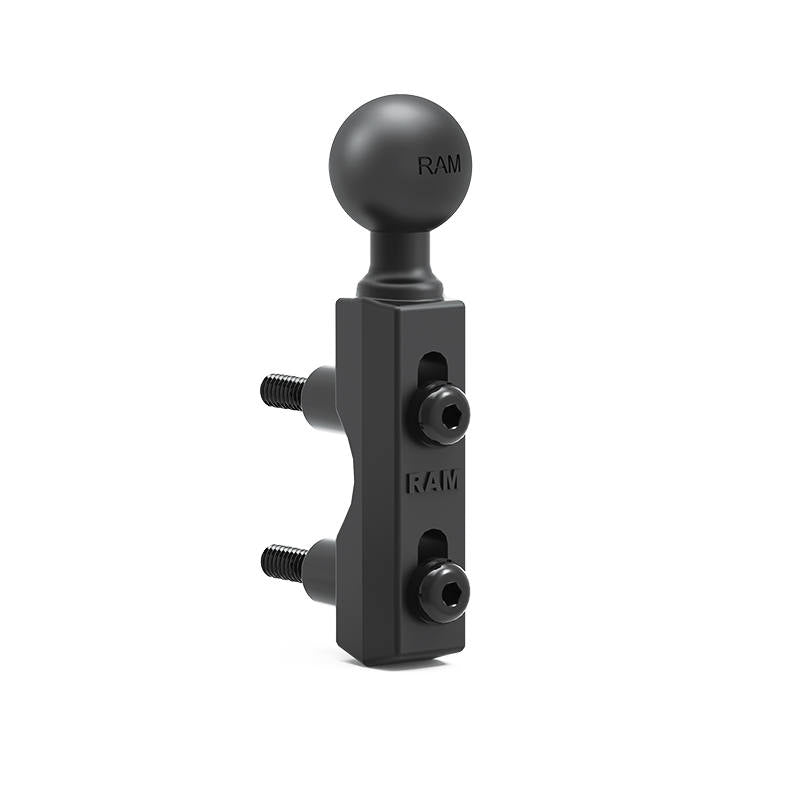

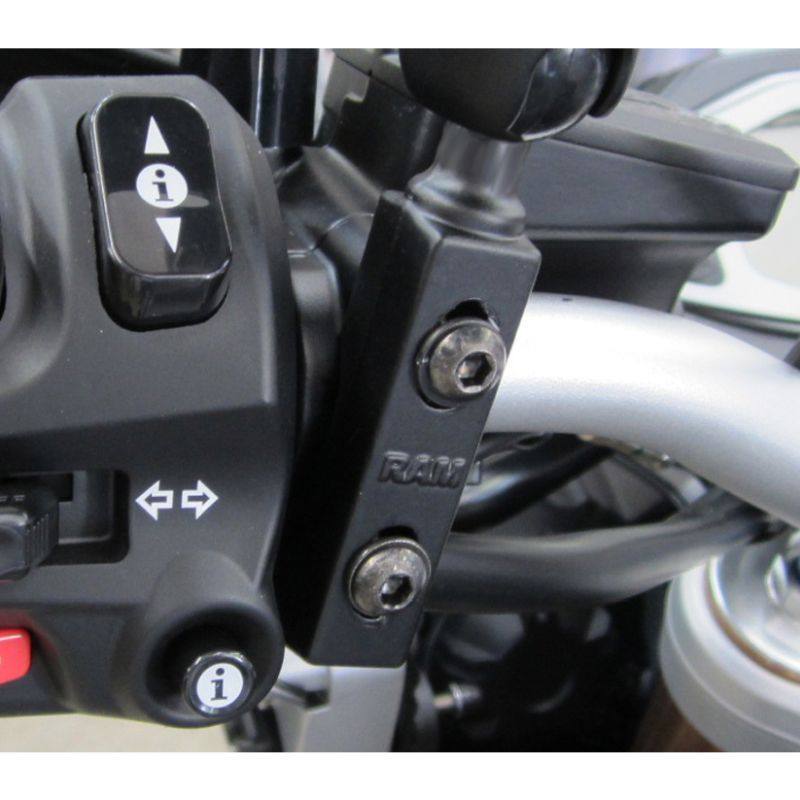

The RAM-B-309-1U attaches to your motorcycle's handlebar clutch/brake clamp and features one B size 1" rubber ball.
The base fits the control clamps on your motorcycle with 40mm x 6mm stainless steel hardware, provided in the kit. To see if the RAM-B-309-1U base will mount to your motorcycle, check the hole spacing of the base against your clutch/brake reservoir. The holes centers have a minimum width of 24mm (0.94") and a maximum of 40mm (1.58").
Other options including extra balls or multi-ball versions are also available. The RAM-B-309-2U includes 2 1" ball bases but is otherwise similar to this part. For the 2 ball version see RAM-B-309-2U
For a link of compatible motorcycles go to: http://www.rammount.com/part/RAM-B-309-1U but includes models from:
Aprilia, Benelli, Bimota, Blata, BMW, Buell, Cagiva, Derbi, Diamo, Ducati, Ecosse, Gilera, Harley-Davidson, Honda, Hyosung, Kawasaki, KTM, Moto Guzzi, MV Augusta, MZ, Polini, Rieju, Suzuki, Triumph, Yamaha
Material:
Marine Grade Aluminium
Ball Size:
1" Rubber Ball "B" Size
Weight:
136 grams / 0.3 lbs.
YouTube:
https://www.youtube.com/watch?v=p3MnpfxCONI&t=13s
QUESTIONS & ANSWERS
Q: Will this fit a Goldwing

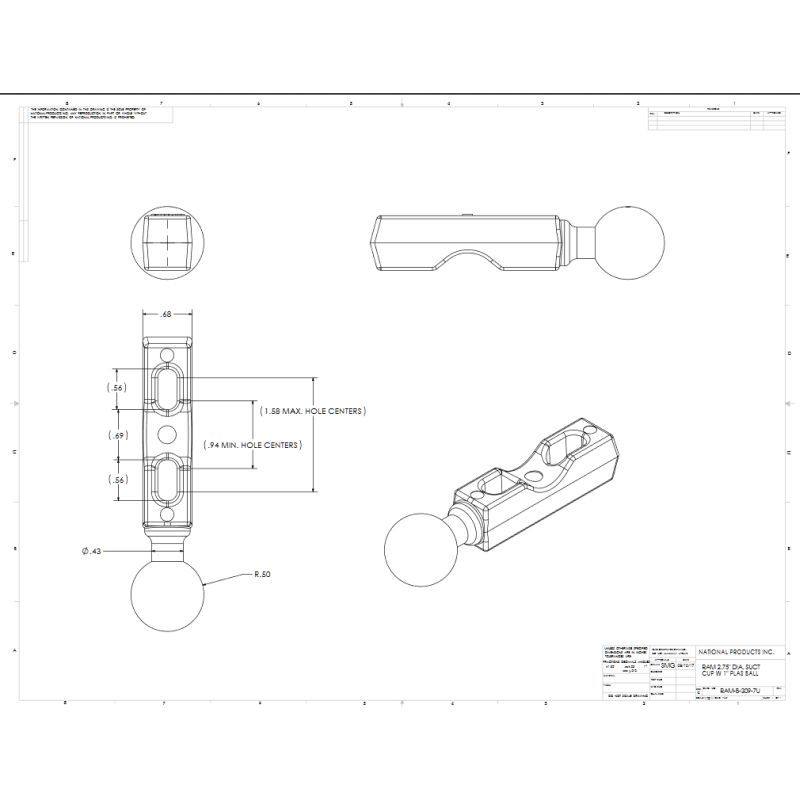

A: Yes this base should fit most if not all Goldwing models. To verify, check the drawing file of the base casting where you can verify the size of the base and compatible hole spacing.
