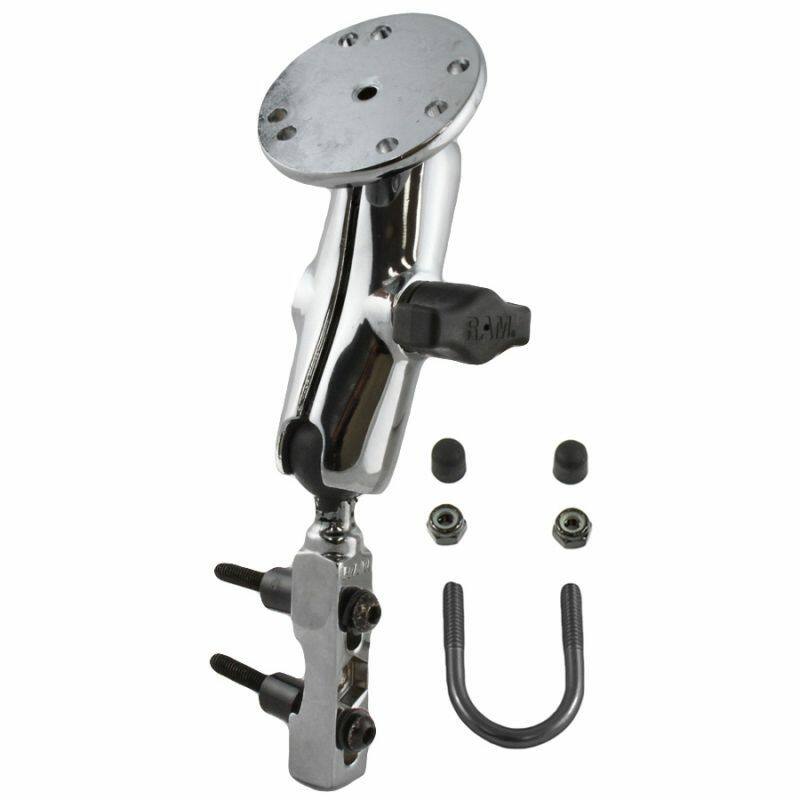

RAM-B-174CH-202U RAM® Chrome Motorcycle Brake/Clutch Reservoir Mount with Round Plate
Features:
* Special Chrome finish
* Contains both reservoir and handlebar U-Bolt mounting options

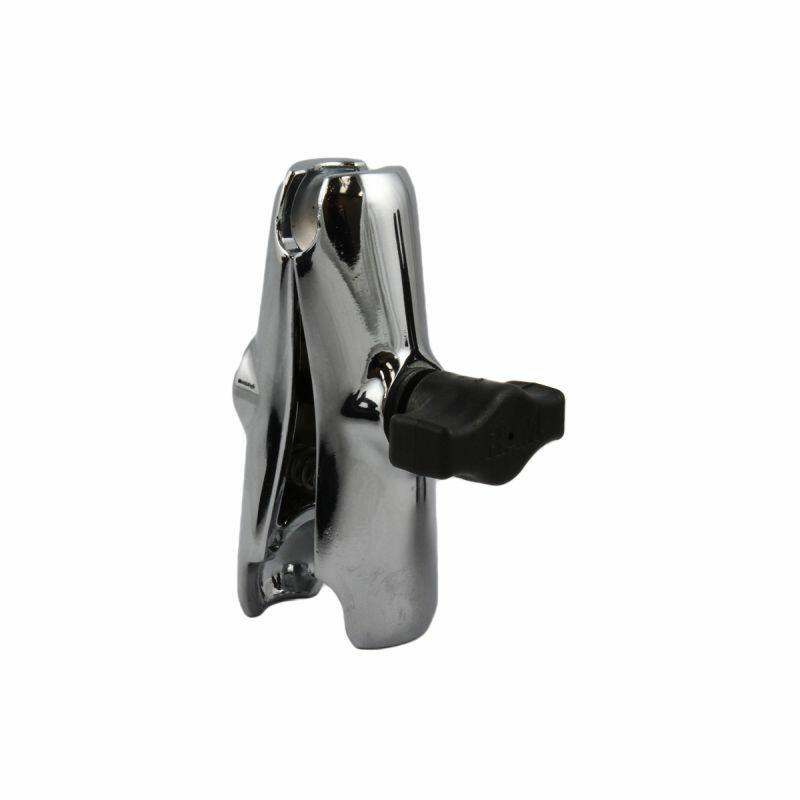

* Includes medium length RAM double socket arm
* Round plate contains 3 and 4 hole AMP's pattern for connection to many RAM cradles
* Marine-grade aluminium construction ensures product longevity
* Lifetime warranty
Add some "bling" to your bike.

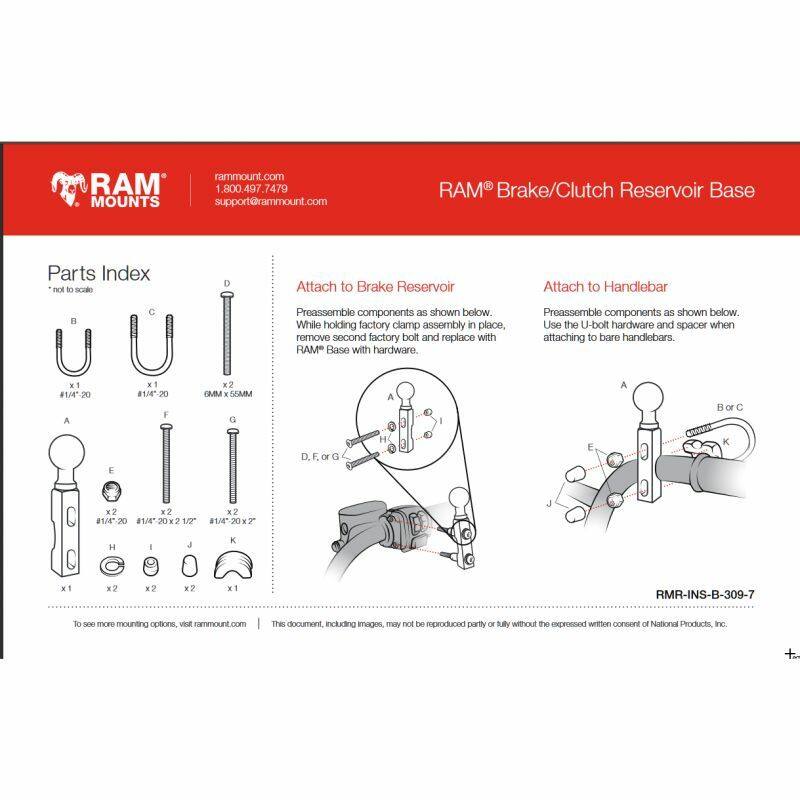

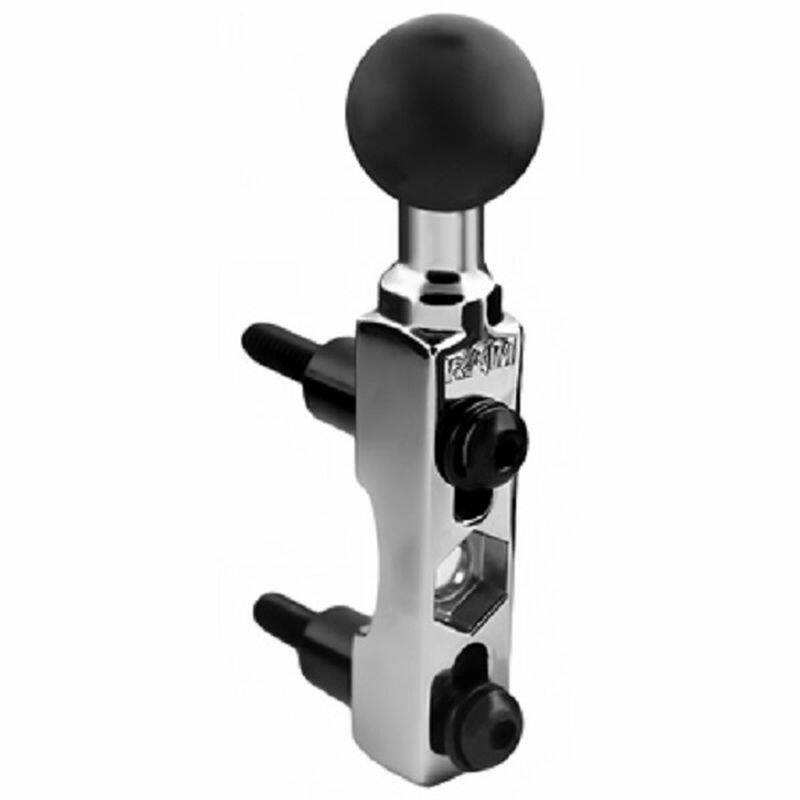

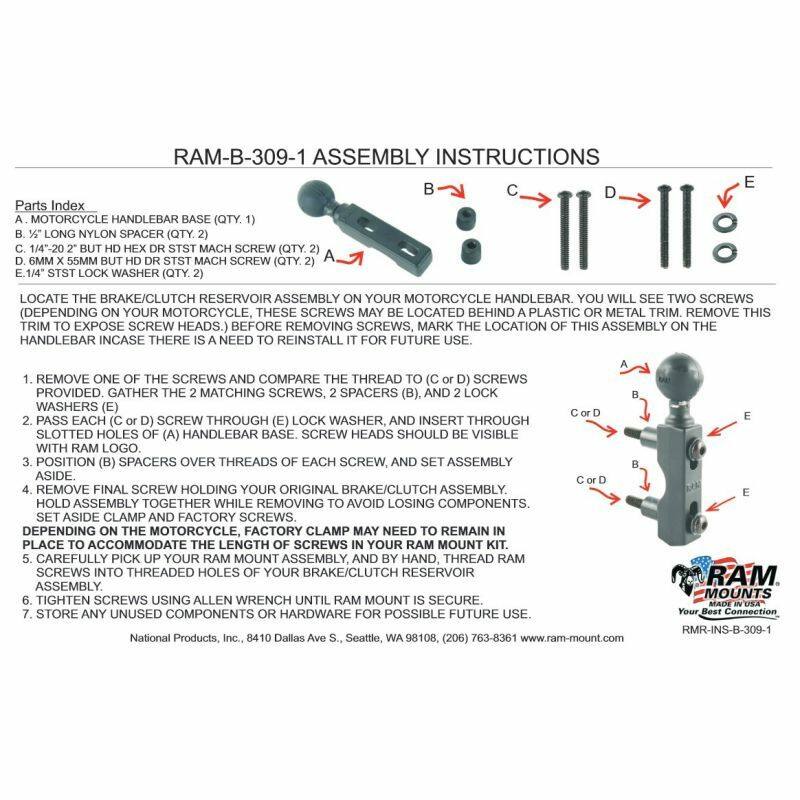

The RAM-B-174CHU consists of a chrome 1" diameter rubber ball, double socket arm, hardware for mounting to brake/clutch reservoirs. The mounting hardware for brake/clutch reservoirs includes both standard and metric mounting bolts. The included U-Bolt option allows for direct connection to rails / handlebars that are 12.7mm to 31.75mm (0.5 to 1.25 inches) in diameter
Designed into the mount is a 1" diameter patented rubber ball and socket system with adjustment points at both ends of the socket arm; this with a twist of the arm knob allows you to move the mount to your optimum viewing position.

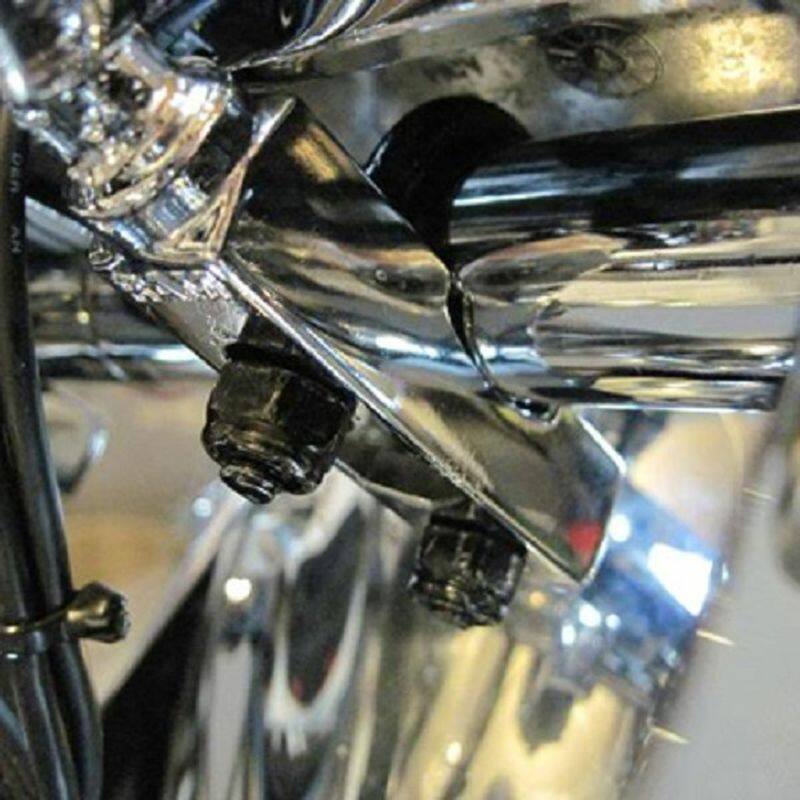

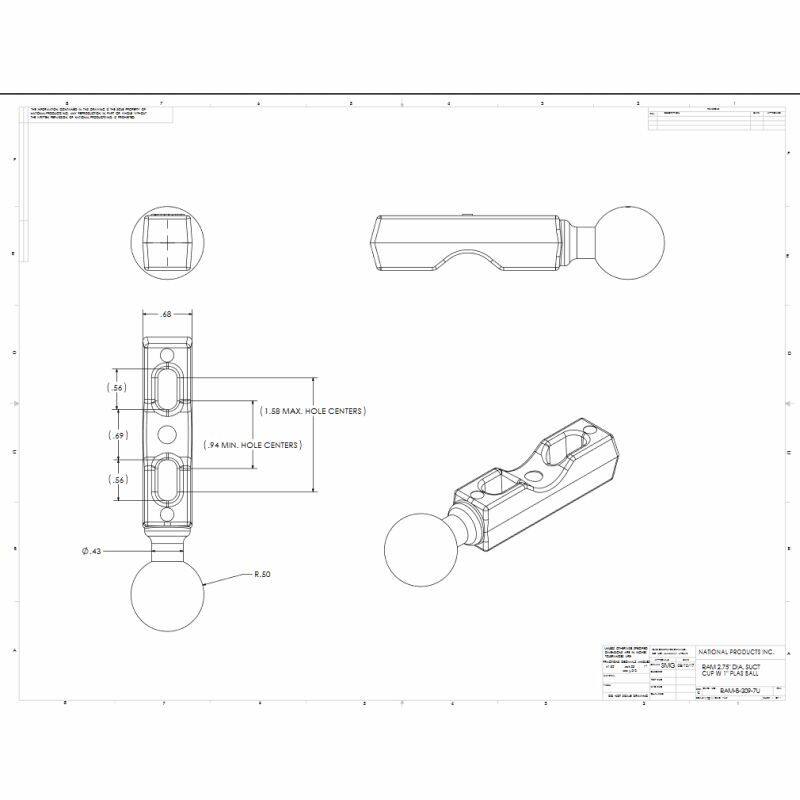

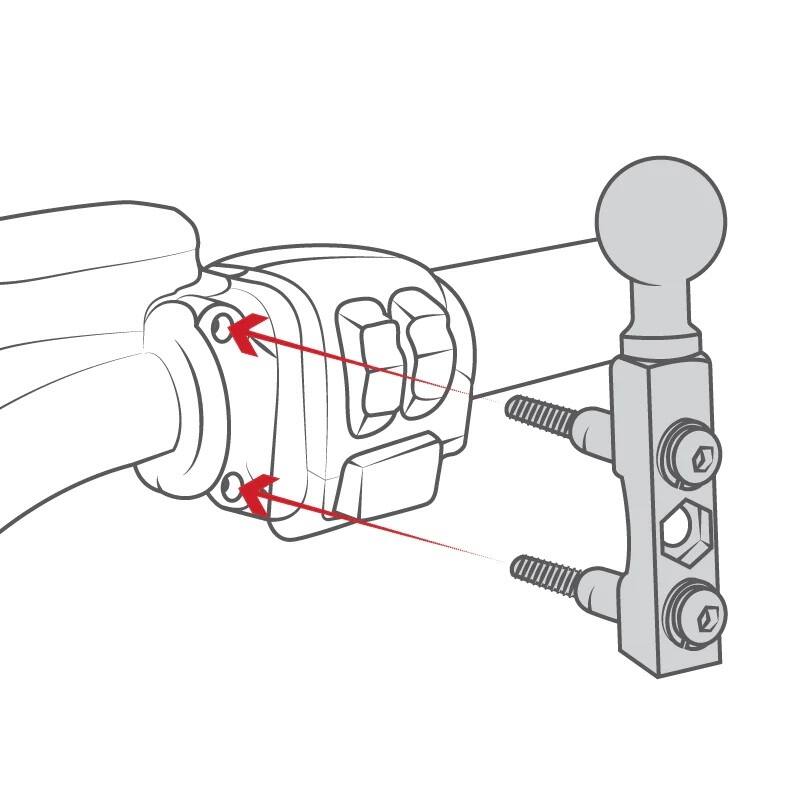

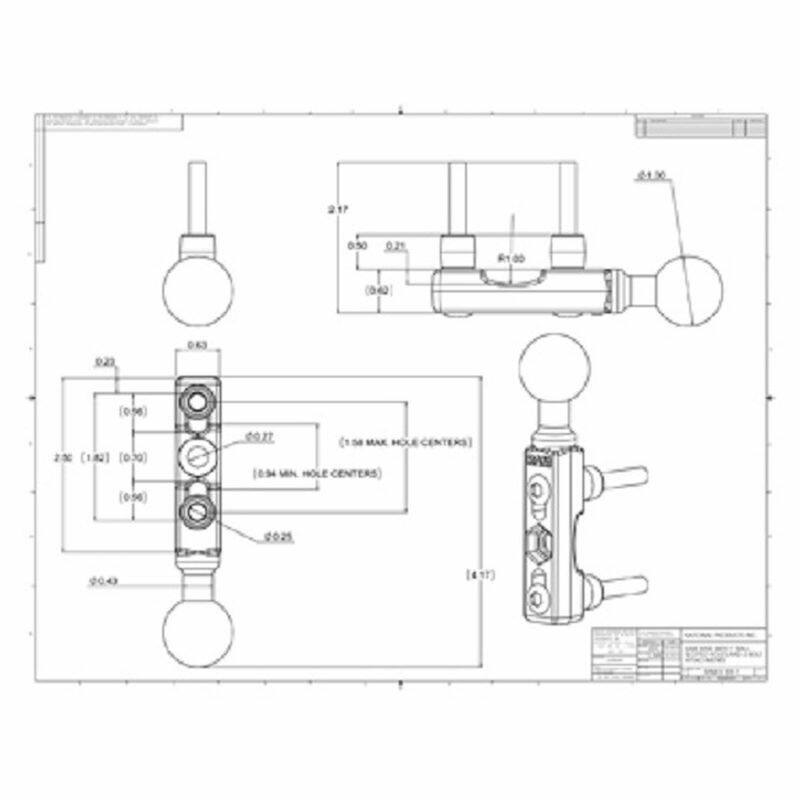

To see if the base will mount to your motorcycle, check the hole spacing of the base against your clutch/brake reservoir. The holes centres have a minimum width of 23.9mm (0.94") and a maximum of 40.1mm (1.58").

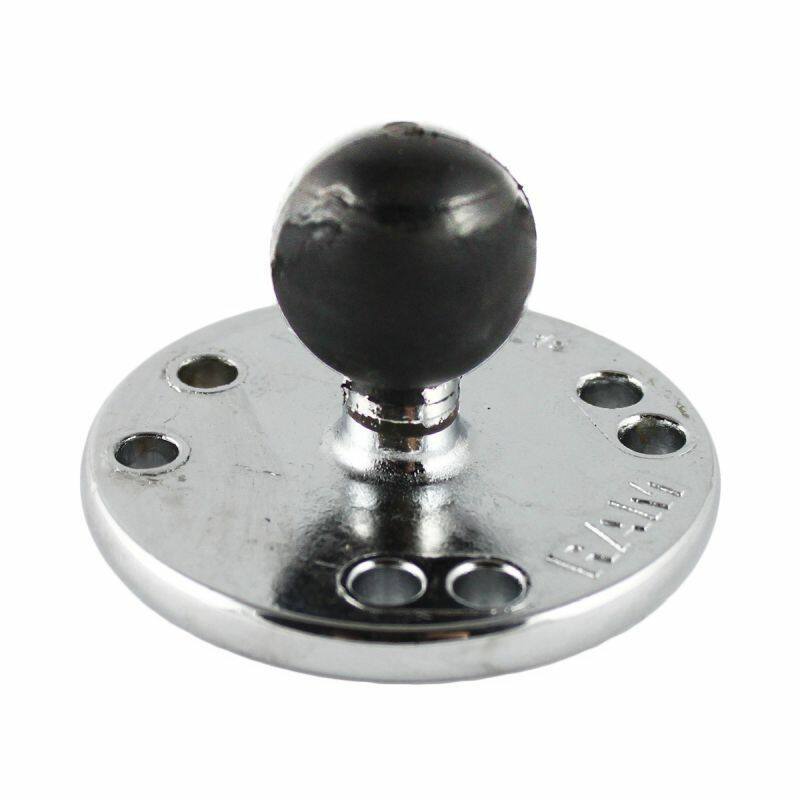

Included is a 63.5mm (2.5") diameter round base that contains the universal AMPs hole pattern.
Specs & Features
Round Plate HOLE PATTERNS
4-Hole AMPS:
1.181" x 1.496" (30mm x 38mm)
3-Hole AMPS 120- Degree
1.812” (46.0mm)
Arm Dimensions:
Overall Length:
94mm (3.69")
Socket-To-Socket Length:
76mm (3")
Material:
Marine Grade Aluminium
Ball Size:
1" B series
Weight:
358 grams (0.79 lbs.)
