RAM-B-174-202-A RAM Combination Brake/Clutch Clamp / U-Bolt Mount with Round Base Adapter and short arm
Features:
* Contains both reservoir and handlebar U-Bolt mounting options
* Includes short length RAM double socket arm
* Round plate contains 3 and 4 hole AMP's pattern for connection to many RAM cradles
* Marine-grade aluminium construction ensures product longevity
* Lifetime warranty
The RAM-B-174-202-A consists of a hardware for mounting to brake/clutch handlebar clamps or reservoirs. The mounting hardware for brake/clutch reservoirs include both standard and metric mounting bolts.
The included U-Bolt allows for direct attachment to bars and rails that are 0.5" (12.7mm) to 1.25" (31.75mm) in diameter,

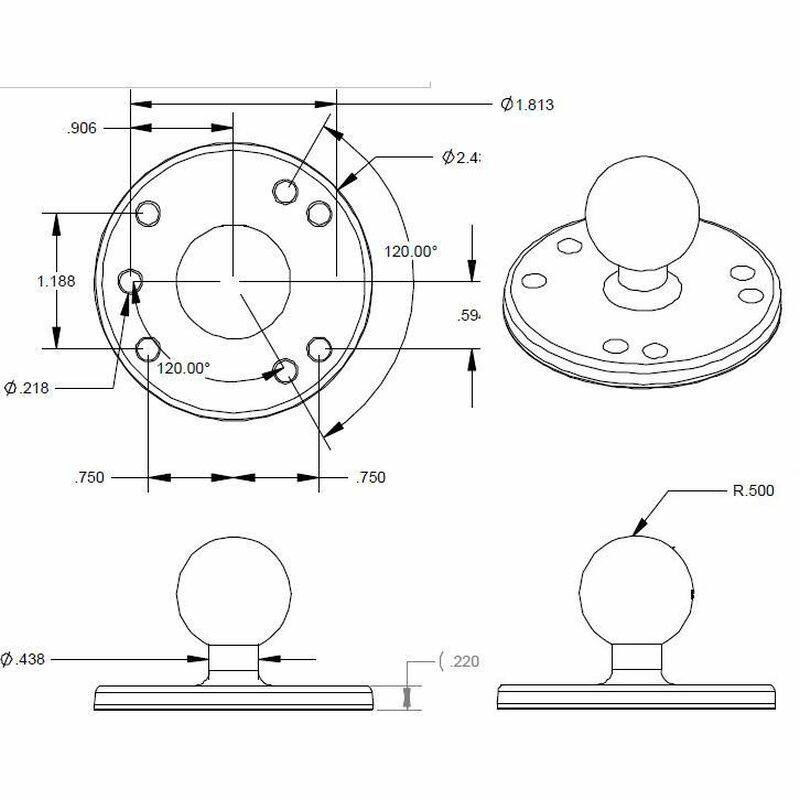

A short 60mm double socket arm and 63mm / 2.48" diameter round base adapter are included. The round base has the universal AMPs hole pattern.
The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles.
Specs & Features
Material:
Powder Coated Marine Grade Aluminium
Arm Dimensions:
Overall Length:
60.5mm (2.38")
Socket-To-Socket Length:
51mm (2")
Diamond Plate Hole Pattern:
2-Hole AMPs:
1.912” (48.5mm)
Ball Size:
1" Rubber Ball "B" Size
Note:

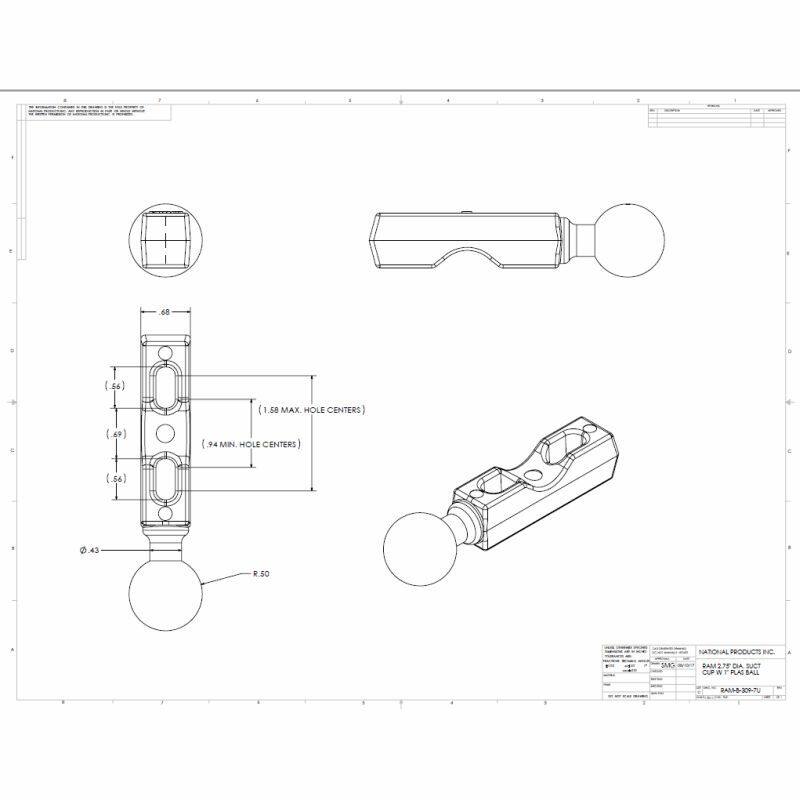

This product can mount to both the brake/clutch reservoir or any round rail that is 0.5" (12.7mm) to 1.25" (31.75mm) in diameter. To see if the base will mount to your motorcycle, check the hole spacing of the base against your clutch/brake reservoir. The holes centres have a minimum width of 0.94" and a maximum of 1.58".
Note:

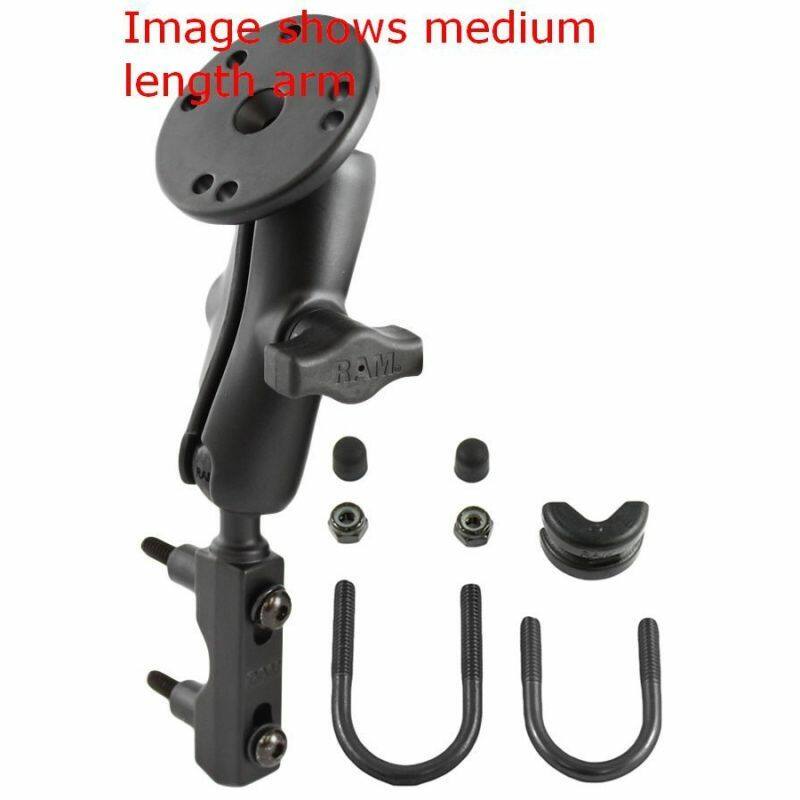

Photo shows this set-up with a standard double socket arm (96mm) part RAM-B-174-202U
Components:

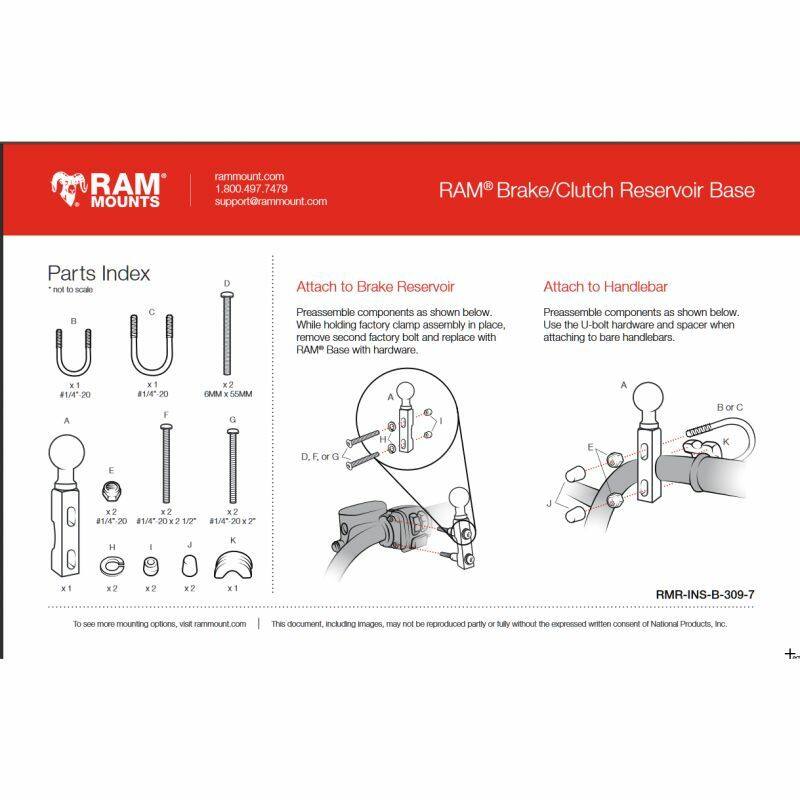

RAM-B-309-7U - Motorcycle Combination Base for Handlebar or Brake/Clutch Reservoir with 1" Ball

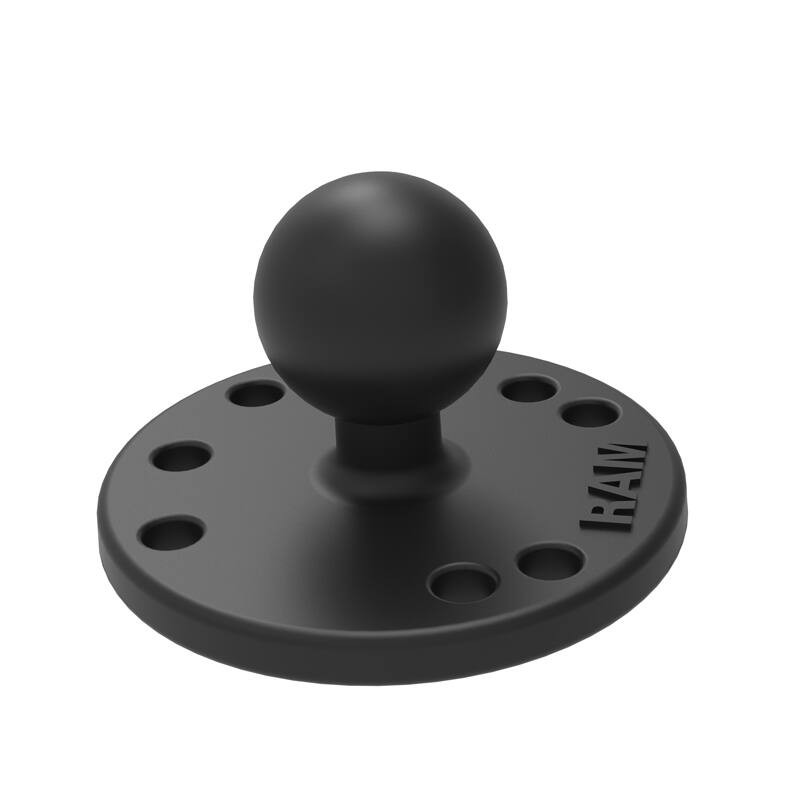

RAM-B-202U - Round base with 1" ball

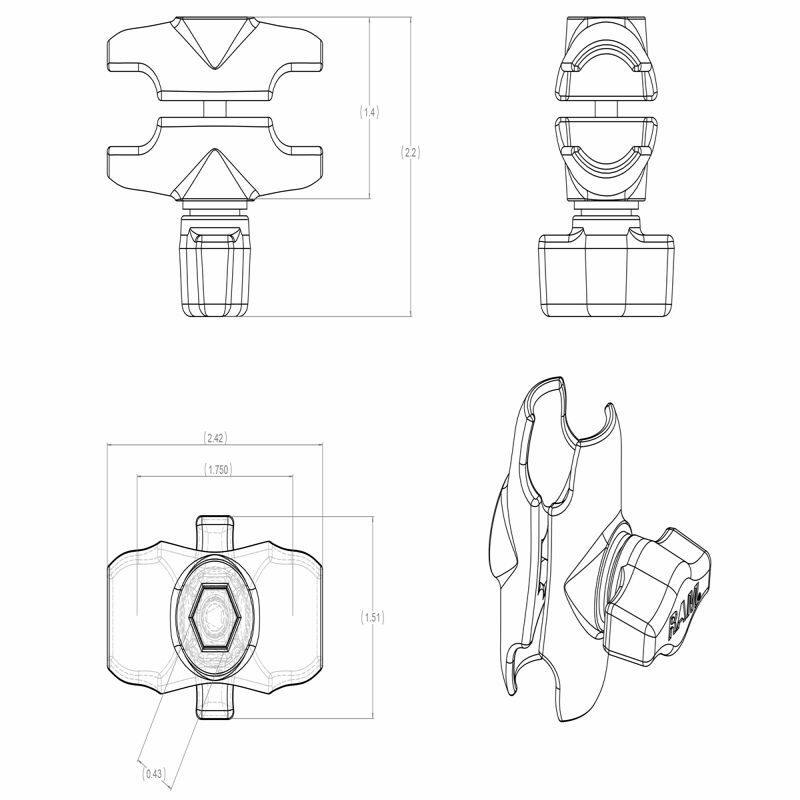

RAM-B-201U-A - 60mm double socket arm for 1" ball
