RAM-B-367U RAM® Motorcycle Handlebar Clamp Base with M8 Bolts
Features
* Includes rubber ball, M8 x 55 bolt, M8 x 60 bolt, M8 x 65 bolt (1.25 thread pitch)
* Compatible with any motorcycle M8 threaded bolt; ball base allows for connection to any B size RAM® double socket arm
* Made of marine-grade aluminium for durability and reliability in the most demanding environments
* Backed by a lifetime warranty

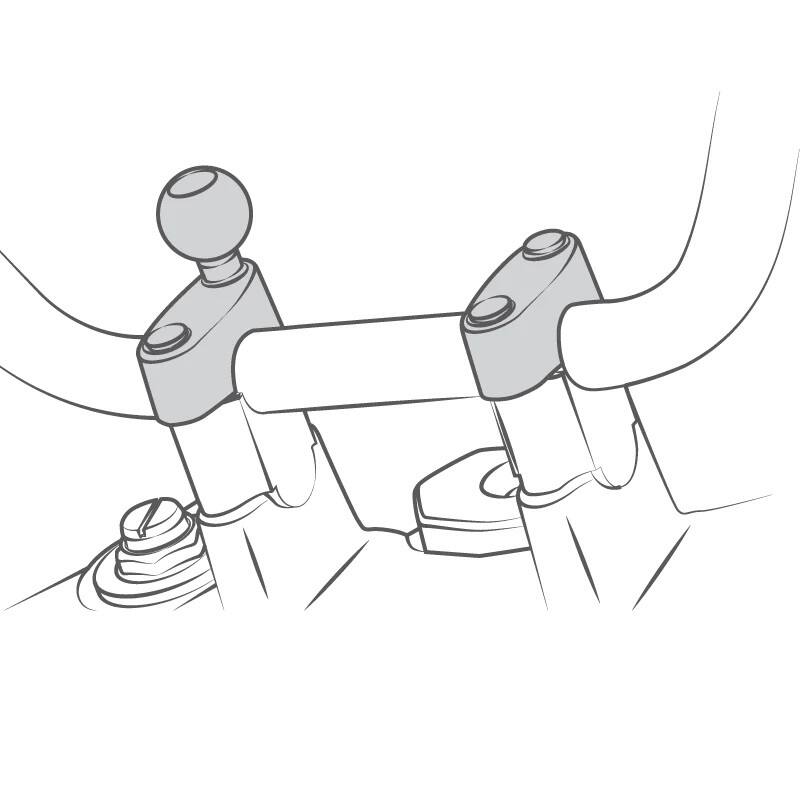

For M8 handlebar bolts, the RAM-B-367U motorcycle handlebar base will replace the existing bolt with a 1" B size ball. This rubber ball base provides shock and vibration damping, and is compatible with a wide variety of B size RAM® double socket arms and device holders. The RAM-B-367U motorcycle handlebar base will work with any motorcycle that features an 8mm bolt or smaller on its structure. A smaller bolt can be used, though the load capacity decreases with the bolt size.
Attachment Point:
Motorcycle handlebar top clamp, any bike that uses an M8 threaded bolt.
Additional Information
To determine if these bolts are compatible with your motorcycle measure the bolt for the diameter and add 30mm to the length. If it matches one of the 55, 60, or 65 mm length, then you can use the appropriate bolt supplied with the mount. If it does not match, you may be able to source the correct length of bolt locally or from your BMW dealer. Be sure to use the correct torque spec when attaching the mount.
Hardware included
(1) M8 x 55mm Socket Head Cap Screw
(1) M8 x 60mm Socket Head Cap Screw
(1) M8 x 65mm Socket Head Cap Screw
Material:
Marine Grade Aluminium
Ball Size:
1" Rubber Ball "B" Size
Weight:
113 grams (0.25 lbs.)
Weight Capacity
Standard Use:
907 grams (2 lbs)
Heavy-Duty Use:
454 grams (1 lb)
QUESTIONS & ANSWERS
Q: Is this available with different hex bolts?
A: No, the M8 hex bolts are the only hardware we supply for the handlebar clamp base.
Q: Regarding your info on Additional Information, "To determine if these bolts are compatible with your motorcycle measure the bolt for the diameter and add 30mm to the length" What do you mean by measure the bolt for the diameter?
A: You can determine the diameter of a bolt by measuring from the outer thread on one side to the outer thread on the opposite side.
