RAM-B-186U-A RAM® Motorcycle Handlebar Clamp Mount with M8 Bolts - short
Features
* Includes rubber ball, M8 x 55 bolt, M8 x 60 bolt, M8 x 65 bolt (1.25 thread pitch)
* Compatible with any motorcycle M8 threaded bolt
* Diamond plate features industry-standard AMPS hole pattern and measures 61.7mm x 33.3mm (2.43" x 1.31")
* Compatible with several RAM® device holders and cradles
* Short arm with ball and socket technology allows for near-infinite adjustability
* Made of marine-grade aluminum for durability and reliability in the most demanding environments
* Backed by a lifetime warranty
Your motorcycle rides on rubber tires for grip and to soften the ride. Why should it be any different for your mounted electronics? With RAM's patented rubber ball and socket technology, the turn of a single knob grips the adjustment arm to a rubber ball designed to dampen shock and vibration. With RAM products, it's all grip and no slip plus protection for your valuable electronics. Simply mount this easy to install ball base onto the motorcycle handlebar top clamp and you're done. After that, a world of mounting possibilities just opened up.
Additional Information:
To determine if these bolts are compatible with your motorcycle measure the bolt for the diameter and add 30mm to the length. If it matches one of the 55, 60, or 65 mm length, then you can use the appropriate bolt supplied with the mount. If it does not match, you may be able to source the correct length of bolt locally or from your BMW dealer. Be sure to use the correct torque spec when attaching the mount.

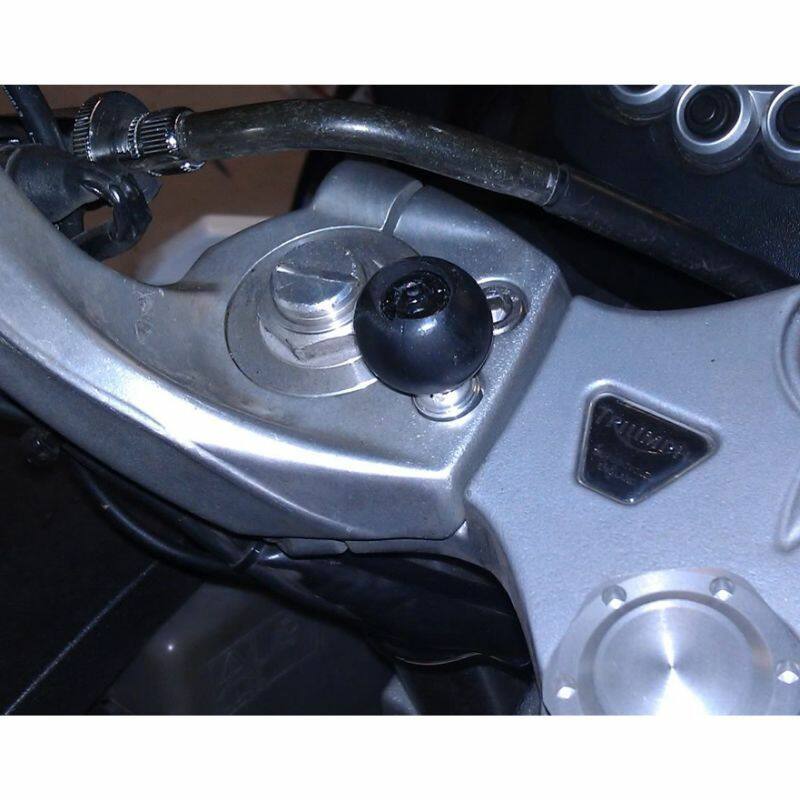

Attachment Point:
Motorcycle handlebar top clamp, any bike that uses an M8 threaded bolt.
Included Bolts:
(1 QTY) M8 x 55 bolt (1.25 thread pitch)
(1 QTY) M8 x 60 bolt (1.25 thread pitch)
(1 QTY) M8 x 65 bolt (1.25 thread pitch)
Hole Pattern:
2-Hole AMPs:
1.912” (48.5mm)
Arm Dimensions:
Overall Length:
60.5mm (2.38")
Socket-To-Socket Length:
51mm (2")
Material:
Powder Coated Marine Grade Aluminium
Ball Size:
1" Rubber Ball "B" Size
Components:
RAM-B-367U MOTORCYCLE BASE W HOLE M8 SCREW
RAM-B-238U 62 X 33mm DIAMOND BASE W/ 1 BALL
RAM-B-201U-A SHORT DOUBLE SOCKET ARM FOR 1" BALL

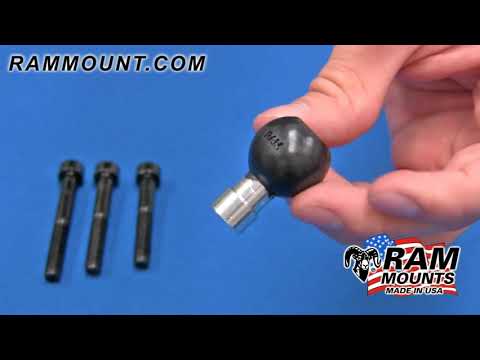

YouTube:
