RAM Mounts

RAM Motorcycle Mirror Post 1" Ball Base with Long Arm - M10 X 1.5" Thread

RAM Motorcycle Mirror Post 1" Ball Base with Long Arm - M10 X 1.5" Thread

SKU:RAM-B-349-1-201U-C-v

Regular price $74.10 NZD
Regular price Sale price $74.10 NZD
Sale Sold out
Tax included. Shipping calculated at checkout.
View full details

RAM-B-349-1-201U-C RAM® Ball Adaptor with M10 X 1.5 Threaded Post with LONG Double Socket Arm

Features

* Universal threaded hole solution for a variety of use cases
* Included RAM® double socket arm with ball and socket technology allows for near-infinite adjustability
* Ball base thread pitch is M10 x 1.5
* Double socket arm has overall length of 152mm and a socket-to-socket length of 134mm
* Made of Powder-coated, marine-grade aluminum for durability and reliability in the most demanding marine environments
* Backed by a lifetime warranty


This makes an ideal base for Doubletake Mirrors.

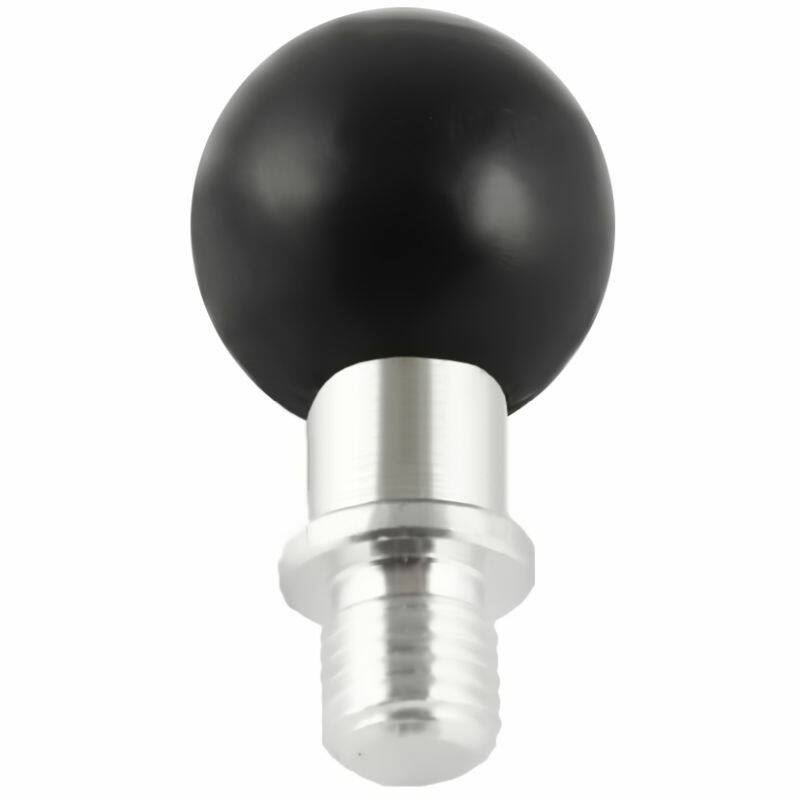

The RAM ball adaptor is a M10 x 1.5 pitch male thread connected to a 1" rubber ball. The diameter of the round flange is 14.3mm and the thread length is 10.5mm.

Compatibility:
Threaded hole must contain the following dimensions for this base to fit: M10 1.5 pitch with a 14.5mm flange diameter with a 10.15mm thread length

Arm is a RAM-B-201U-C long arm for 1 inch balls. A single spring inside the arm opens the end sockets, allowing you to pivot the ball and socket connection. This socket technology provides for almost infinite adjustment and perfect viewing angles. The easy to adjust knob allows for near-infinite adjust-ability for your connected device.

Arm Dimensions:
Overall Length:
152 mm (6 inches)
Socket-To-Socket Length:
134 mm (5.25 inches)


Ball/Socket Size
B Size (1")

Weight Capacity
Standard Use: 907 grams (2 lbs)
Heavy-Duty Use: 454 grams (1 lb)

Material:
Marine Grade Aluminium

Ball Size:
1" Rubber Ball "B" Size

Components:
RAM-B-201U-C LONG DOUBLE SOCKET ARM FOR 1" BALL
RAM-B-349-1U RAM BASE W/ M10 X 1.5" Thread & 1" BALL

Installation Instructions: https://forums.ninja250.org/posting.php?mode=topicreview&t=63955&tro=1
