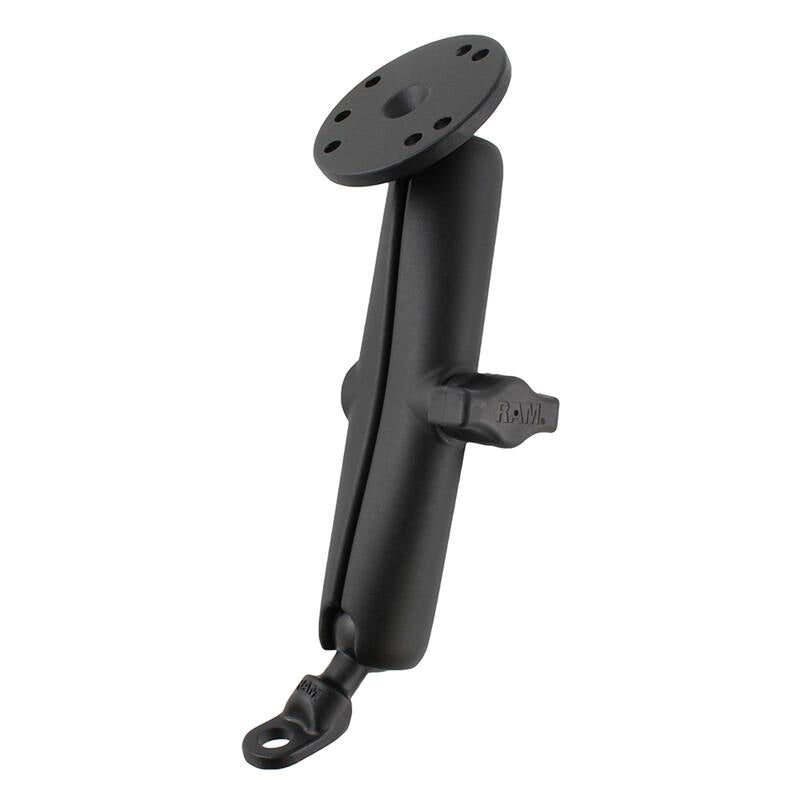

RAM-B-180-C-202U – RAM® 9mm Mirror Post Mount with Round Base (Long Arm)
The RAM-B-180-C-202U attaches to a motorcycle mirror post using a 9mm angled bolt-head adapter, pairing a long double socket arm with a 63mm round base for any RAM cradle with the AMPS hole pattern. The longer arm gives extra reach, and it's most commonly used on the mirror frames of BMW motorcycles.
Key Features

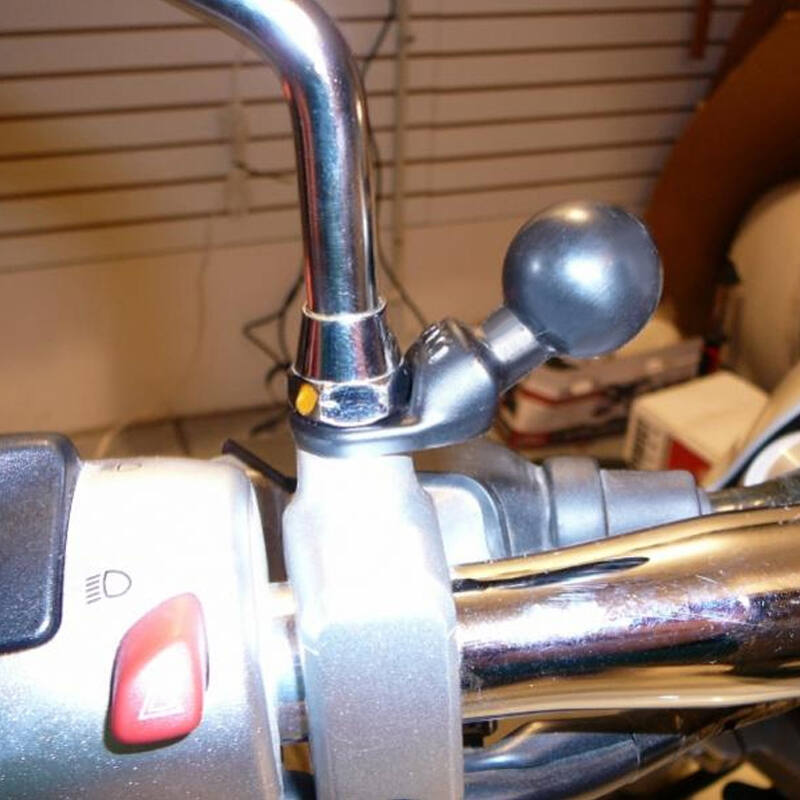

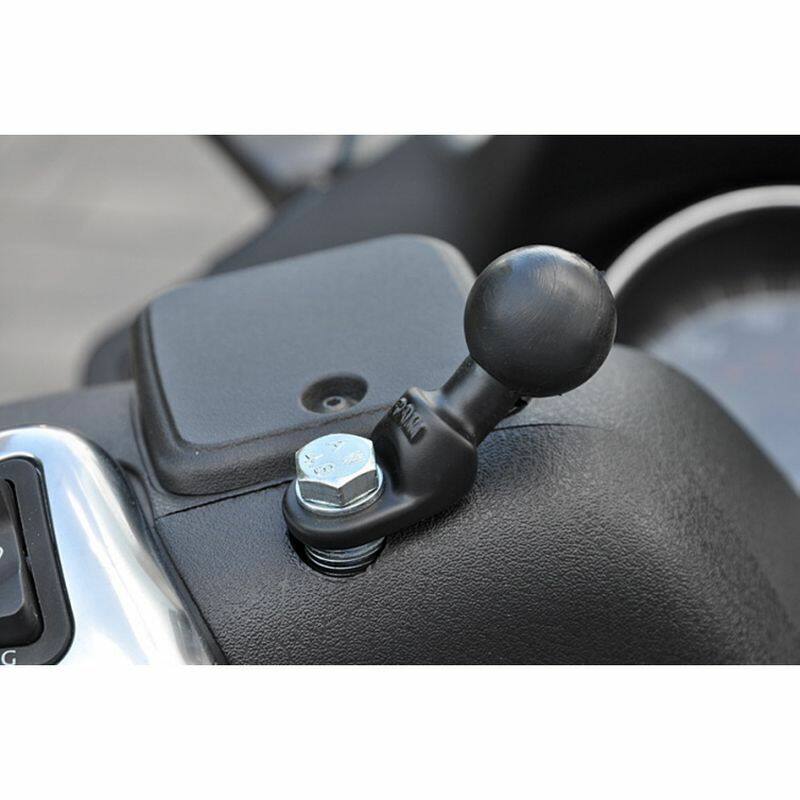

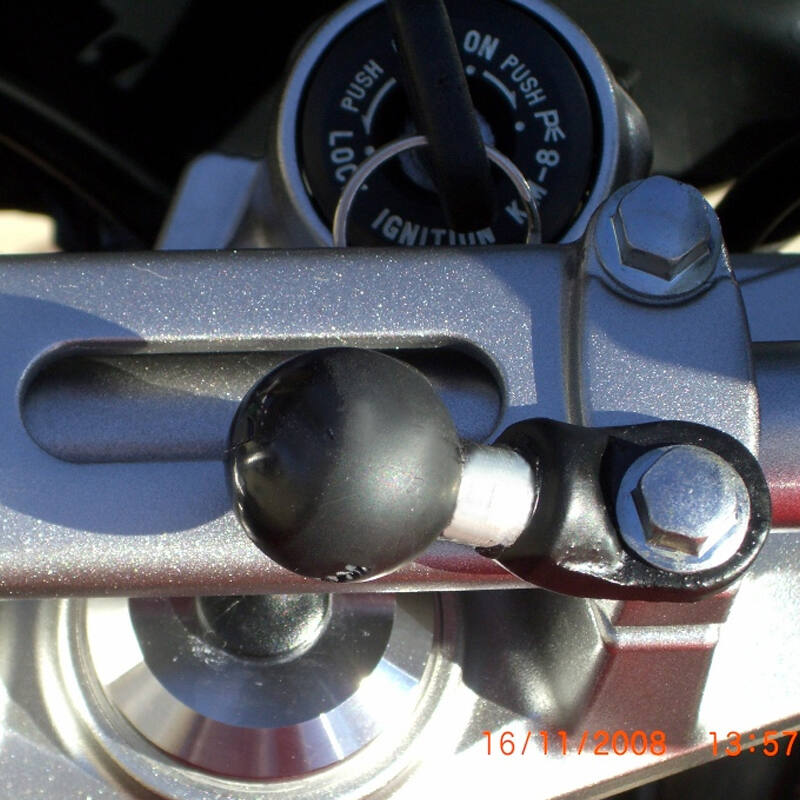

Base has a 9mm hole that fits the mirror frame of many motorcycles, commonly BMW
Long double socket arm for extra reach; ball-and-socket design allows near-infinite positioning
63mm round base with the universal AMPS hole pattern connects to most RAM and third-party cradles
Also handy for mounting cameras to fairings or bumpers for a low, road-level view
Powder-coated marine-grade aluminium; backed by a lifetime warranty
What's Included

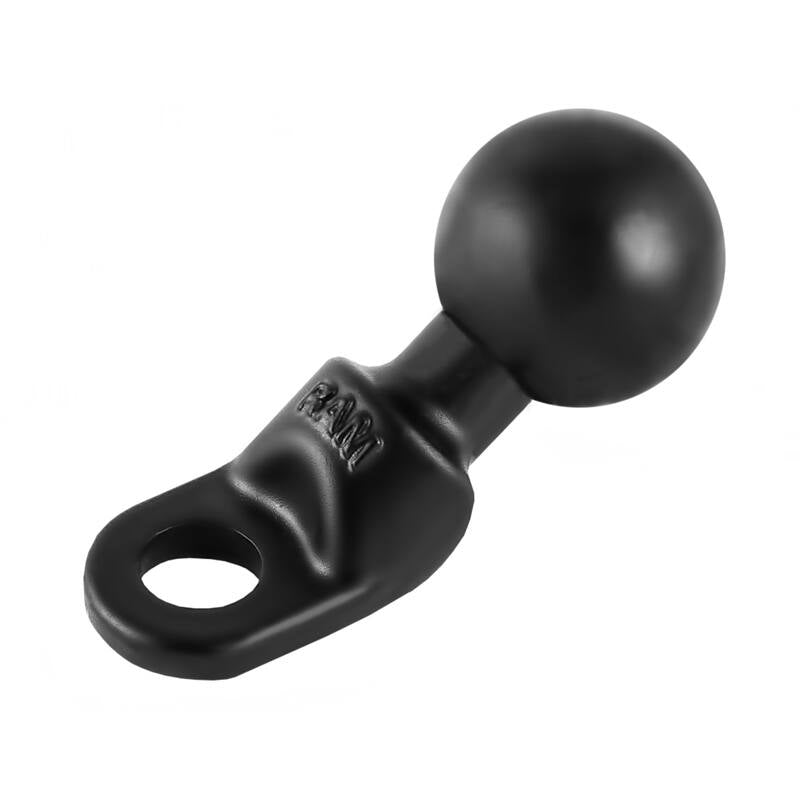

RAM-B-272U motorcycle base with 9mm hole and 1" B-size ball

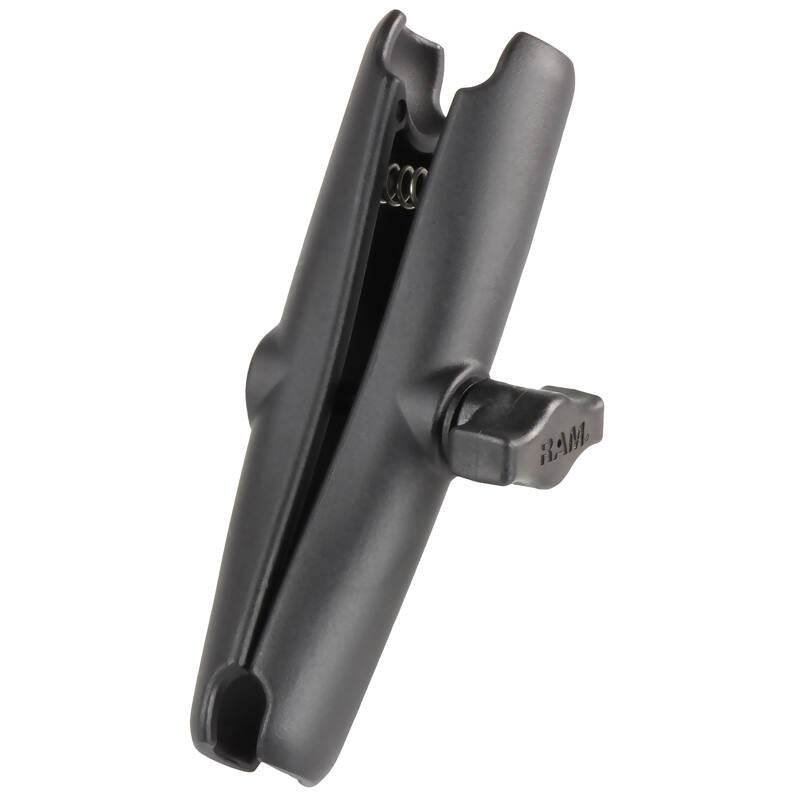

RAM-B-201U-C long double socket arm

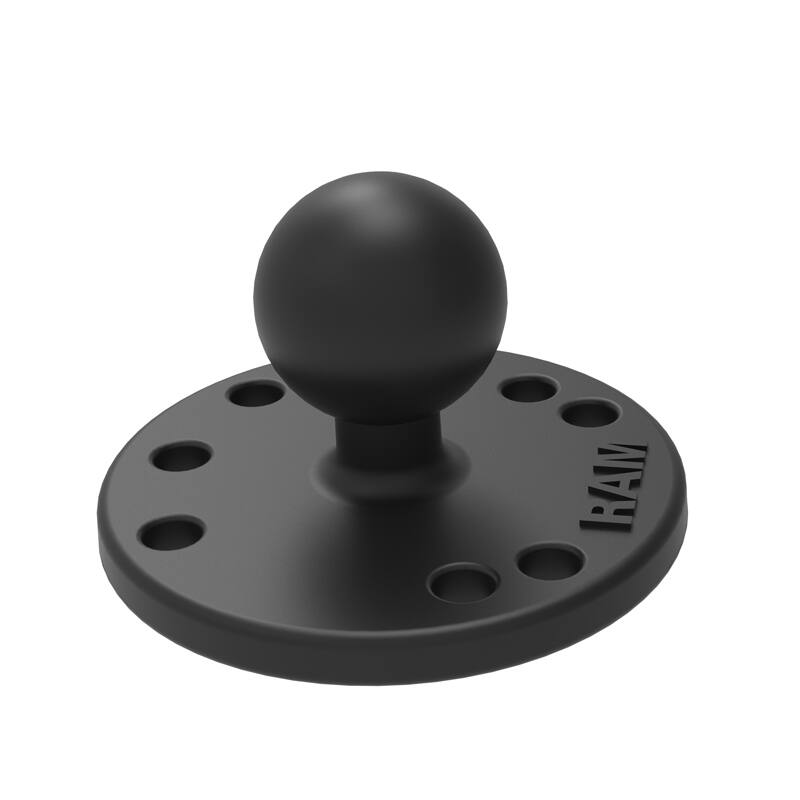

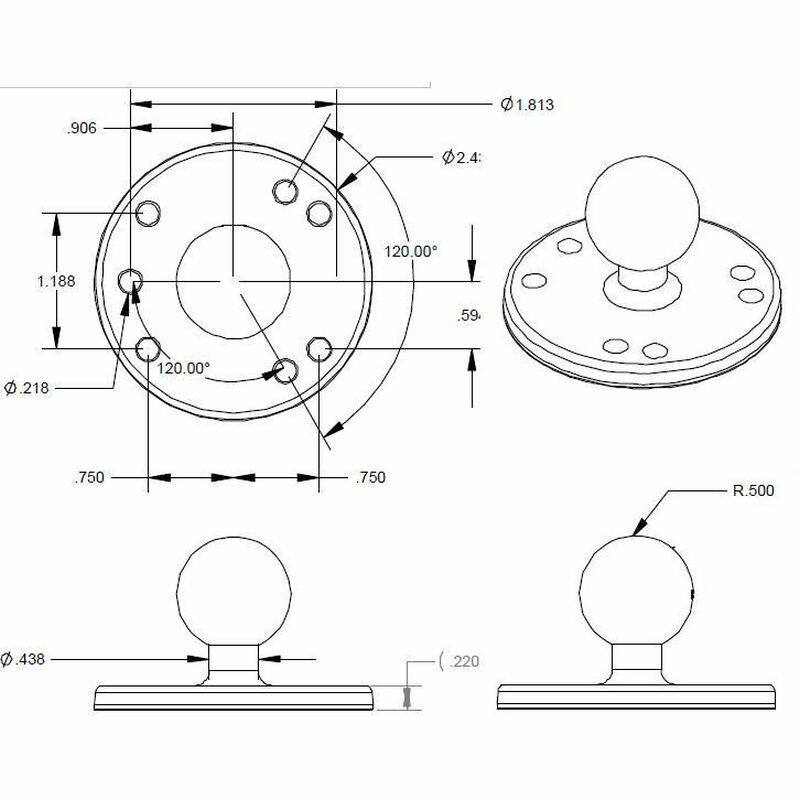

RAM-B-202U 63mm round base with 1" B-size ball
Dimensions & Specifications

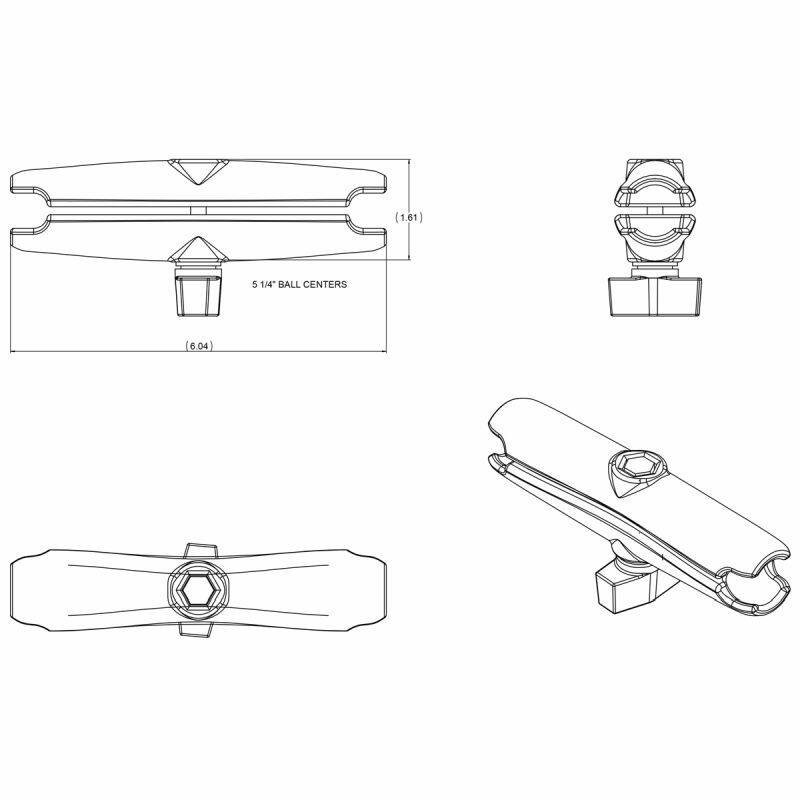

Arm overall length: 152mm (6"); socket-to-socket 134mm (5.25")
Mounting hole: 9mm
Base diameter: 63mm (2.5")
Hole pattern: 4-hole AMPS 30mm x 38mm (1.181" x 1.496"); 3-hole 120-degree 46mm (1.812")
Ball size: B size, 1" rubber ball
Load capacity: 907g (2 lb) standard use; 454g (1 lb) heavy-duty use
