RAM-B-180U RAM® Double Ball Mount with 9mm Angled Bolt Head Adapter
Features
* Base has a 9mm hole designed to attach to the mirror frame of motorcycles
* B size RAM® double socket arm has ball and socket technology which allows for near-infinite adjustability
* Diamond base plate features the 2 hole AMPs pattern and will connect directly to many lighter RAM cradles
* Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
* Backed by a lifetime warranty

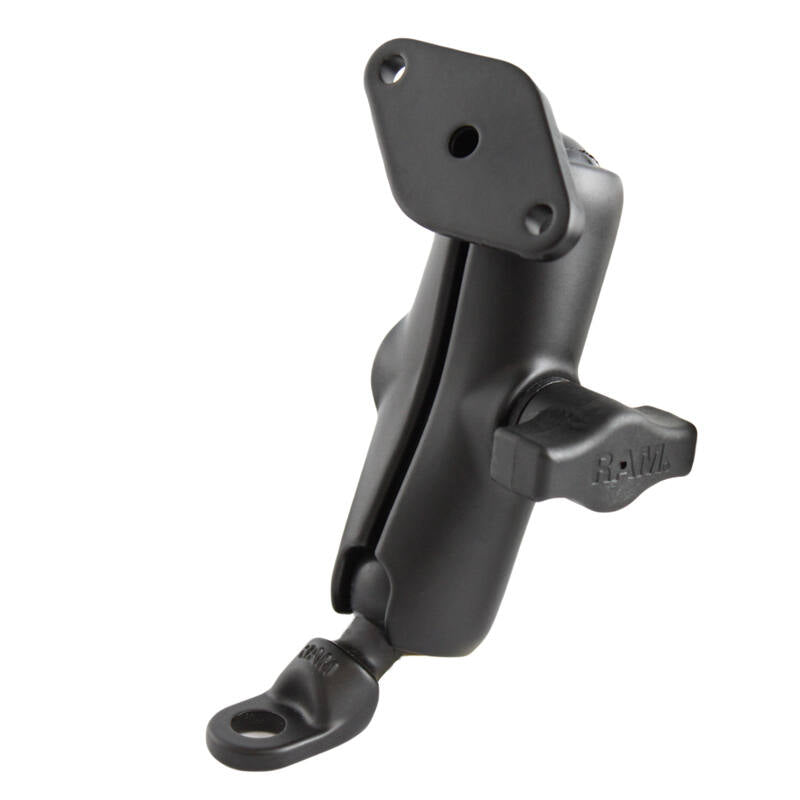

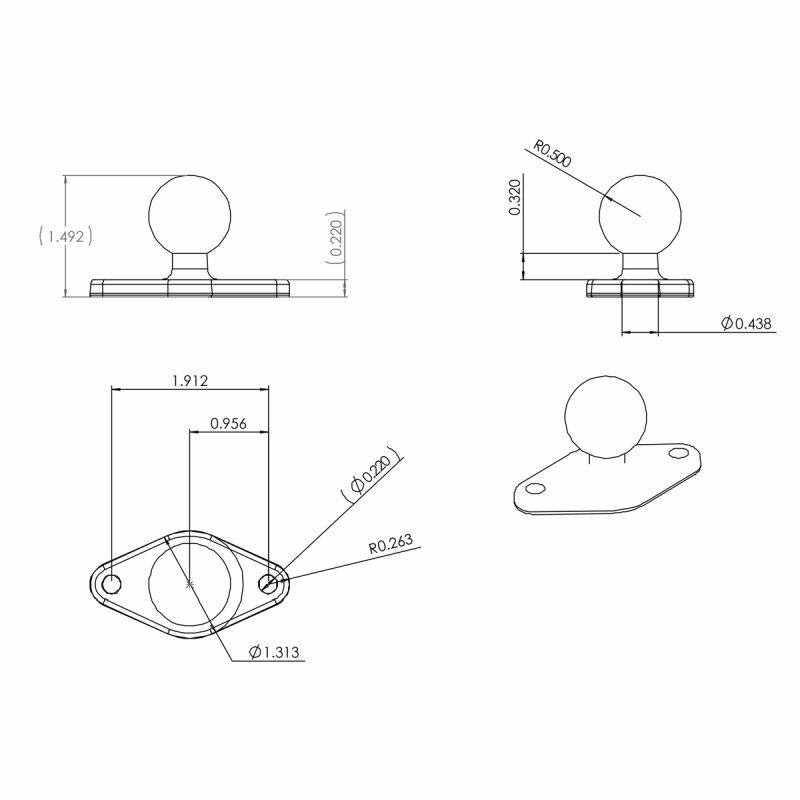

The RAM-B-180U consists of a 1" diameter ball base with 9mm hole, double socket arm and diamond base adapter. This mount is often used on motorcycles, attaching to the mirror frame, most commonly found on BMW motorcycles. The 2.43" x 1.31" diamond base contains two holes 1.912" from center to center, matches the industry standard AMPS hole pattern and will connect to a large variety of RAM Mount and third party cradles.
The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles.

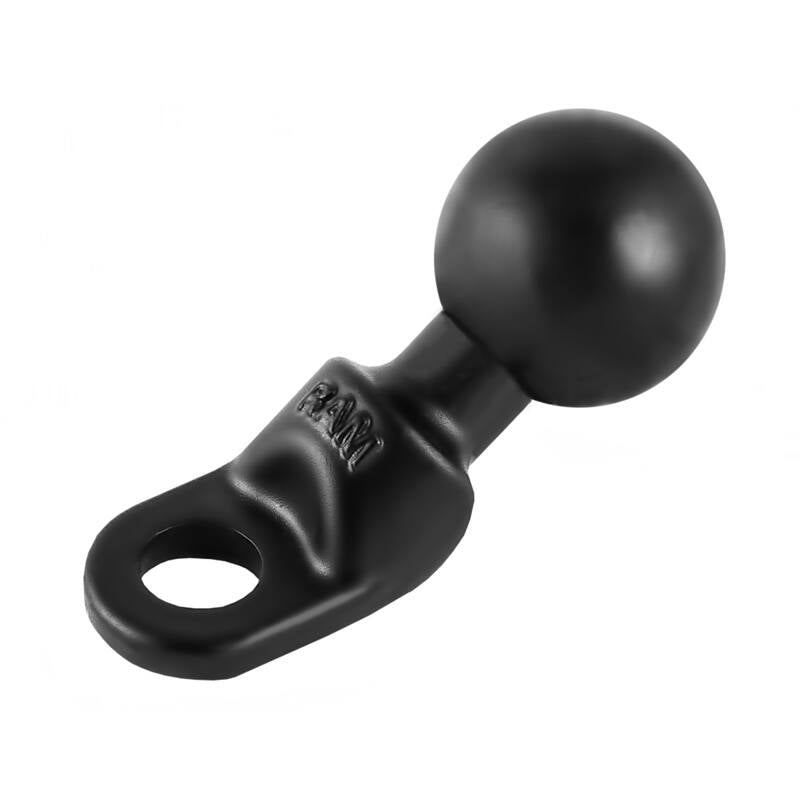

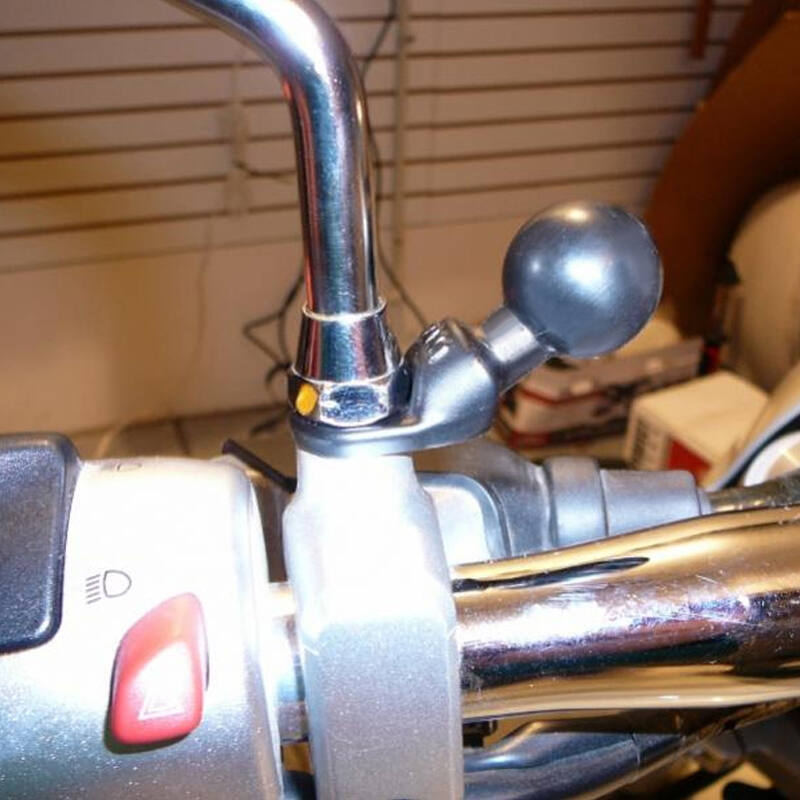

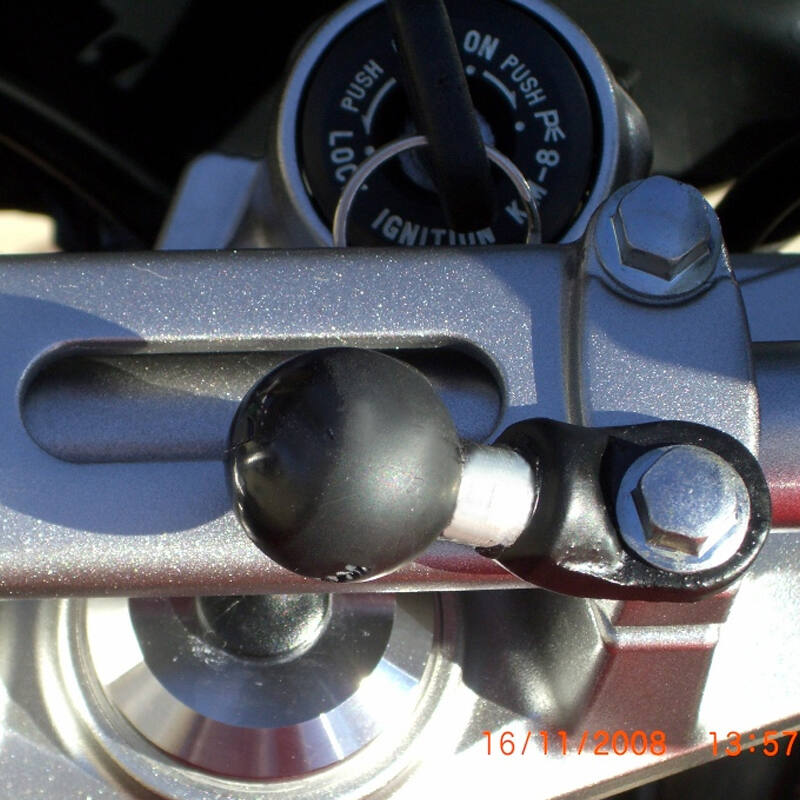

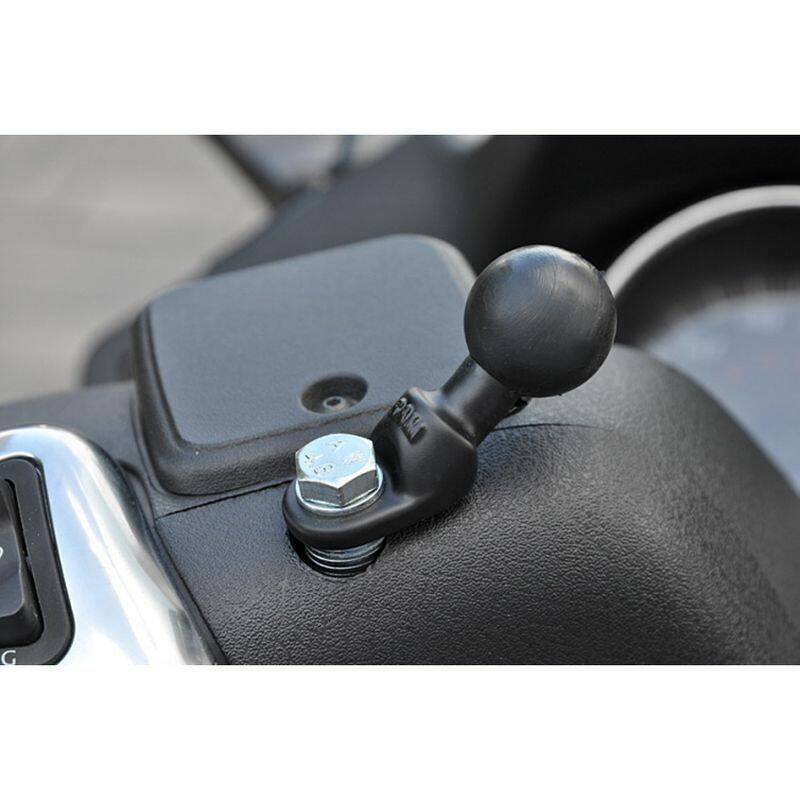

The motorcycle base consists of a 1" diameter ball and base with 9mm hole. This part is often used on motorcycles for attaching to the mirror frame however it can be used to attach a mount to almost anything that uses a 9mm bolt.
This mount is a perfect match for BMW bikes.
Material:
Powder Coated Marine Grade Aluminium
Hole Pattern:
2-Hole AMPs:
1.912” (48.5mm)
Arm Dimensions:
Overall Length:
94mm (3.69")
Socket-To-Socket Length:
76mm (3")
Ball Size:
1" Rubber Ball "B" Size
Weight Capacity
Standard Use:
907 grams (2 lbs)
Heavy-Duty Use:
454 grams (1 lb)
Components:
RAM-B-272U MOTORCYCLE BASE WITH 9MM HOLE
RAM-B-238U 62 X 33mm DIAMOND BASE W/ 1 BALL
RAM-B-201U DOUBLE SOCKET ARM FOR 1" BALL
