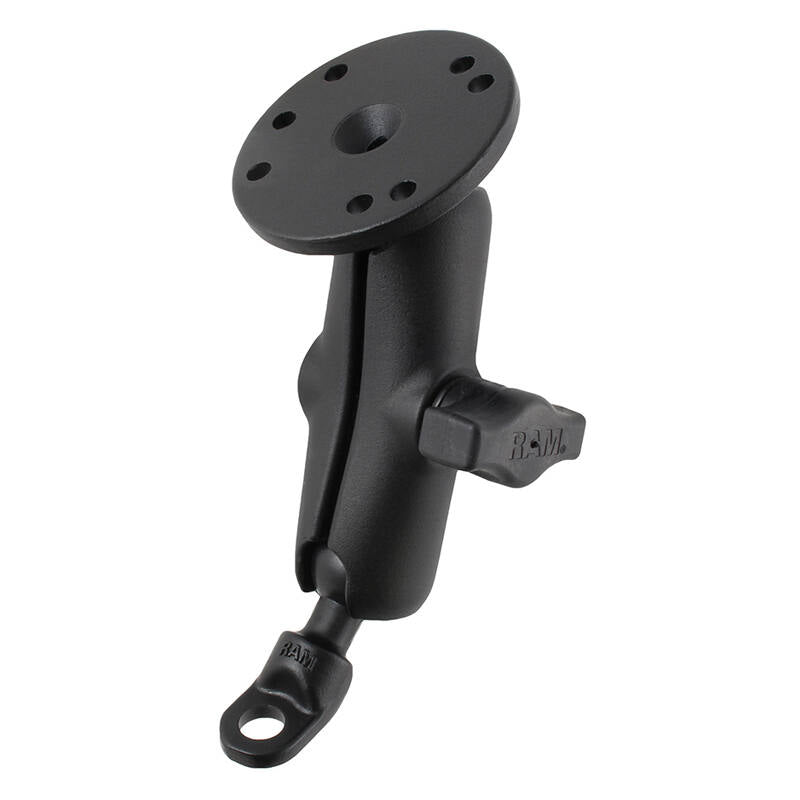

RAM-B-180-202U RAM® Double Ball Mount with 9mm Angled Bolt Head Adapter and Round Plate
Features

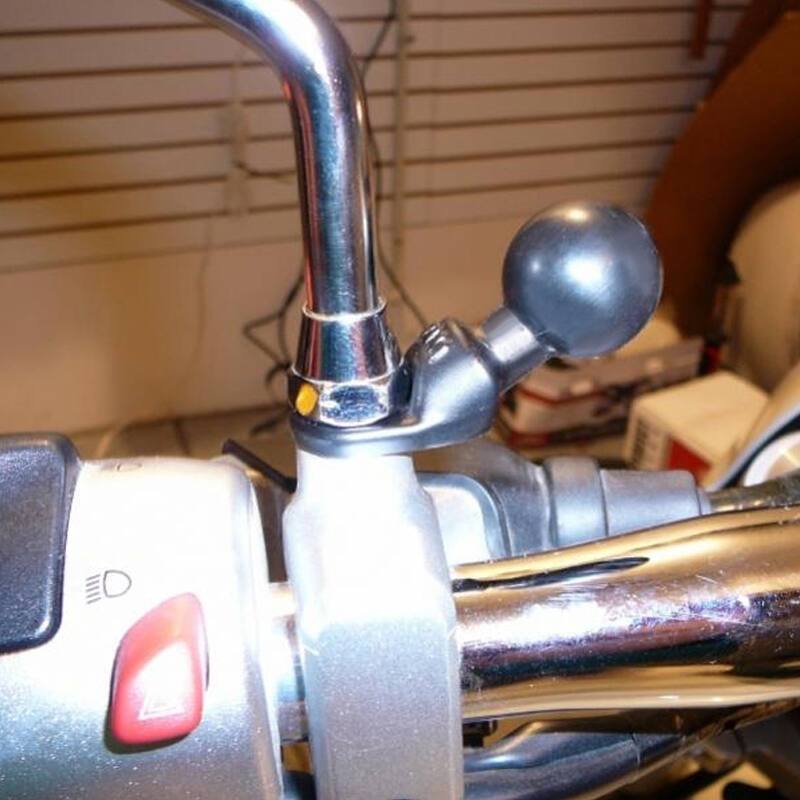

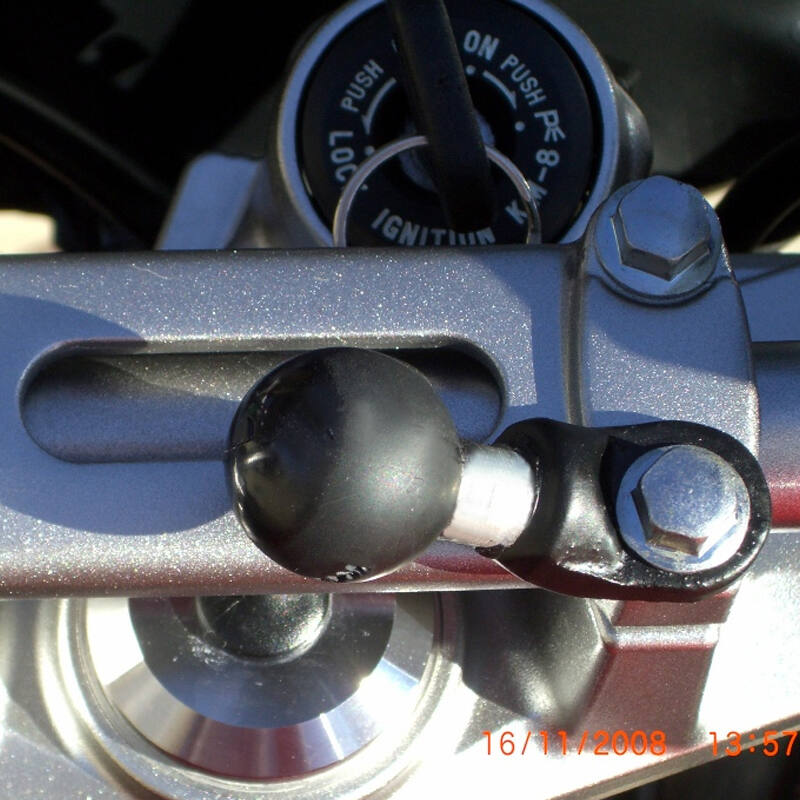

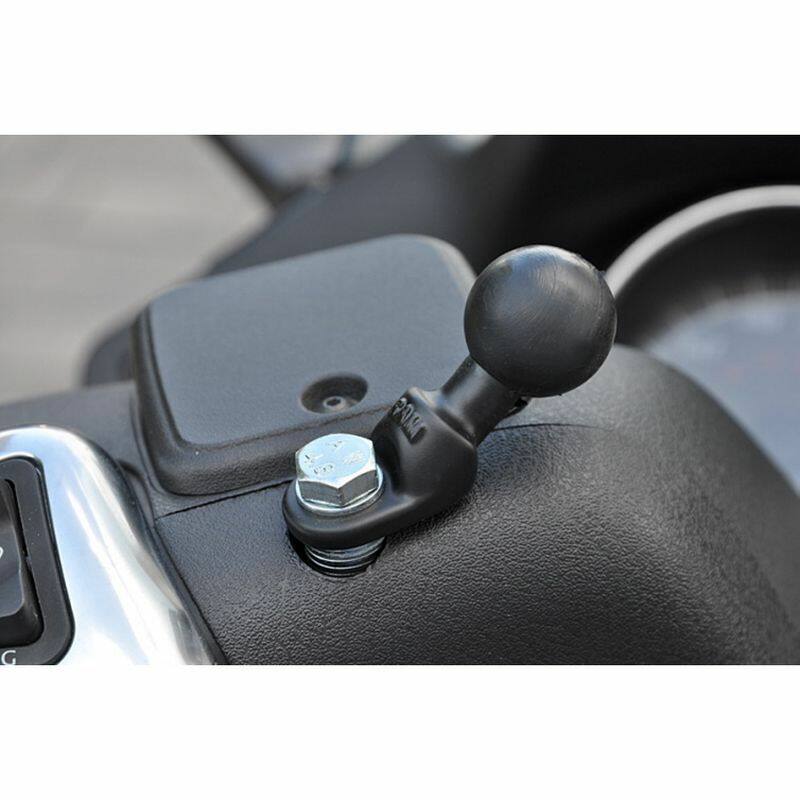

* Base has a 9mm hole designed to attach to the mirror frame of motorcycles
* B series RAM® medium double socket arm has ball and socket technology which allows for near-infinite adjustability
* Round base plate features the 3 and 4 hole AMPs patterns and will connect directly to many RAM cradles
* Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
* Backed by a lifetime warranty
The RAM-B-180-202U consists of a 1" diameter ball base with 9mm hole, double socket arm and round base that contains the universal AMPs hole pattern. This mount is often used on motorcycles, attaching to the mirror frame, most commonly found on BMW motorcycles. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles.
It's perfect for mounting cameras to motorbike fairings or car bumpers for the low-down shock-centric view of the road or track.
Hole Pattern
4-Hole AMPS:
1.181" x 1.496" (30mm x 38mm)
3-Hole AMPS 120- Degree
1.812” (46.0mm)
Arm Length:
Overall Length:
94mm (3.69")
Socket-To-Socket Length:
76mm (3")
Material:
Powder Coated Marine Grade Aluminium
Ball Size:
1" Rubber Ball "B" Size
Weight Capacity
Standard Use:
907 grams (2 lbs)
Heavy-Duty Use:
454 grams (1 lb)
Weight:
204 grams (.52 lbs )
Components:

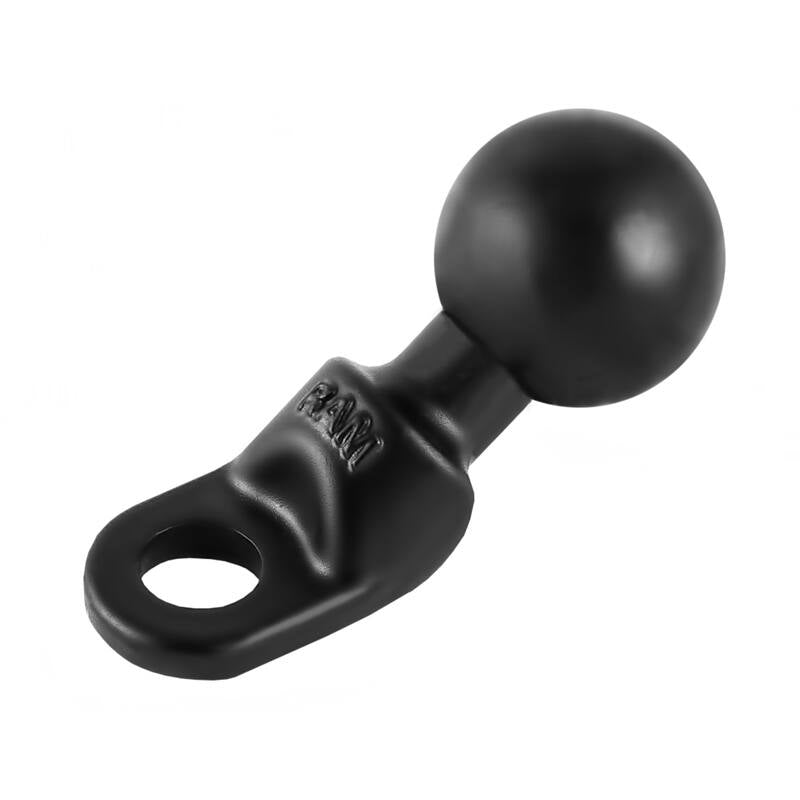

RAM-B-272U RAM MOTORCYCLE BASE WITH 9MM HOLE
RAM-B-202U RAM 62mm DIA.BASE WITH 1" BALL
RAM-B-201U RAM DOUBLE SOCKET ARM FOR 1" BALL
