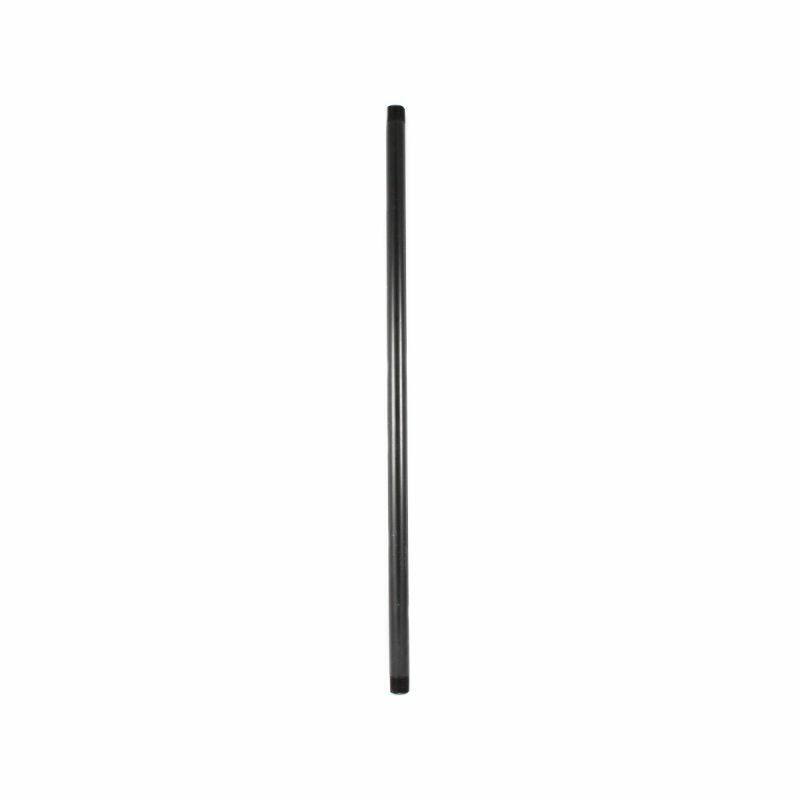

RAM-PA8224 RAM® 24" Long 1/2" NPT Male Threaded Pipe
The RAM-PA8224 is a 610mm / 24" long rigid aluminium pipe that has a 1/2" NPT male thread at both ends of the pipe.
PRODUCT DIMENSIONS
Overall Length:
610mm / 24"
THREAD PITCH
1/2" NPT
MATERIALS
Marine-grade aluminium
PACKAGING TYPE
Box
WEIGHT
245 grams / 0.54 lbs.
Additional Information
NPT Thread and Pipe Sizing:
NPT (National Pipe Thread) is a standard used in joining pipes and fittings that have a tapered thread. As a general rule, the NPT inch size is the inside diameter of the threaded pipe and is known as the NPS (Nominal Pipe Size). The outer diameter (OD) of the pipe is shown in the table below:
NPT Size (NPS) / Pipe Outer Dia. / (OD) Threads per inch
1/4" / 0.540" / 18
1/2" / 0.840" / 14
1" / 1.315" / 11.5
