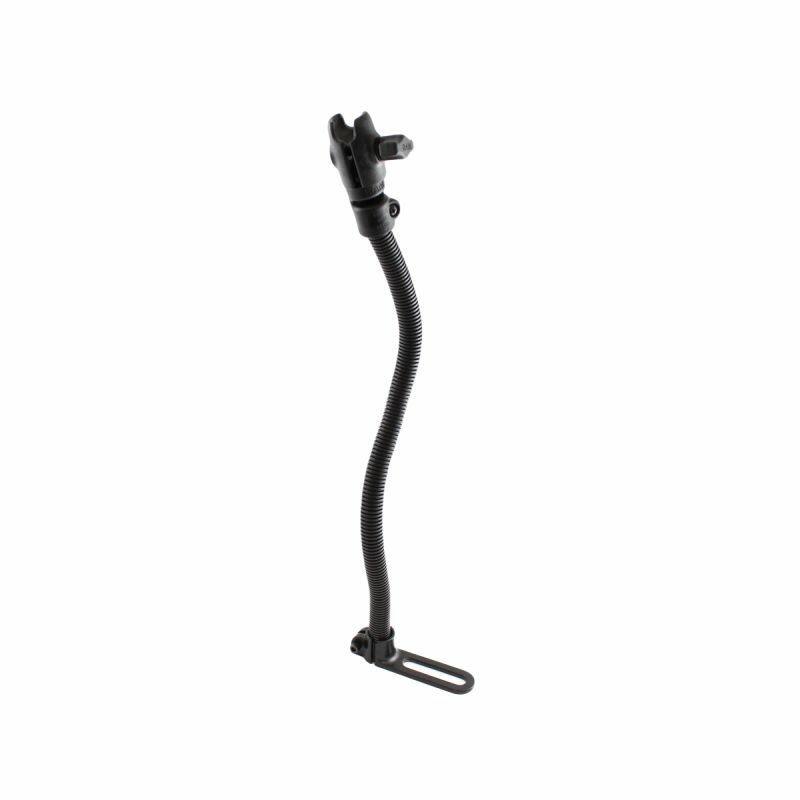

RAM-B-316-1U RAM® Pod™ I Vehicle Mount with 18" Rod and Socket Arm
Features
* Universal vehicle mount attaches to seat rail without any drilling necessary
* The 18" aluminum rod can be bent to your ideal position
* Single socket arm compatible with RAM® B size ball bases so you can add any RAM B Series cradle to complete the mount
* Made of powder-coated, marine-grade aluminum and high-strength composite for durability and reliability in the most demanding environments
* Backed by a lifetime warranty
The easy solution for tablet mounting in vehicles. This fitting is designed to be mounted via a seat rail mounting bolt - simply remove a bolt, slip the shoe under the seat rail and refit the bolt. Job done.
The arm has a solid alloy rod approx. 460mm long which is designed to be bent to the desired shape to fit your vehicle and accepts RAM B-size/1" ball fittings such as the RAM-B-202U round plate fitting with industry standard AMPS hole pattern.
The rubber ball provides a stable mount and has the advantage of vibration dampening to some degree.

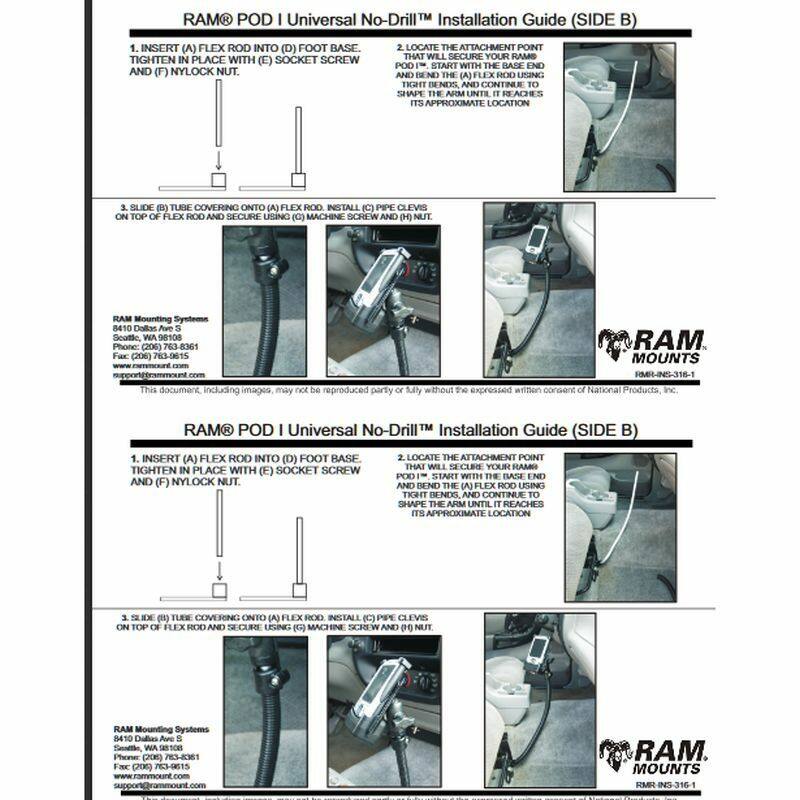

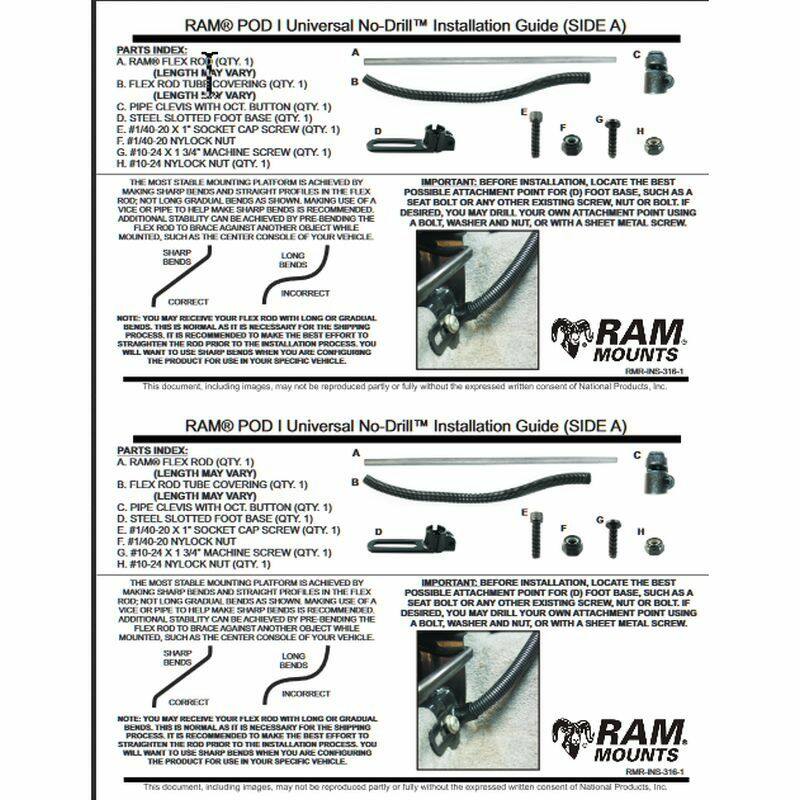

Installation Instructions:

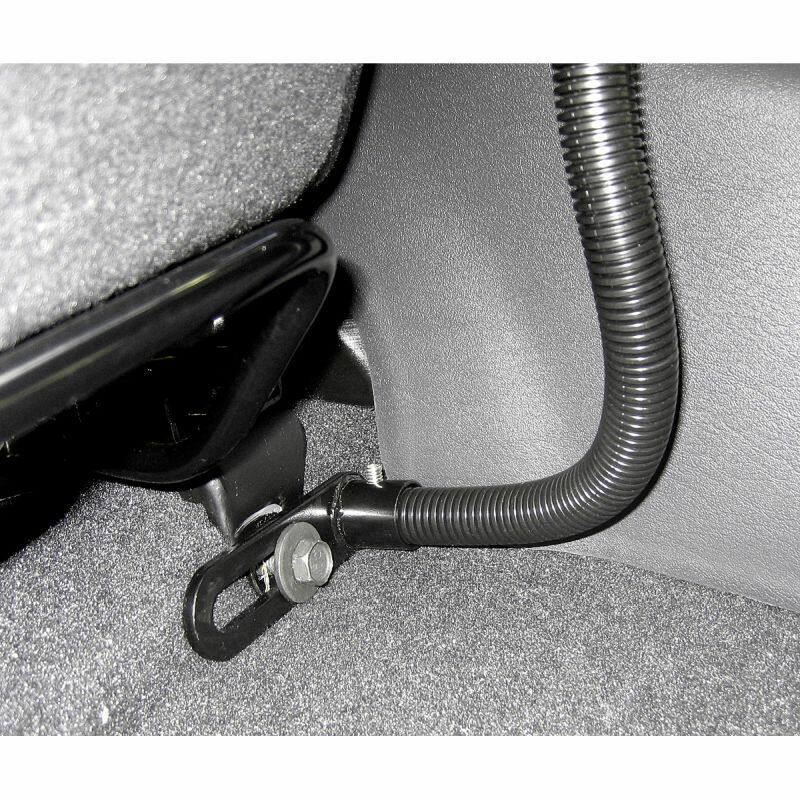

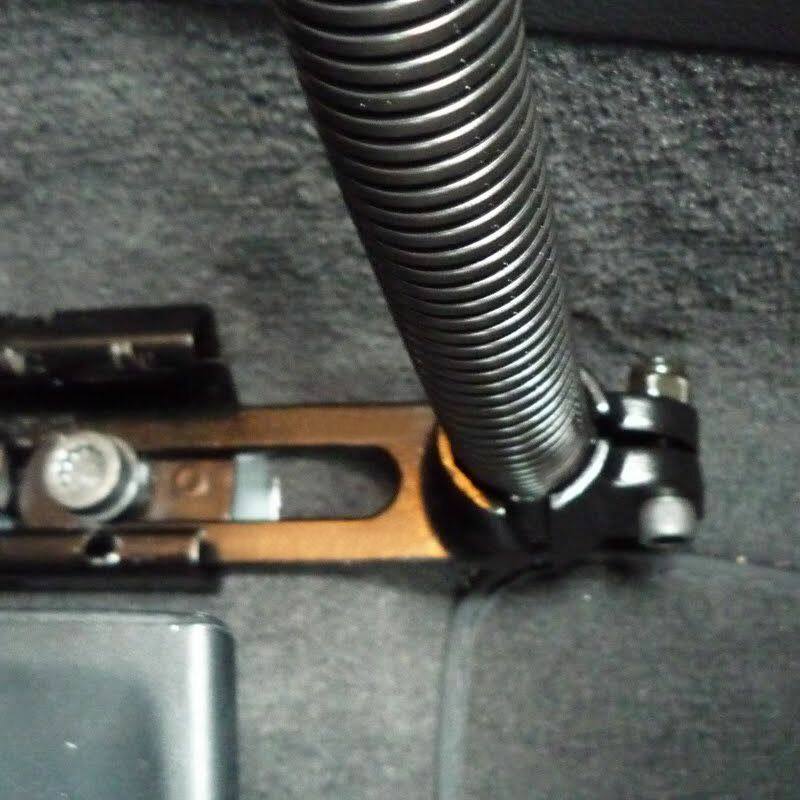

At right angles to the base of the 18" long leg is a foot with a mounting hole. Simply place the hole into the passenger seat mounting bolt and adjust the mount to the required height with the rigid aluminium rod.
Materials:
High Strength Composite
Powder Coated Marine Grade Aluminium
Ball Size:
1" Rubber "B" Ball Size
Weight Capacity
Standard Use:
907 grams (2 lbs)
Heavy-Duty Use:
454 grams (1 lb)
YouTube:
https://www.youtube.com/watch?v=j7mtswe5pts
