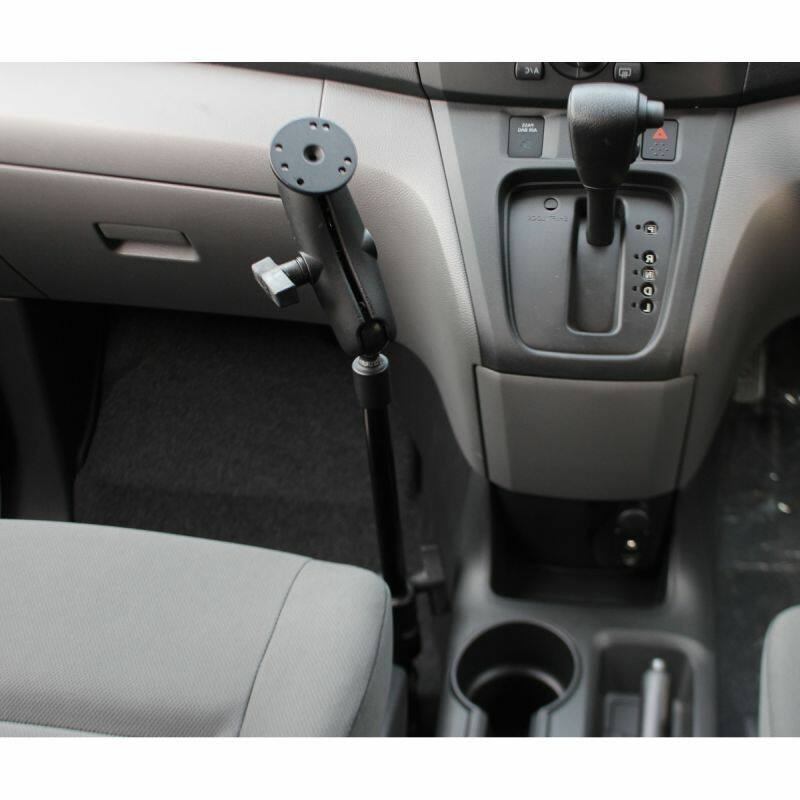

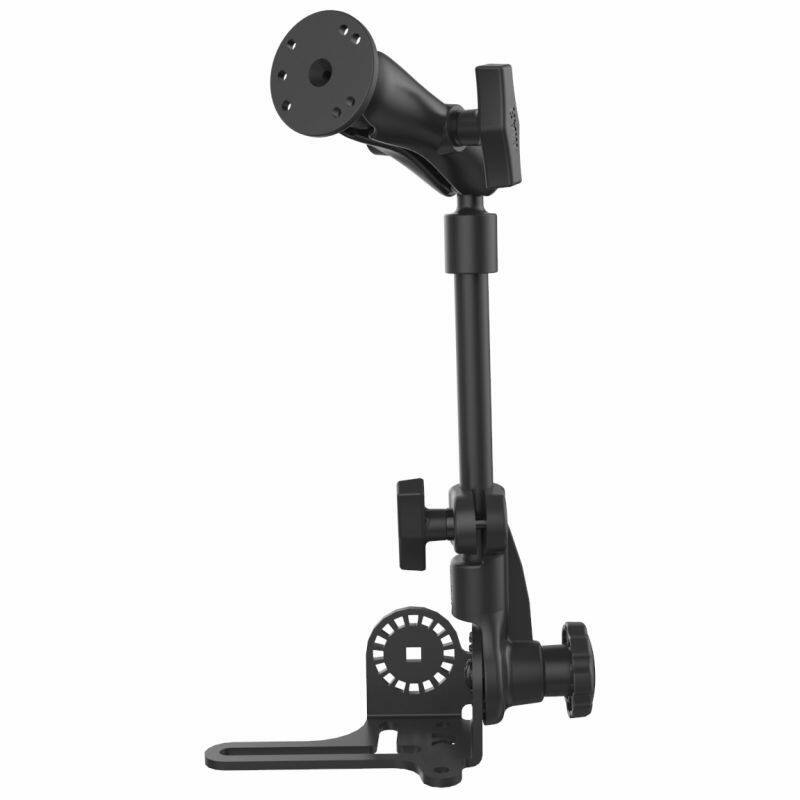

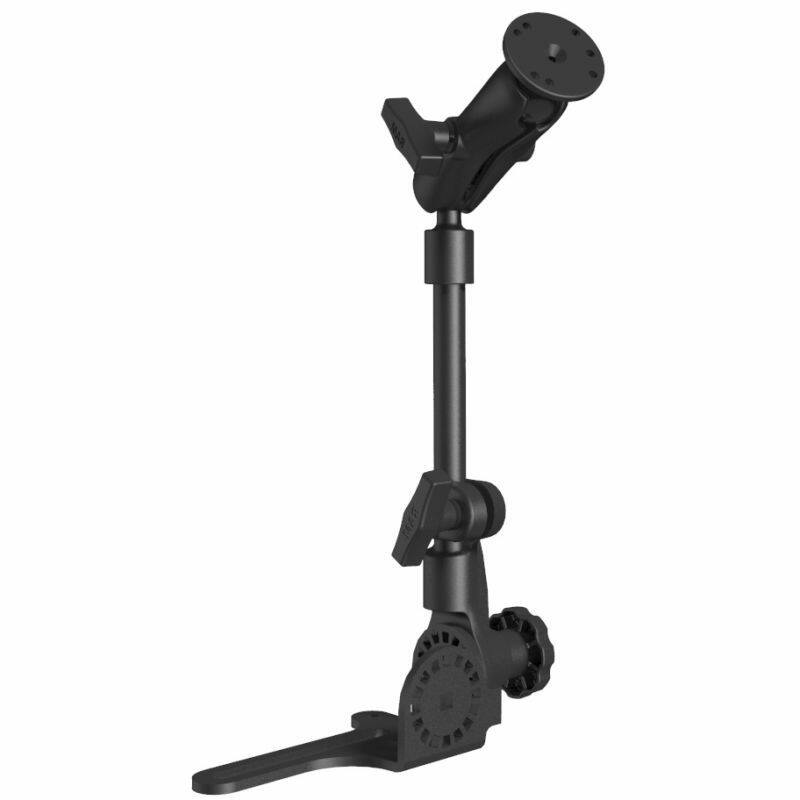

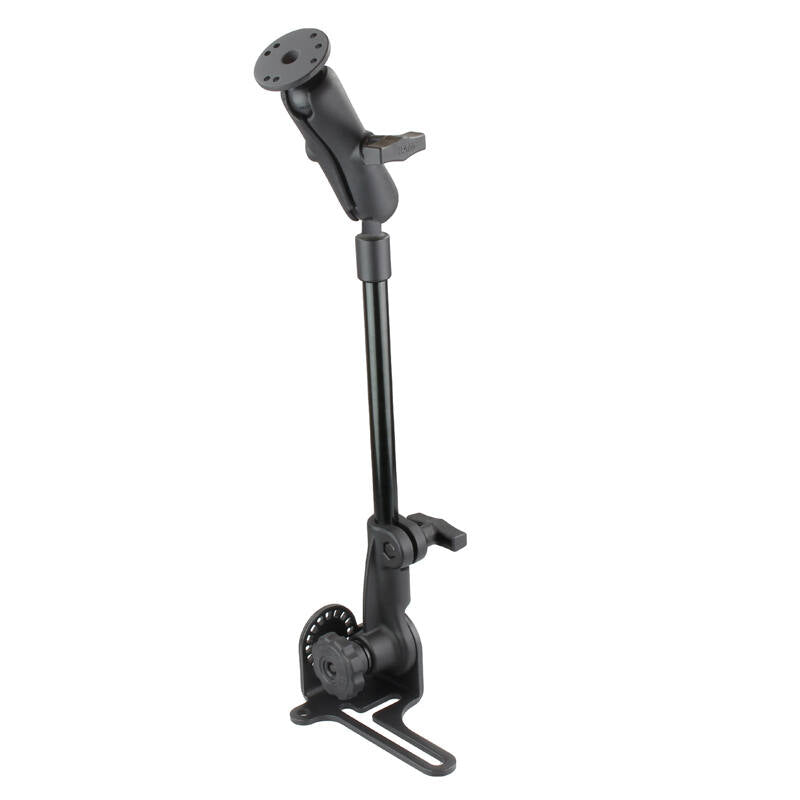

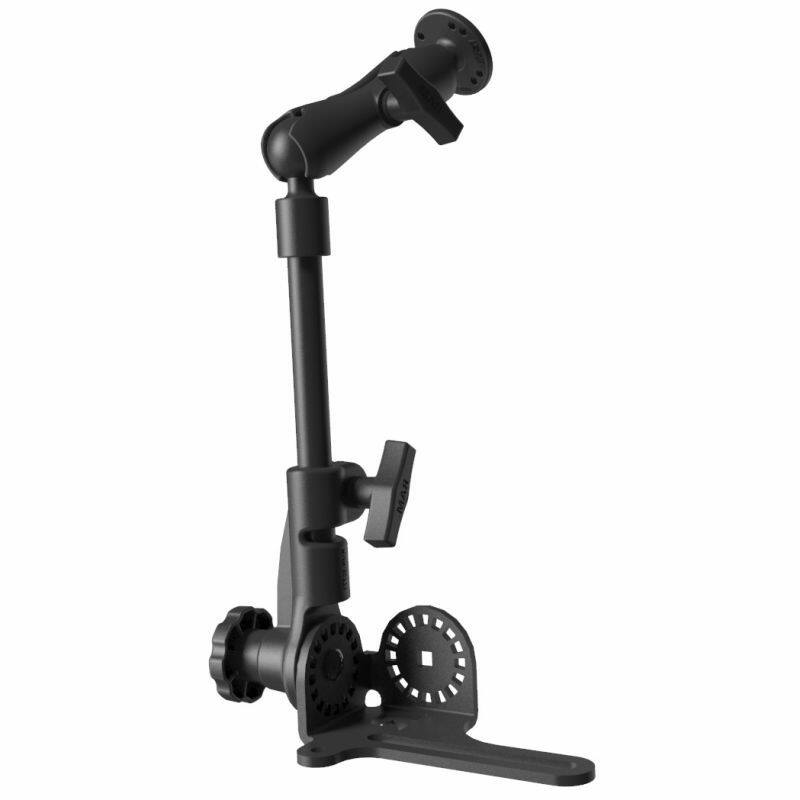

RAM-316-HDR-202U RAM® Pod HD™ Reverse Vehicle Mount with 12" Aluminum Rod and Round Plate
Features

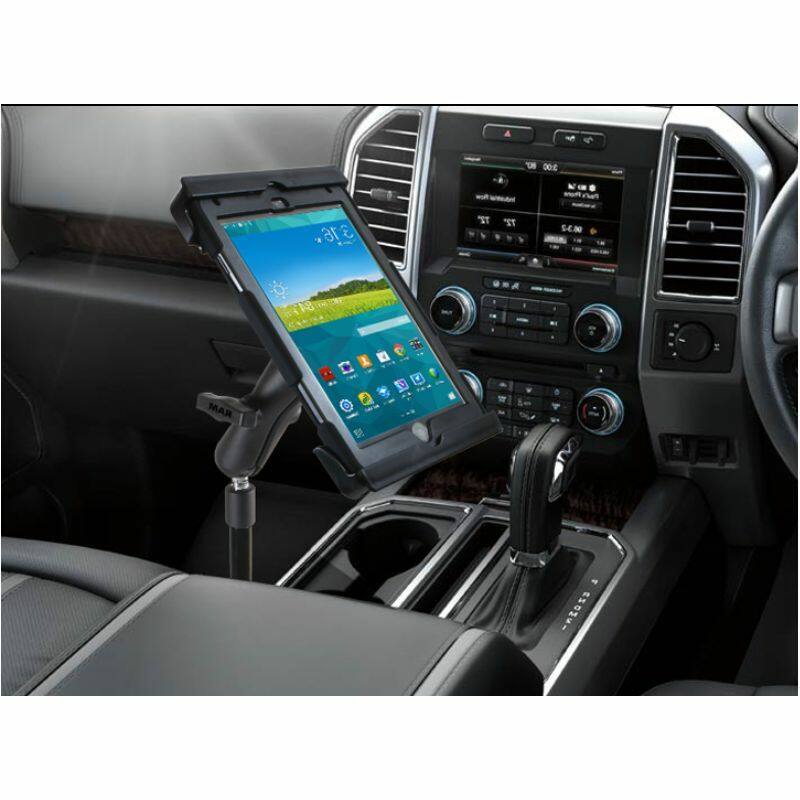

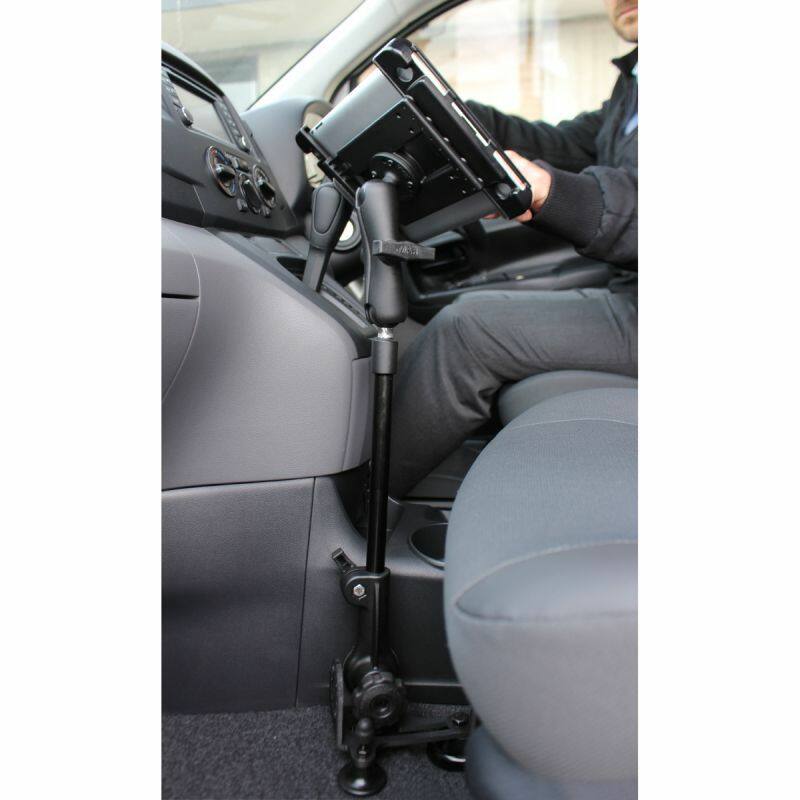

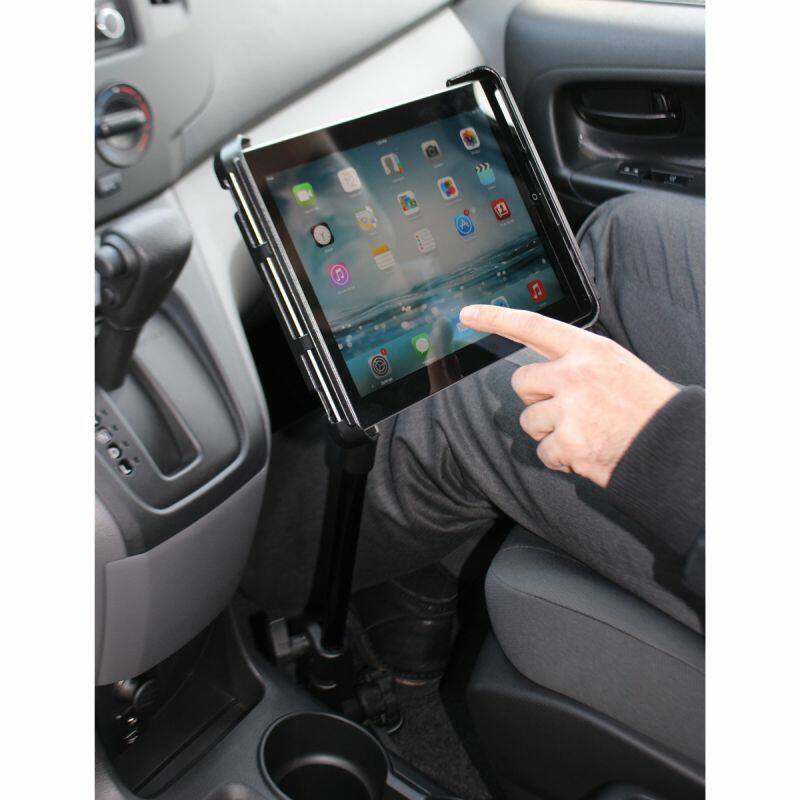

* Universal vehicle mount attaches to seat rail without any drilling necessary; ideal for tablets and small laptops

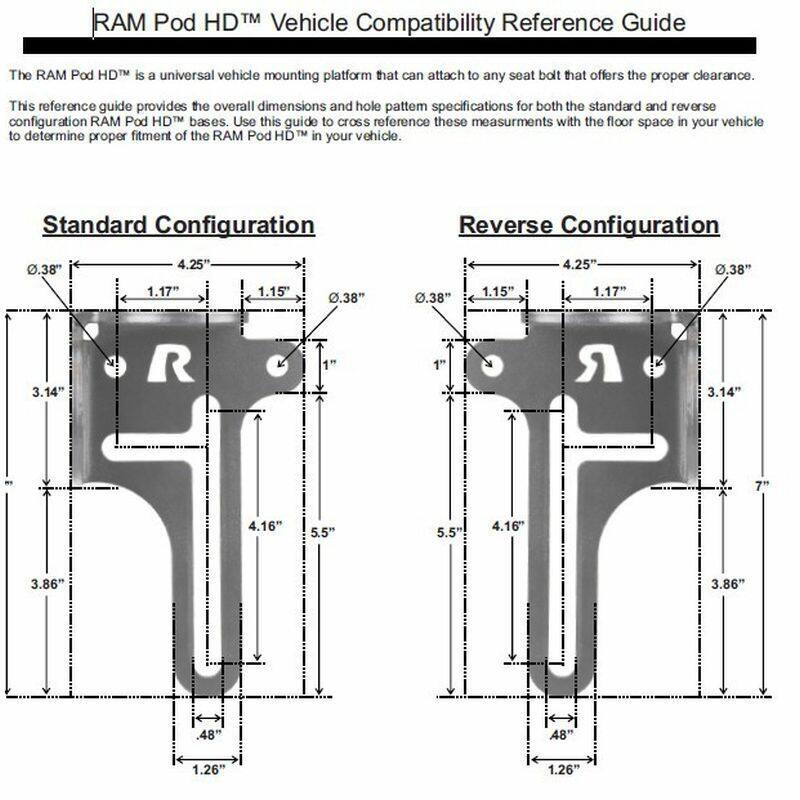

* Reverse configuration designed for right hand drive vehicles

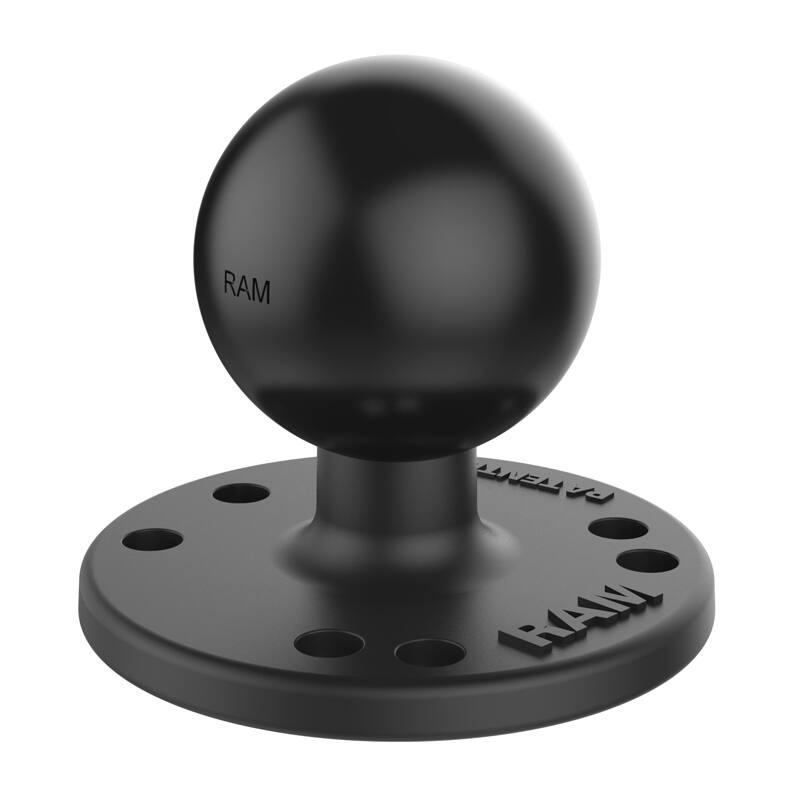

* Round plate features C size 1.5" RAM® rubber ball and industry-standard AMPS hole pattern; connects to a variety of RAM® device holders
* Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
* Backed by a lifetime warranty

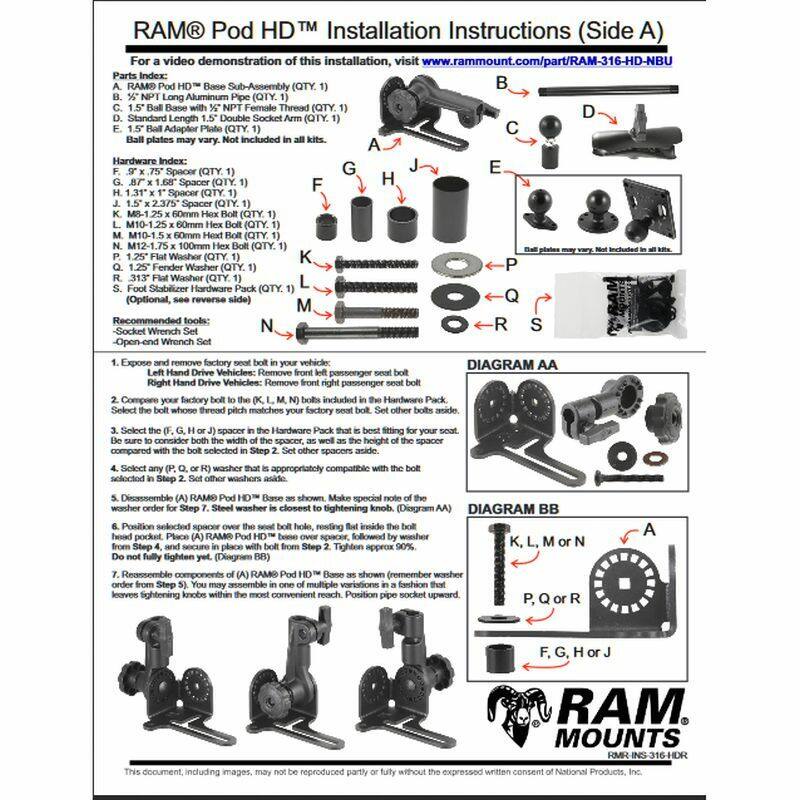

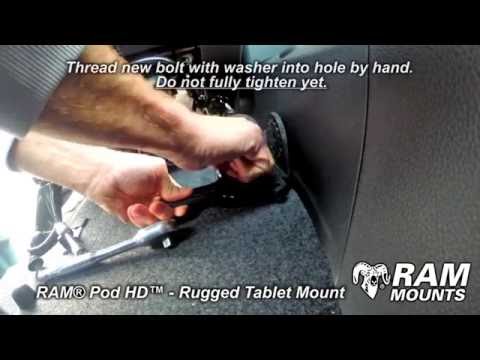

This is a versatile Heavy Duty mount, providing a robust mounting platform for laptops, printers or heavy monitors to a car or truck. Simply remove a pair of seat mounting bolts, slip the shoe under the existing rail and refit. Job done!
The base plate is compatible with any RAM adapter cradle or other device featuring the industry standard AMPS hole mounting pattern.
The RAM Pod HD™ is compatible with a wide range of vehicles and simple to install, requires minimal space in the vehicle cab, and can be quickly removed without the use of tools.
Low Profile, Low Cost and Extremely Robust:
- The minimalist design offers a low profile form factor while offering an extremely robust mounting platform
- Ideal mounting solution for fleet and service vehicle fleets with a varying range of vehicles. Stands up to the demands of field applications
Highly Versatile:

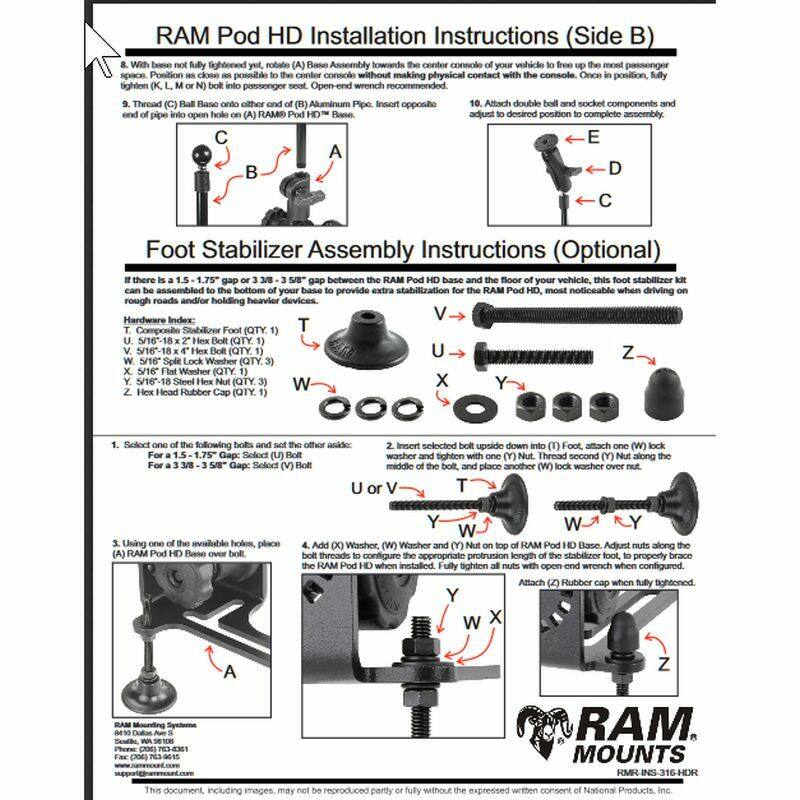

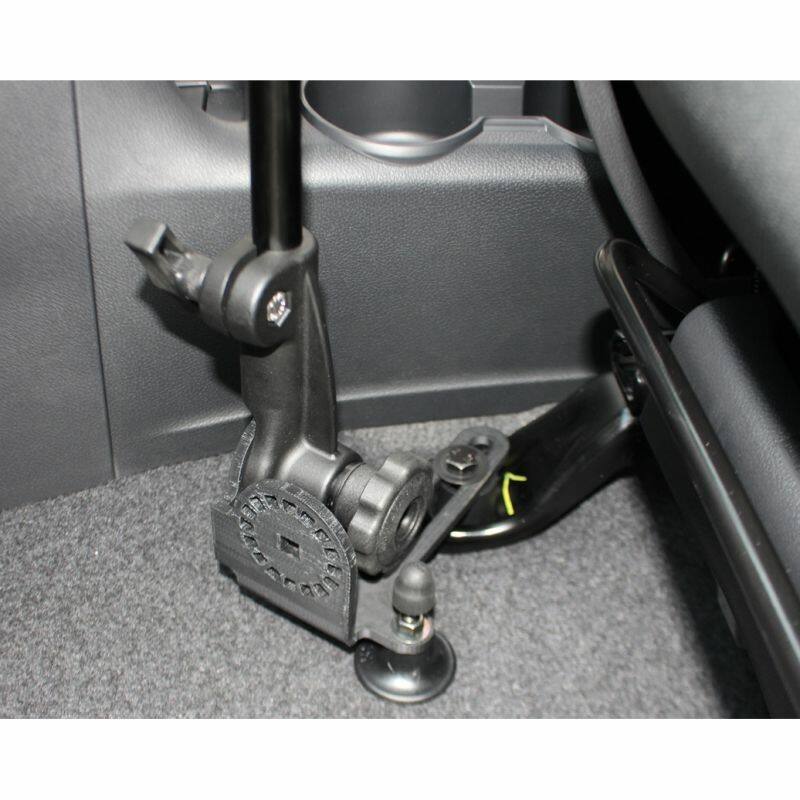

- Foot angle adjustment to compensate for varying floorboard angles
- Can be used as a horizontal or vertical flat surface drill-down mount
- Aluminium post can be cut to size in order to accommodate varying vehicle configurations
Easy to Install and Remove:
- Works on most vehicles. Fast and simple installation, requires no drilling or modification to your vehicle

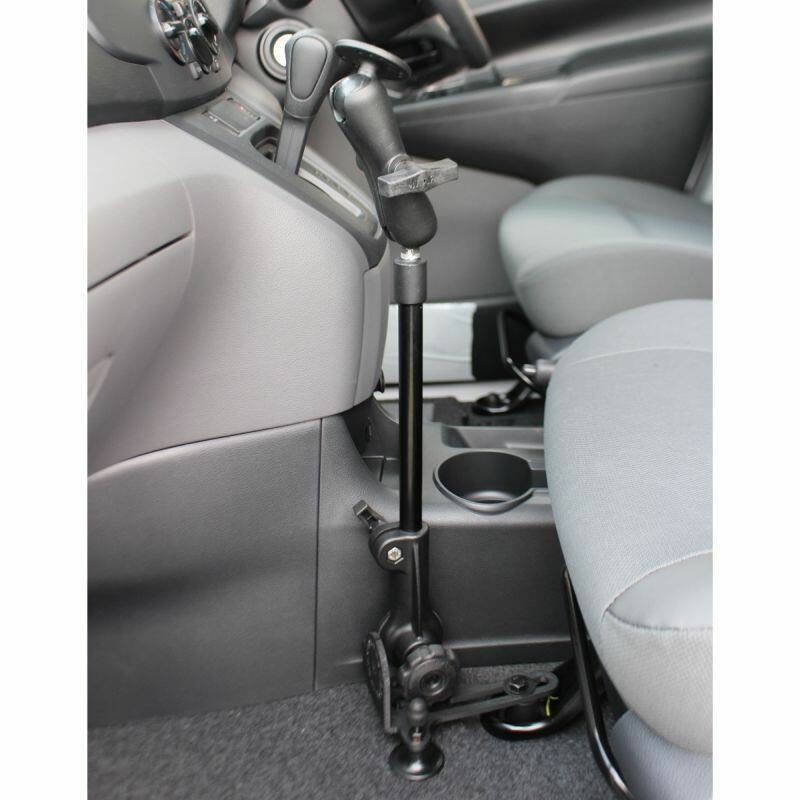

- Attaches using existing seat rail bolts or seat tracks
- Remove the upper portion of the mount with the turn of one knob, creating valuable space in the cab when the mount is not in use
Rod length
305mm (12") - for 457mm rod see RAM-316-HDR-18-202U
Height Range:
476mm to 654 mm (18.75" - 25.75")

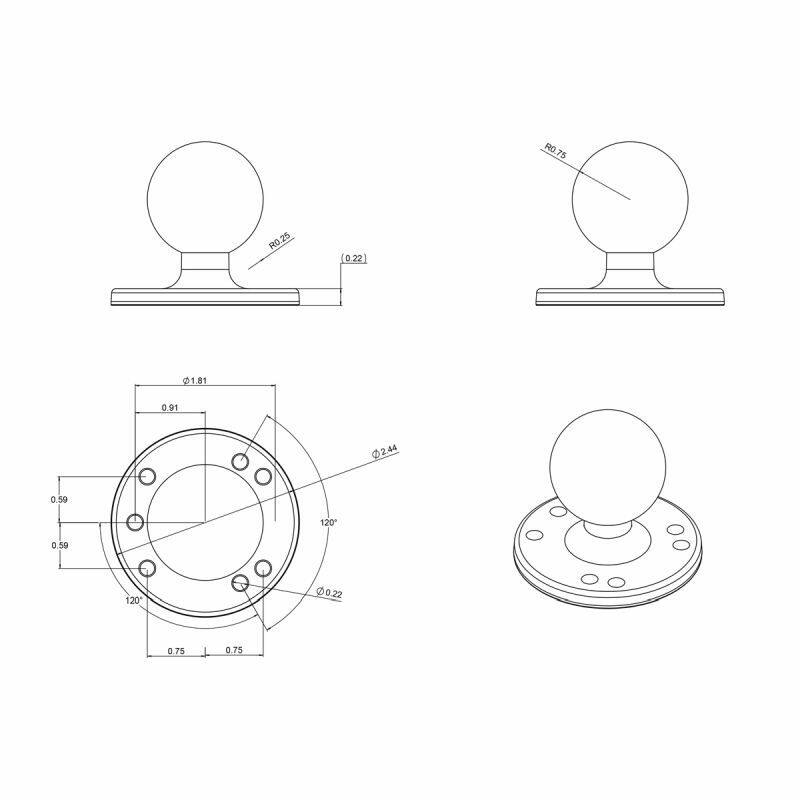

Hole Pattern
4-Hole AMPS:
1.181" x 1.496" (30mm x 38mm)
3-Hole AMPS 120- Degree
1.812” (46.0mm)
Material:
Powder Coated Marine Grade Aluminium
Ball Size:
1.5" Rubber Ball Size
Weight Capacity
Standard Use:
1.814kg (4 lbs)
Heavy-Duty Use:
1.36kg (3 lbs)
