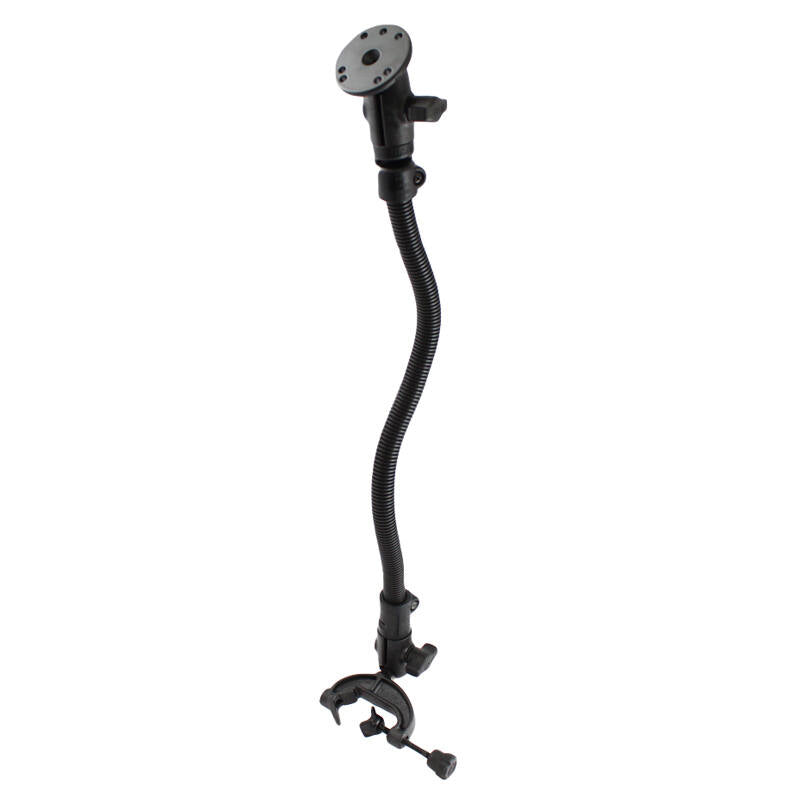

RAM-B-316-121B-202U RAM® Pod™ I Clamp Mount with 457mm Aluminium Rod, Socket Arm and Round Plate
Features
* Clamp Base will work on yokes / rails / other surfaces 15.9 to 31.8mm diameter
* 457mm aluminum rod can be bent to your ideal position
* Round plate includes 4 hole AMPs pattern and 3-hole 120 degree pattern - will adadt to many RAM and third party cradles
* Made of powder-coated, marine-grade aluminium and high-strength composite for durability and reliability in the most demanding environments
* Backed by a lifetime warranty
This Rigid Seat Clamp Mount quickly and easily attaches to the seat frame and includes a rigid rod allowing for a custom fit. Also part of this dynamic system is the patented rubber ball and socket feature that allows for almost infinite viewing angles and unsurpassed ergonomics. This system is ideal for supporting a wide range of common items used to make every flight fun, safe, and comfortable. The round base and ball contains 4 holes that match the universal AMPS hole pattern.
Clamp Base Description:
Both strong and light weight, the clamping base for the EZ-ON/OFF™ Rigid Seat Clamp Mount is perfect for supporting your electronic device. Modular in design, switch out the clamps for a perfect fit no matter what the mounting surface. Crafted to hold firm to most glare shields, yokes, or tubing, practically any aircraft can benefit from this product. Simple to use and exceptionally versatile, RAM has created another “must have” for any pilot.
Also ideal as a "no tools required" base for mobility devices.
The 457mm (18") post can be cut to length as required with minimal re-installation.
G Clamp Base Dimensions:
15.9 to 31.8mm (0.625" to 1.25") in diameter
Material:
High Strength Composite
Powder coated aluminium
Ball Size:
B Size 1" Rubber Ball
Arm Length:
457mm (18")
Round Plate Hole Pattern
4-Hole AMPS:
1.181" x 1.496" (30mm x 38mm)
3-Hole AMPS 120- Degree
1.812” (46.0mm)
Components:

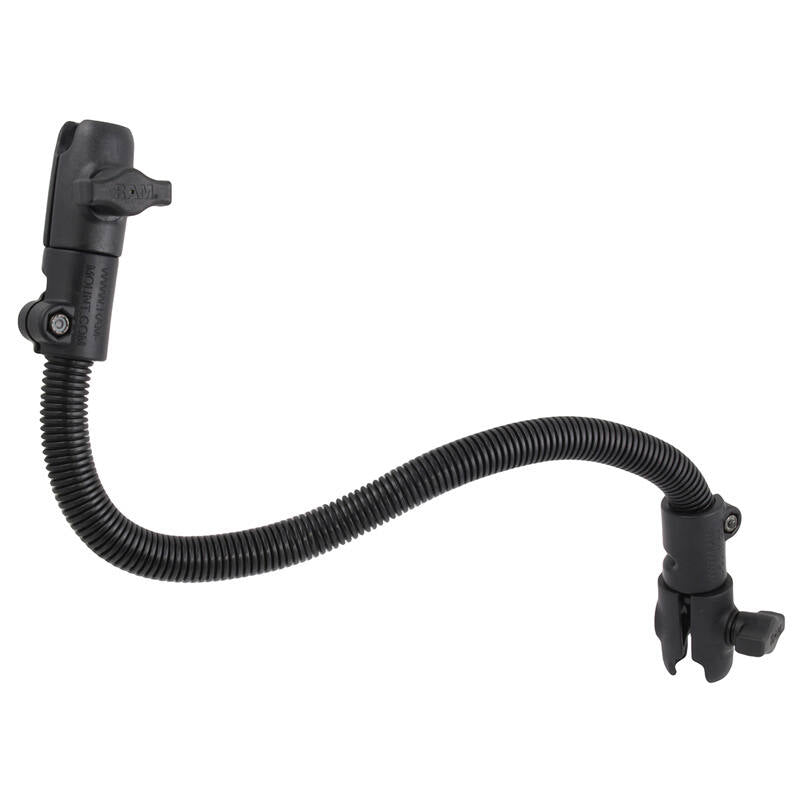

RAP-B-200-1-18U 457mm Long Rigid Aluminium Rod & (2 QTY) Single Socket Arms for 1" Balls

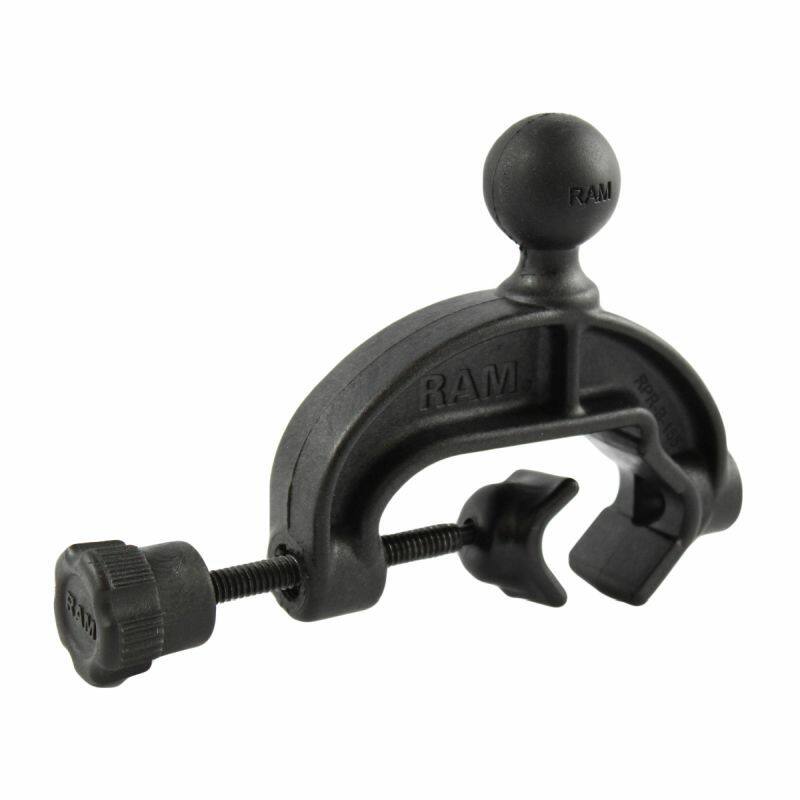

RAP-B-121BU UNIVERSAL CLAMP
RAM-B-202U 62mm DIA.BASE WITH 1" BALL
