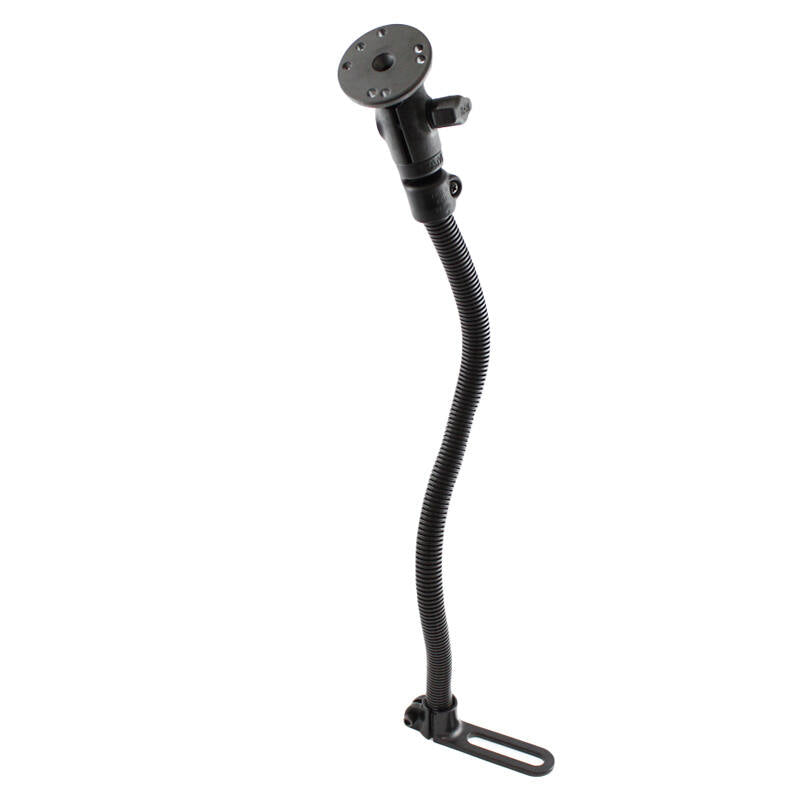

RAM-B-316-1-202U - RAM® Pod™ I Vehicle Mount with 18" Aluminum Rod and Round Plate
Features
* Universal vehicle mount attaches to seat rail without any drilling necessary; 18" aluminum rod can be bent to your ideal position
* Round plate features industry-standard AMPS hole pattern and connects to a variety of RAM® device holders
* Made of powder-coated, marine-grade aluminum and high-strength composite for durability and reliability in the most demanding environments
* Backed by a lifetime warranty

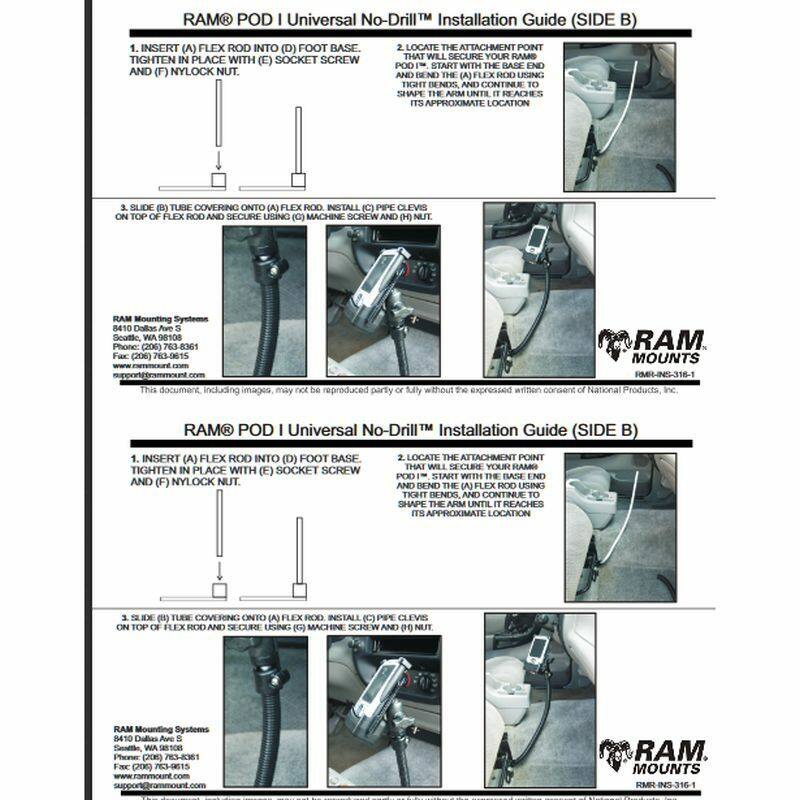

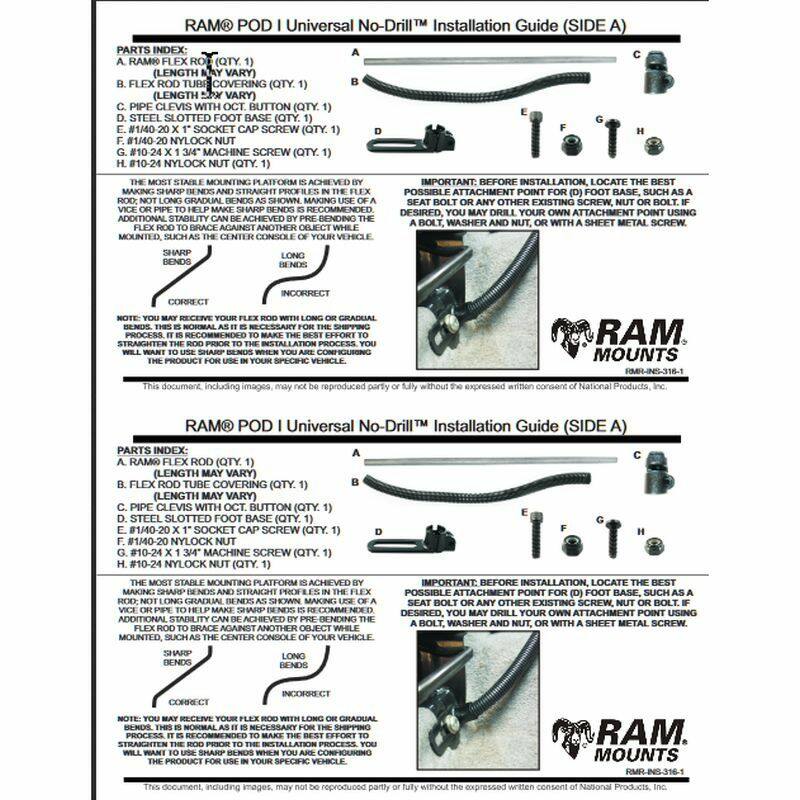

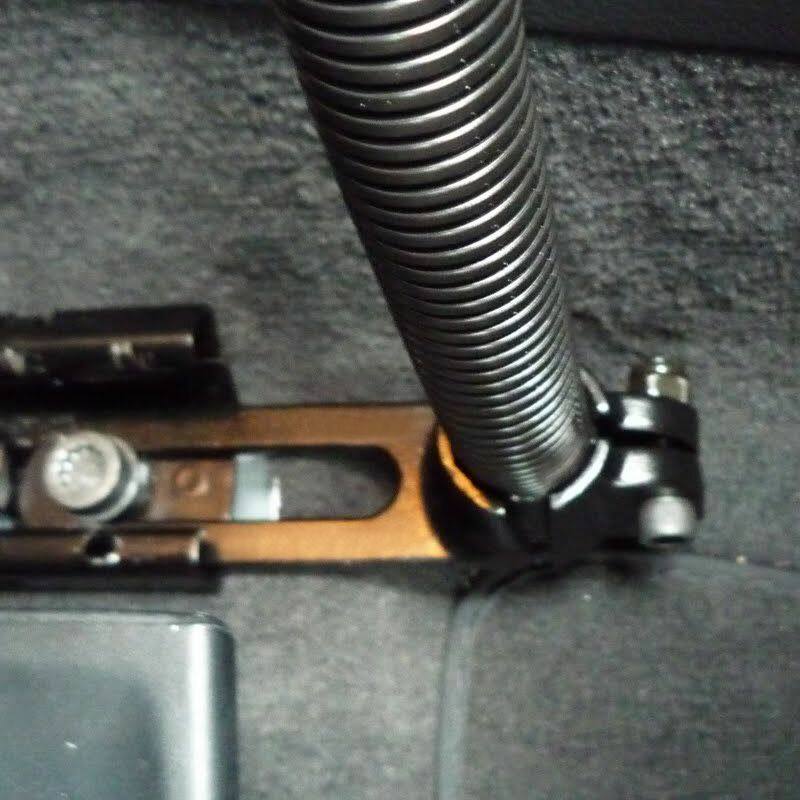

The easy solution for tablet mounting in vehicles. This fitting is designed to be mounted via a seat rail mounting bolt - simply place the hole into the passenger seat mounting bolt and adjust the mount to the required height with the rigid aluminium rod. Job done.

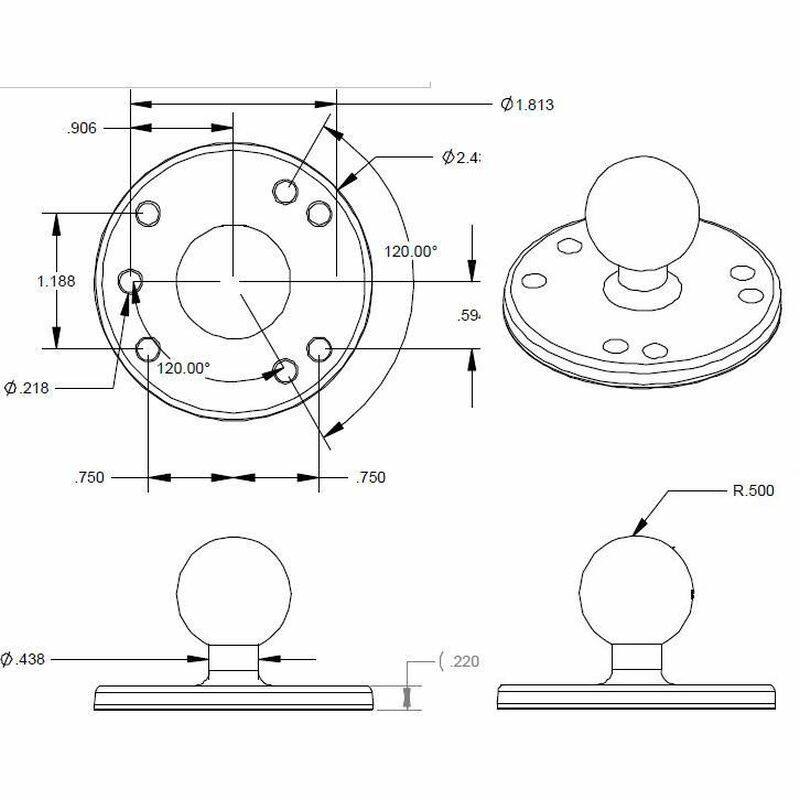

The 18" rigid aluminium rod can be bent to position to fit your vehicle and move your device to its optimum viewing location. The 2.5" diameter round base adapter contains the universal 3 and 4 AMPS hole pattern so that will connect to most RAM cradles.
The rubber ball provides a stable mount and has the advantage of vibration dampening to some degree.
Specs & Features
Hole Pattern:
4-Hole AMPS:
1.181" x 1.496" (30mm x 38mm)
3-Hole AMPS 120- Degree
1.812” (46.0mm)
Material:
High Strength Composite
Powder Coated Marine Grade Aluminium
Ball Size:
1" B-size Rubber Ball.
Weight
567 grams (1.25 lbs)
Weight Capacity
Standard Use:
907 grams (2 lbs)
Heavy-Duty Use:
454 grams (1 lb)
Components:
RAM-B-316-1U POD1 FLOOR MOUNT 1 SOCKET

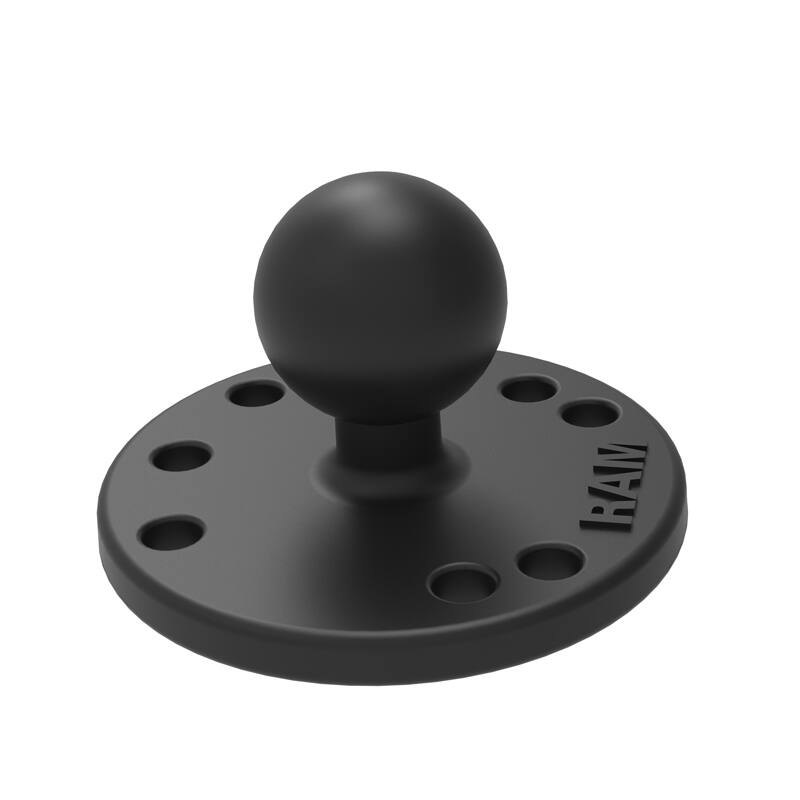

RAM-B-202U 62mm DIA.BASE WITH 1" BALL
YouTube:
https://www.youtube.com/watch?v=j7mtswe5pts
A heavier duty version is available see the RAM-316-HDR-202U or RAM-316-HDR-18-202U
