RAM-B-316-1-24-202U RAM® Pod™ I Vehicle Mount with 609mm Aluminum Rod and Round Plate
Features
* Universal vehicle mount attaches to seat rail without any drilling necessary; 609mm aluminum rod can be bent to your ideal position
* Round plate features industry-standard AMPS hole pattern and connects to a variety of RAM® device holders
* Made of powder-coated, marine-grade aluminium and high-strength composite for durability and reliability in the most demanding environments
* Backed by a lifetime warranty
The easy solution for tablet mounting in vehicles. This fitting is designed to be mounted via a seat rail mounting bolt - simply remove a bolt, slip the shoe under the seat rail and refit the bolt. Job done.

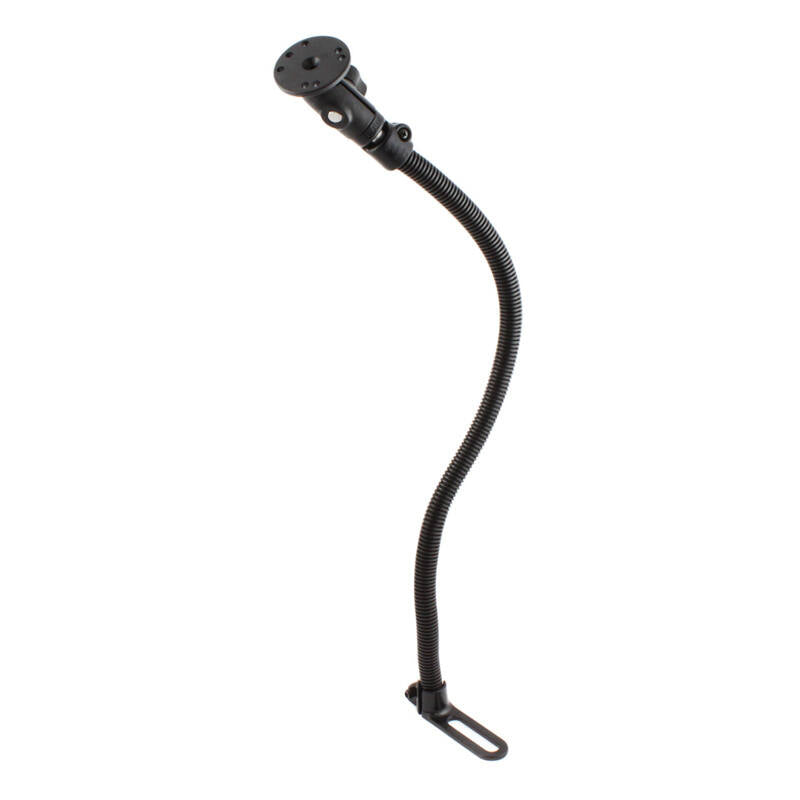

The RAM-B-316-1-24-202U consists of the RAM POD I universal No-Drill™ vehicle base, 609mm rigid aluminium rod, single B Size 1" ball socket arm and round base plate. The base of the mount connects to your seat rail without any drilling necessary. The aluminium rod can be bent to position to fit your vehicle and move your device to its optimum viewing location. The 2.5" diameter round base adaptor contains the universal AMPS hole pattern.
The rubber ball provides a stable mount and has the advantage of vibration dampening to some degree.
CAN BE CUT TO DESIRED LENGTH

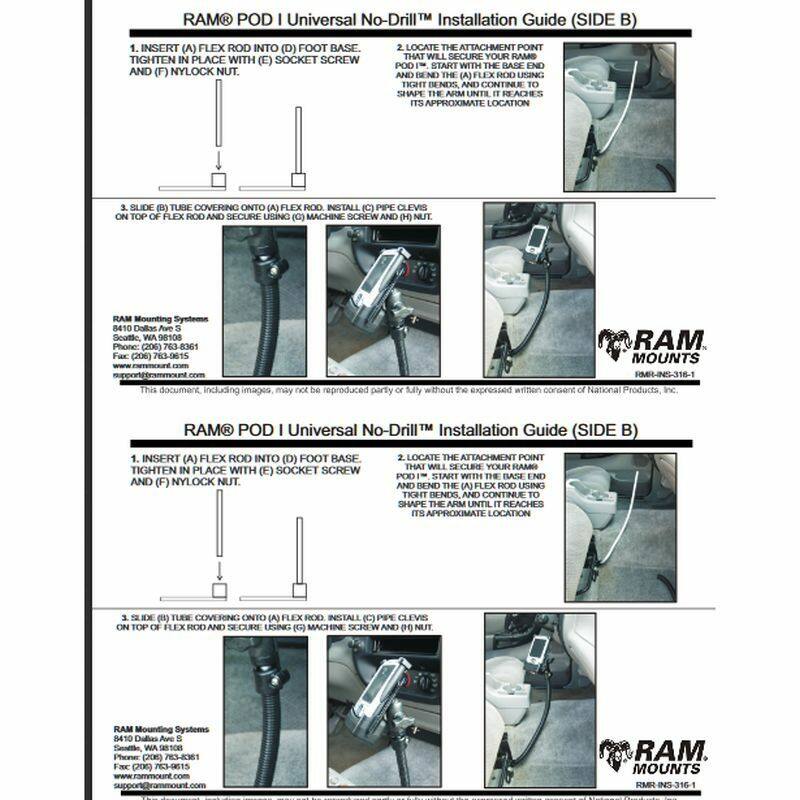

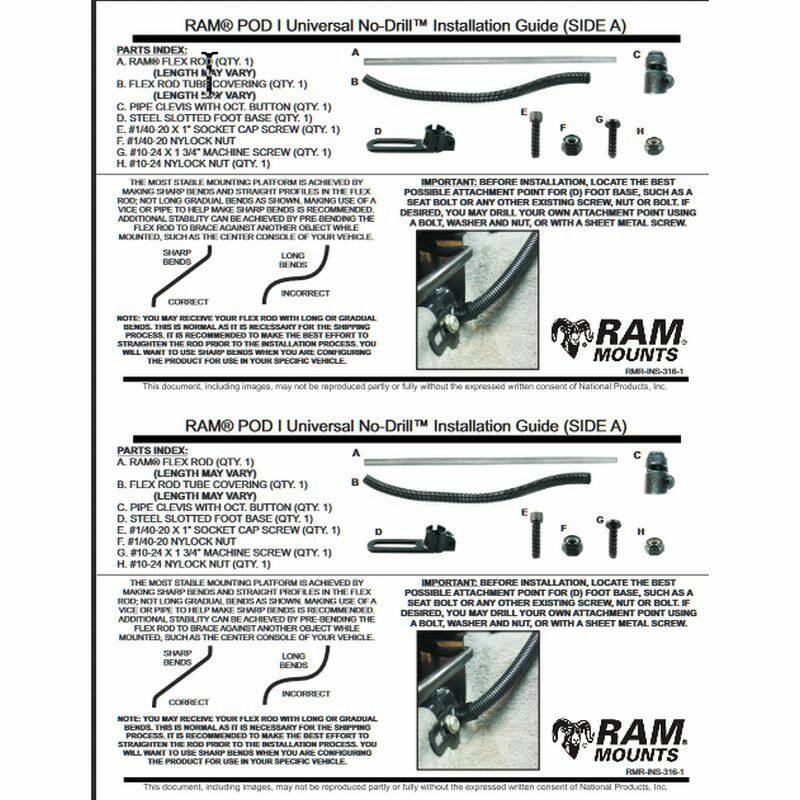

Installation Instructions:

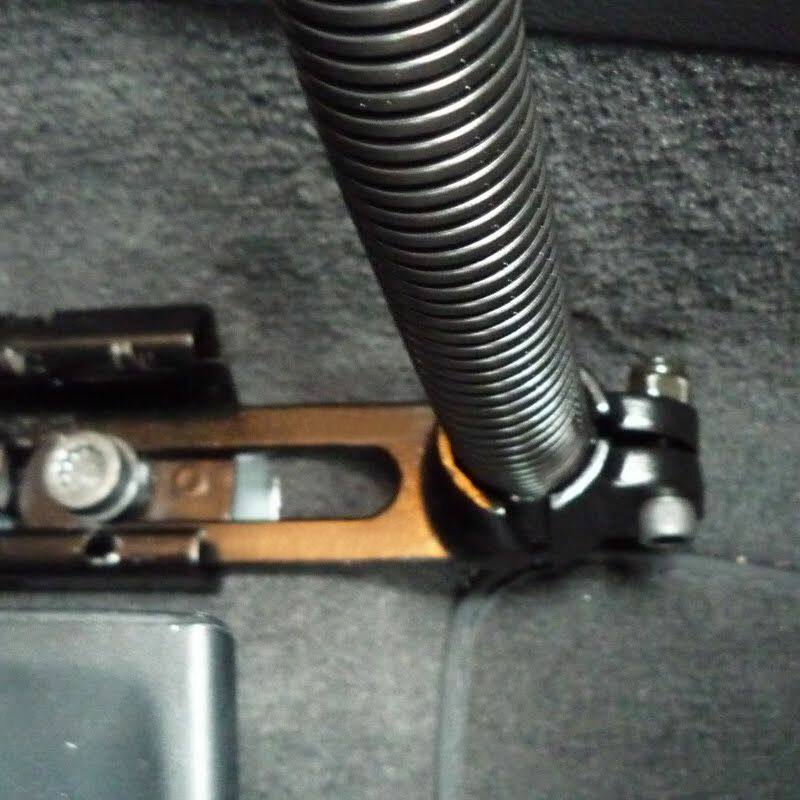

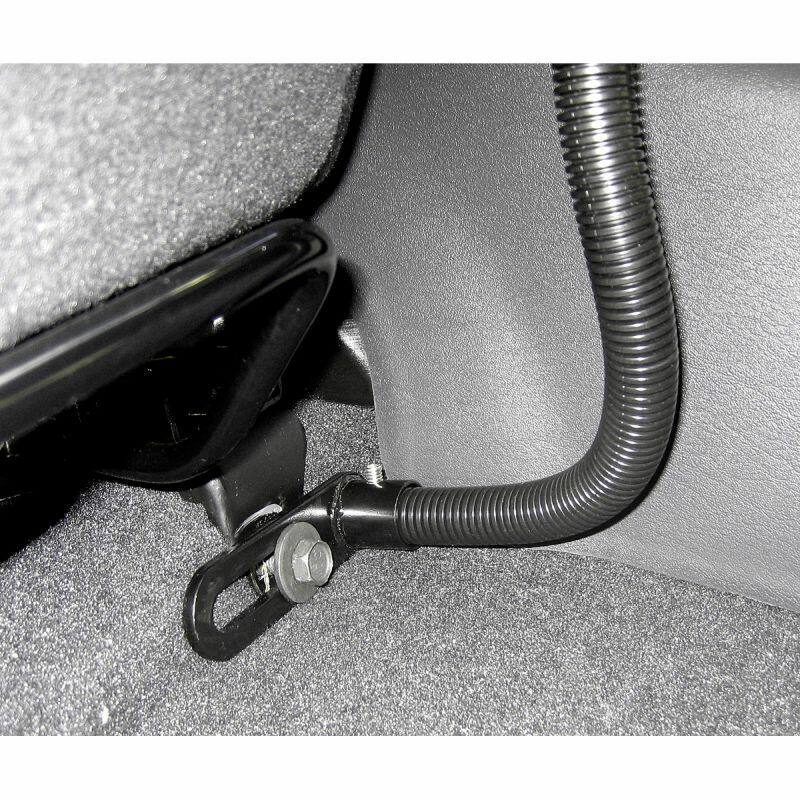

At right angles to the base of the 609mm long leg is a foot with a mounting hole. Simply place the hole into the passenger seat mounting bolt and adjust the mount to the required height with the rigid aluminium rod.
Aluminium Rod Length
609mm (24”) aluminium rod CAN BE CUT TO DESIRED LENGTH
Hole Pattern
4-Hole AMPS:
1.181" x 1.496" (30mm x 38mm)
3-Hole AMPS
1.812” (46.0mm)
Material:
High Strength Composite
Powder Coated Marine Grade Aluminium
Ball Size:
1" B-size Rubber Ball.
Weight
567 grams (1.25 lbs)
YouTube:
https://www.youtube.com/watch?v=j7mtswe5pts
