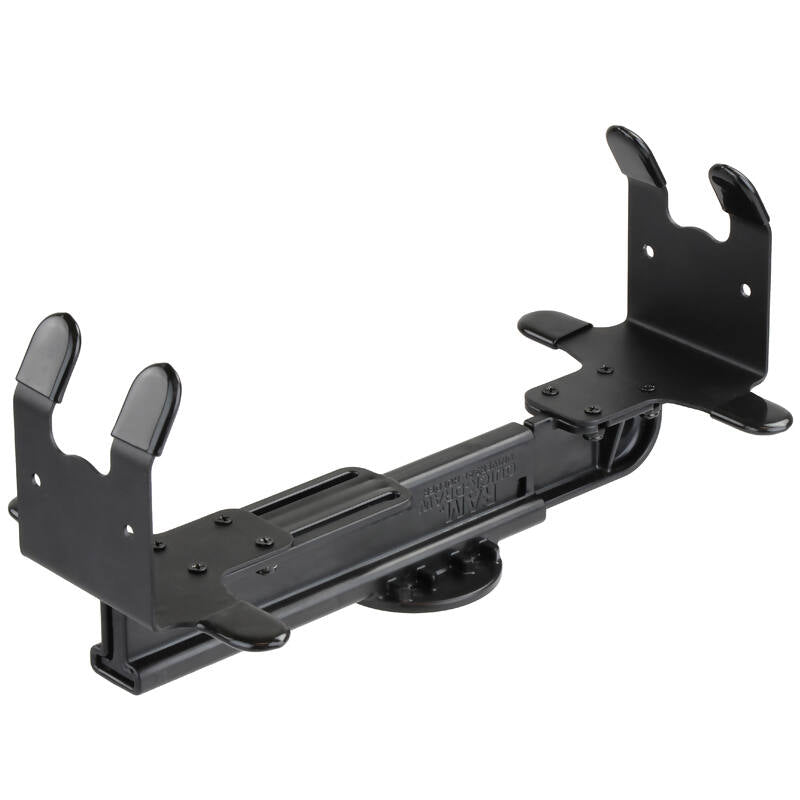

RAM-VPR-103 RAM® Quick-Draw™ Holder for HP OfficeJet 250 + More
Features
* Printer cradle with spring loaded mechanism that holds strong, yet provides easy removal for printer storage
* Enables connection to any RAM plate with 4 hole AMP's pattern
* Manufactured from Powder coated steel and High strength composite for maximum longevity
* Backed by a lifetime warranty
Ideal for mounting printers into forklifts / reach trucks and other warehousing equipment.
The RAM-VPR-103 uses a unique spring loaded mechanism that holds strong, yet provides easy removal for printer storage. At each end of the spring loaded cradle are small side clamp plates that are designed to fit cleanly around either edge of the printer. Complete kits are available as stand alone systems or integrate one with your existing RAM® products.
Compatible printers include:
HP
DeskJet 450
DeskJet 460
DeskJet 470
OfficeJet 100
OfficeJet 250
Hardware Included
Assembly Hardware
(4) #10-24 x 5/8" Machine Screws
(4) #10-24 Nylock Nuts
Product Dimensions
Overall Width: 337.8mm (13.3")
Overall Depth: 165mm (6.5")
Overall Height: 81.2mm (3.2")
Holder Dimensions
Max Height:
63.5mm (2.5")
Width Range:
229mm to 394mm (9" - 15.5")
Hole Pattern
4-Hole AMPS:
1.181" x 1.496" (30mm x 38mm)
Materials
Powder coated steel
High strength composite
Weight
412 grams (0.91 lbs.)
