RAM Printer Holder - Universal Quick-Draw Jr. Small - Zebra / Brother / Fujitsu

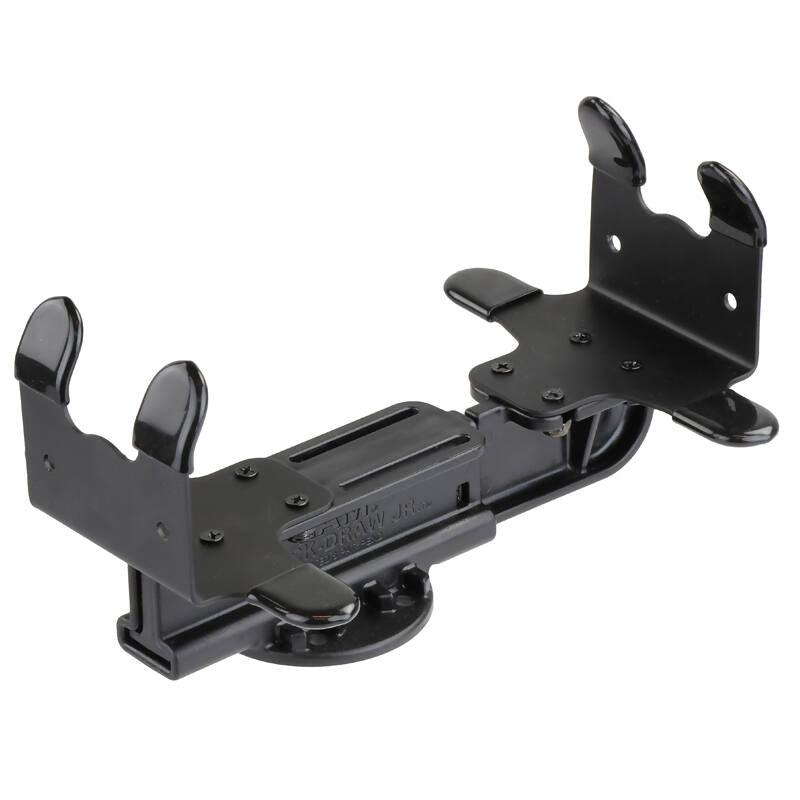

RAM-VPR-104 RAM® Quick-Draw™ Jr. Universal Small Printer Holder

The RAM-VPR-104 is a spring-loaded small printer cradle that holds mobile printers securely yet releases easily for storage, connecting to any RAM plate with a 4-hole AMPS pattern — ideal for mounting printers in forklifts, reach trucks, and other warehousing equipment.

Key Features

• Small printer cradle with a spring-loaded mechanism that holds strong yet allows easy removal for storage
• Side clamping plates at each end fit cleanly around the printer's edges
• Connects to any RAM plate with a 4-hole AMPS pattern
• Manufactured from powder-coated steel and high-strength composite for maximum longevity
• Backed by RAM's lifetime warranty against breakage

Works With

Pairs with any RAM base, arm, or clamp that accepts the 4-hole AMPS pattern to build a complete forklift or warehousing mount.

Dimensions & Specifications

• Holder max height: 44.45mm (1.75")
• Width range: 142.9mm–241.3mm (5.625"–9.5")
• Hole pattern: 4-hole AMPS, 30mm x 38mm (1.181" x 1.496")
• Hardware included: 4x #10-24 x 5/8" machine screws, 4x #10-24 nylock nuts
• Materials: powder-coated steel, high-strength composite
• Weight: 349g (0.77 lbs)

Compatible Devices

Bixolon

• SPP-R400

Brother

• Mobile RuggedJet 3050

Datamax-O'Neil

• RL3e
• RL4e

Fujitsu

• FP-100
• FP-1000

Zebra

• QLn220
• QLn320
• QLn420
• RW-420
• ZQ510
• ZQ511
• ZQ520
• ZQ521
• ZQ610
• ZQ620
• ZQ630
