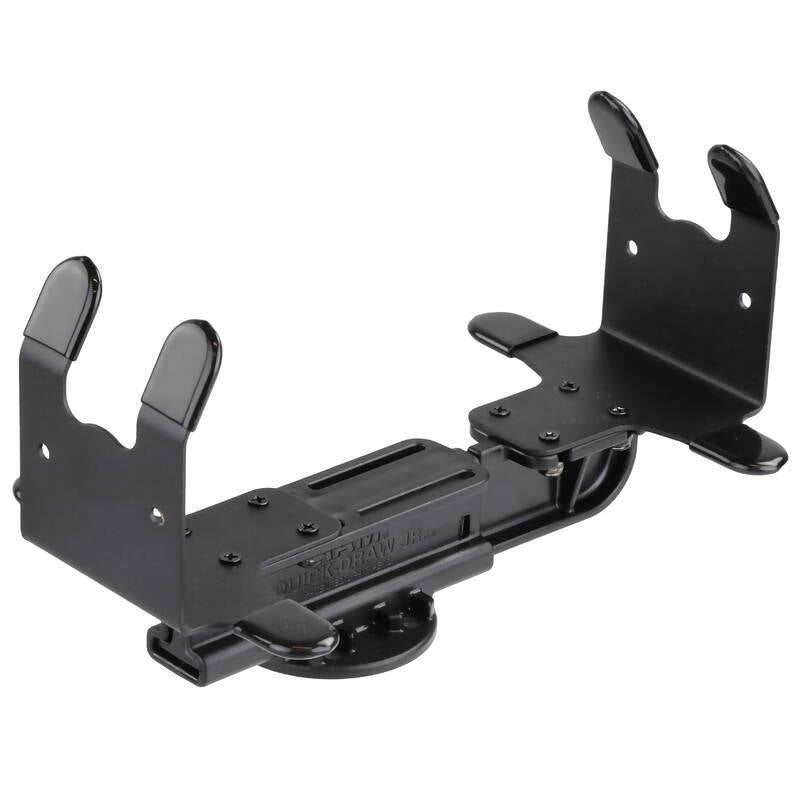

RAM-VPR-105 RAM® Quick-Draw™ Jr. Universal Printer Holder for Zebra / Brother / Printronix printers
Features
* Printer cradle with spring loaded mechanism that holds strong, yet provides easy removal for printer storage
* Enables connection to any RAM plate with 4 hole AMP's pattern
* Manufactured from Powder coated steel and High strength composite for maximum longevity
* Backed by a lifetime warranty
Ideal for mounting printers into forklifts / reach trucks and other warehousing equipment.
The RAM® Quick Draw™ Jr. holder uses a unique patent pending spring loaded mechanism that holds strong, yet provides easy removal for printer storage. At each end of the cradles are side clamping plates that are designed to fit cleanly around the edges of a printer.
Compatible Devices
Brother
MW-100
MW-120
MW-140
MW-260
Zebra
QL 220
QL 320
QL 420 Plus
RP4T
Printronix
M4L
Hardware Included
Assembly Hardware
(4) #10-24 x 5/8" Machine Screws
(4) #10-24 Nylock Nuts
Holder Dimensions
Max Height: 63.5mm (2.5")
Width Range: 168.3mm - 266.7mm (6.625" - 10.5")
Hole Pattern
4-Hole AMPS:
1.181" x 1.496"
Materials
Powder coated steel
High strength composite
Weight
454 grams (1.0 lbs.)
