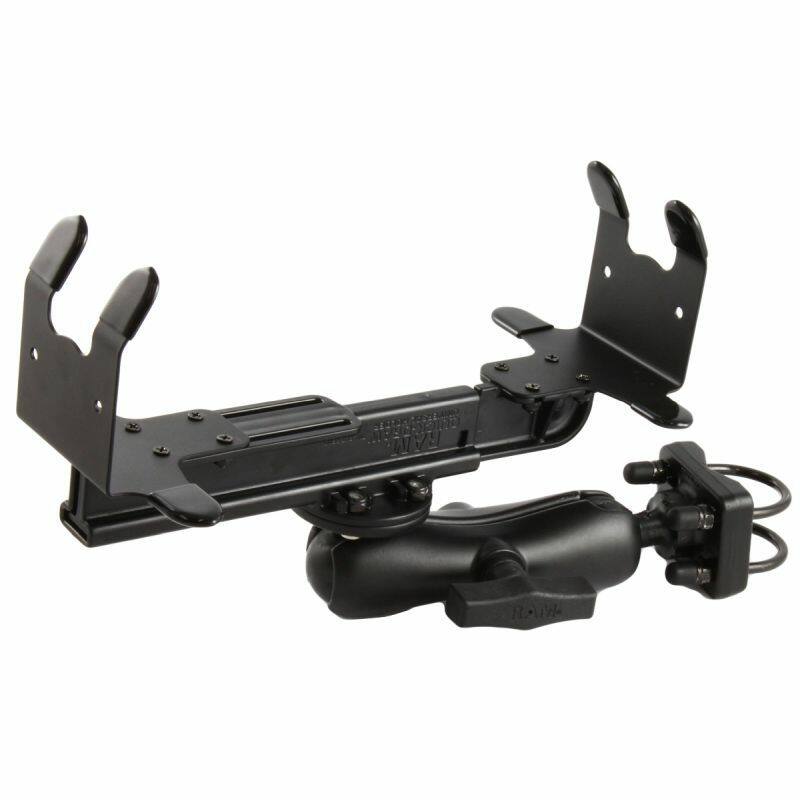

RAM-VPR-103-1 RAM® Quick-Draw™ Double U-Bolt Mount for HP OfficeJet 250 + More
Features
* Spring-loaded RAM® Quick-Draw™ holder provides easy removal of your HP DeskJet or OfficeJet printer (check compatibility section)
* Double U-bolt base is compatible with rails and bars ranging from 31.75 to 38.1mm in diameter
* Made of powder-coated, marine-grade aluminium, stainless steel, and high-strength composite for durability and reliability in the most demanding environments
* Backed by a lifetime warranty
The RAM-VPR-103-1 uses a unique spring loaded mechanism that holds strong, yet provides easy removal for printer storage. At each end of the spring loaded cradle are small side clamp plates that are designed to fit cleanly around either edge of the printer. Included is a standard length arm and round pipe base, which will connect to any RAM® Tele-Pole™ and other poles with a diameter from 31.8mm to 38.1mm (1.25" to 1.5").
Compatibility
HP
DeskJet 450
DeskJet 460
DeskJet 470
OfficeJet 100
OfficeJet 250
Dimensions
Overall Width: 337.8mm (13.3")
Overall Depth: 165mm (6.5")
Overall Height: 81.2mm (3.2")
Cradle Dimensions
Max Height: 63.5mm (2.5")
Width Range: 229mm to 394mm (9" - 15.5")
Hardware Included
Assembly Hardware
(4) #10-24 x 5/8" Machine Screws
(4) #10-24 Nylock Nuts
U-Bolt Dimensions:
31.75mm to 38.1mm (1.25 to 1.5") in diameter
Hole Pattern
4-Hole AMPS:
1.181" x 1.496" (30mm x 38mm)
Arm Dimensions:
Overall Length:
143mm (5.625")
Socket-To-Socket Length:
114mm (4.5")
Ball Size
C Size (1.5")
Materials
Powder coated steel
High strength composite
Weight
412 grams (0.91 lbs.)
Components:

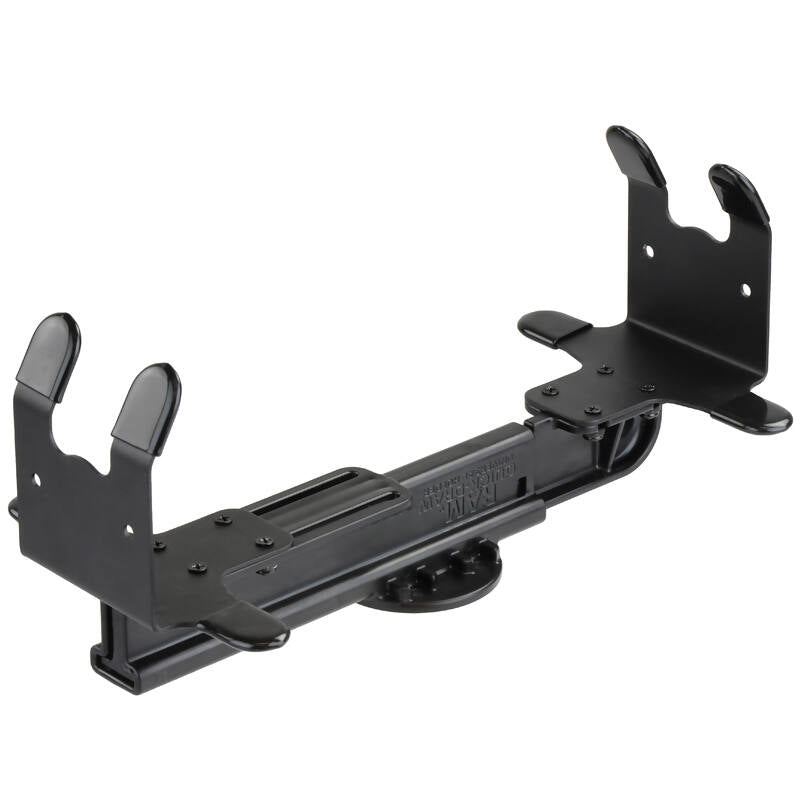

RAM-VPR-103 RAM Quick-Draw Universal Printer Holder
RAM-202U RAM 2.5" / 63mm DIA. BASE 1.5" Ball

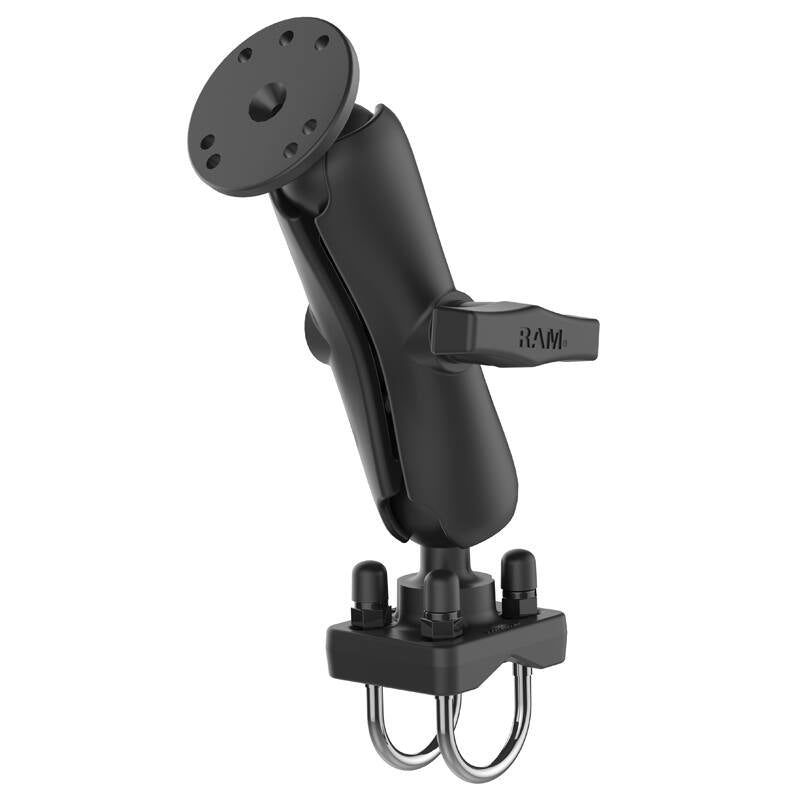

RAM-235-1U RAM Double U-Bolt Base with 1.5" Ball for Rails from 32mm to 38mm in Diameter
RAM-201U RAM Standard Double Socket Arm for 1.5" Balls
