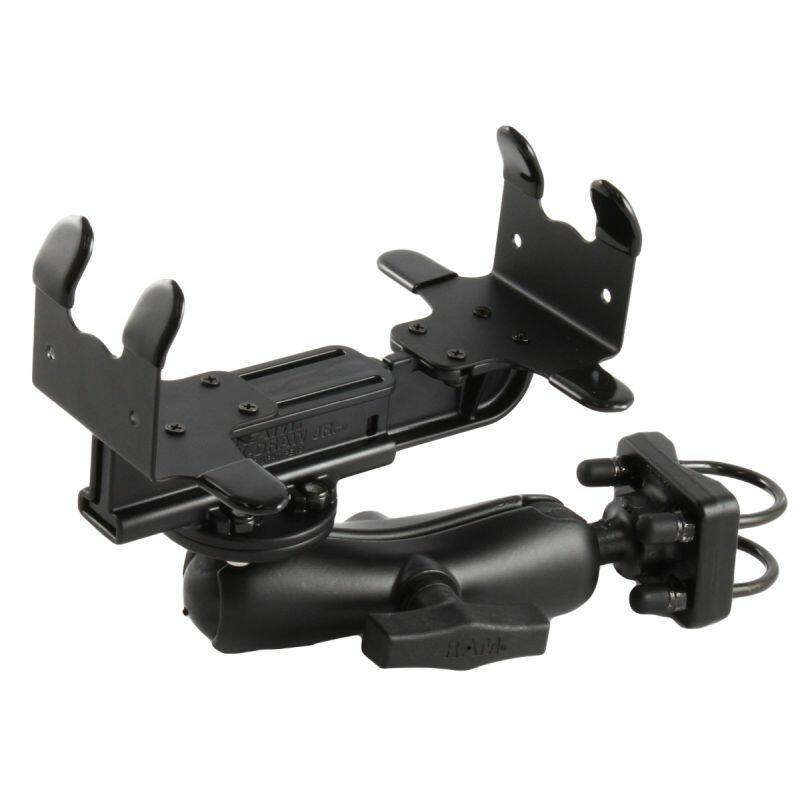

RAM-VPR-104-1 RAM® Quick-Draw™ Jr. with Double U-Bolt Base for Small Printers
Features
* Spring-loaded RAM® Quick-Draw™ Jr. holder provides easy removal of your printer
* Double U-bolt base is compatible with rails and bars ranging from 31.75 to 38.1mm in diameter
* Made of powder-coated, marine-grade aluminum, stainless steel, and high-strength composite for durability and reliability in the most demanding environments
* Backed by a lifetime warranty
The RAM® Quick Draw™ Jr. holder uses a unique patent pending spring loaded mechanism that holds strong, yet provides easy removal for printer storage. At each end of the cradles are side clamping plates that are designed to fit cleanly around the edges of a printer.
Compatible Devices
Fujitsu
FP-100
FP-1000
Datamax-O’Neil
RL3E
RL4e
Bixolon
SPP-R400
Brother
Mobile RuggedJet 3050
Zebra
QLn220
QLn320
QLn420
RW-420
ZQ510
ZQ511
ZQ520
ZQ521
ZQ610
ZQ620
ZQ630
Hardware Included
Assembly Hardware
(4) #10-24 x 5/8" Machine Screws
(4) #10-24 Nylock Nuts
Hole Pattern
4-Hole AMPS:
1.181" x 1.496" (30mm x 38mm)
U-Bolt Dimensions:
31.75mm to 38.1mm (1.25 to 1.5") in diameter
Arm Socket-to-Socket Length
118mm (4.66")
Ball Size
C Size (1.5")
Materials
Powder coated steel
High strength composite
Components:

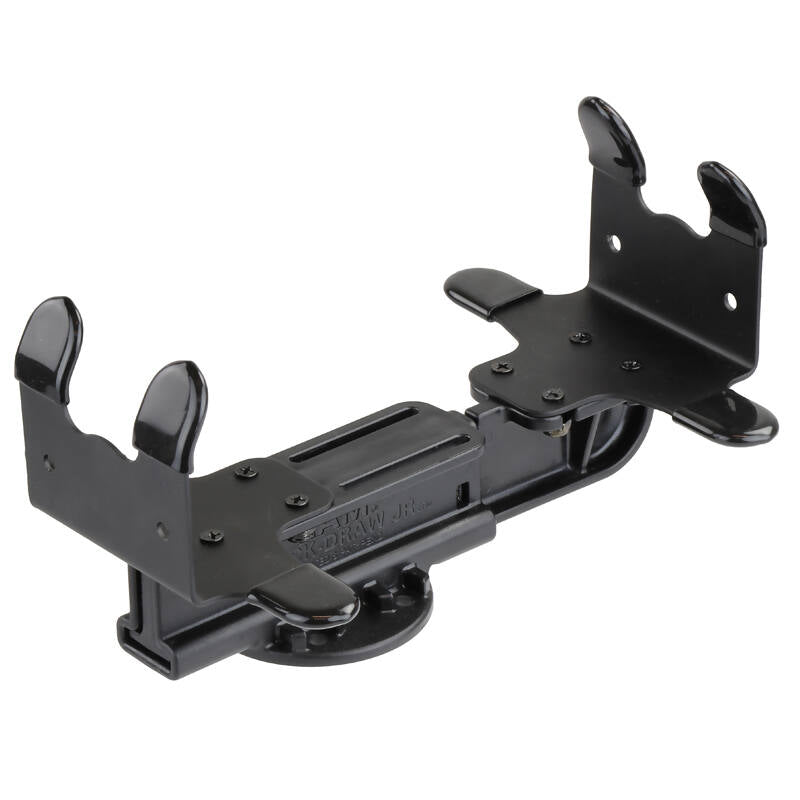

RAM-VPR-104 RAM Quick-Draw Jr. Small Universal Printer Holder
RAM-202U RAM 2.5" / 63mm DIA. BASE 1.5" Ball

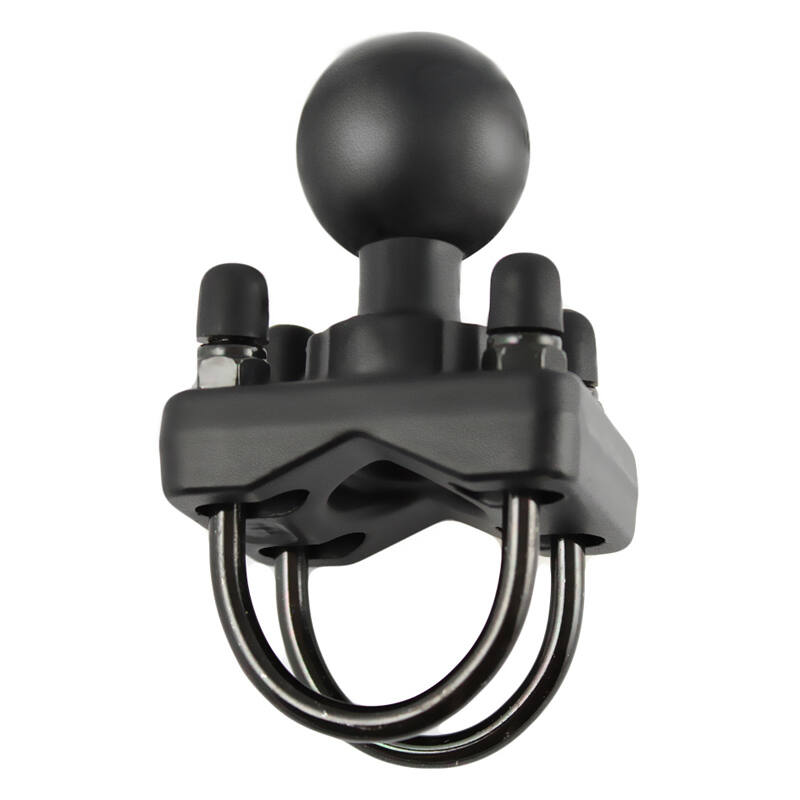

RAM-235-1U RAM Double U-Bolt Base with 1.5" Ball for Rails from 32mm to 38mm in Diameter
RAM-201U RAM Standard Double Socket Arm for 1.5" Balls
