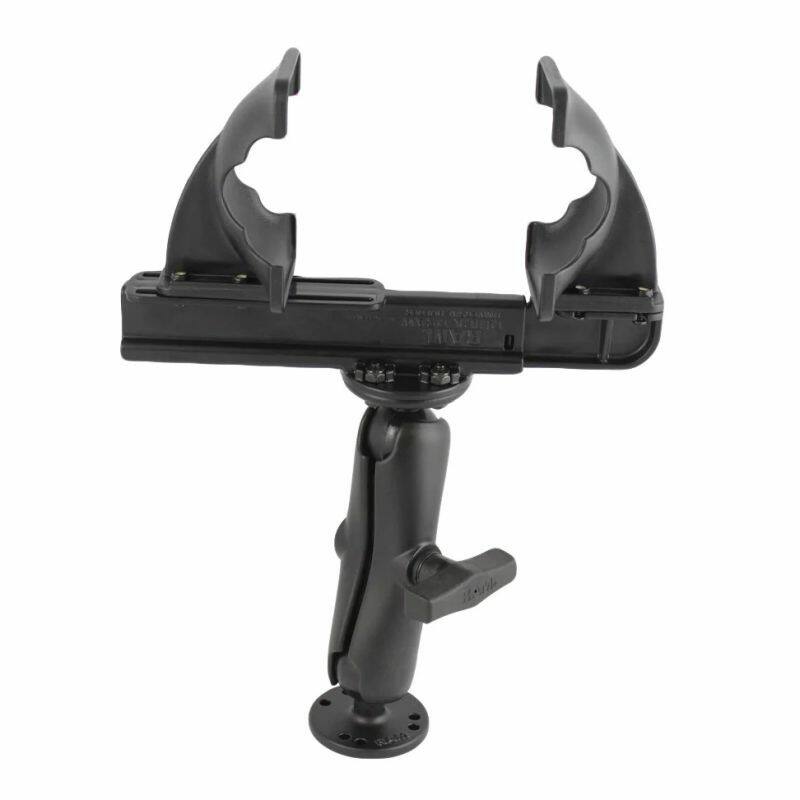

RAM-101U-CI1 RAM® Quick-Draw™ Spring Loaded Holder with Flat Surface Mount
Features
* RAM® Quick-Draw™ Universal Holder accommodates most aftermarket barcode scanner guns, handheld computers and similar devices
* Drill-down mounting solution; round plate features the AMPS hole pattern
* Includes two round ball bases and C size medium length double socket arm
* RAM ball and socket technology allows for near-infinite adjustability
* Made of powder-coated, marine-grade aluminium and high strength composite for durability and reliability in the most demanding environments
* Backed by a lifetime warranty

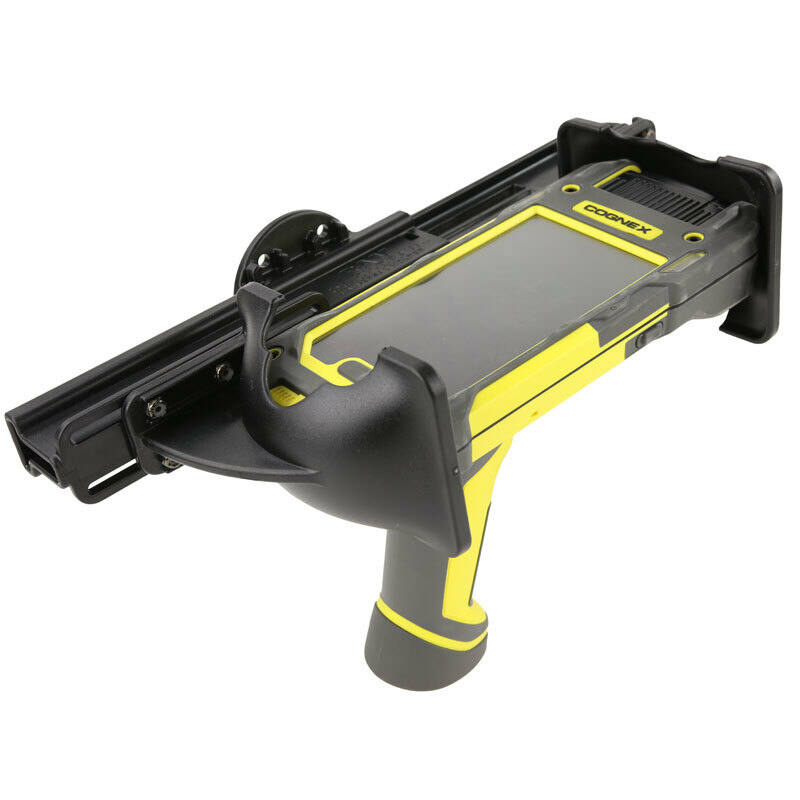

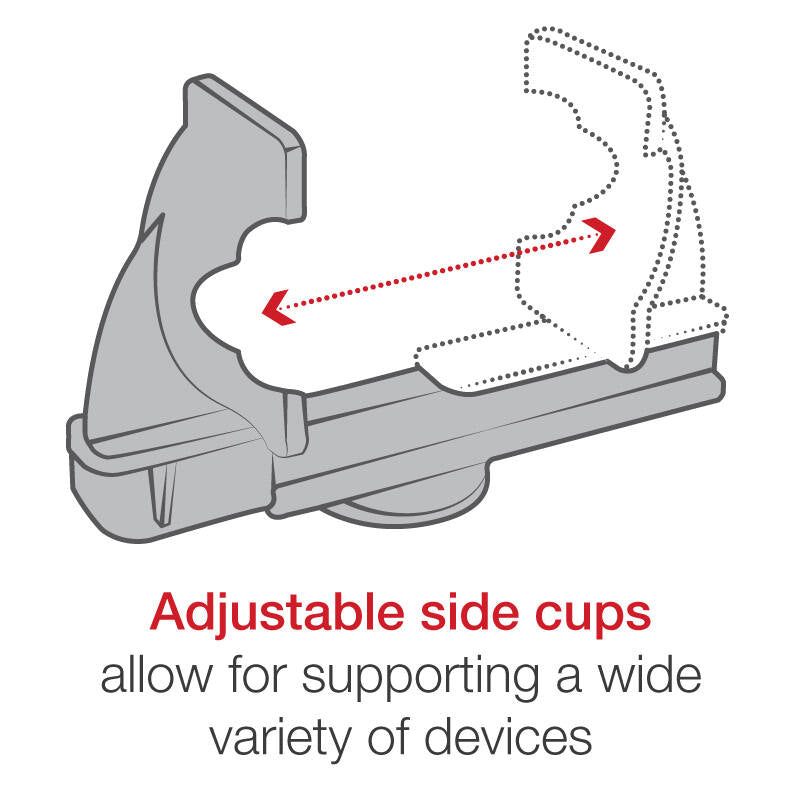

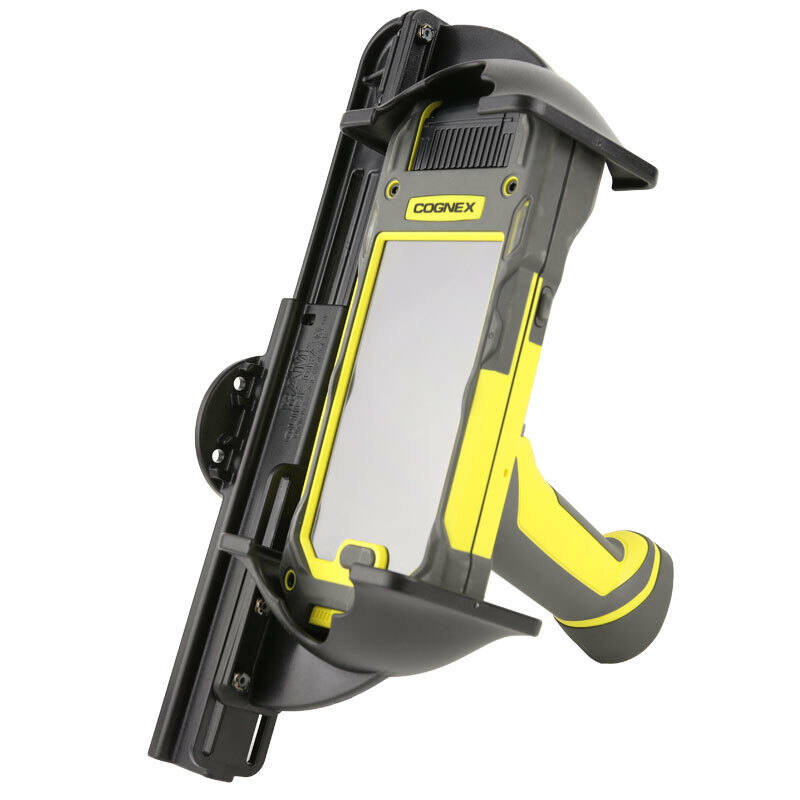

The Quick-Draw™ Universal Holder accommodates most aftermarket barcode scanner guns, handheld computers, and any other device that fits the dimensions. Adjustable side cups allow for supporting a wide variety of devices, and rugged spring-tension makes it suitable for any rugged environment, including forklifts. Backed with a Lifetime Warranty.

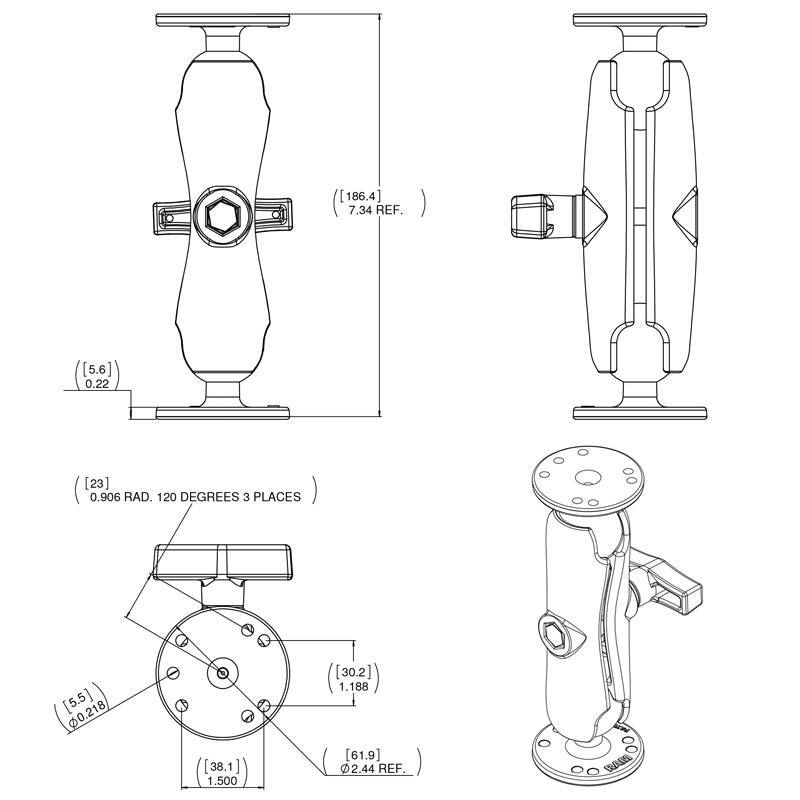

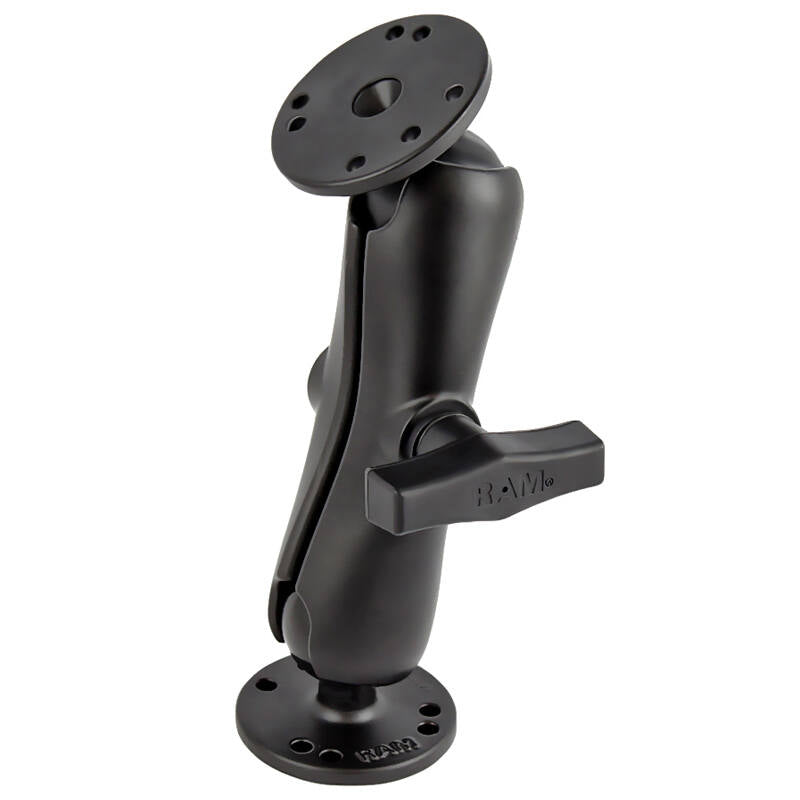

The base consists of a double socket arm and two 2.5" diameter round bases that contain the universal AMPS hole pattern. The mount is designed with a 1.5" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles.

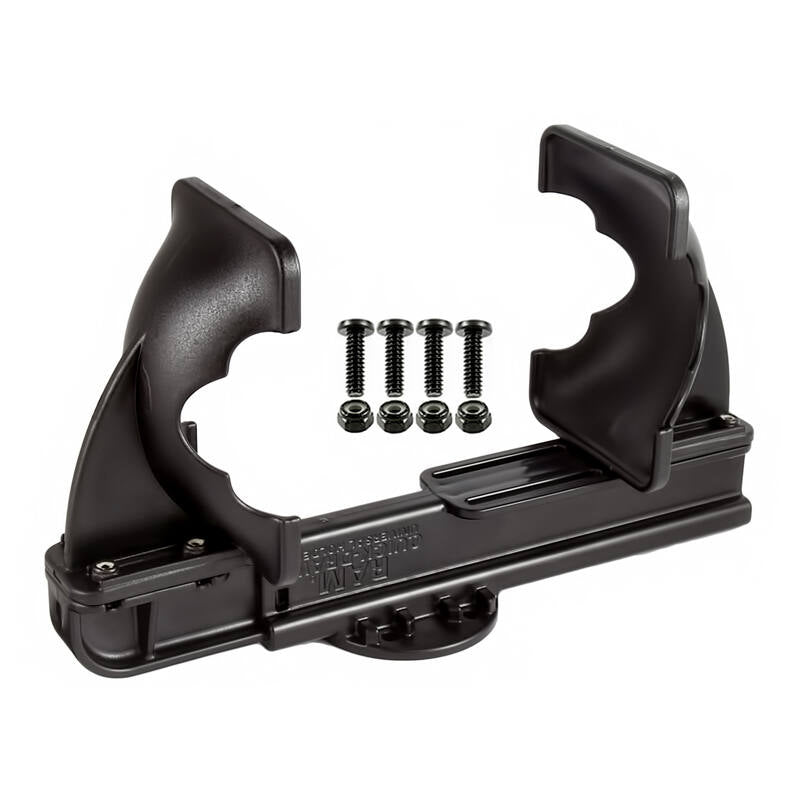

HARDWARE INCLUDED
Assembly Hardware
(4) #10-24 x 5/8" Machine Screws
(4) #10-24 Nylock Nuts
INTERNAL CRADLE DIMENSIONS
Height Range: 50.8 - 273.05mm (2" - 10.75")
Max Width: 66.675mm (2.625")
Max Depth: 107.95mm (4.25")
MATERIALS
High strength composite
Powder Coated Marine Grade Aluminium
Overall Length:
187 mm (7.35")

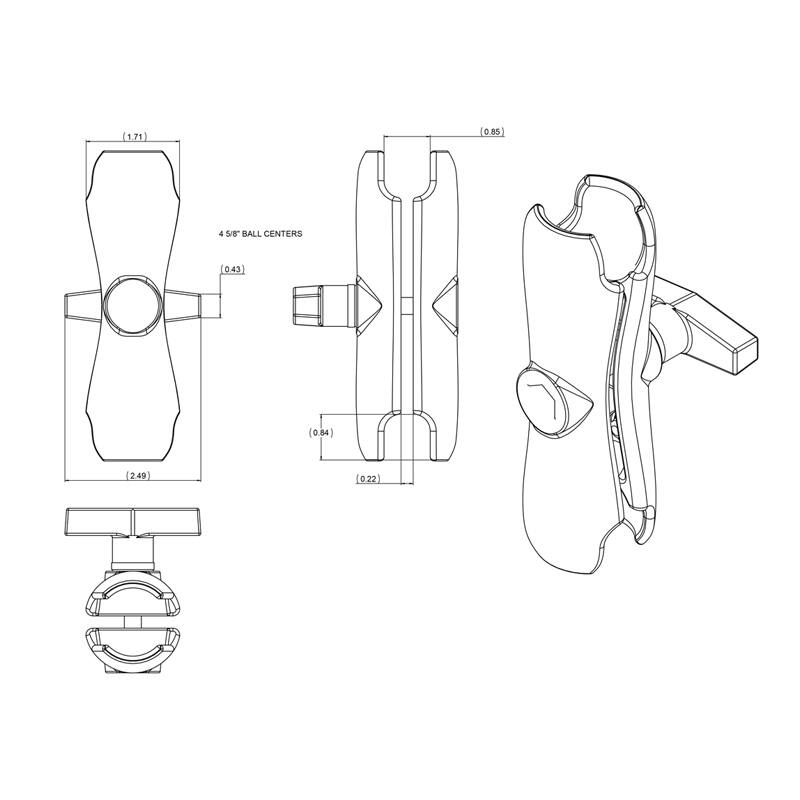

Arm Length:
Overall:
143mm (5.625")
Socket-To-Socket:
114mm (4.5")
Weight Capacity:
Standard Use:
1.814kg (4 lbs)
Heavy-Duty Use:
1.36kg (3 lbs)
Compatible Devices Include:
Cognex
DataMan 8050
DataMan 8070
MX-1000
MX-1502
Datalogic
Falcon FX3
Falcon X4
Memor 1
Memor 10
Memor 20
PowerScan
Skorpio X3
Skorpio X4
Skorpio X5
Honeywell
CK75
Intermec CK3R
Intermec CK3X
Intermec CK70
Intermec CK71
Intermec CN70
Intermec CN70e
Janam
XG200
XG4
MobileDemand
xTablet A680
Motorola
MC9190-G
Unitech
PA730
Zebra
DS3500 Series
DS3608
LI3608/3678
LS3408
MC2200
MC2700
MC33XX Series
MC3200
MC9190-Z
MC9200
MC9300
MT2000
YouTube:
https://www.youtube.com/watch?v=smSDww22jgU
Components:
RAM-HOL-QD1U RAM Quick-Draw Spring Loaded Scanner Holder

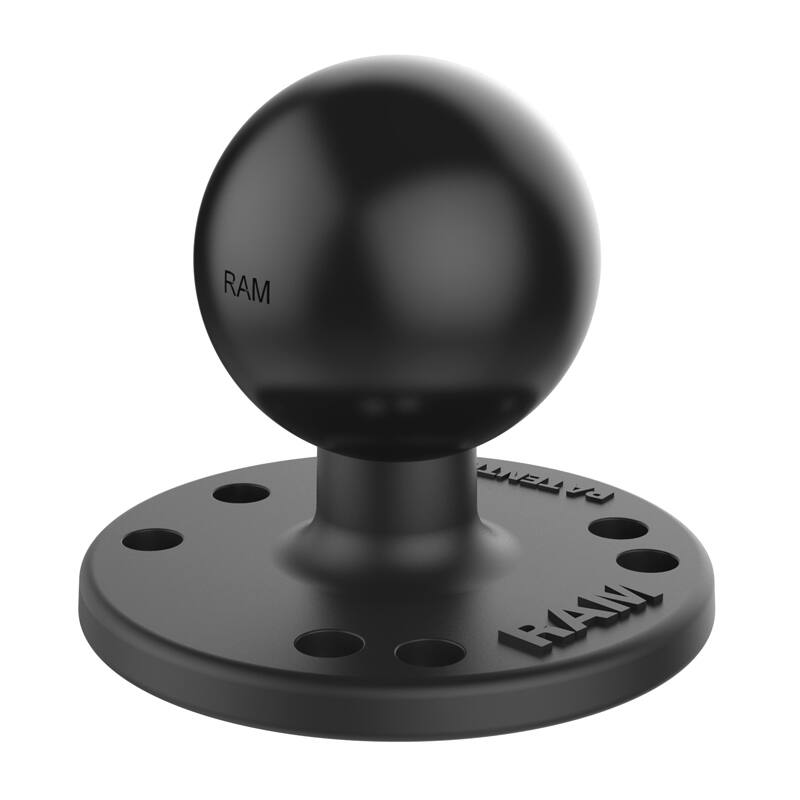

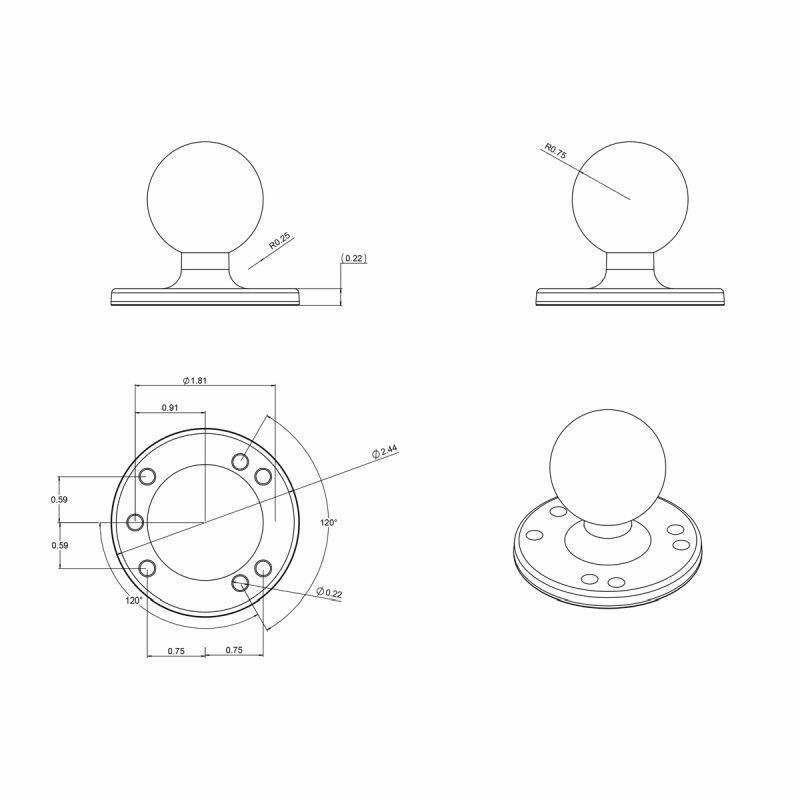

RAM-202U RAM 2.5" / 63mm DIA. BASE 1.5" Ball (x2)

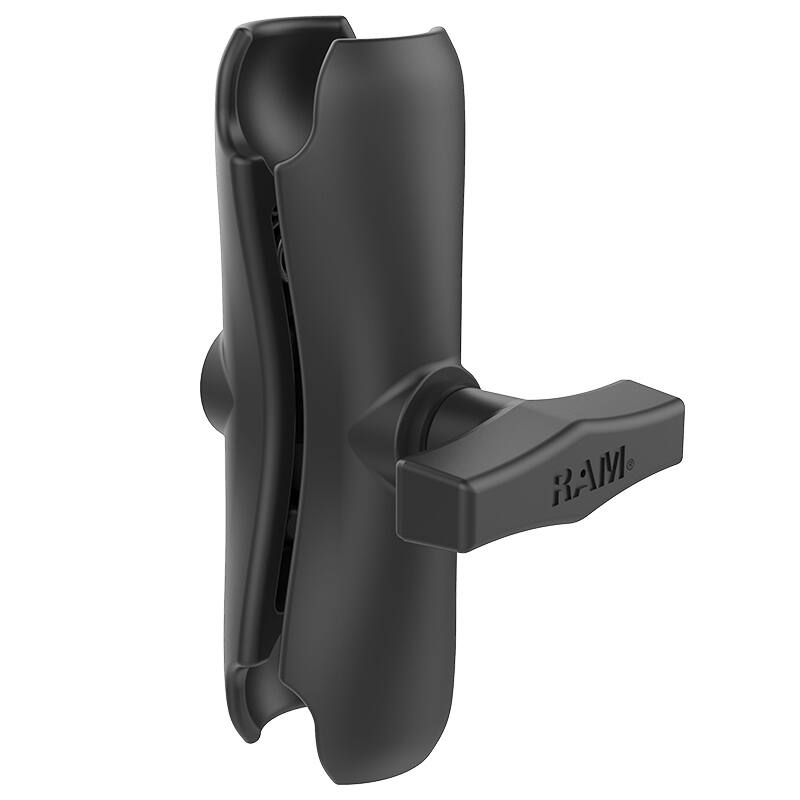

RAM-201U RAM Standard Double Socket Arm for 1.5" Balls
