RAM Quick-Grip Pro Vibration Damping Universal Phablet Cradle with U-Bolt Base

RAM Quick-Grip Pro Vibration Damping Universal Phablet Cradle with U-Bolt Base

Regular price $294.20 NZD
Regular price Sale price $294.20 NZD
Sale Please Enquire
Taxes included. Shipping calculated at checkout.

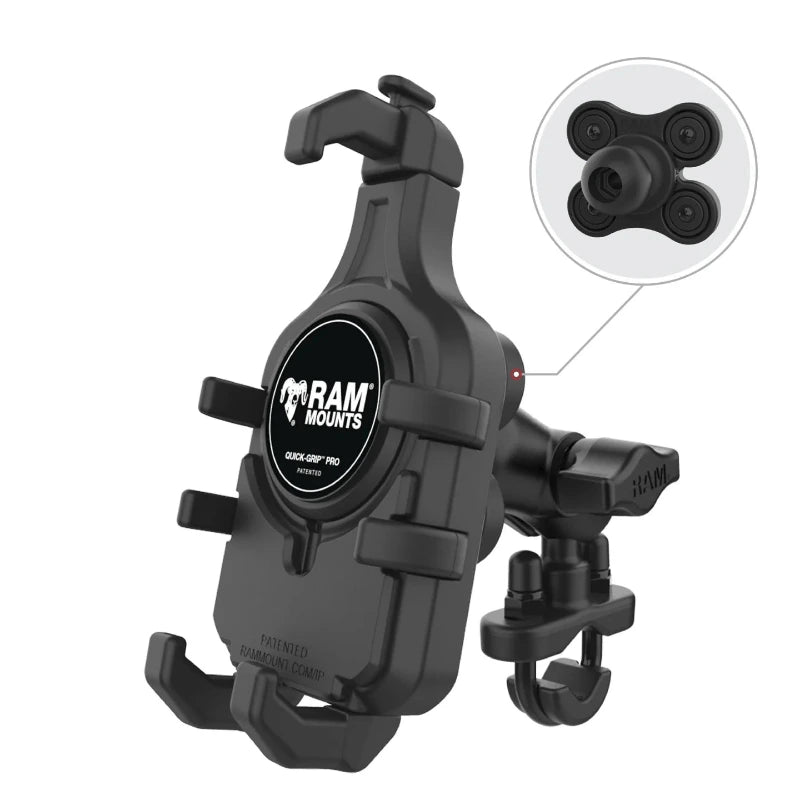

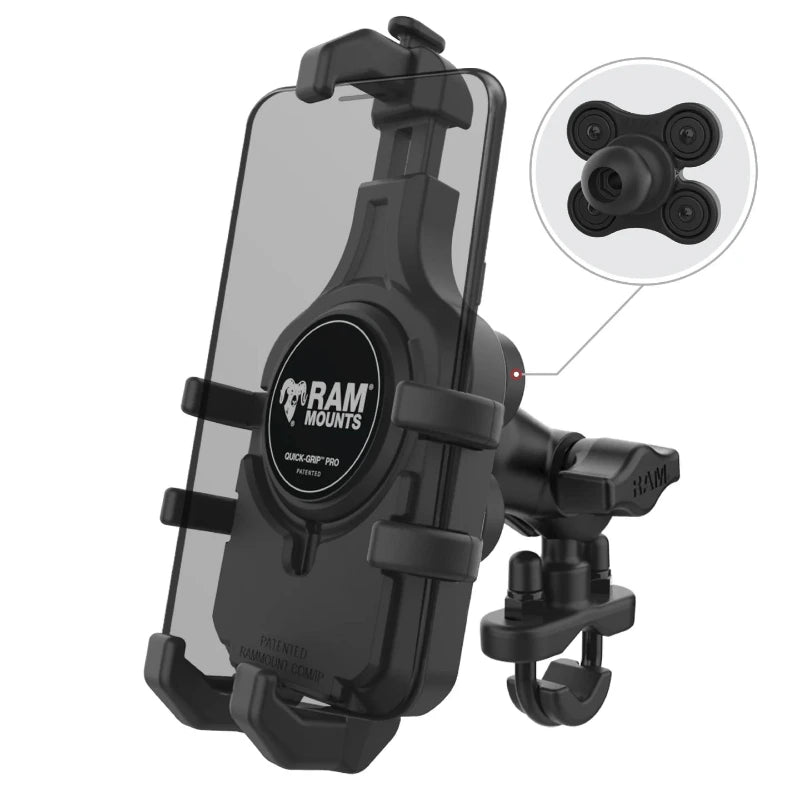

RAM-B-149Z-A-PD5VU RAM® Quick-Grip™ Pro Vibration Damping Phone Mount with U-Bolt Base

Features

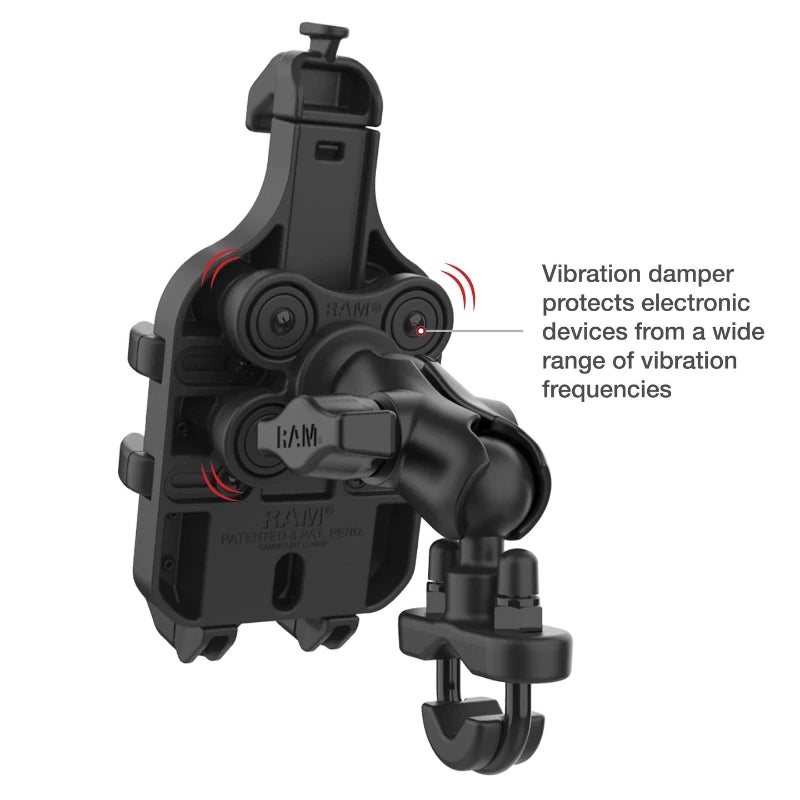

  • Spring-loaded holder features adjustable side supports overmolded with a soft rubber and integrated vibration damper that provide a secure hold for a variety of phones; easily insert and remove your phone with one hand

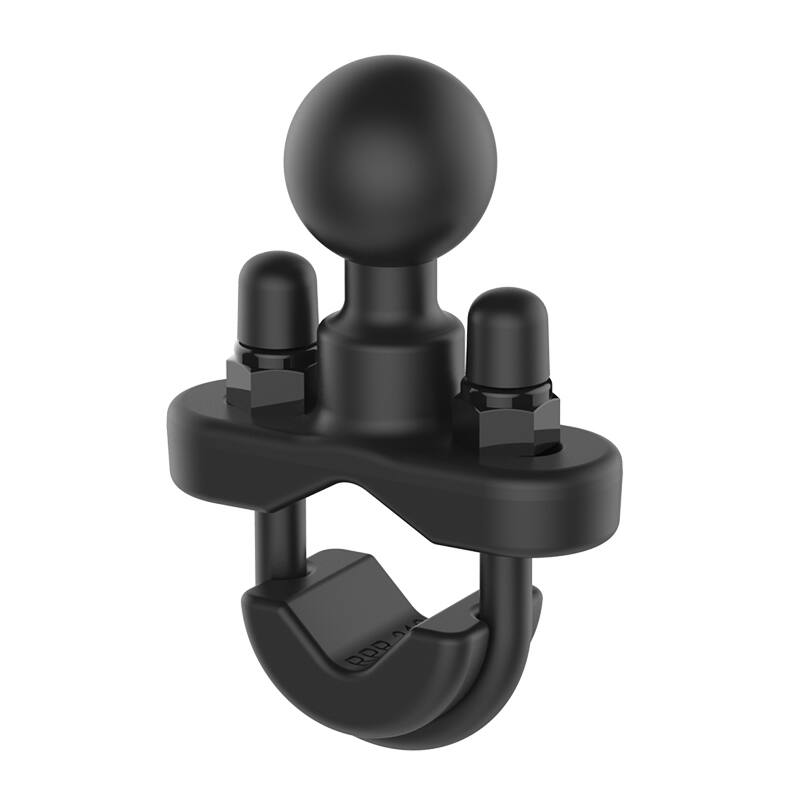

  • Includes U-bolt base that accommodates rails from .5" to 1.25" in diameter and a short length, B size RAM® double socket arm; ball and socket technology allows for near-infinite adjust-ability

  • Centre cavity compatible with Apple MagSafe puck; non-slip cover and puck adhesive included
  • Comes with optional device tether for open cockpit environments
  • Made of high-strength composite for durability and reliability in the most demanding environments
  • Backed by a lifetime warranty


The RAM® Quick-Grip™ Pro Phone Holder with Ball & Vibration Damper and U-Bolt Base (RAM-B-149Z-A-PD5VU) is the next evolution of the RAM® Quick-Grip™ series with an integrated vibration damper.

Re-designed with a new, sleek look and integrated rubber side arms to provide a secure, no-slip hold on your phone. This phone holder features an integrated cavity for an Apple MagSafe puck, allowing you to turn the phone holder into a wireless charging solution.

Not interested in charging? No problem! The included anti-slip cover ensures a flush fit when the Apple MagSafe puck is not installed.

The RAM® Quick-Grip™ Pro features a spring-loaded design that allows easy one-handed insertion and removal of your phone. The adjustable side arms ensure that your phone will remain secured in the holder without blocking any ports or buttons.

Complete the solution by building your mount—this holder is RAM® Compatible™ featuring a 2-hole AMPS pattern for adding a diamond ball adapter. RAM® recommends installing the provided device tether when this holder is used in a vehicle with an open cockpit. It is important to verify the dimensions of your handheld device with its case, sleeve, or skin when determining the overall size.

Hardware Included:

Assembly Hardware

Holder Dimensions:

Height Range: 139.7mm to 196.9mm (5.5" - 7.75")
Width Range: 66.7mm to 95.3mm (2.625" - 3.75")
Max Depth: 17mm ( .67")

Arm Dimensions:
Overall Length:
60.5mm (2.38")
Socket-To-Socket Length:
51mm (2")

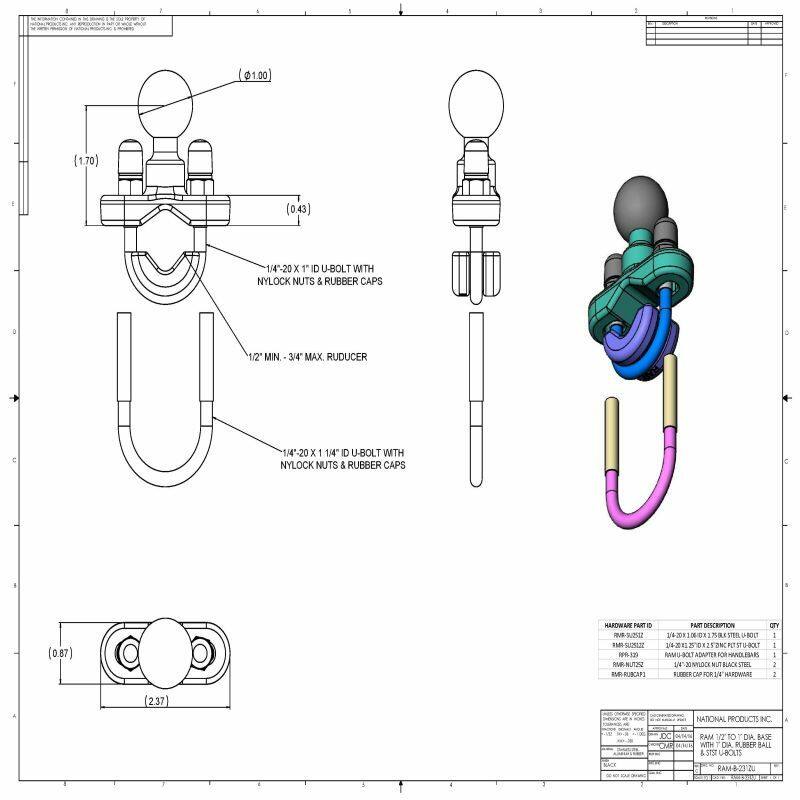

U-Bolt Dimensions:
12.7mm to 31.8mm (0.50" to 1.25")




Materials:

High strength composite



Weight:

471 grams (1.04 lb)


Some Compatible Devices include

Compatible Devices

Apple

iPhone 6s Plus

iPhone 8 Plus

iPhone X

iPhone Xr

iPhone Xs

iPhone Xs Max

iPhone 11

iPhone 11 Pro

iPhone 11 Pro Max

iPhone 12

iPhone 12 Pro

iPhone 12 Pro Max

iPhone 13

iPhone 13 Pro

iPhone 13 Pro Max

iPhone 14

iPhone 14 Plus

iPhone 14 Pro

iPhone 14 Pro Max

iPhone 15

iPhone 15 Plus

iPhone 15 Pro

iPhone 15 Pro Max

iPhone 16

iPhone 16 Plus

iPhone 16 Pro

iPhone 16 Pro Max

iPhone 16e



Blackberry

Evolve X

Blackview

BV9900

BV9900 Pro

Google

Pixel 2

Pixel 2 XL

Pixel 3

Pixel 3 XL

Pixel 3a

Pixel 3a XL

Pixel 4

Pixel 4 XL

Pixel 4a

Pixel 5

Pixel 6

Pixel 6 Pro

Pixel 7

Pixel 7 Pro

Pixel 8

Pixel 8 Pro



HTC

U11



Huawei

Mate 20 Pro

Mate 20 X

P30 Pro



LG

Aristo 2

Fiesta 2 LTE

Fiesta LTE

G6

G6+

G7 ThinQ

G8 ThinQ

G8S ThinQ

Harmony

K20

K20 Plus

Q6

Stylo 3 Plus Titan

Stylo 4

V30

V35 ThinQ

V40 ThinQ

V50 ThinQ

X venture

Zone 4



Motorola

moto e4

moto e4 plus

moto g5s plus

moto g6

moto g7 power

moto X4

moto z2

moto z2 play

moto z3



Nokia

2

3

5

8

7 plus

8 Sirocco

9 PureView

OnePlus

7

6T

7 Pro

7T

7T Pro



Panasonic

Eluga X1 Pro

Razer

Phone 2



Samsung

Galaxy A10

Galaxy A10e

Galaxy A10s

Galaxy A11

Galaxy A15

Galaxy A20

Galaxy A20e

Galaxy A30

Galaxy A40

Galaxy A50

Galaxy A50s

Galaxy A6

Galaxy A6+

Galaxy A7

Galaxy A70

Galaxy A8

Galaxy A80

Galaxy A9 (2016)

Galaxy A90 5G

Galaxy J2 (2016)

Galaxy J5

Galaxy J7 (2017)

Galaxy J7 (2018)

Galaxy J7 Prime 2

Galaxy Note 10

Galaxy Note 10 Plus

Galaxy Note 8

Galaxy Note 9

Galaxy Note Fan Edition

Galaxy Note20

Galaxy Note20 Ultra

Galaxy S10

Galaxy S10 5G

Galaxy S10+

Galaxy S10e

Galaxy S20

Galaxy S20 FE 5G

Galaxy S20 Ultra 5G

Galaxy S20+

Galaxy S21 5G

Galaxy S21 Ultra 5G

Galaxy S21+ 5G

Galaxy S22 5G

Galaxy S22 Ultra 5G

Galaxy S22+ 5G

Galaxy S23

Galaxy S23 Ultra

Galaxy S23+

Galaxy S24

Galaxy S24 Ultra

Galaxy S24+

Galaxy S25

Galaxy S25 Ultra

Galaxy S25+

Galaxy S8

Galaxy S8 Active

Galaxy S8+

Galaxy S9

Galaxy S9+

Galaxy XCover 4

Galaxy XCover 5

Galaxy XCover FieldPro

Galaxy XCover Pro

Galaxy XCover6 Pro

Galaxy XCover7

Galaxy XCover7 Pro



Social

Mobile Rhino C6



Sony

Xperia 1 V

Xperia 10 V

Xperia C4

Xperia L1

Xperia L2

Xperia X

Xperia X Performance

Xperia XA

Xperia XA Ultra

Xperia XA1

Xperia XA1 Plus

Xperia XA1 Ultra

Xperia XA2

Xperia XA2 Ultra

Xperia XZ

Xperia XZ Premium

Xperia XZ1

Xperia XZ2

Xperia XZ3

Xperia XZs

Xperia Z3

Xperia Z3+

Xperia Z5



Xiaomi

Mi 9

Mi 9 Explorer

Mi Mix 2S

Mi Mix 3

Redmi Note 7



ZTE

Axon 10 Pro

Axon 9 Pro



Additional Information:

A reduction in vibration does not guarantee full protection of device. External immeasurable factors may cause damage to phones, cameras, and other devices while mounted. National Products, Inc does not assume responsibility or liability for any such personal injury, death or property damage. RAM® mounts lifetime warranty is limited to RAM® mounts and components. The warranty does not include any device mounted or attached to a RAM® mount, such as a phone, GPS, camera, computer or other device.

Top hook may block front facing camera and facial recognition on select phones.
