RAM Quick-Grip Pro XL Universal Phablet Cradle with Ball and Vibration Damper

RAM-HOL-PD7BVU RAM® Quick-Grip™ Pro XL Phone Holder with Ball and Vibration Damper

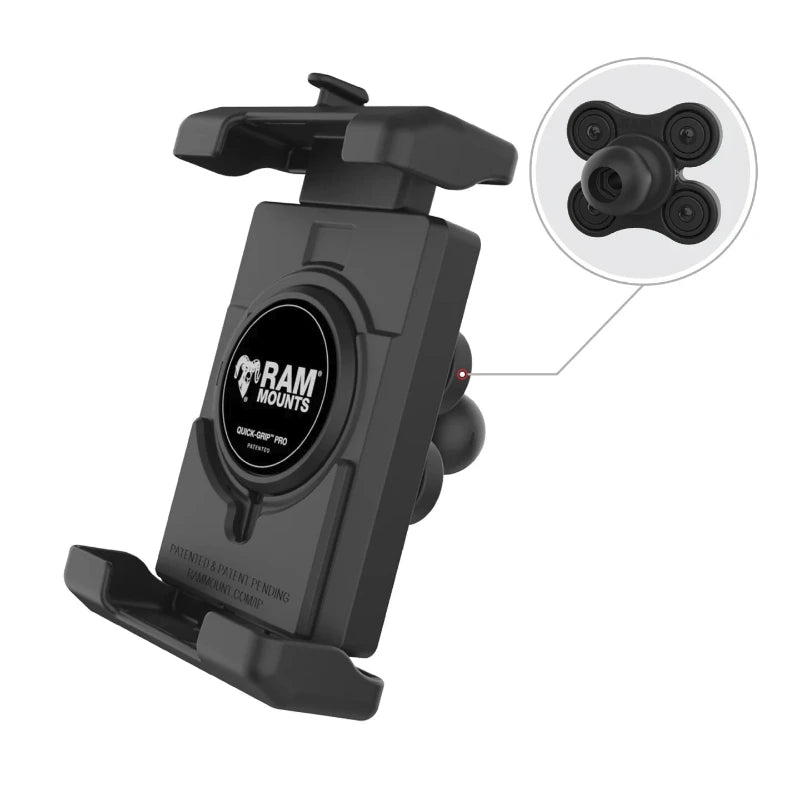

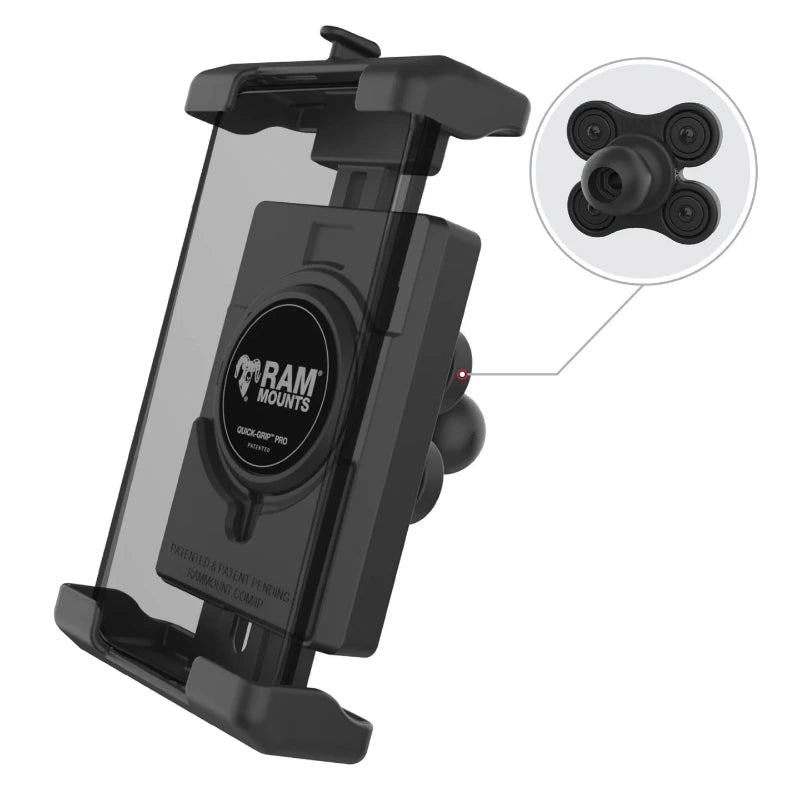

The RAM-HOL-PD7BVU pairs the Quick-Grip™ Pro XL universal phone holder with an integrated vibration damper and a B-size diamond base with 1" ball, reducing vibration transfer to the mounted device on rougher rides.

Key Features

• Spring-loaded holder with integrated vibration damper for a secure, low-vibration hold
• One-handed insertion and removal
• Integrated cavity fits an Apple MagSafe puck (not included) to add wireless charging; anti-slip cover included for use without a puck
• Includes a B-size diamond base with 1" ball, ready to connect to any RAM® B-size arm
• Large and small shims included for a snug fit on both large and small phones without a case
• High-strength composite construction; lifetime warranty

Works With

Any RAM® B-size (1") double socket arm. Always check your device's dimensions with its case, sleeve or skin fitted before ordering.

Dimensions & Specifications

• Height range: 136.5mm–178mm (5.375"–7")
• Width range: 69.9mm–88.9mm (2.75"–3.5")
• Max depth: 19mm (0.75")
• Hole pattern: 4-hole AMPS 1.181" x 1.496"; 2-hole AMPS 1.912"
• Ball size: 1", B Size
• Weight: 394g (0.87 lbs)
• Material: high-strength composite

Compatible Devices

Apple

• iPhone 8, 8 Plus, SE, X, Xr, Xs, Xs Max, 11, 11 Pro, 11 Pro Max, 12, 12 Pro, 12 Pro Max, 13, 13 Pro, 13 Pro Max, 14, 14 Plus, 14 Pro, 14 Pro Max, 15, 15 Plus, 15 Pro, 15 Pro Max, 16, 16 Plus, 16 Pro, 16 Pro Max, 16e

Blackberry

• Evolve X

Google

• Pixel 2, 2 XL, 3, 3 XL, 3a, 3a XL, 4, 4 XL, 4a, 5, 6, 6 Pro, 7, 7 Pro, 8, 8 Pro

HTC

• U11

Huawei

• Mate 20 Pro, P30 Pro

LG

• Aristo 2, Fiesta LTE, Fiesta 2 LTE, G6, G6 Plus, G7 ThinQ, G8 ThinQ, G8S ThinQ, Harmony, K20, K20 Plus, Q6, Stylo 3 Plus Titan, Stylo 4, V30, V35 ThinQ, V40 ThinQ, V50 ThinQ, X venture, Zone 4

Motorola

• moto e4, moto e4 plus, moto g5s plus, moto g6, moto g7 power, moto X4, moto z2, moto z2 play, moto z3

Nokia

• 2, 3, 5, 7 plus, 8, 8 Sirocco, 9 PureView

OnePlus

• 6T, 7, 7 Pro, 7T, 7T Pro

Panasonic

• Eluga X1 Pro

Razer

• Phone 2

Samsung

• Galaxy A6, A6 Plus, A7, A8, A8 Plus, A9, A10, A10e, A10s, A11, A15, A20, A20e, A30, A40, A50, A50s, A70, A80, A90 5G, J2, J5, J7 (2017), J7 (2018), J7 Max, J7 Prime 2, Note 8, Note 9, Note 10, Note 10 Plus, Note 20, Note 20 Ultra, Note Fan Edition, S8, S8 Active, S8 Plus, S9, S9 Plus, S10, S10 5G, S10 Plus, S10e, S20 5G, S20 FE 5G, S20 Plus 5G, S20 Ultra 5G, S21 5G, S21 Plus 5G, S21 Ultra 5G, S22 5G, S22 Plus 5G, S22 Ultra 5G, S23, S23 Plus, S23 Ultra, S24, S24 Plus, S24 Ultra, S25, S25 Plus, S25 Ultra, XCover 4, XCover 5, XCover Pro, XCover6 Pro, XCover7, XCover7 Pro

Sony

• Xperia L1, L2, XZ1, XZ2, XZ3

Xiaomi

• Mi 9, Mi 9 Explorer, Mi Mix 2S, Mi Mix 3

Zebra

• EM45

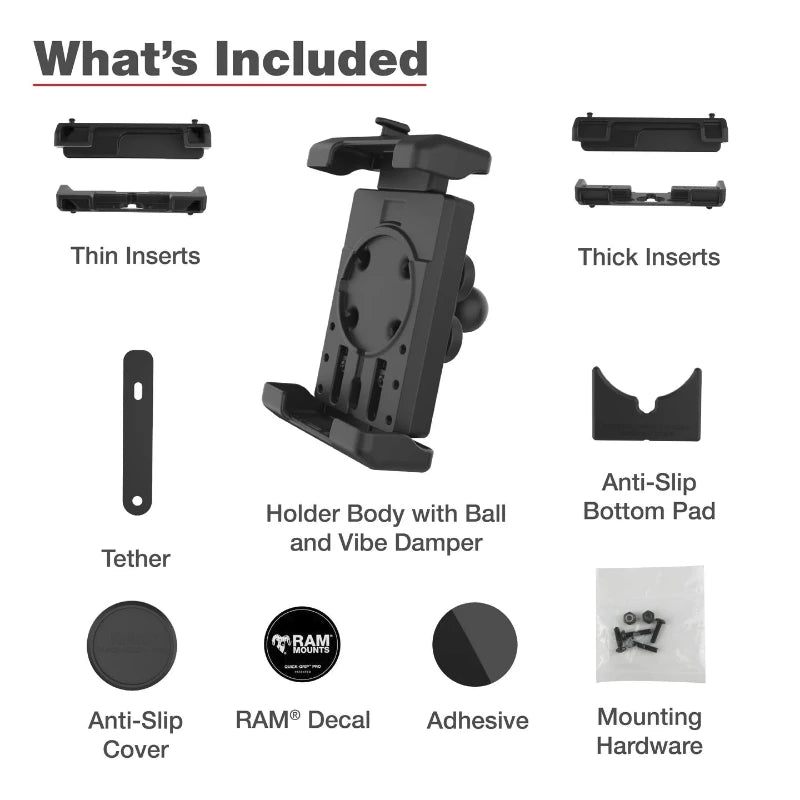

Included with Purchase

• Assembly hardware
• Large and small fit shims
• Anti-slip cover for the MagSafe cavity

FAQs

Does the vibration damper fully protect my device? No — a reduction in vibration does not guarantee full protection. RAM's lifetime warranty covers the mount and components, not the mounted device itself.

Can I use this for wireless charging? Yes — the centre cavity fits a genuine Apple MagSafe puck (sold separately), turning the holder into a wireless charger.
