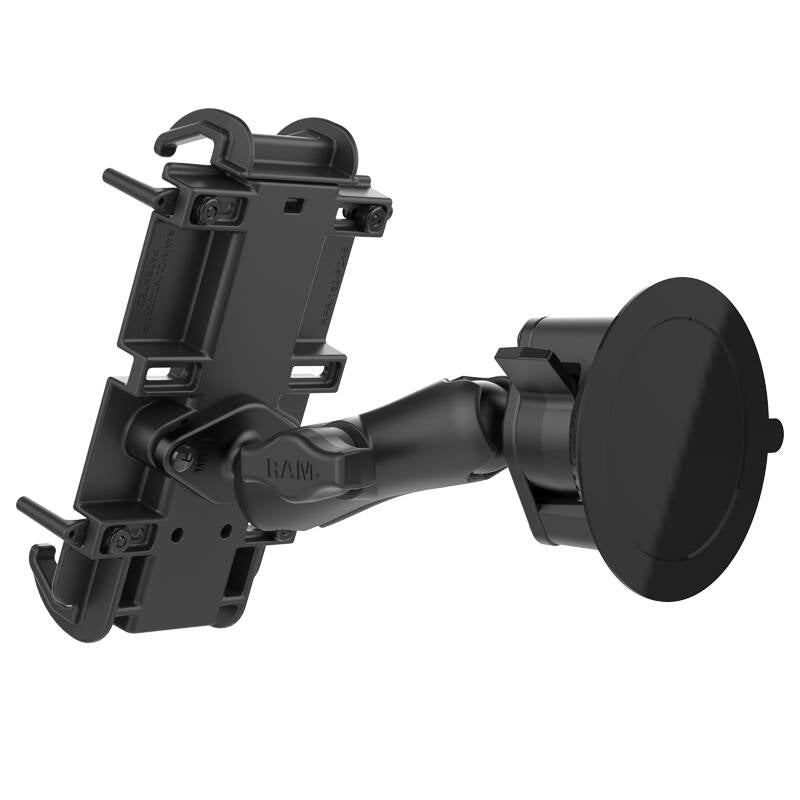

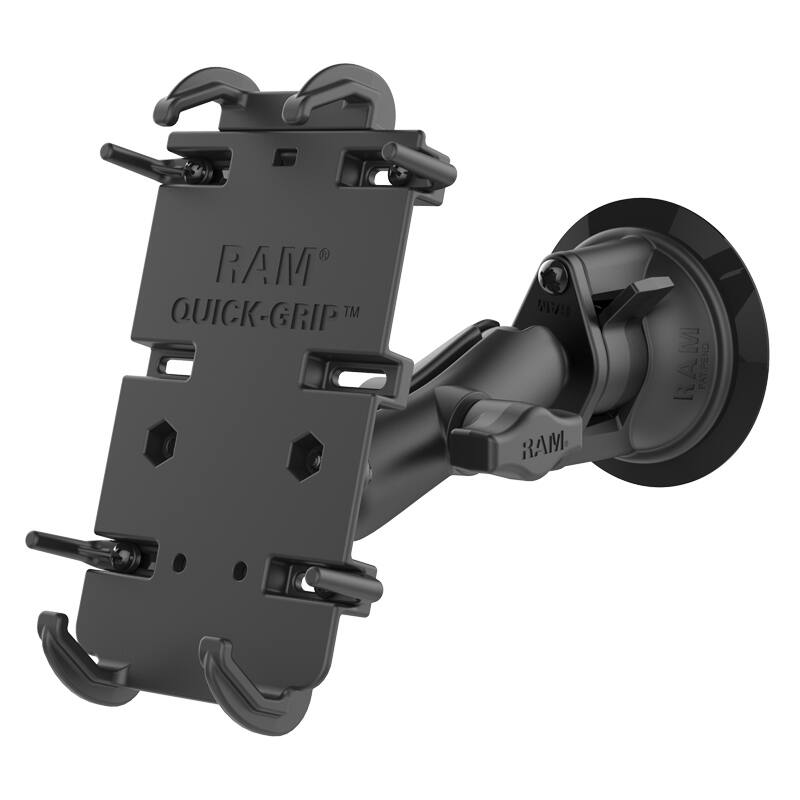

RAM-B-166-PD4U RAM® Quick-Grip™ XL Phone Mount with RAM® Twist-Lock™ Suction Cup
Features

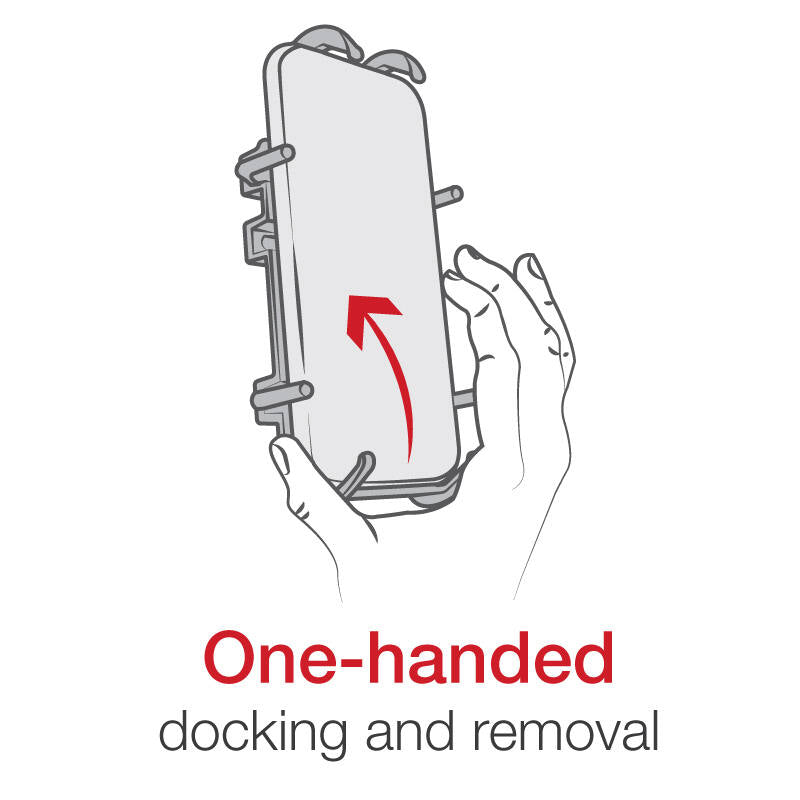

* Spring-loaded holder features adjustable side supports that provide a secure fit for a variety of large phones and other devices; easily insert and remove your phone with one hand
* Kit includes RAM® Quick-Grip™ XL Holder for large phones with a case, diamond ball base, medium double socket arm and RAM® Twist-Lock™ Suction Cup base
* RAM® Twist-Lock™ suction cup base is ideal for vehicle windshields and other nonporous surfaces
* Made of powder-coated, marine-grade aluminium and high-strength composite for durability and reliability in the most demanding environments
* Backed by a lifetime warranty
This suction cup mount for vehicle windshields includes the spring-loaded RAM® Quick-Grip™ XL holder providing a secure fit for a variety of large phones and other devices. Make sure to thoroughly clean the surface you will be mounting the suction cup to ensure a secure hold.
Included is a medium length double socket arm, B size RAM® diamond ball base with 1" diameter ball and included hardware.

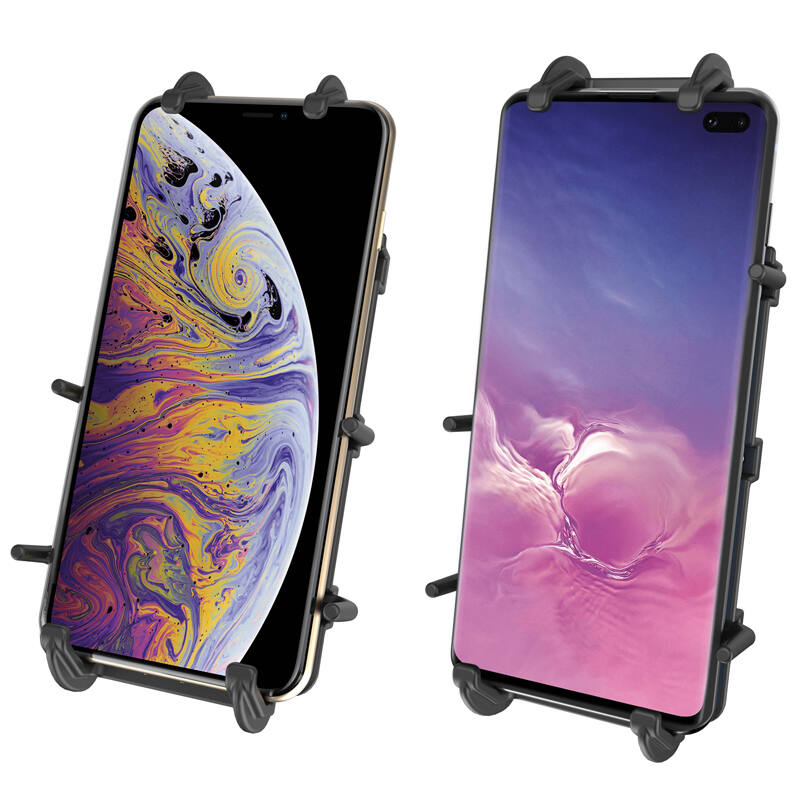

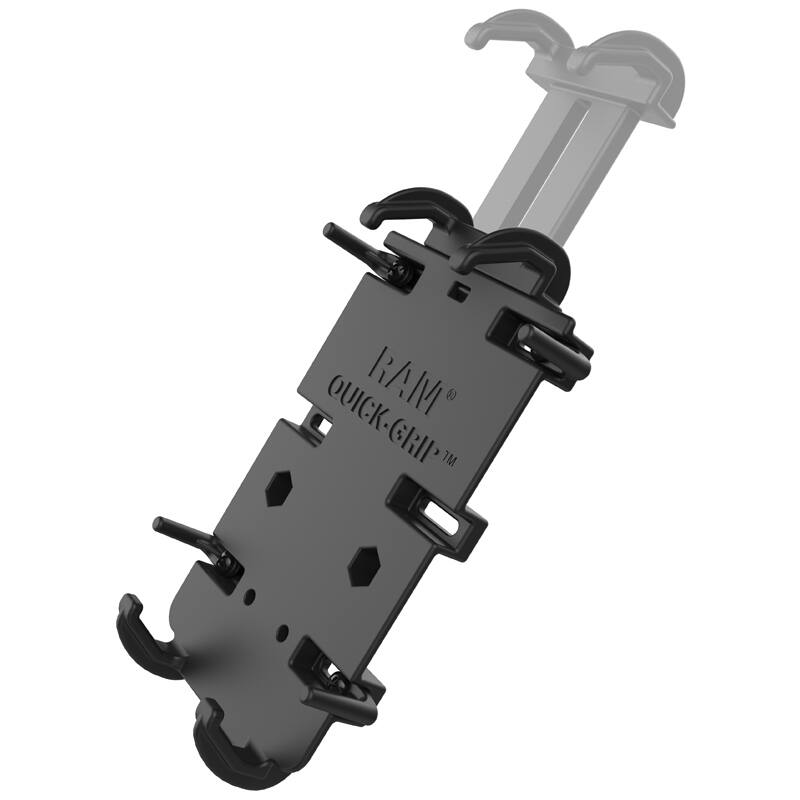

The cradle is the XL version of the spring-loaded RAM® Quick-Grip™ holder which provides a secure fit for a variety of large phones and other devices. The adjustable side keepers ensure that the device stays in place during rough driving and when in landscape mode. Featuring adjustable side supports that provide a secure fit for a variety of large phones and other devices. Devices like GPS units and Bluetooth speakers within the listed compatible dimensions will also fit in the holder.
Cradle Clamping Dimensions:
Height Range: 146.1mm to 184.1mm (5.75" – 7.25")
Width Range: 66.7mm to 92.1mm (2.625" – 3.625")
Max Depth: 18.3mm (0.72")

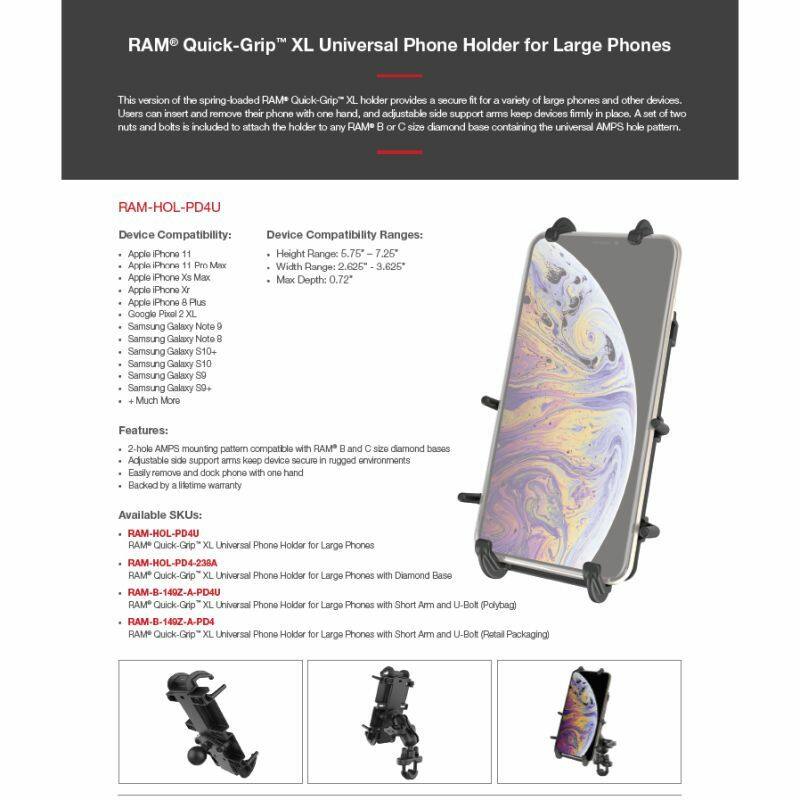

For a list of compatible devices check the listing for the RAM-HOL-PD4U
Specs & Features
Suction Size
84mm (3.3") Diameter
Arm Dimensions:
Overall Length:
94mm (3.69")
Socket-To-Socket Length:
76mm (3")
Ball/Socket Size
B Size (1")
Weight Capacity
Standard Use:
907 grams (2 lbs)
Heavy-Duty Use:
454 grams (1 lb)
Materials
Marine-grade aluminium
High strength composite
Weight
430 grams (0.95 lbs.)

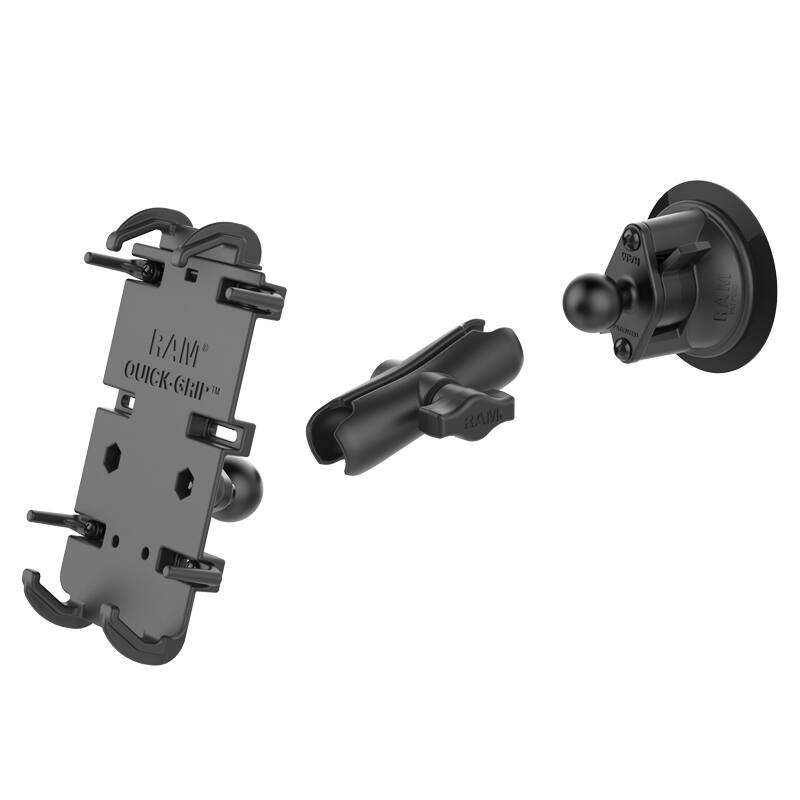

Components
RAM-B-201U DOUBLE SOCKET ARM FOR 1" BALL
RAM-HOL-PD4U Quick-Grip XL Spring Loaded Cradle for Larger Cell Phones
RAM-B-238U 62 X 33mm DIAMOND BASE W/ 1 BALL
RAM-B-224-1U 83mm DIA. SUCTION CUP BASE with 1" BALL
